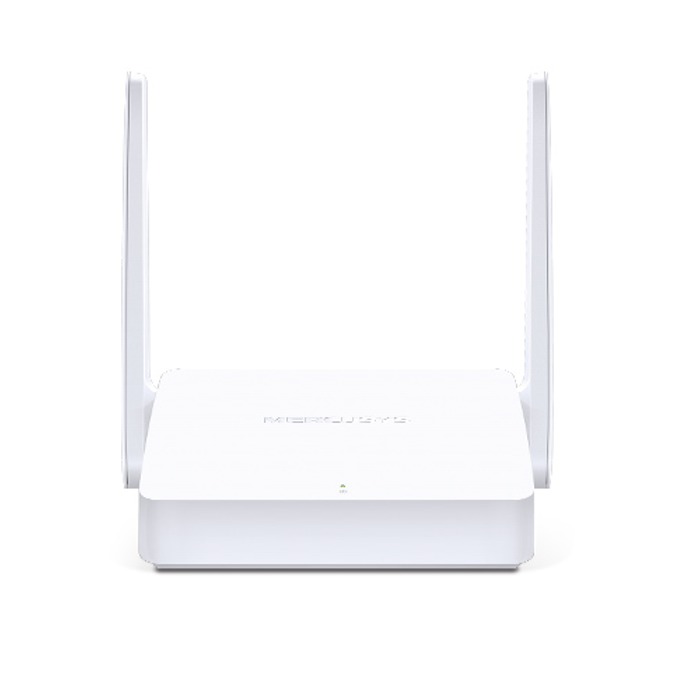

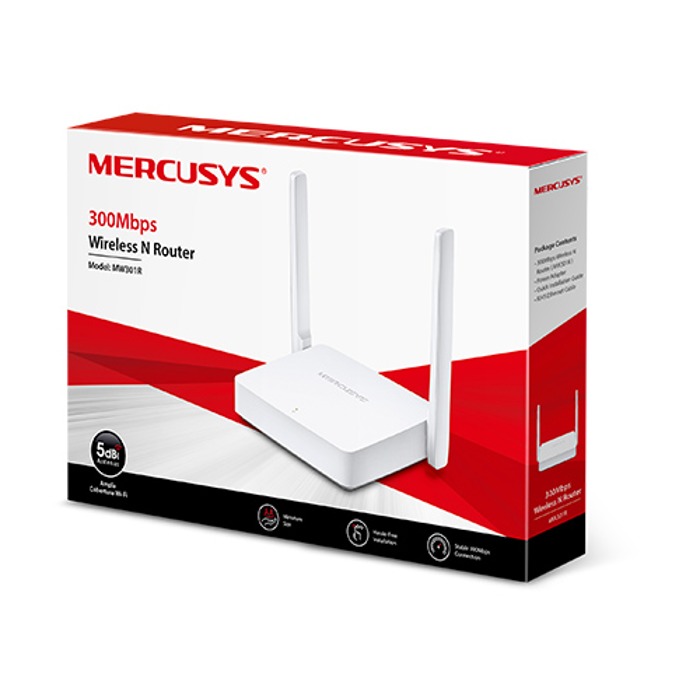

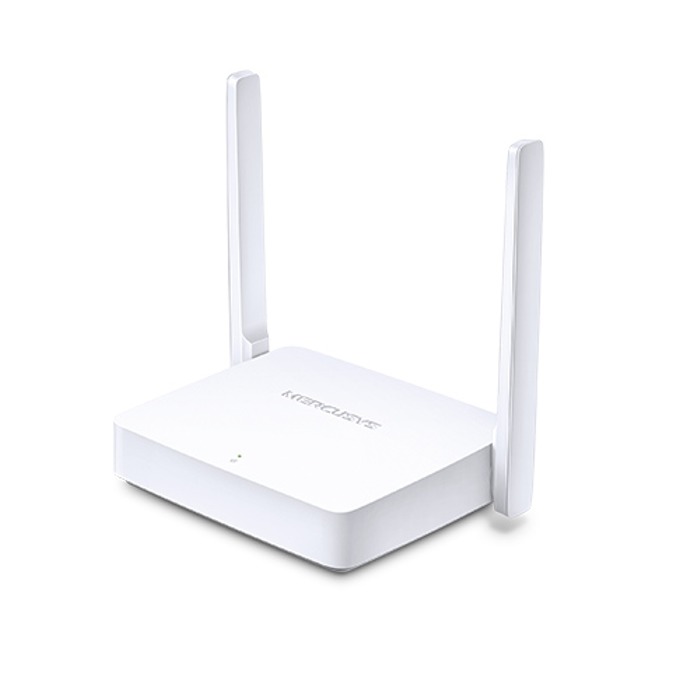

Рутер Mercusys MW301R

300Mbps Wireless N Router

- 300Mbps wireless transmission rate is ideal for basic work
- Two 5dBi antennas provides broad wireless coverage
- Intuitive webpage guides you through the setup process in minutes

Dimensions (W X D X H): 135.77 x 93.31 x 25.85mm

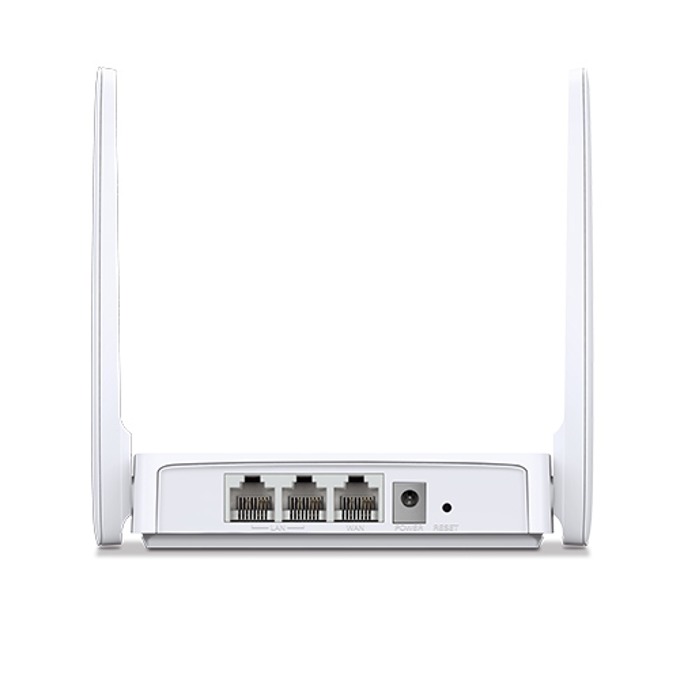

Interfaces
2x 10/100Mbps LAN ports
1x 10/100Mbps WAN port

Button: RESET
External Power Supply: 5VDC/0.6A
Antenna Type: 2 x 5dBi fixed omni directional antennas
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency: 2.4 - 2.4835GHz

Signal Rate

11n: Up to 300Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)

Reception Sensitivity

270M: -70dBm@10% PER
130M: -74dBm@10% PER
108M: -77dBm@10% PER
54M: -76dBm@10% PER
11M: -90dBm@8% PER
6M: -92dBm@10% PER
1M: -97dBm@8% PER

Certification: CE, ROHS

Environment:
Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)
Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)
Operating humidity: 10% ~ 90%, non-condensing
Storage humidity: 5% ~ 90%, non-condensing

Transmission Power: <20dBm
Wireless Security: 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Wireless Functions: WDS bridge
WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Parental Control
Access control
Local management
Remote management

DHCP: Server
Port Forwarding: Virtual server, UPnP, DMZ
Dynamic DNS: DynDNS、NO-IP
Firewall Security: IP and MAC address binding
Protocols: IPv4
Guest Network: 2.4GHz guest network
