Публичен дисплей Samsung LH22DBDPLGC
DBD Series digital signage offers you a winning combination of cost-efficiency, ease of installation and optimal performance that enables you to be more productive. The embedded, all-in-one 2nd Generation Samsung Smart Signage Platform (SSSP) boosts power and capacity while providing user-friendly content management. Without the need for external media players or PCs, the deployment process is streamlined, saving you time and resources. You can conveniently install this wireless, lightweight digital signage with narrow bezels for an impressive, modern look and clear message delivery 16/7 on bright, 350-nit screens.

Improve productivity and reduce operating costs by installing and configuring the signage solution with greater ease. The embedded, all-in-one 2nd Generation SSSP eliminates the need for a separate PC or media player to streamline digital signage operation and improve TCO. To boost efficiency, content deployment and sharing is simplified with a PC-less network connection that lets you plug in a USB and link multiple displays over a daisy chain configuration

DBD Series digital signage is powered by a significantly upgraded embedded 2nd Generation SSSP. The new quad-core SoC processor substantially improves performance with a remarkably faster processing speed for rich, seamless messaging. The increased power supports interactive digital signage capability that is available for all sizes through an optional Touch Overlay. This innovative feature amplifies your messaging with engaging interactivity, without the need for an additional PC. Now, schools, corporations and other businesses can offer interactive signage with less expense and difficulty. In addition, the 2nd Generation SSSP supports a picture-in-picture (PIP) size over 50 percent of the digital signage area for operational excellence, compared to less than 50 percent in dual-core digital signage.

Manage digital signage wirelessly virtually anywhere, anytime on a mobile device
With a convenient Wi-Fi dongle option, users can control and wirelessly distribute content to the digital signage solution using mobile devices for convenient content management. The ability to send and schedule content from a mobile device, instead of locating a PC that is connected to the digital signage or finding suitable cable connections simplifies display management.

Display
Diagonal Size: 21.5"
Технически характеристики
| Diagonal Size | 21.5" |
| Тип панел | 60 Hz E-LED BLU |
| Резолюция | 1920 x 1080 |
| Pixel Pitch (HxV) | 0.2482 (H) x 0.2482 (V) |
| Active Display Size (HxV) | 476.64 (H) x 268.11 (V) |
| Brightness (Typical) | 250 Cd/m2 |
| Контраст | 1000:1 |
| Viewing Angle (Horizontal/Vertical) | 178°:170° (CR≥5), 170°:160° (CR≥10) |
| Време за реакция | 5 ms |
| Display Colour | 16.7 M |
| Colour Gamut | 72% |
| H-Scanning Frequency | 30 ~ 81 kHZ |
| Maximum Pixel Frequency | 148.5 MHz |
| V-Scanning Frequency | 48 ~ 75 HZ |
| Peak Luminance Ratio | 90% |
| Dynamic Contrast Ratio | 50000:1 |

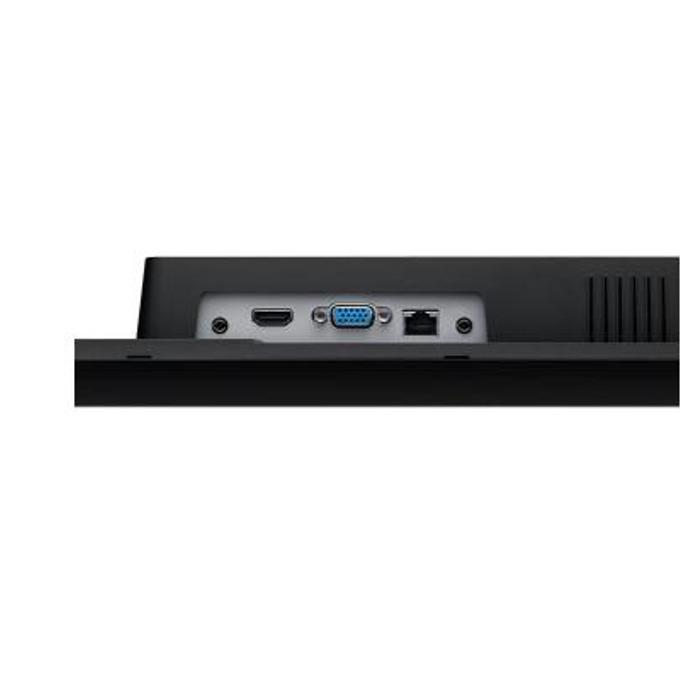

| RGB In | Analog D-SUB |
| Audio In | Stereo mini Jack |
| Video In | HDMI1 |
| Захранване | AC 100 - 240 V ~ (+/- 10 %), 50 / 60 Hz |
| Power Consumption (Off Mode) | less than 0.5 W |
| Power Consumption (On Mode) | Max:40, Typical:30, BTU(Max):136.4 |
| Power Consumption (Sleep Mode) | less than 0.5 W |
| Power Consumption (IEC 62087 Edition 2) | 31.0 W |
| Power Consumption (Stand-by) | 0.30W |
| Set Dimension (WxHxD) | 507.5 x 311.2 x 57.8 mm |
| Package Dimension (WxHxD) | 570 x 376 x 128 mm |
| Set Weight with Stand | 3.3 kg |
| Package Weight | 4.5 kg |
| Температура | 0 ~ 40°C |

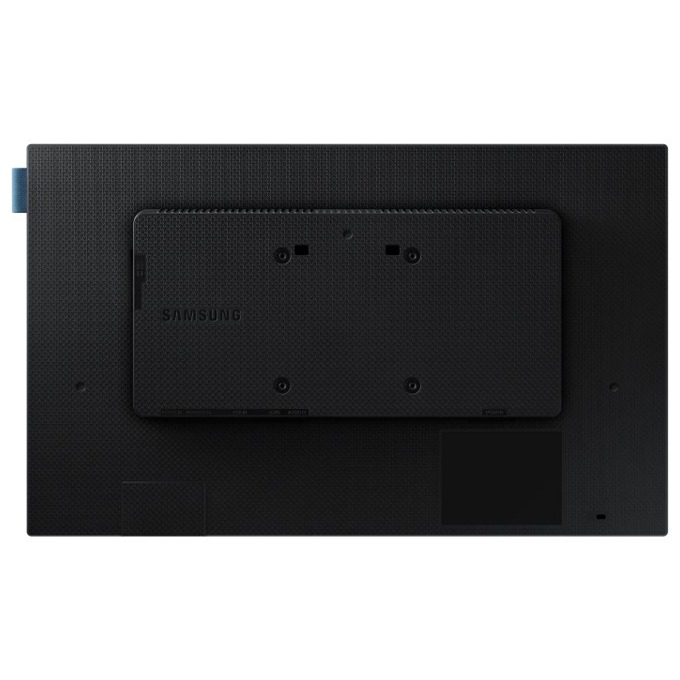

| VESA Mount | 100ⅹ100 mm |
| Bezel Width | 14.85 mm |
| Media Player Option Type | embedded |
| Високоговорител | Built in Speaker(1W x 2) |
