Ubiquiti

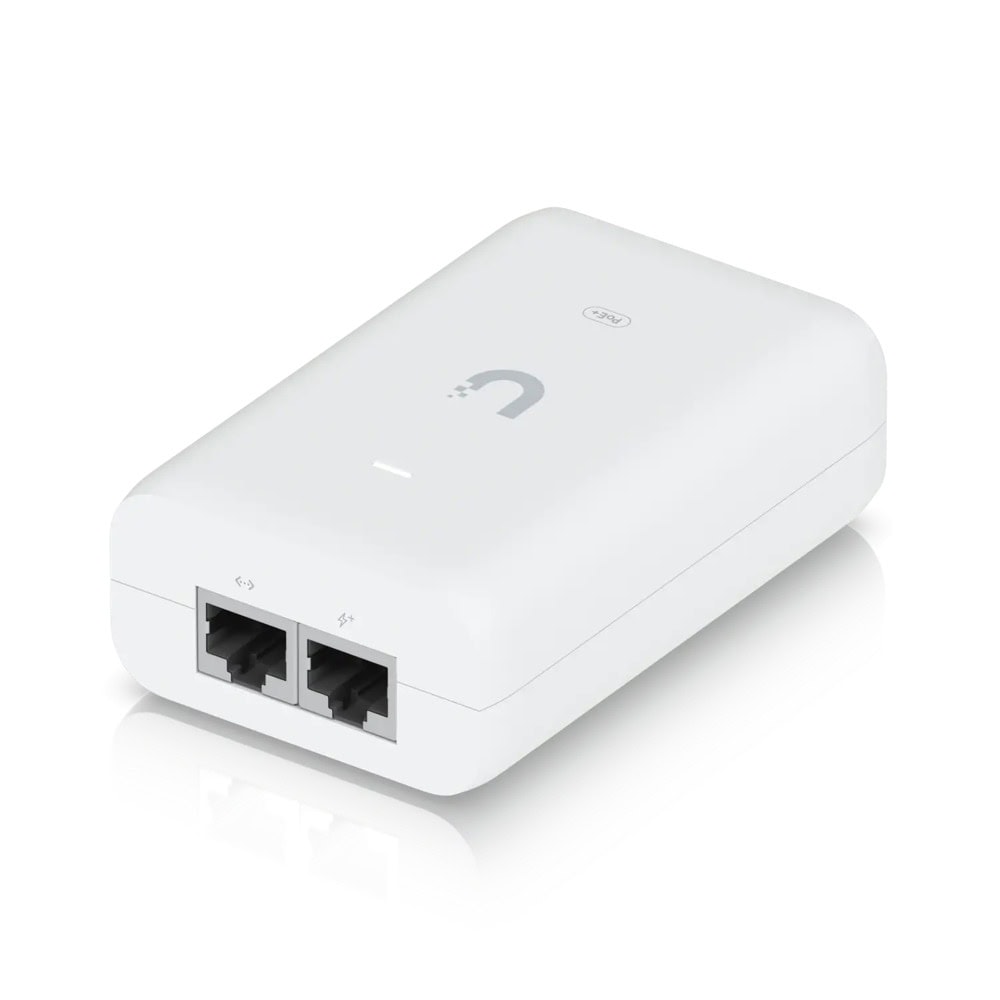

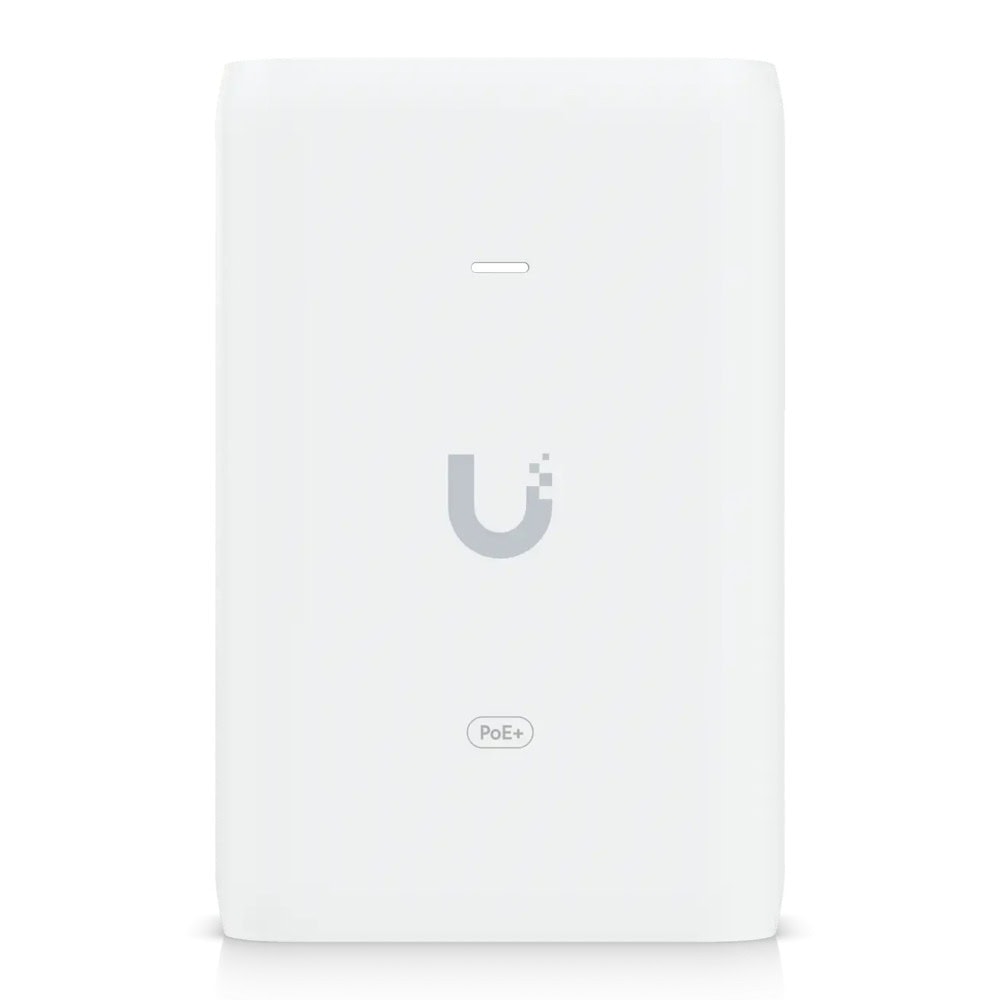

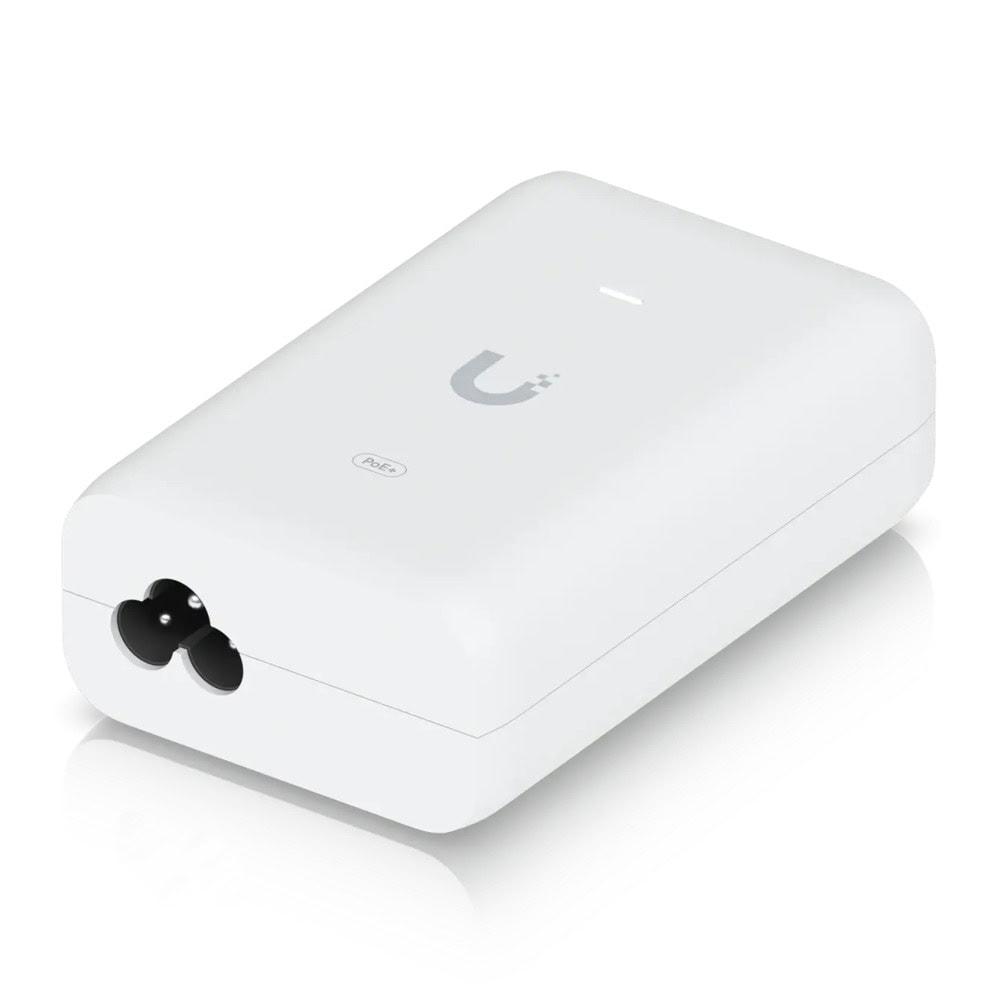

PoE инжектор Ubiquiti U-POE-PLUS
Артикул №: 1000139955
Категория:
Мрежови адаптери
20,99 €
✓ Налично в централен склад
Характеристики
| PoE+ Adapter (30W) | |
| Category: | |
| Dimensions93 x 62 x 35 mm (3.7 x 2.4 x 1.4") | |
| Weight156 g (5.5 oz) | |
| Output Voltage48V DC @ 0.65A | |
| Rated Voltage100–240V AC @ 50/60Hz | |
| Input Current0.75A Max. | |
| Inrush Current | |
| Efficiency87% | |
| Switching Frequency70 kHz Max. | |
| Output Ripple1% Max. | |
| Line Regulation≤ 3% | |
| Load Regulation≤ 5% | |
| Gigabit LAN PortYes | |
| 2-pair PoweringPins 4, 5 (+) and 7, 8 (-) | |
| AC ConnectorIEC-320 C6 | |
| Clamping Protection11V Data, 60V Power | |
| Data In / PoERJ45 Shielded Socket | |
| Peak Pulse Current36A (10/1000 μs) data | |
| Време за реакция | |
| Shunt Capacitance | |
| Surge ProtectionDifference and Common Mode | |
| Storage Temperature-30 to 70°C (-22 to 158°F) | |
| Ambient Operating Temp.0 to 40°C (32 to 104°F) |
