TP-Link

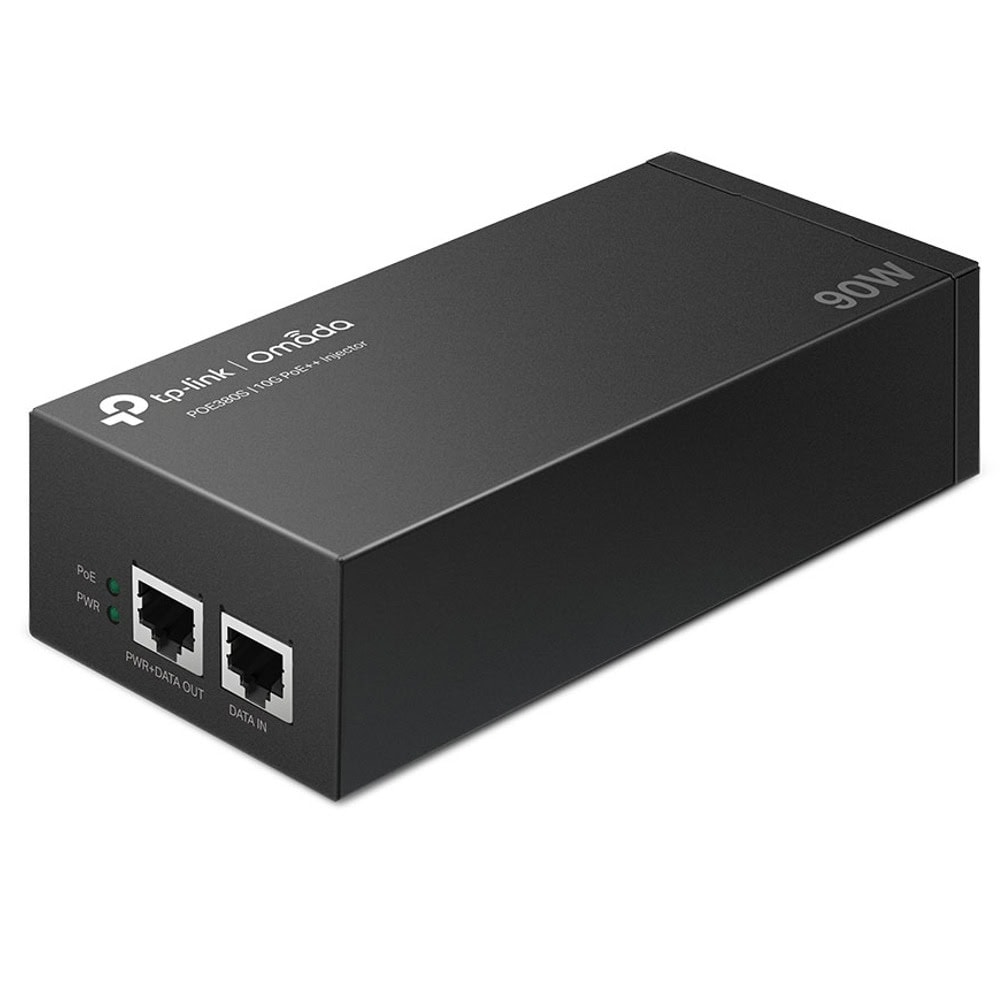

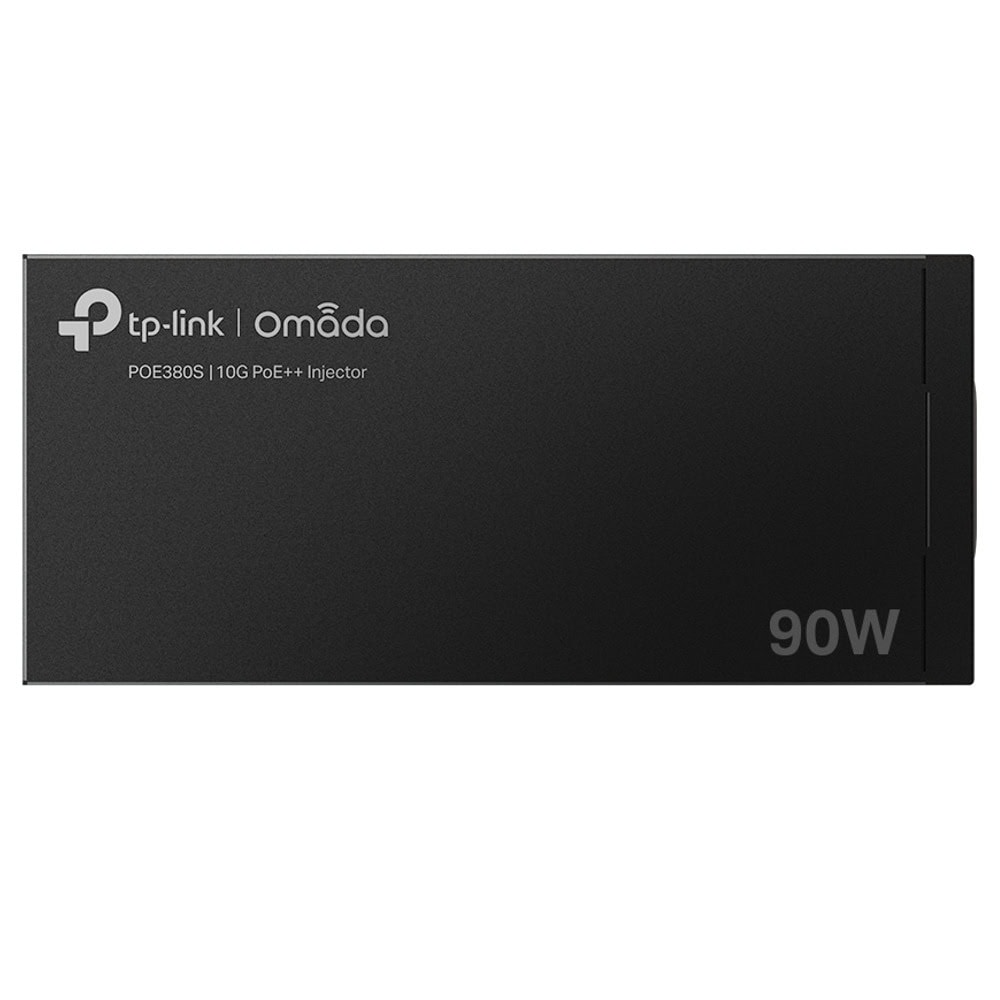

PoE инжектор TP-Link Omada POE380S
Артикул №: 1000032125
Категория:
Жични мрежи аксесоари
87,99 €
✓ Налично във външен склад
POE380S
Omada PoE++ Injector

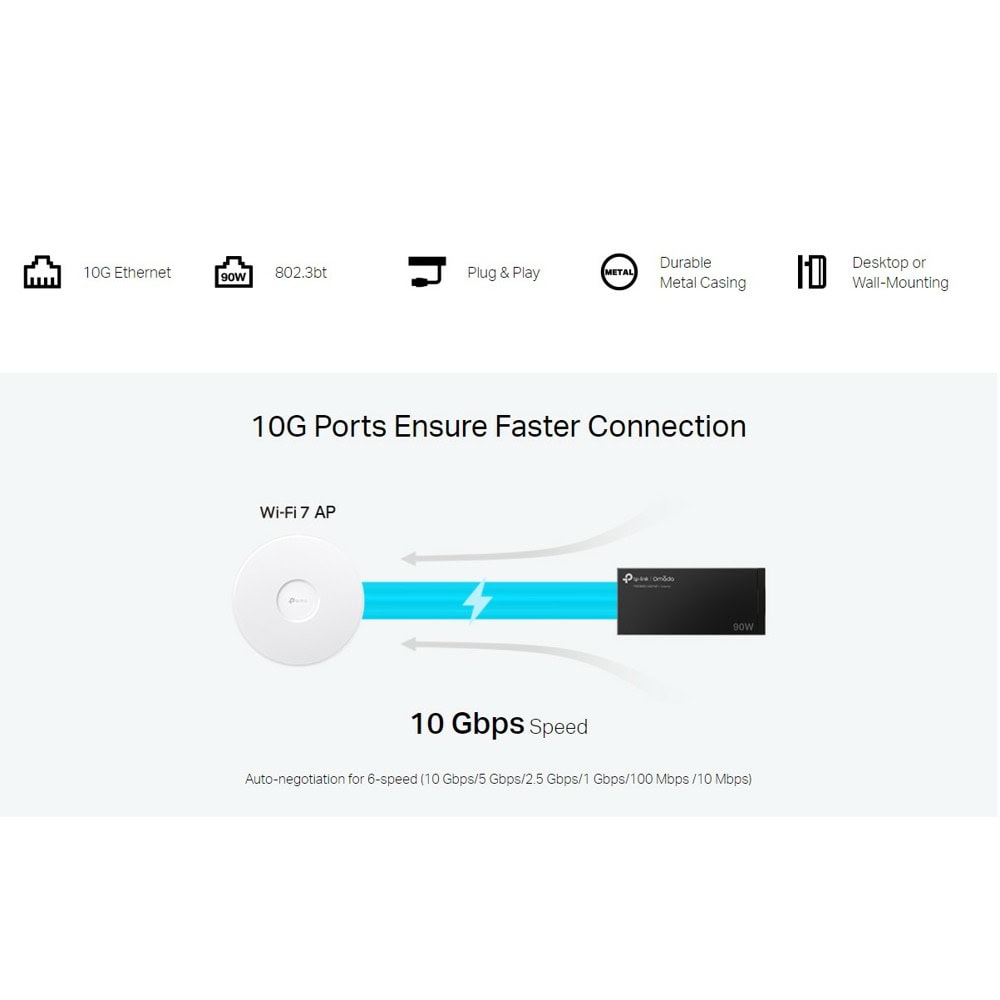

- 2× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 ports ensure faster transmission
- Complies with IEEE802.3af/at/bt standards, supplies up to 90 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios

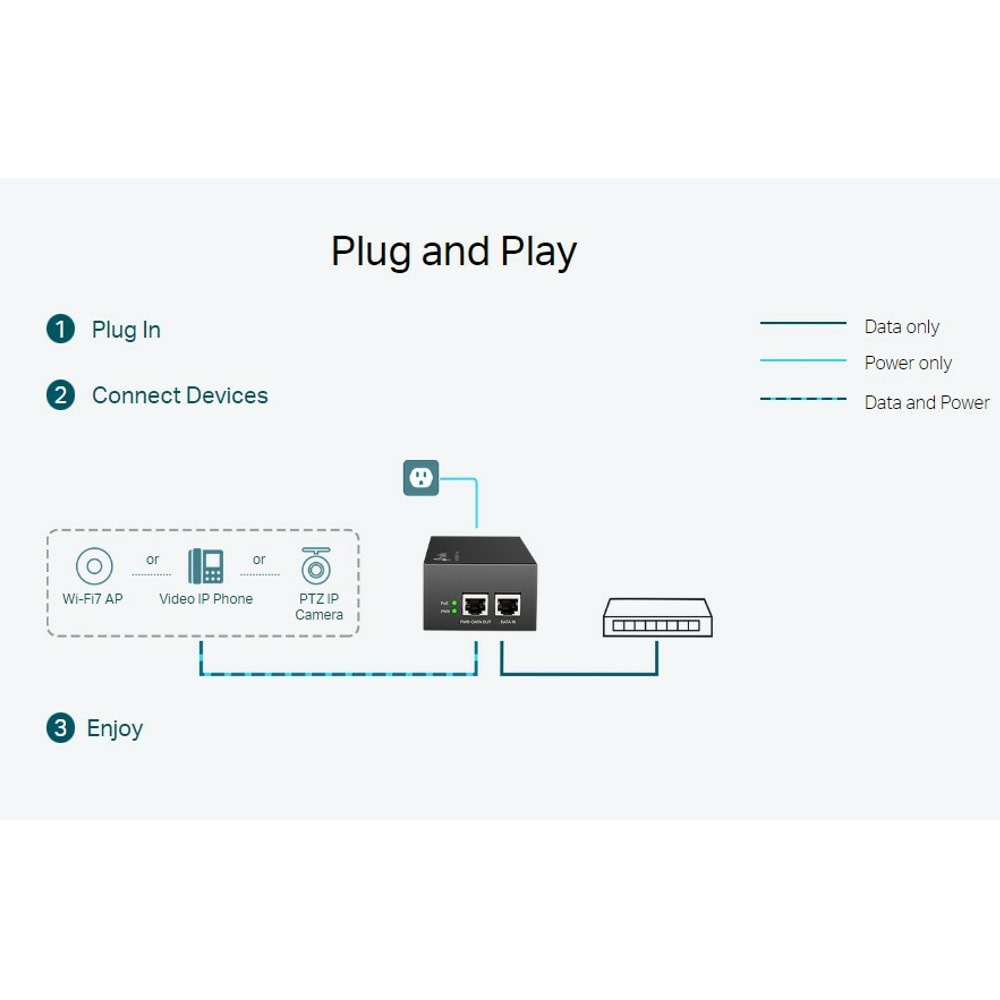

- Plug & Play installation, no configuration required
- Integrated power supply
- Durable metal casing
ХАРДУЕРНИ ХАРАКТЕРИСТИКИ
| Стандарти и протоколи | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt* |
| Мрежова медия | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) · EIA/TIA-568 100Ω STP (maximum 100 m) · • 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) · EIA/TIA-568 100Ω STP (maximum 100 m) · • 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) |
| Портове | • 1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 data-in port · • 1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 power+data-out port (Max. 90 W) · • 1× AC socket |
| Консумирана енергия | • Input: 100-240 V, 50/60 Hz, 1.6A · • Output: Auto-determine the necessary power requirements (max. 90 W) |
| Базови функции | • Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD · • Auto-determine the necessary power requirements · • Wall-mounting and desktop installation · • Plug-and-Play |
| LED | Power / PoE |
| Размери (Ш x Д x В ) | 6.1*2.8*1.7 in (155*70*42 mm) |
ДРУГИ
| Сертификати | FCC, CE, RoHS |
| Съдържание на пакета | • POE380S · • Power Cord · • Installation Guide |
| Околна среда | • Operating Temperature: 0°C to 45°C (32°F to 113°F) · • Storage Temperature: -40°C to 70°C (-40°F to 158°F) · • Operating Humidity: 10% to 90%RH non-condensing · • Storage Humidity: 5% to 90%RH non-condensing |
