Kingston
Памет 16GB (2x8GB) DDR5 5600MT/s
Артикул №: 1000126220
Категория:
Компютърни компоненти
317,99 €
✓ Налично във външен склад
DESCRIPTION

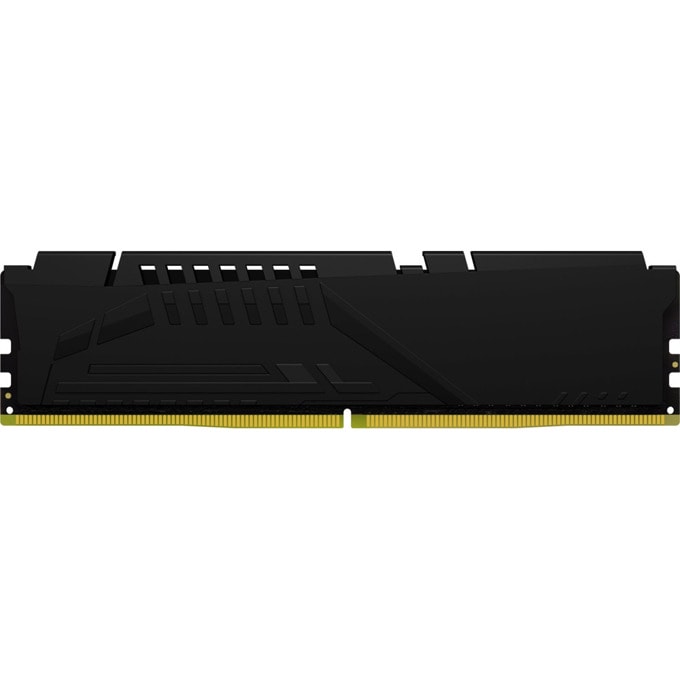

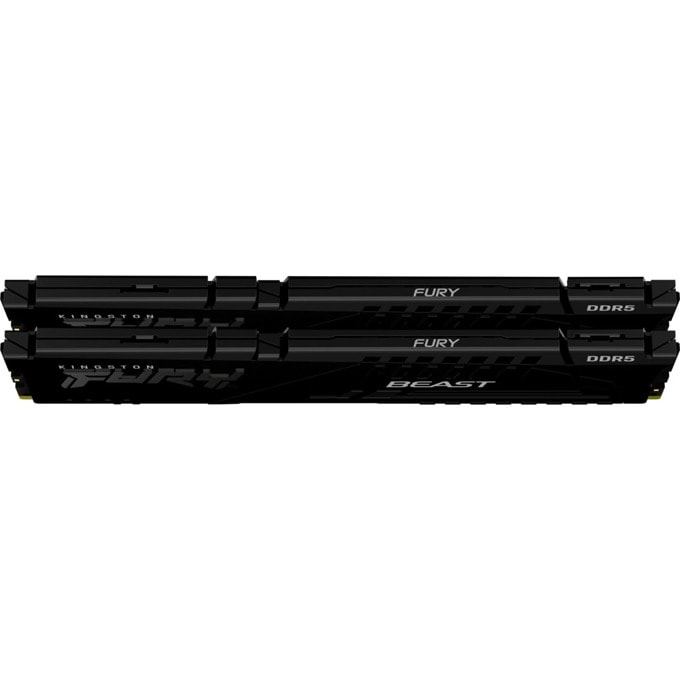

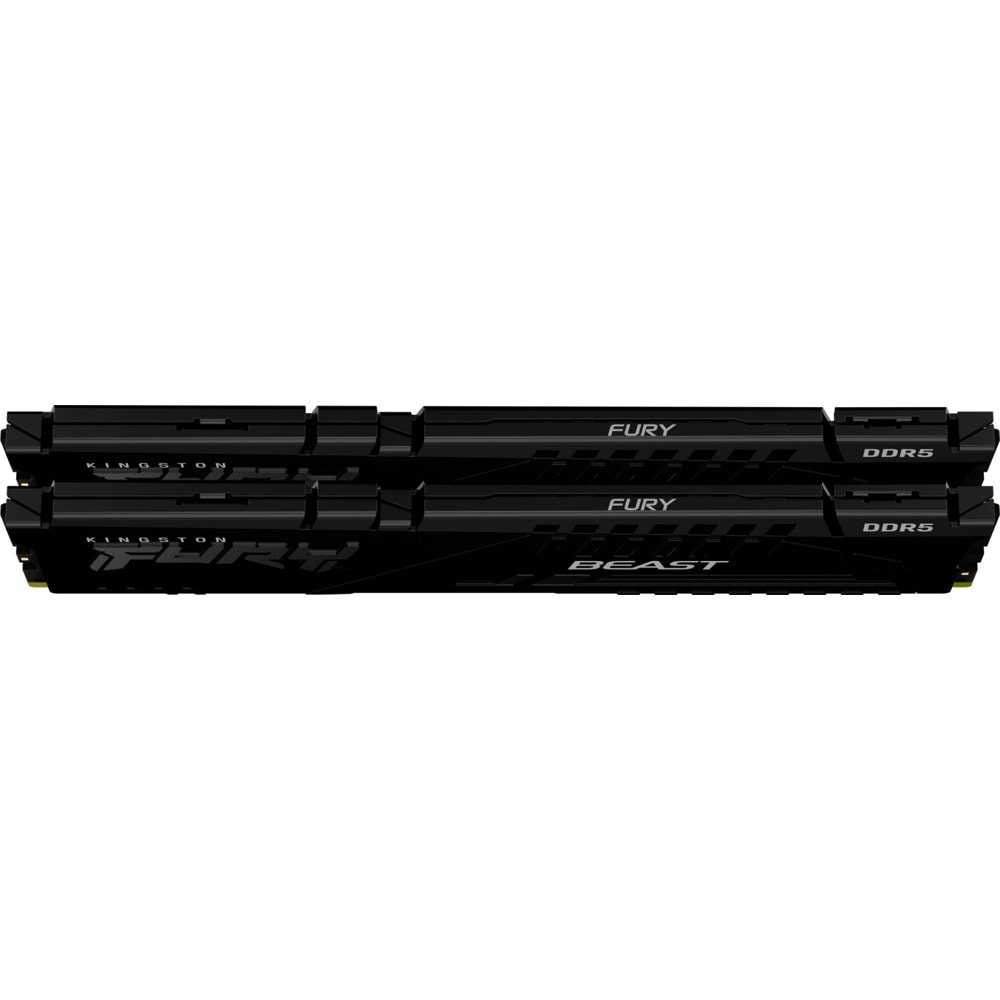

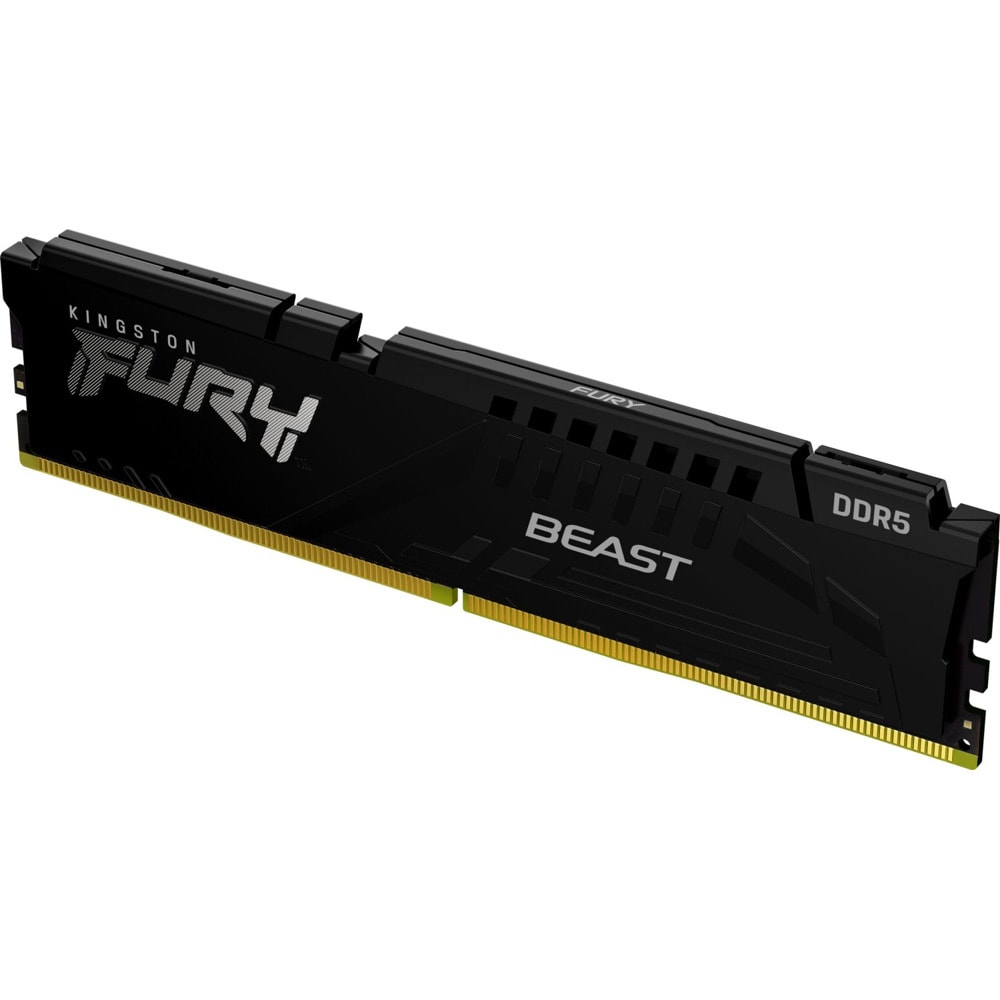

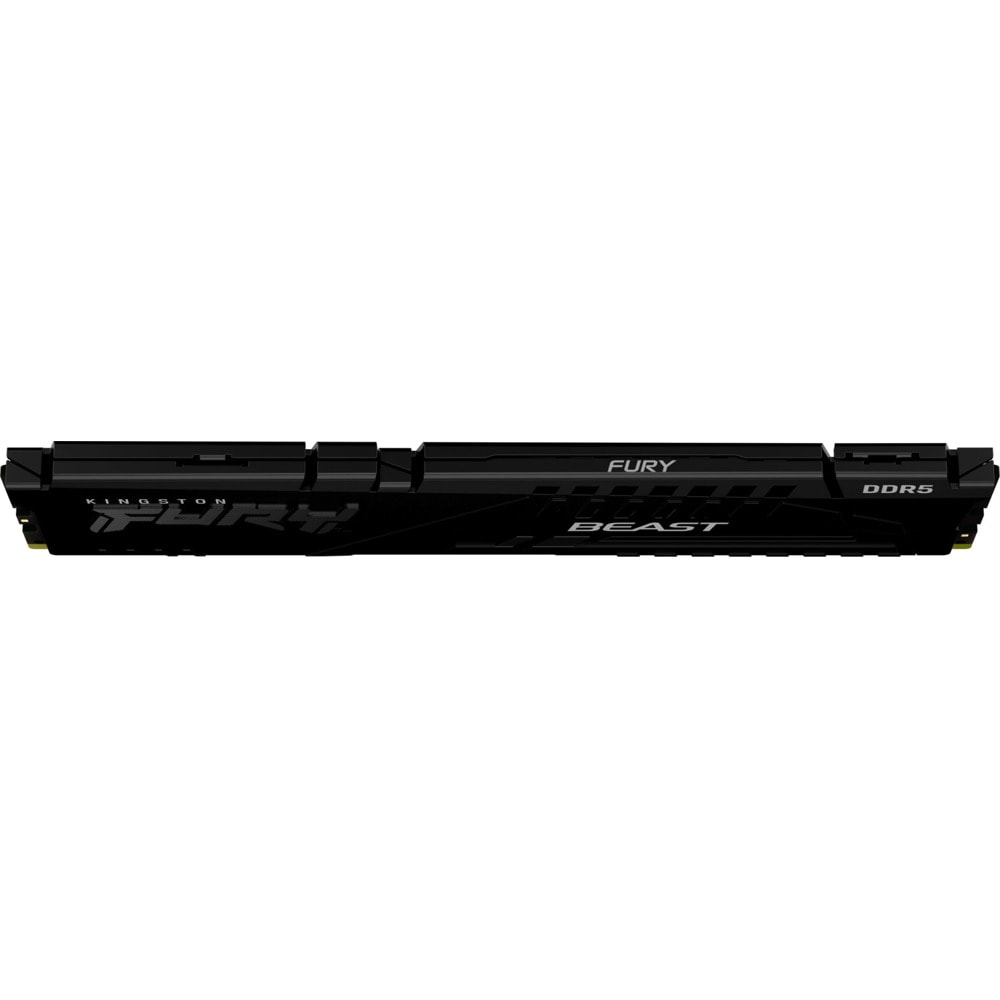

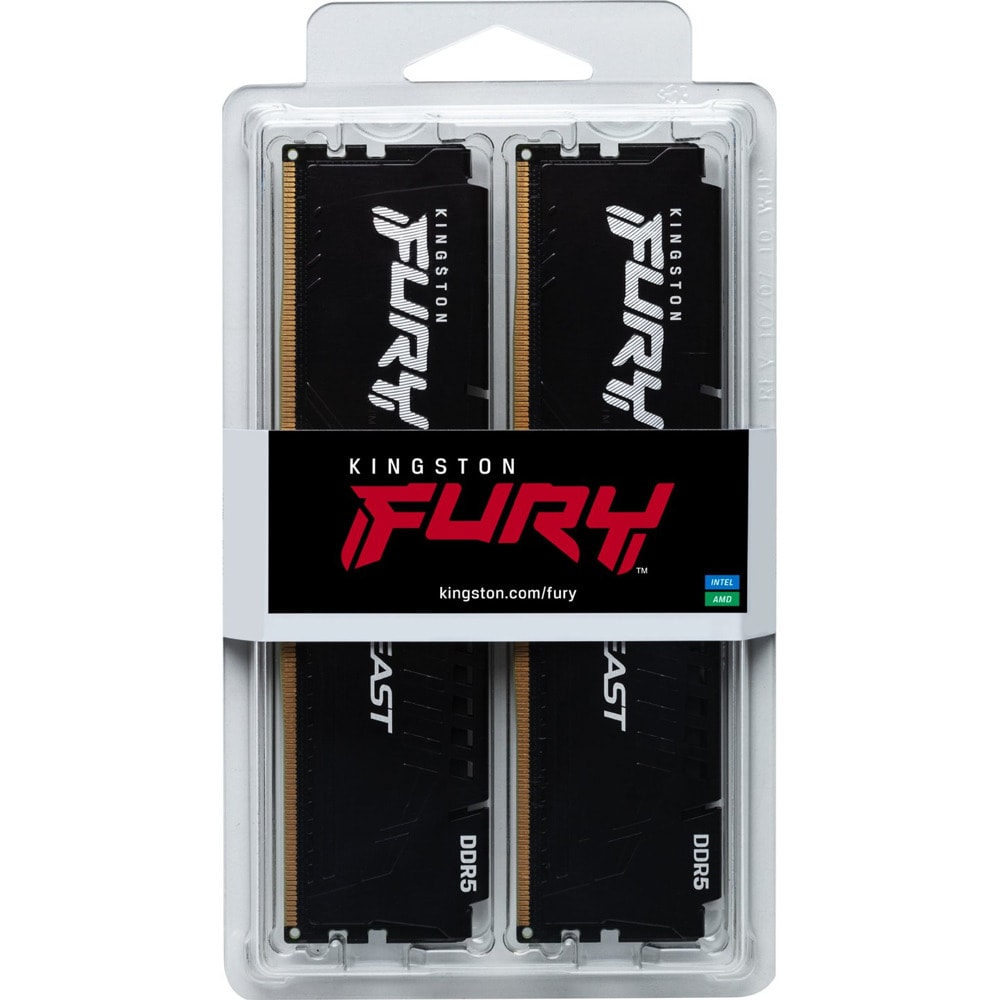

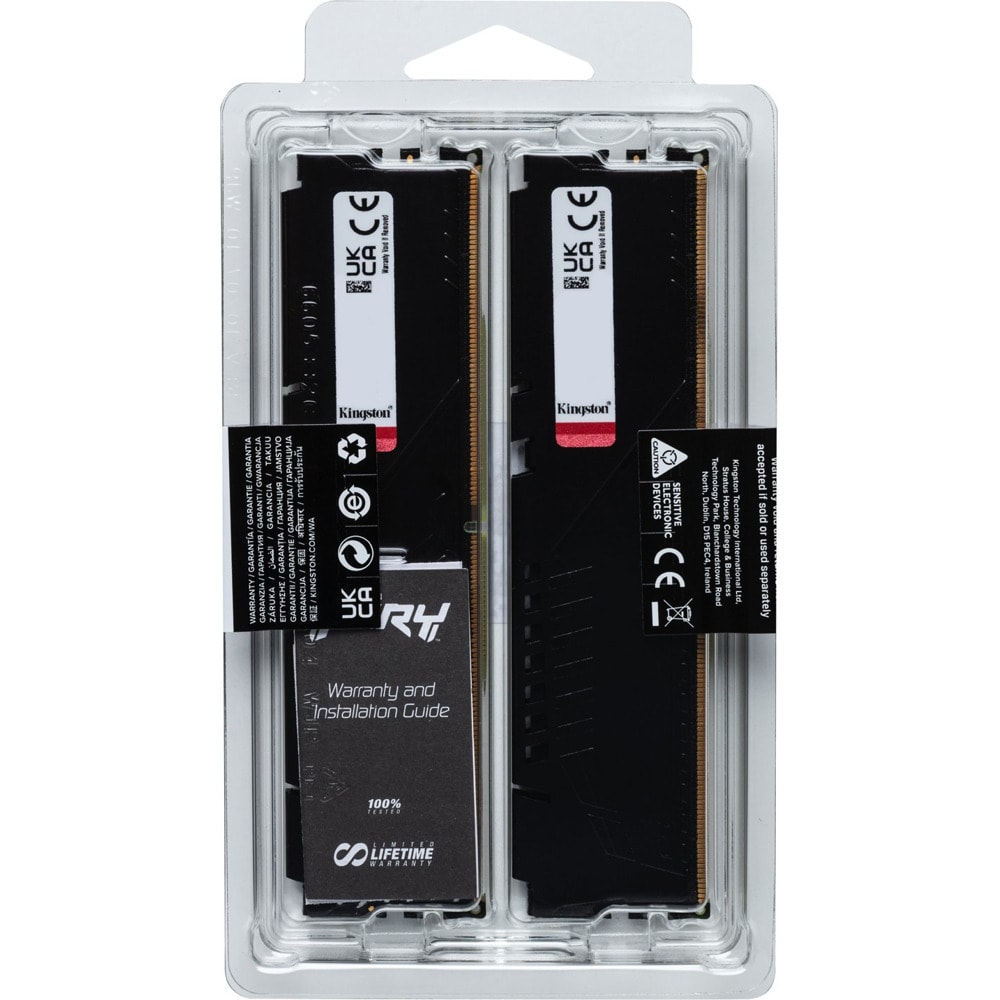

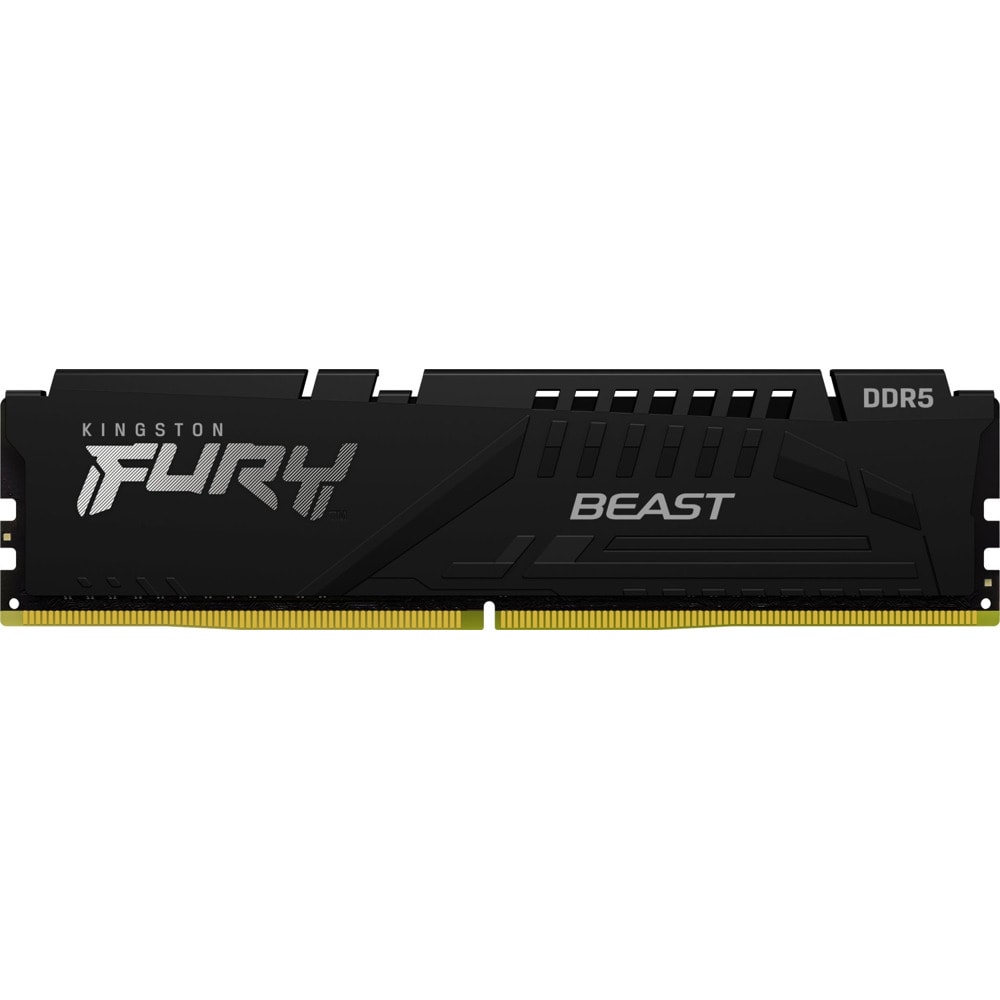

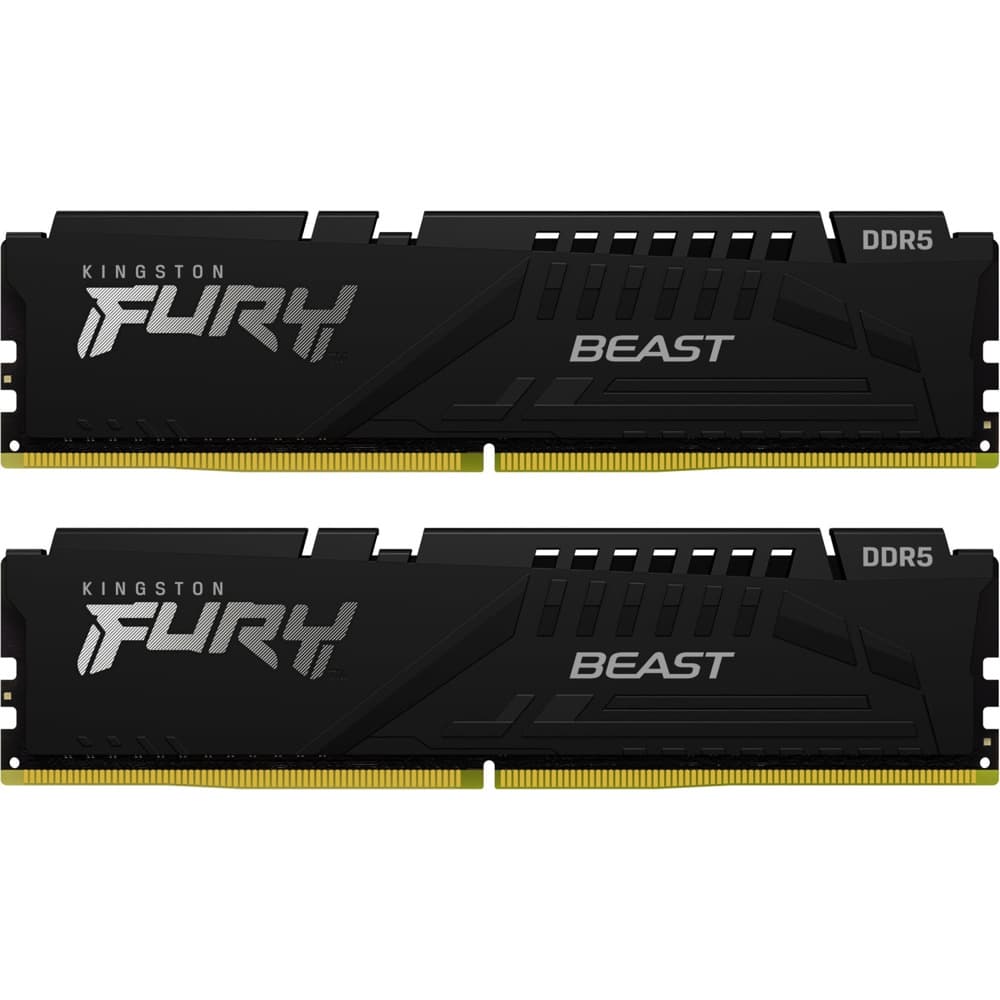

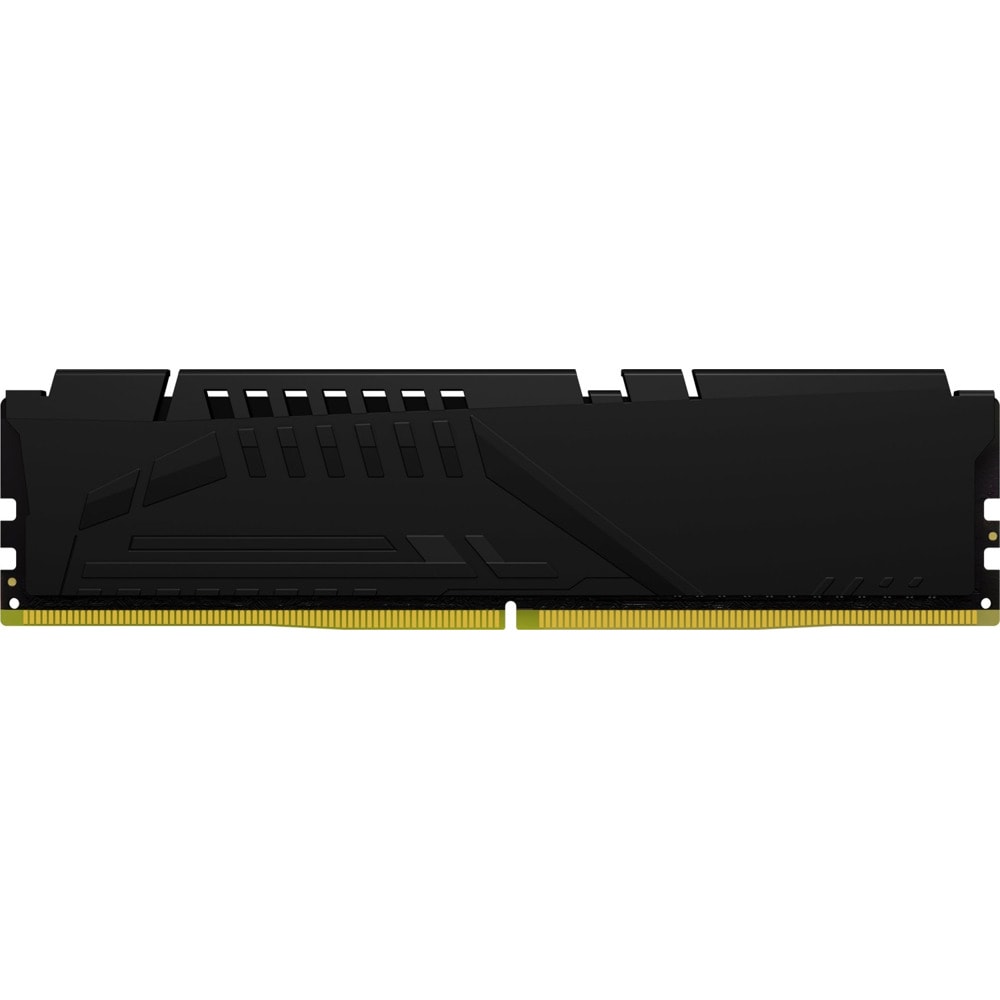

Kingston FURY KF556C40BBK2-16 is a kit of two 1G x 64-bit (8GB)
DDR5-5600 CL40 SDRAM (Synchronous DRAM) 1Rx16, memory
module, based on four 1G x 16-bit FBGA components per module.
Each module kit supports Intel® Extreme Memory Profiles
(Intel® XMP) 3.0. Total kit capacity is 16GB. Each module
has been tested to run at DDR5-5600 at a low latency timing of
40-40-40 at 1.25V. The SPDs are programmed to JEDEC
standard latency DDR5-4800 timing of 40-39-39 at 1.1V.
Each 288-pin DIMM uses gold contact fingers. The JEDEC
standard electrical and mechanical specifications are as
follows:
Характеристики
| Row Cycle Time (tRCmin)48ns(min.) | Да |
| Refresh to Active/Refresh Command Time (tRFCmin)295ns(min.) | Да |
| Row Active Time (tRASmin)32ns(min.) | Да |
| UL Rating94 V - | 0 |
| Operating Temperature0 C to +85 C | Да |
| Storage Temperature-55 C to +100 C | Да |
| Характеристики | Да |
| Захранване | VDD = 1.1V Typical |
| VDDQ = | 1.1V Typical |
| VPP = | 1.8V Typical |
| VDDSPD = | 1.8V to 2.0V |
| On-Die ECC | Да |
| Височина | 1.37” (34.9mm), w/heatsink |
| FACTORY TIMING PARAMETERS | Да |
| Default (JEDEC) | DDR5-4800 CL40-39-39 @1.1V |
| XMP Profile #1 | DDR5-5600 CL40-40-40 @1.25V |
| XMP Profile #2 | DDR5-5200 CL40-40-40 @1.25V |
| XMP Profile #3 | DDR5-4800 CL38-38-38 @1.1V |
