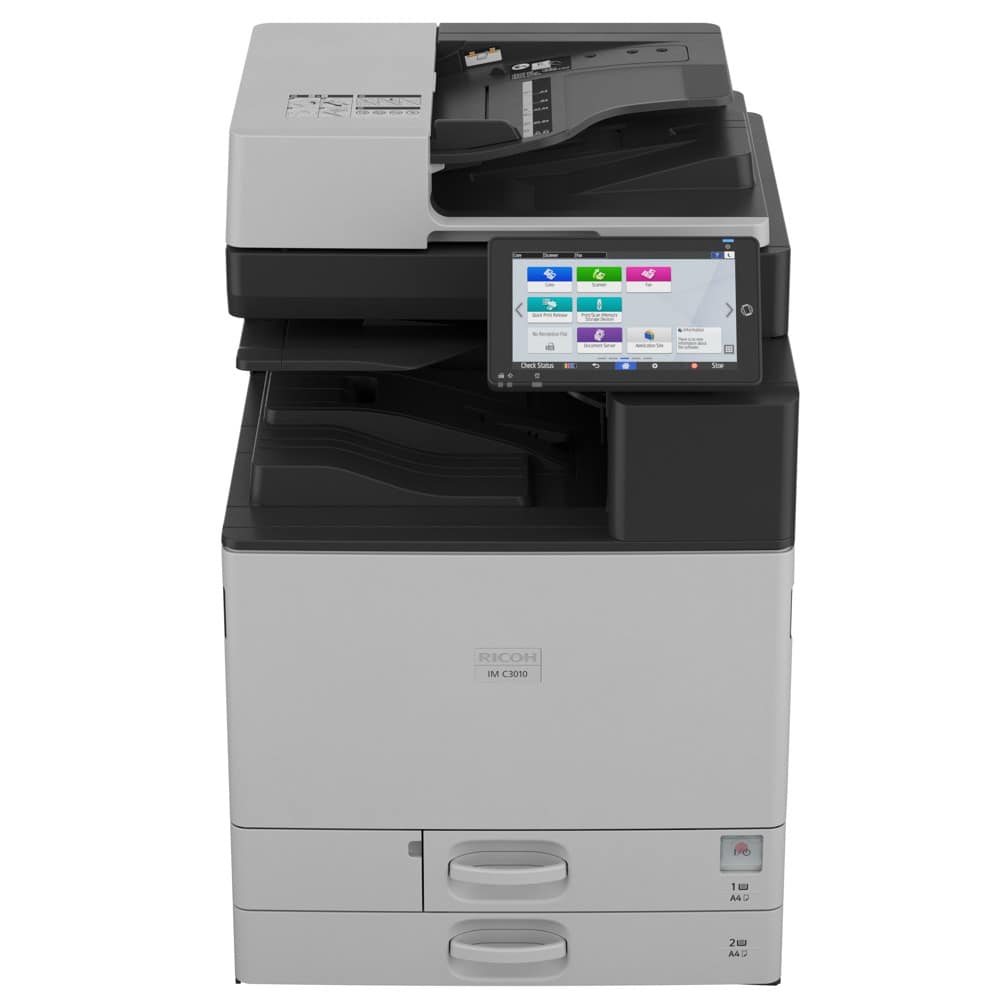

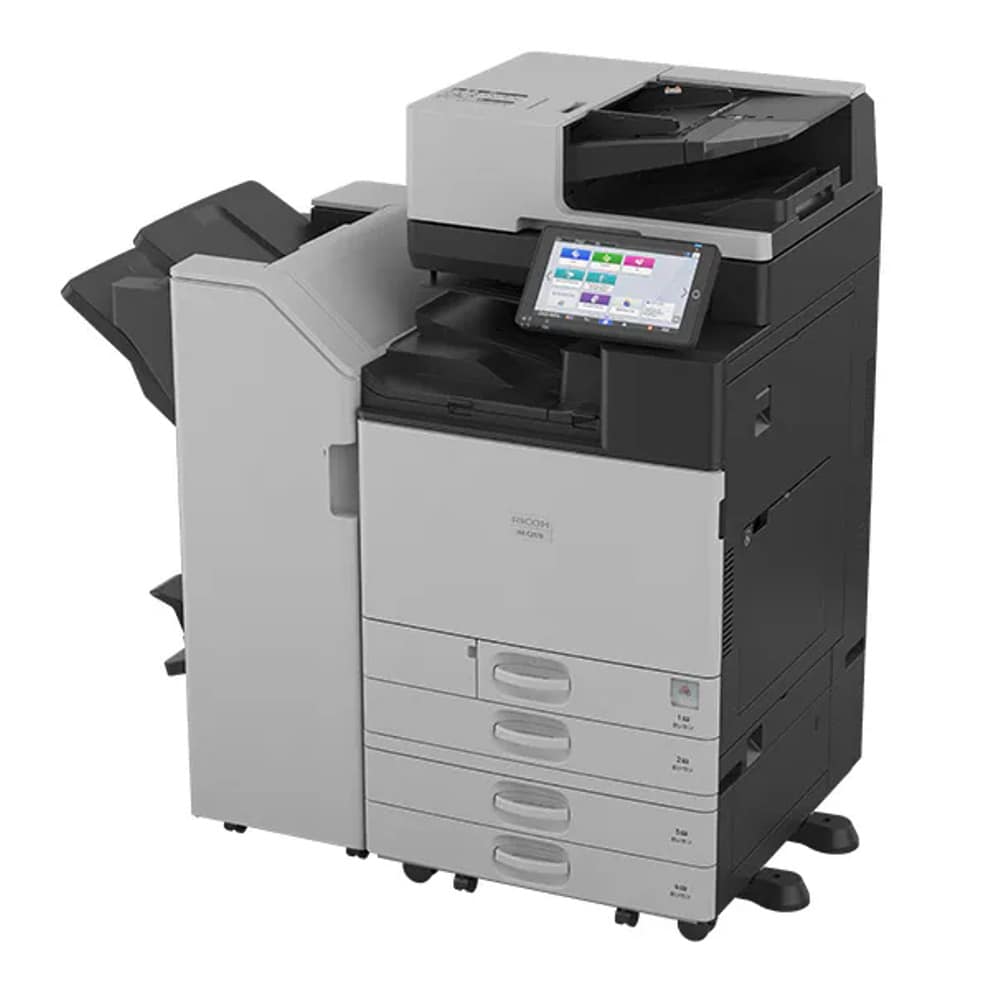

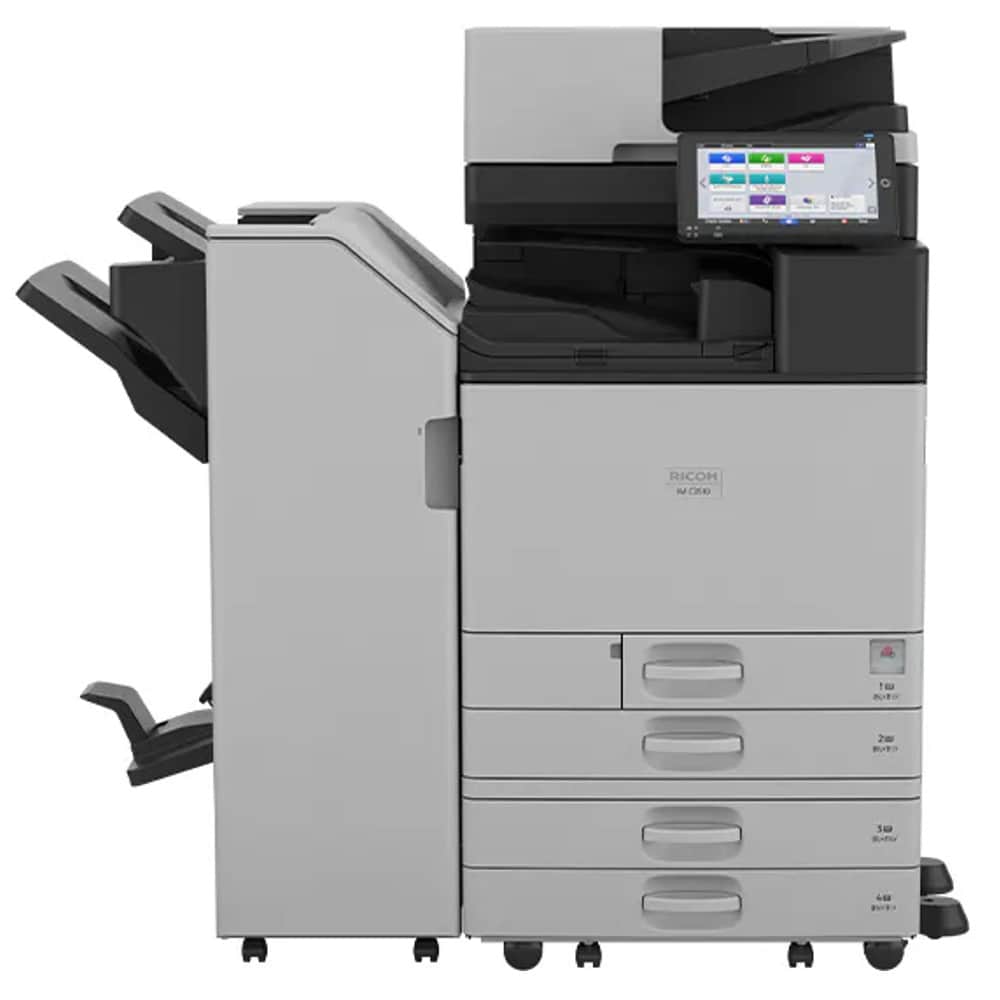

Мултифункционално лазерно устройство Ricoh IM C3010

Ricoh IM C3010

Engine/General Specs

ConfigurationConsole

Printing Process4-Drum Method

Control Panel10.1" Smart Operation Panel

Color/Black & WhiteColor

Output Speed Copy/Print30 ppm B&W & FC (LTR)

First Page Out Time4.0 seconds B&W 6.6 seconds Color

Warm-Up Time25 seconds

Resolution600 dpi

System Memory4 GB RAM Mainframe + 4 GB RAM Panel/256 GB SSD

Maximum Copy QuantityUp to 999 copies

DuplexingAutomatic (Standard)

Document Feeder TypeSingle Pass Document Feeder (SPDF)

Single Pass Document Feeder (SPDF)Original Capacity: 220 sheets Original Size: 2" x 3.5" - 11.7" x 17" (A6-A3, B8-B4) Paper Weight: Simplex/Duplex: 38 – 220 g/m2 (A6 or larger); 64 – 220g/m2 (smaller than A6) (need to be updated)

Zoom Range25% - 400% in 1% increments

Supported Paper Sizes1st Paper Tray: 8.5" x 11" (A4) 2nd Paper Tray: 5.5" x 8" - 12" x 18" (A6-A3, B4-B6), Envelopes Bypass: Up to 12" x 18", Envelopes Custom Sizes: Width: 3.5" - 12.6" (90 - 320 mm), Length: 5.8" - 49.6" (148 - 1260 mm)

Supported Paper WeightsStandard Trays: 16 - 80 lb./166 lb. Index (60 - 300 g/m2) Bypass Tray: 14 - 80 lb./166 lb. Index (52 - 300 g/m2) Duplex Unit: 14 - 45lb./142 lb. Index (52 - 169 g/m2)

Supported Paper TypesPlain, Recycled, Special, Colored, Letterhead, Cardstock, Pre-printed, Coated, Envelope, Label, Gloss

Standard Paper Capacity1,200 sheets (2 x 550 sheets + 100-Sheet Bypass Tray)

Maximum Paper Capacity4,700 sheets (w/Tandem LCT + Side LCT)

Standard Output Capacity500 sheets 8.5" x 11" (A4) or smaller; 250 sheets (B4) or larger

Maximum Output Capacity1,625 sheets

Maximum Monthly Volume20000

Power Source120V - 127V, 60Hz

Typical Electricity Consumption (TEC)0.304 kWh/week TEC value is measured based on the ENERGY STAR Ver.3.0 test method.

Power ConsumptionLess than 1,584 W; Sleep Mode: 0.3W

EPEAT StatusGold

Dimensions W x D x H587 mm x 685 mm x 963 mm

Weight99.3 kg

Print specs

Processor SpeedIntel Apollo Lake 1.3 GHz

InterfacesStandard: Ethernet 10 base-T/100 base-TX/1000 base-T, USB Host I/F Type A, USB Device I/F Type B Option: Wireless LAN (IEEE 802.11a/b/g/n/ac)

Network ProtocolTCP/IP (IPv4, IPv6)

Supported Operating SystemsWindows 8.1/10/11/Server2012/Server2012R2/Server 2016/Server 2019/Server 2022; Unix: Sun Solaris, HP-UX, SCO OpenServer, RedHat Linux, IBM AIX, Mac OS X v.10.15 or later, SAP R/3, SAP S/4, IBM iSeries AS/400-using OS/400 Host Print Transform

Device Management UtilitiesWeb Image Monitor, @Remote

Printer LanguagesStandard: PCL5c, PCL6, PostScript3 Emulation, PDF Direct Print Emulation Optional: Genuine Adobe PostScript3, Adobe PDF Direct Print

Font SupportStandard: PCL/PS 3 Emulation: 80 Roman fonts + 13 International fonts Optional: Genuine Adobe PostScript3: 136 Roman fonts

Print ResolutionUp to 1200 x 1200 dpi

Mobile Printing SupportApple AirPrint, Mopria, Ricoh Smart Device Connector

Security FeaturesDataOverwriteSecurity System (DOSS) with optional HDD, SSD Encryption, User Codes, SNMP v3 Support, Encryption, Locked Print, User Authentication, 802.1x Wired Authentication, Quota Setting/Account Limit, Digitally Signed PDF, and more

Scanner specs

Scan Speed (B&W & Full Color)150 ipm (simplex)/300 ipm (duplex)

Scanning ResolutionUp to 1200 dpi

Scan AreaUp to 11" x 47.2" (297 - 1200 mm)

File FormatsSingle Page: TIFF, JPEG, PDF, PDF/A, High Compression PDF, encryption PDF, OCR* Multi Page: TIFF, PDF (Default), PDF/A, High Compression PDF, encryption PDF, OCR*

Scan ModesE-mail, Folder, USB, FTP
