Мрежови диск (NAS) Synology RS1221+

Този продукт е тестван и одобрен от Synology

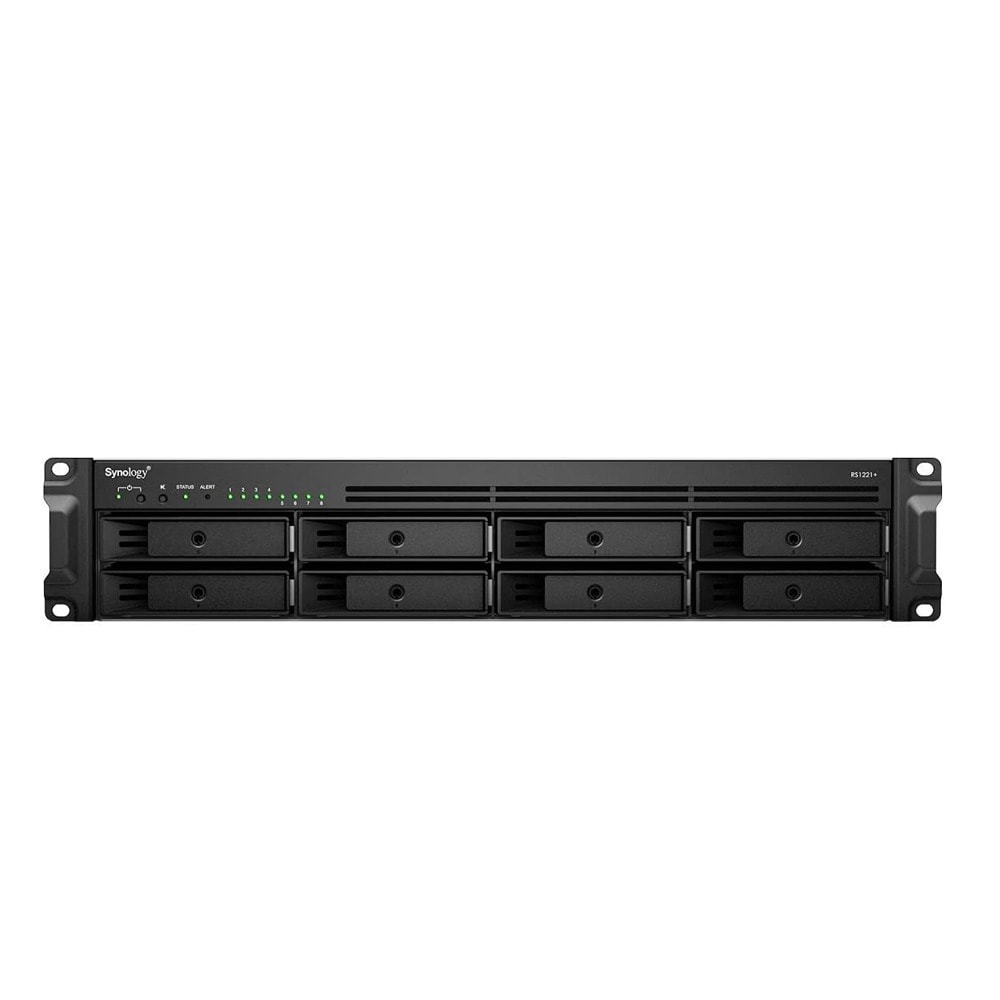

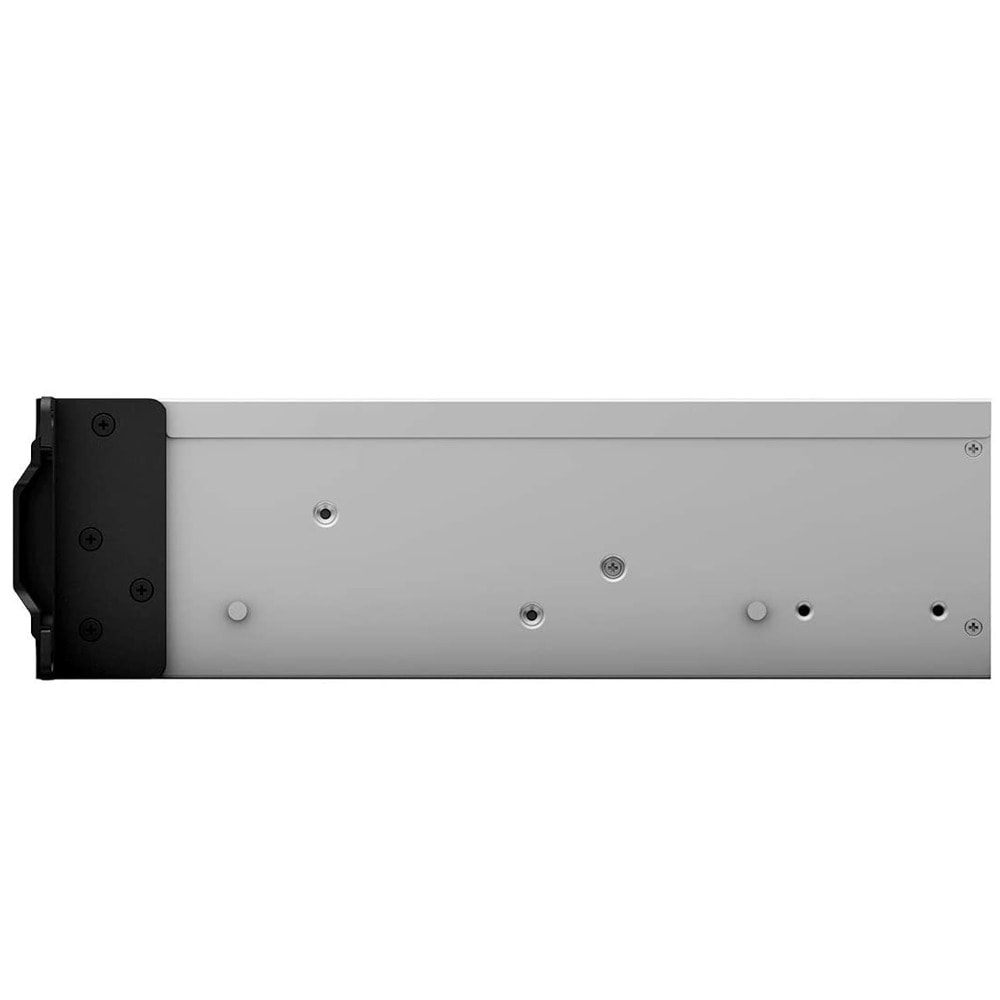

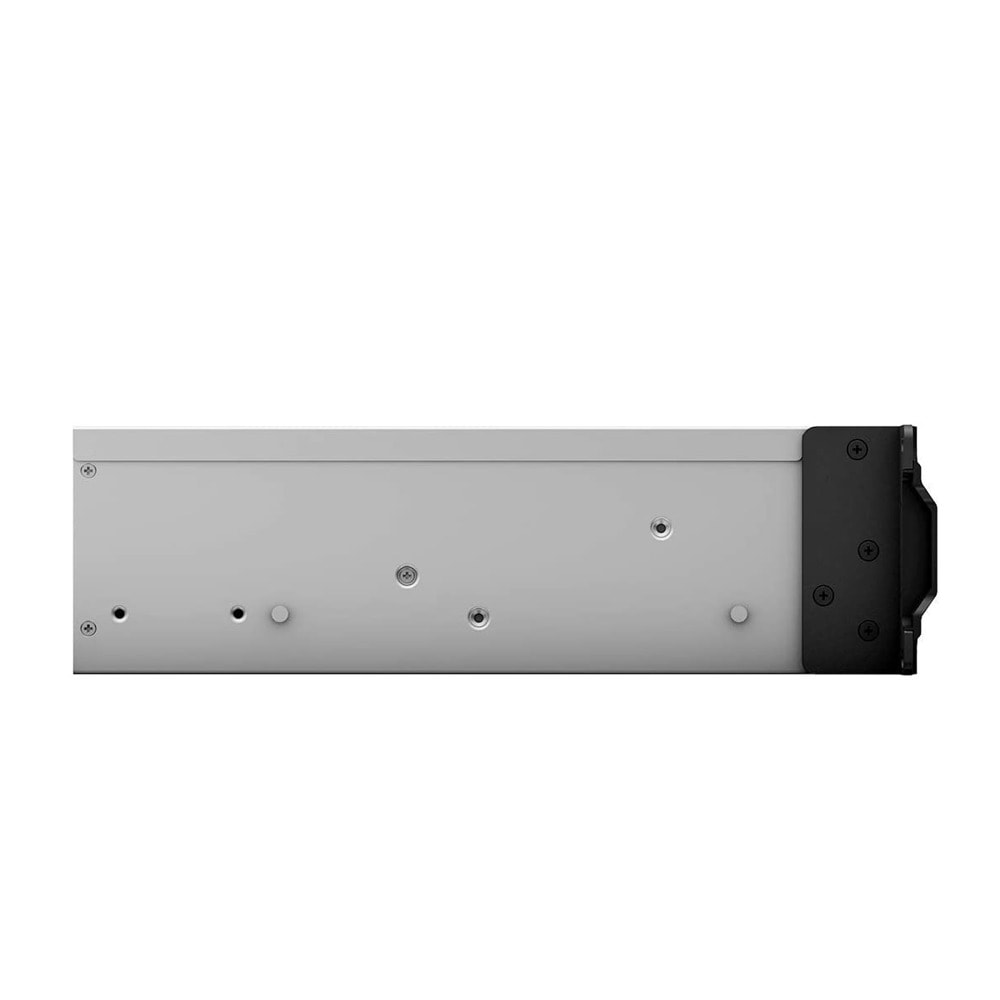

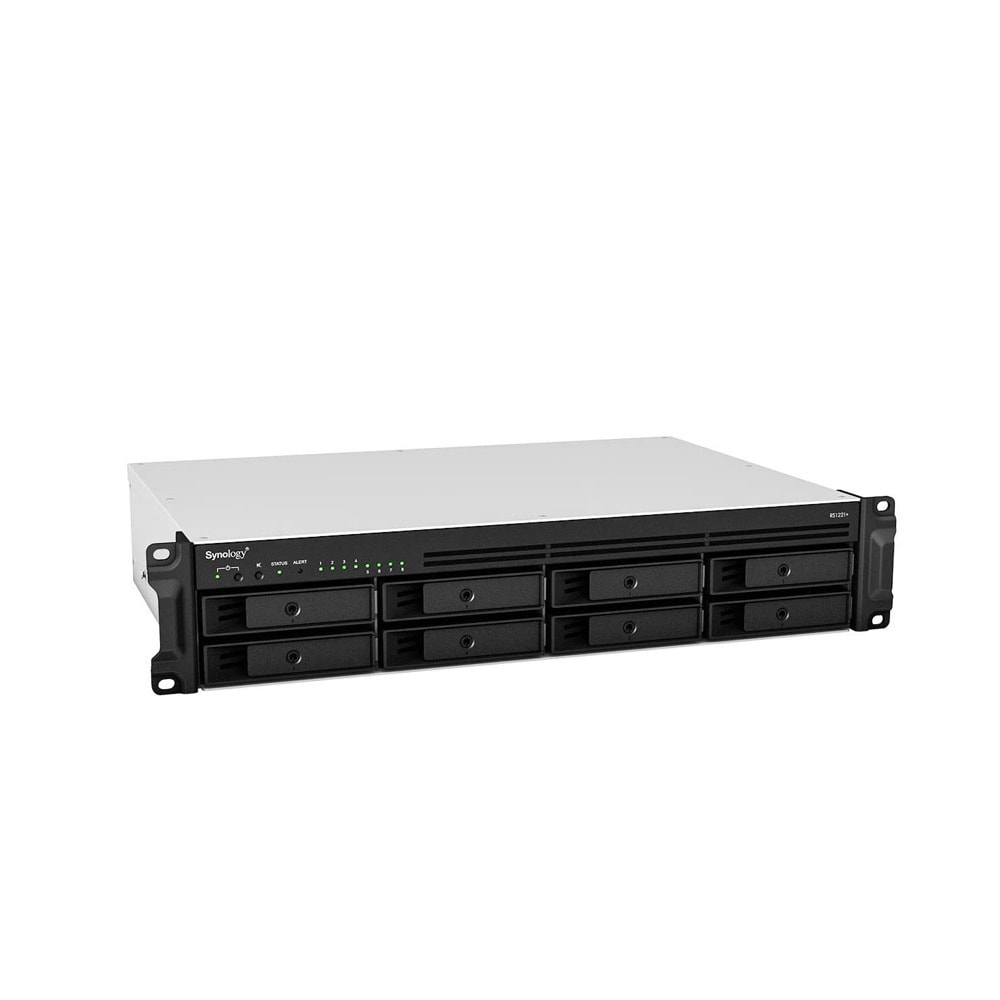

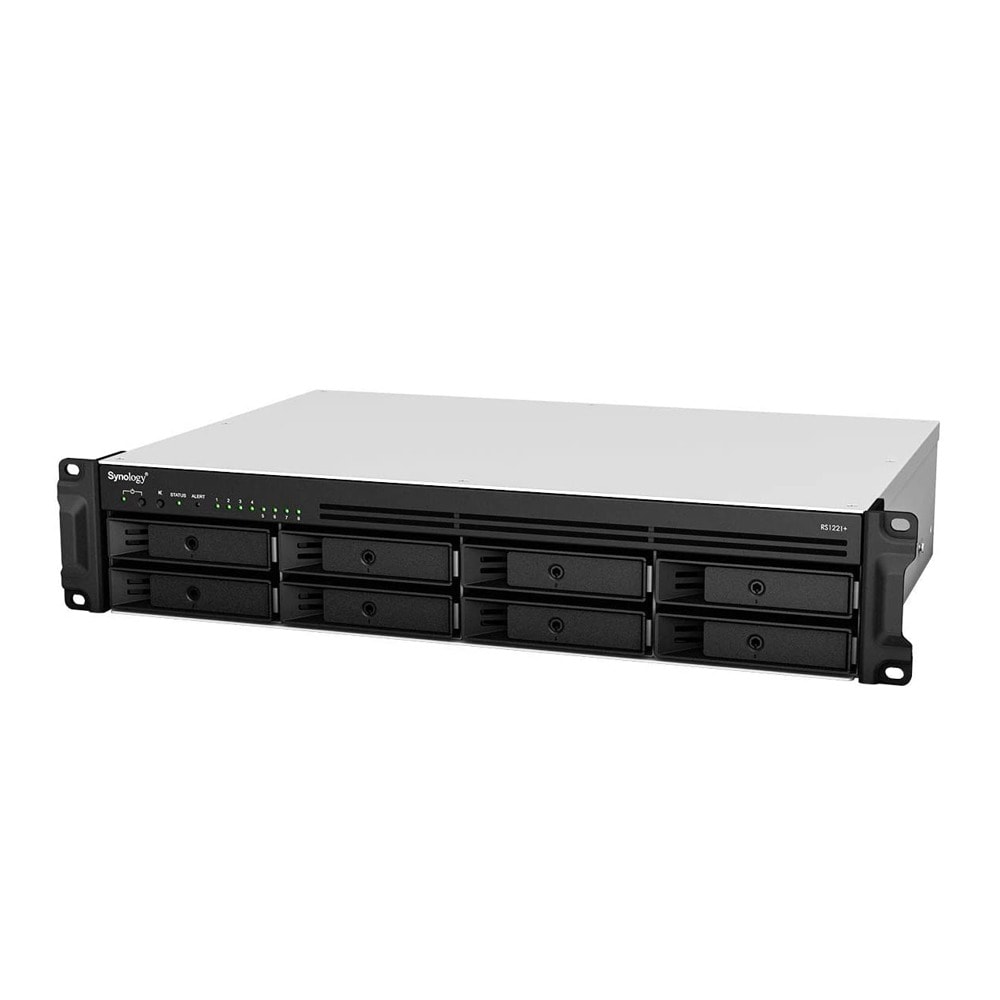

Synology RS1221+

CPU

CPU Model: AMD Ryzen V1500B

CPU Architecture: 64-bit

CPU Frequency: 4-core 2.2 GHz

Hardware Encryption Engine (AES-NI): V

Memory

System Memory: 4 GB DDR4 ECC SODIMM

Memory Module Pre-installed: 4 GB (4 GB x 1)

Total Memory Slots: 2

Maximum Memory Capacity: 32 GB (16 GB x 2)

Notes

Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays: 8

Maximum Drive Bays with Expansion Unit: 12 (RX418 x 1)

Compatible Drive Type* (See all supported drives)

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

Maximum Single Volume Size*: 108 TB

Hot Swappable Drive: V

Notes

Storage Pool and volume creation require all drives to be listed as compatible on the device model's compatibility list.

"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

Each internal volume (may consist of multiple drives) is expandable up to 108TB.

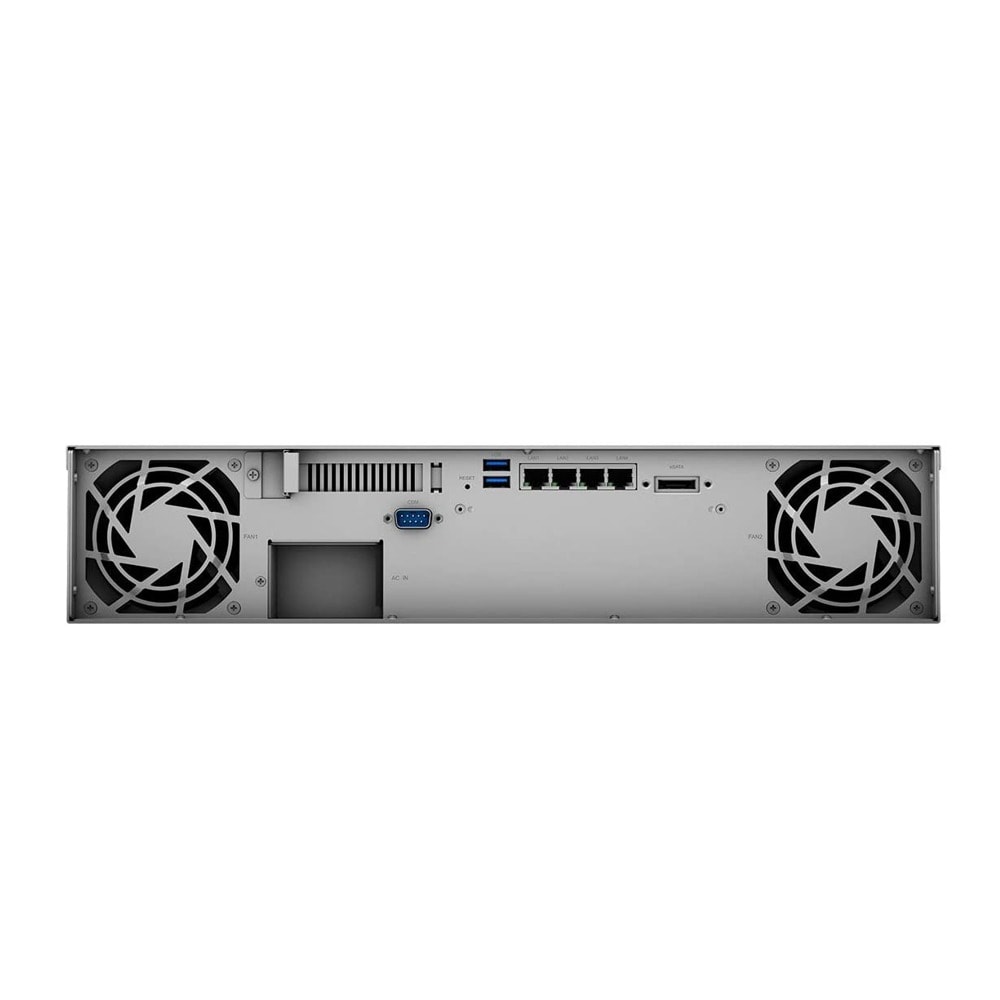

External Ports

RJ-45 1GbE LAN Port: 4 (with Link Aggregation / Failover support)

USB 3.2 Gen 1 Port*: 2

eSATA Port: 1

Notes: The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe

PCIe Expansion 1 x Gen3 x8 slot (x4 link)

File System

Internal Drives

Btrfs

EXT4

External Drives

Btrfs

EXT4

EXT3

FAT

NTFS

HFS+

exFAT*

Notes

exFAT Access is purchased separately in Package Center.

Appearance

Form Factor (RU): 2U

Size (Height x Width x Depth) RS1221+ : 88 mm x 482 mm x 306.6 mmRS1221RP+ : 88 mm x 482 mm x 407.5 mm

Weight RS1221+ : 6.9 kgRS1221RP+ : 11.7 kg

Rack Installation Support*: RS1221+ :

2-post 19" rack (direct mounting)

4-post 19" rack (Synology Rail Kit - RKM114/RKS1317)

RS1221RP+ : 4-post 19" rack (Synology Rail Kit - RKS1317)

Notes: The rail kit is sold separately

Others

System Fan: 80 mm x 80 mm x 2 pcs

Temperature

Operating Temperature: 0°C to 35°C (32°F to 95°F)

Storage Temperature: -20°C to 60°C (-5°F to 140°F)

Relative Humidity: 5% to 95% RH

Certification

FCC

CE

BSMI

EAC

CCC

KC

VCCI

RCM

DSM Specifications

Storage Management

Maximum Internal Volume Number: 64

SSD Read / Write Cache (White Paper): V

SSD TRIM: V

Supported RAID Type

Synology Hybrid RAID

Basic

JBOD
