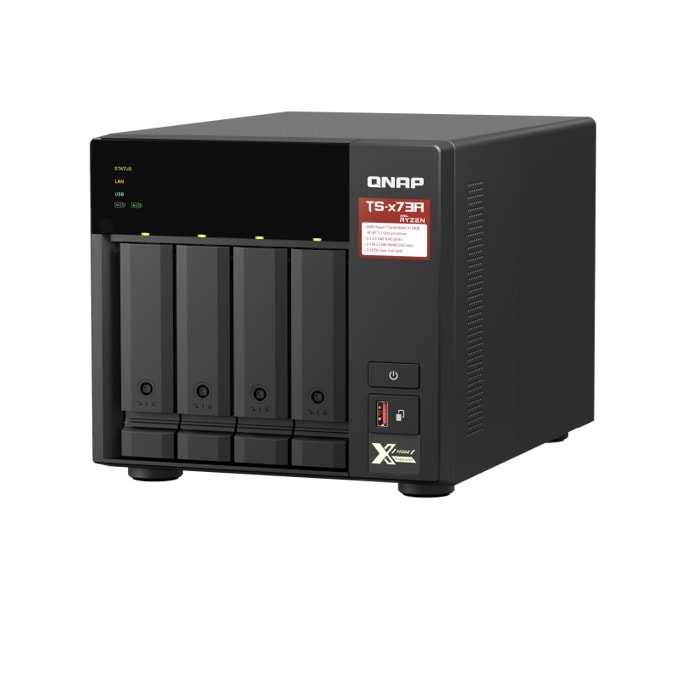

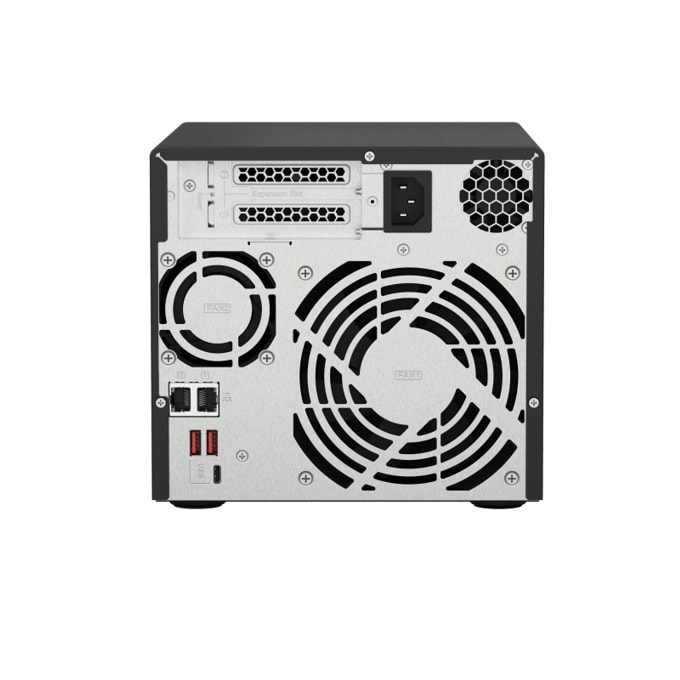

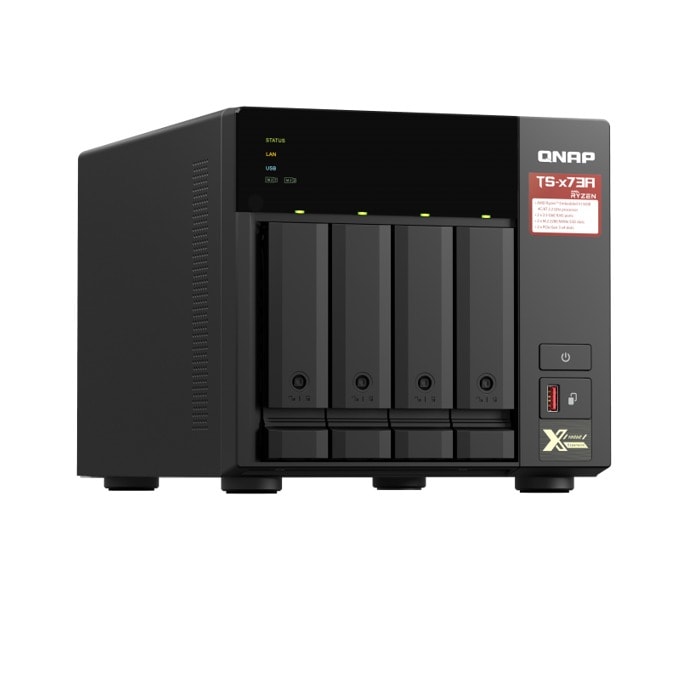

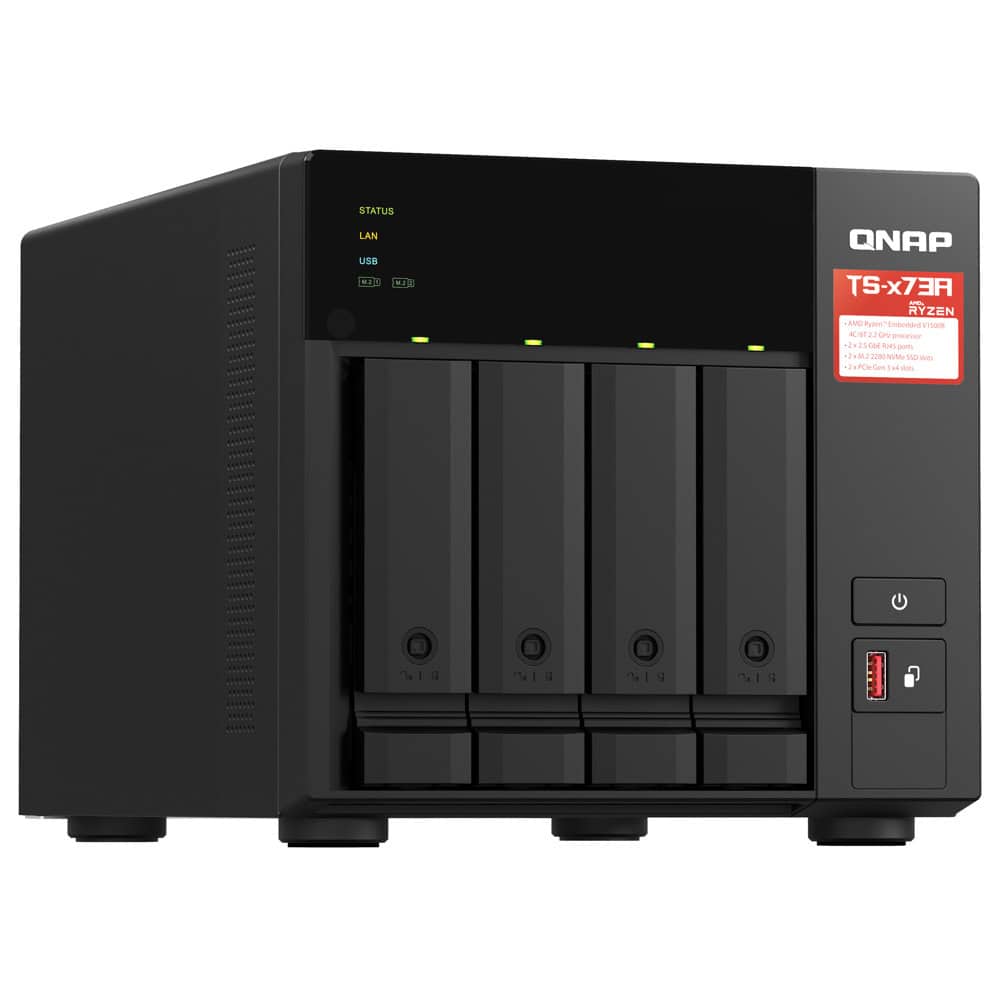

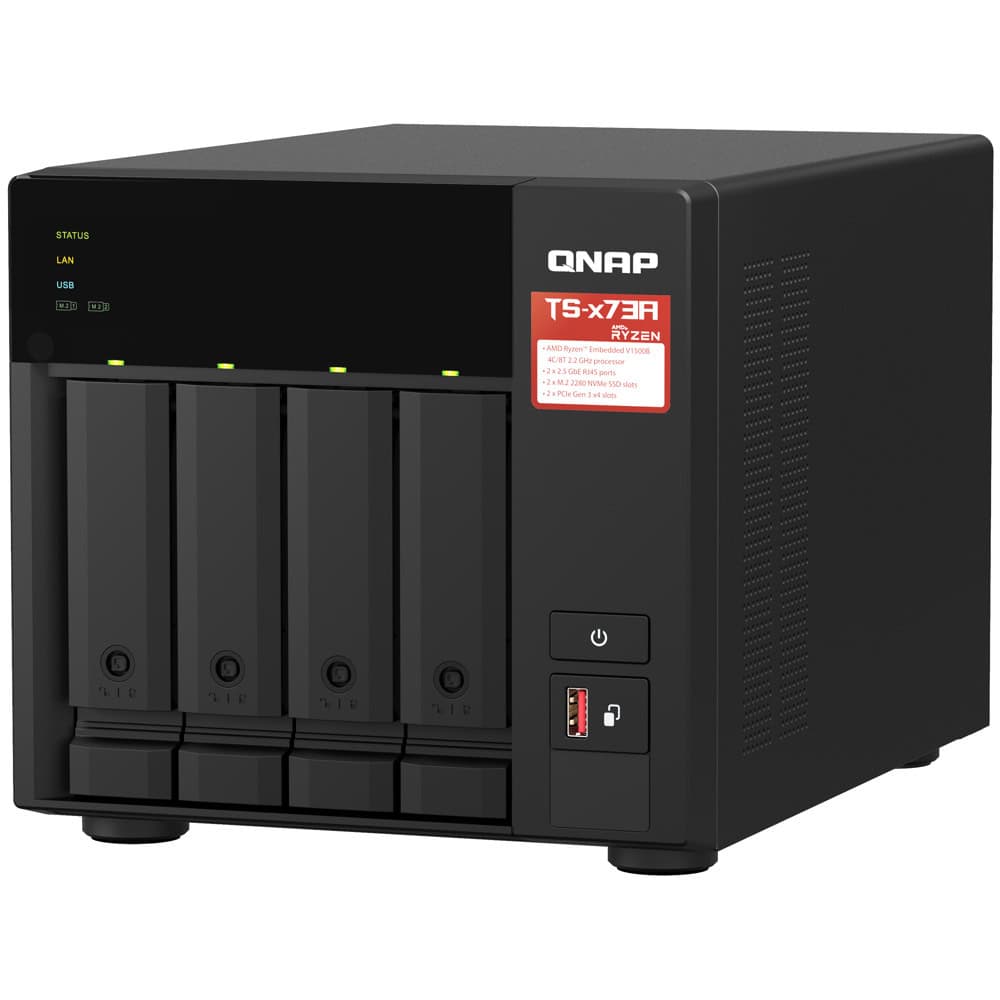

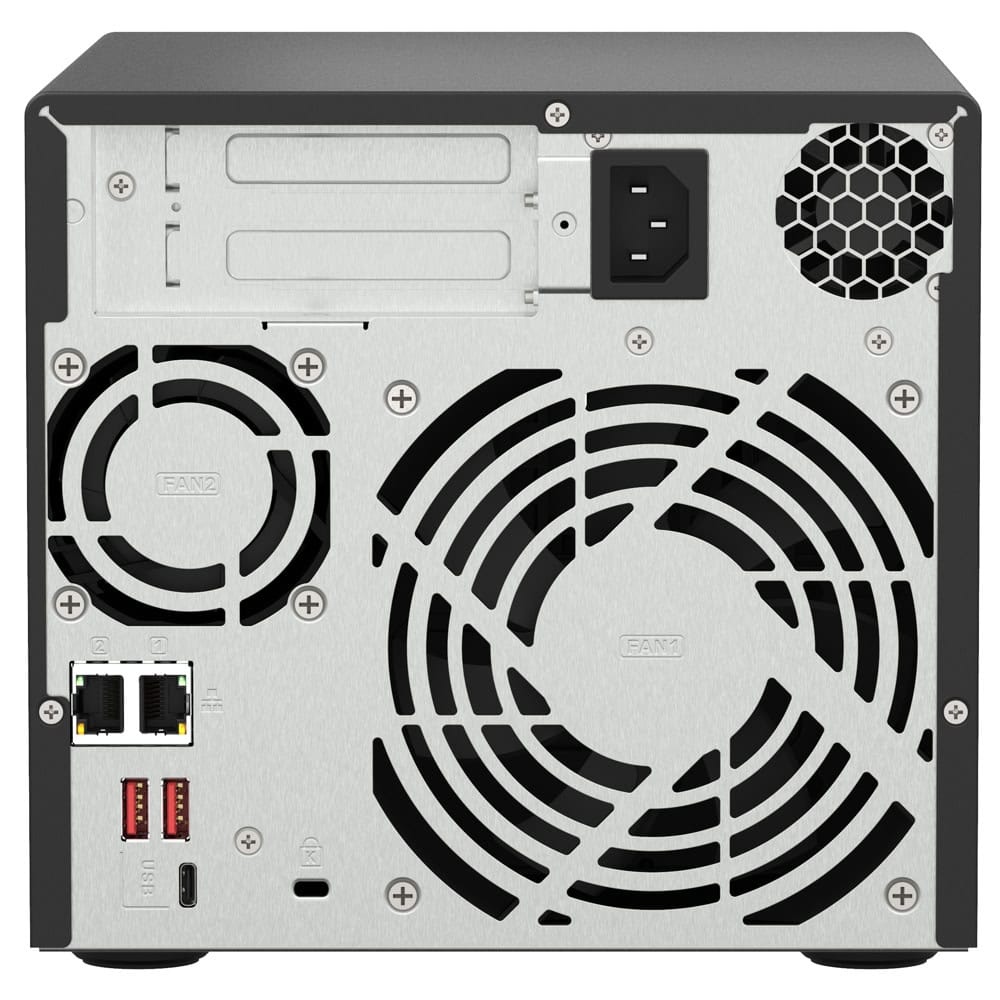

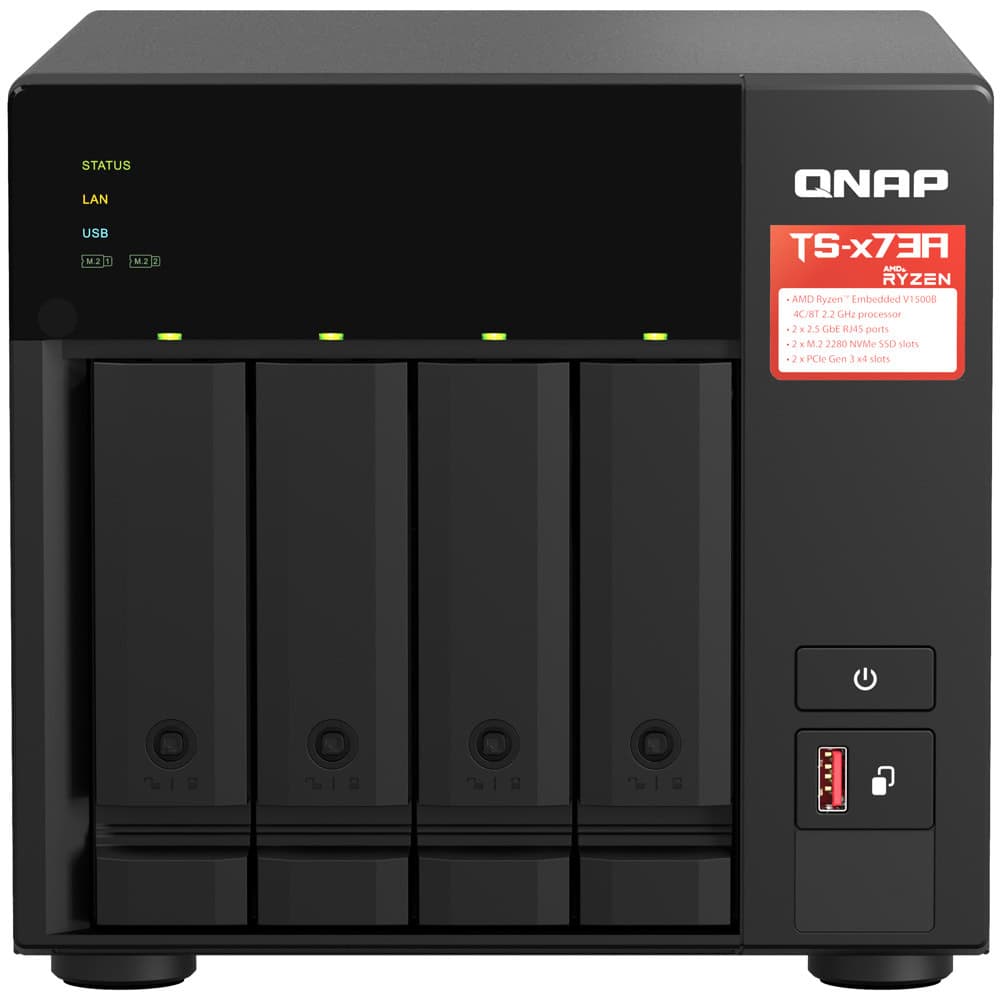

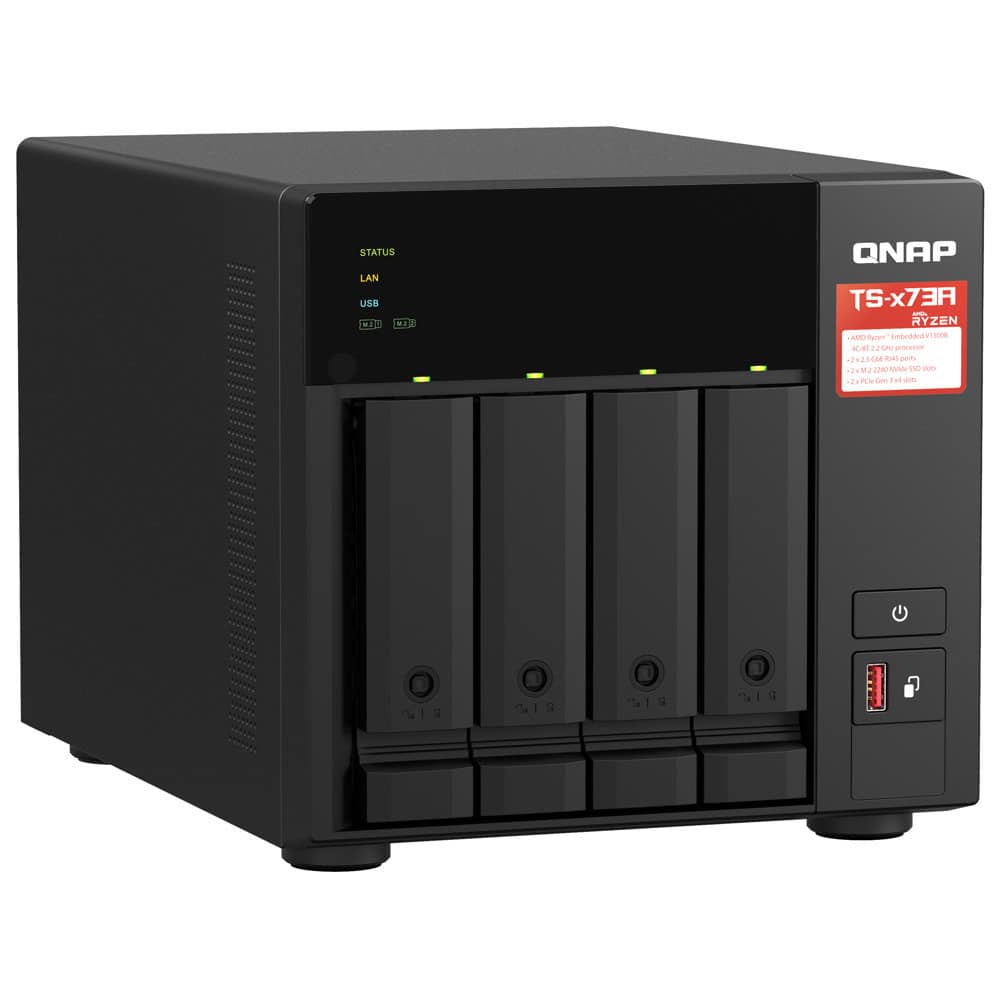

Мрежови диск (NAS) Qnap TS-473A-8G
Qnap TS-473A-8G
Featuring an AMD Ryzen™ V1000 series V1500B quad-core processor that delivers great system performance with up to quad-core / 8 threads and Turbo Core up to 2.2 GHz. The TS-473A features two 2.5GbE RJ45 ports and two PCIe Gen 3 slots for you to flexibly deploy 5GbE/10GbE networks. Two M.2 NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization. The TS-473A supports QTS and QuTS hero, allowing users to flexibly switch operating system based on their requirements.
Upgrading your network shouldn’t break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. QNAP offers 2.5GbE switches that supports Multi-Gigabit NBASE-T™ and allows you to use existing CAT5e cables to connect multiple computers and NAS, assisting organizations in implementing high-speed, secure and scalable network environments without going over budget.
Технически характеристики
| CPU | AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Optional via a PCIe adapter |
| Floating Point Unit | Да |
| Encryption Engine | Yes(AES-NI) |
| Hardware-accelerated Transcoding | Optional via a PCIe adapter |
| System Memory | 8 GB SO-DIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Memory Slot | 2 x SO-DIMM DDR4 |
| Support ECC memory | Да |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| M.2 SSD | Slot 2 x M.2 2280 PCIe Gen3 x1 slots |
| SSD Cache Acceleration Support | Да |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a PCIe adapter |
| 10 Gigabit Ethernet Port | Optional via a PCIe adapter |
| Wake on LAN (WOL) | Да |
| Jumbo Frame | Да |
| PCIe Slot | 2 |
| Slot 1 | PCIe Gen 3 x4 |
| Slot 2 | PCIe Gen 3 x4 |
| USB 3.2 Gen 2 (10Gbps) Port | 3 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps, 1 x Type-C USB 3.2 Gen 1 5V/1A 5Gbps |
| IR Sensor | Yes (QNAP RM-IR004) |
| Form Factor | Tower |
| LED Indicators | Status/Power, USB, LAN, Drive 1-4, M.2 SSD 1-2 |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 188.2 × 199.3 × 280.8 mm |
| Weight (Net) | 5.03 kg |
| Weight (Gross) | 6.04 kg |
| Работна температура | 0 - 40 °C (32°F - 104°F) |
| Температура на съхранение | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Захранване | Unit 250W, 100-240V AC, 50-60Hz, 3.5A |
| Консумация на енергия | HDD Sleep Mode: 19.576 W |
| Консумация на енергия | Operating Mode, Typical: 29.792 W |
| Fan System | fan: 1 x 120mm |
| CPU fan | : 1 x 60mm |
| Sound Level | 21.4 db(A) |
| System Warning | Buzzer |
