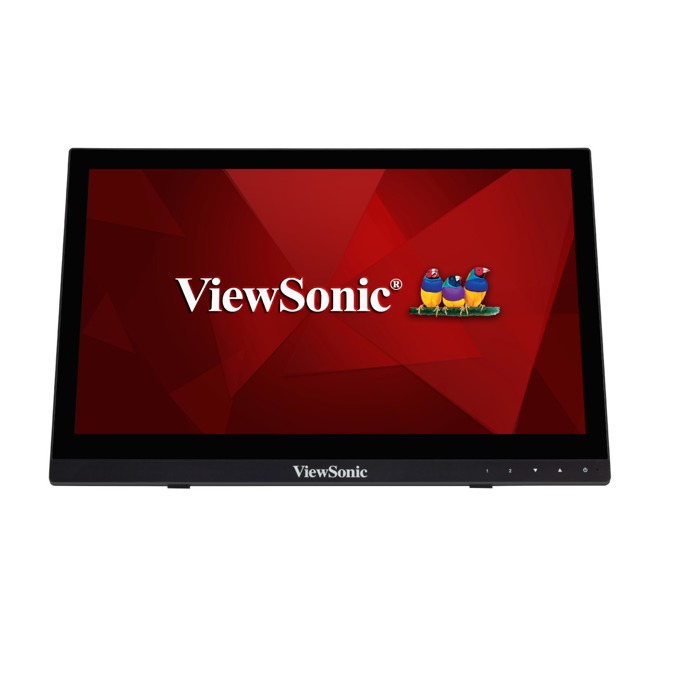

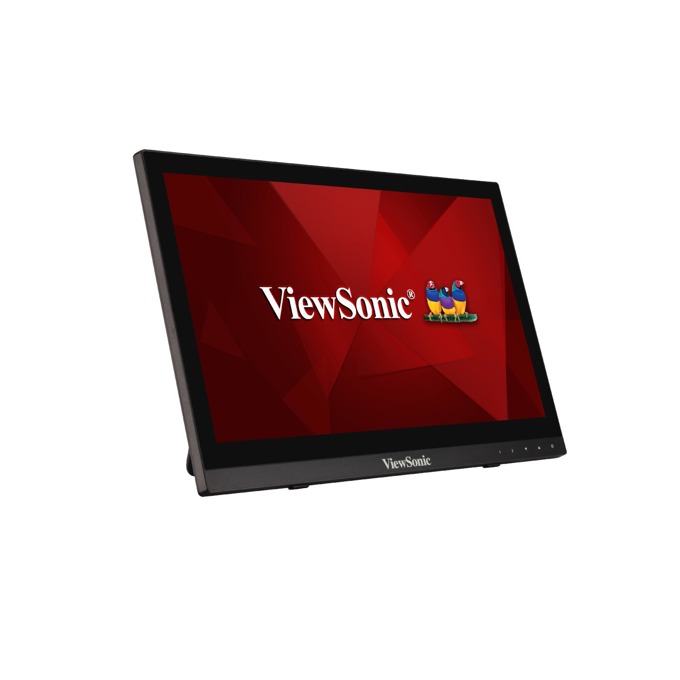

Монитор ViewSonic TD1630-3

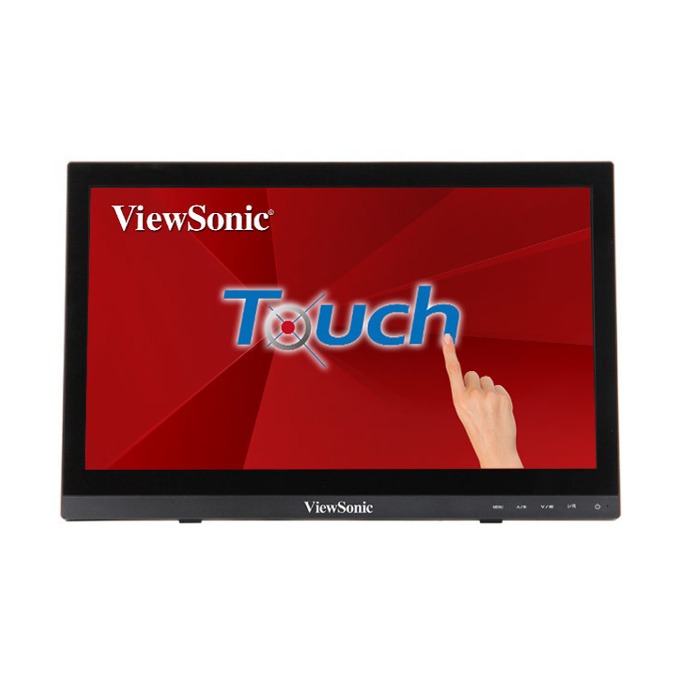

Touch screens with projected capacitive touch can recognise up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.

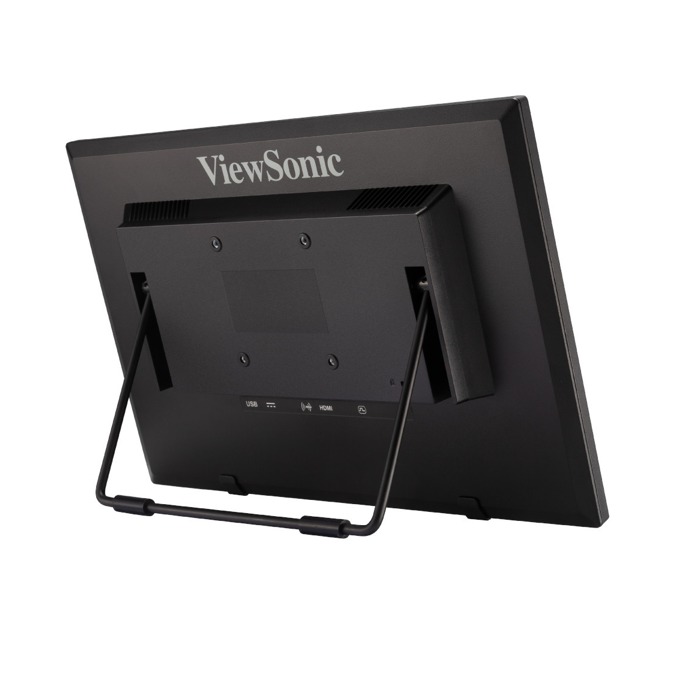

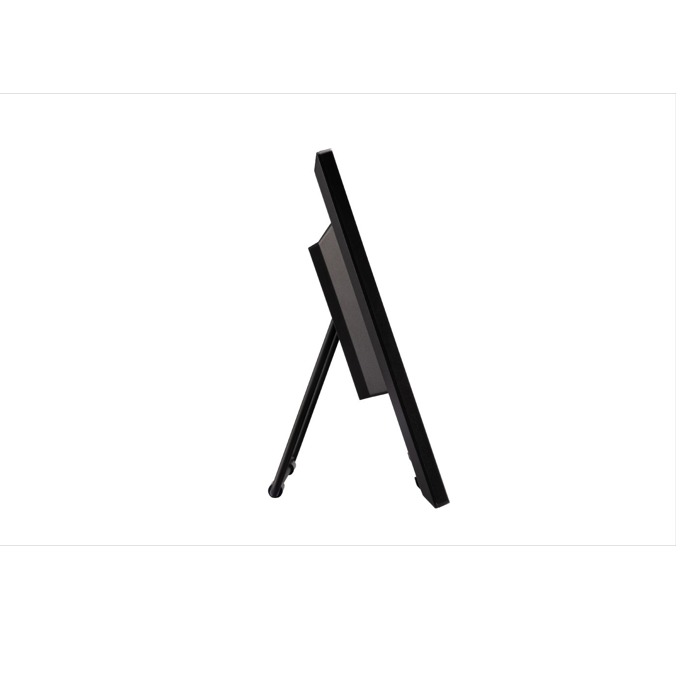

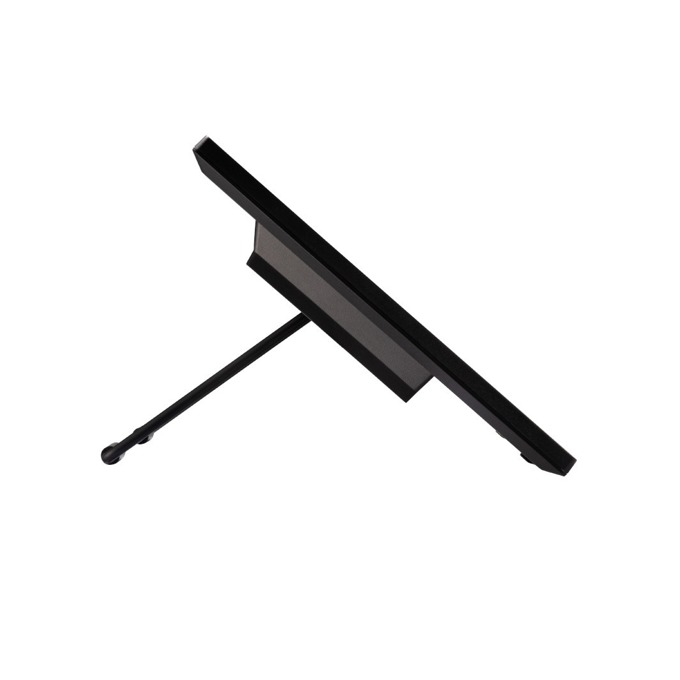

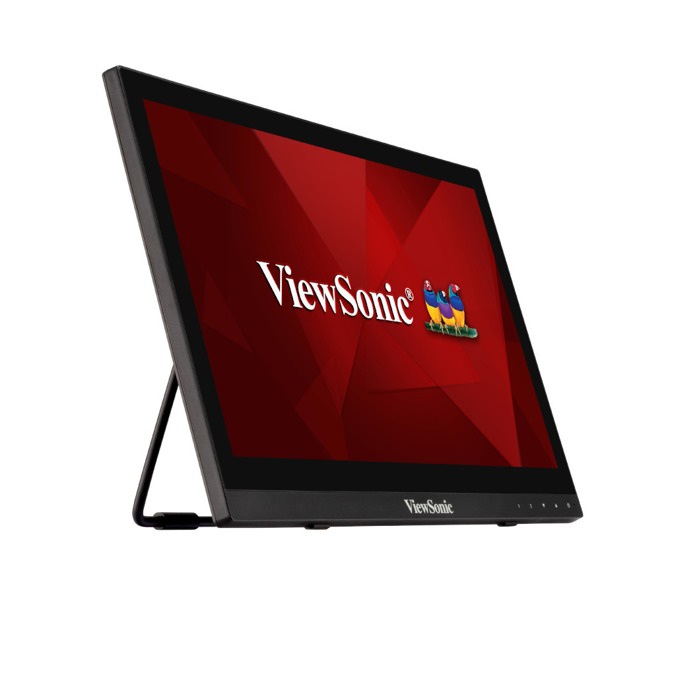

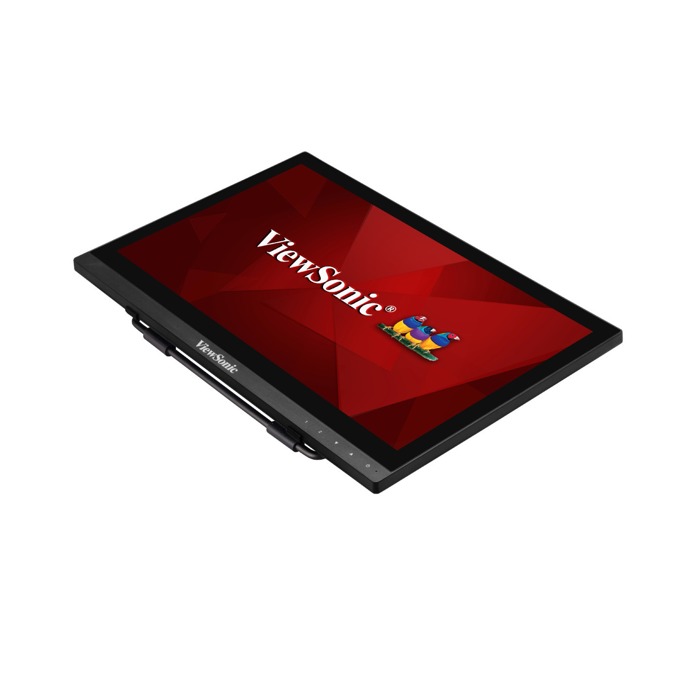

A stable, integrated bookstand design makes it easy to adjust the angle of this display for a better user experience. The display can tilt or lay completely flat on a tabletop for a more comfortable work environment.

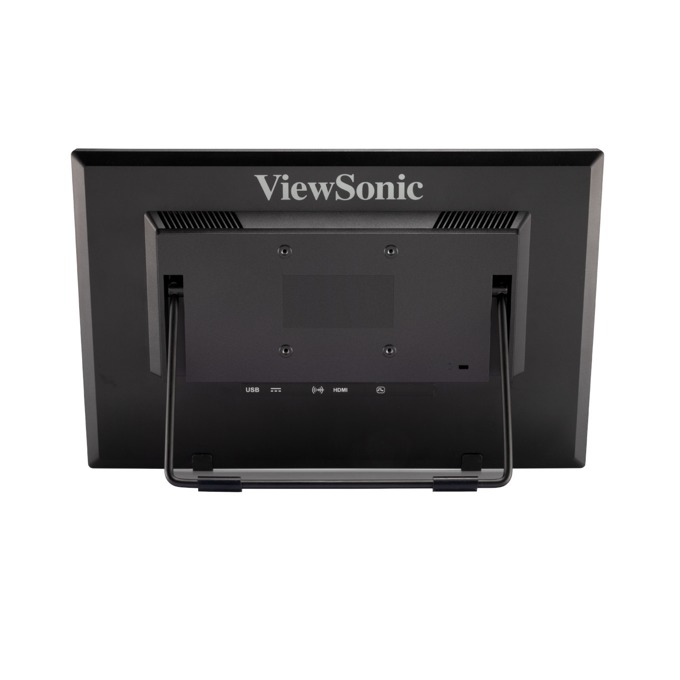

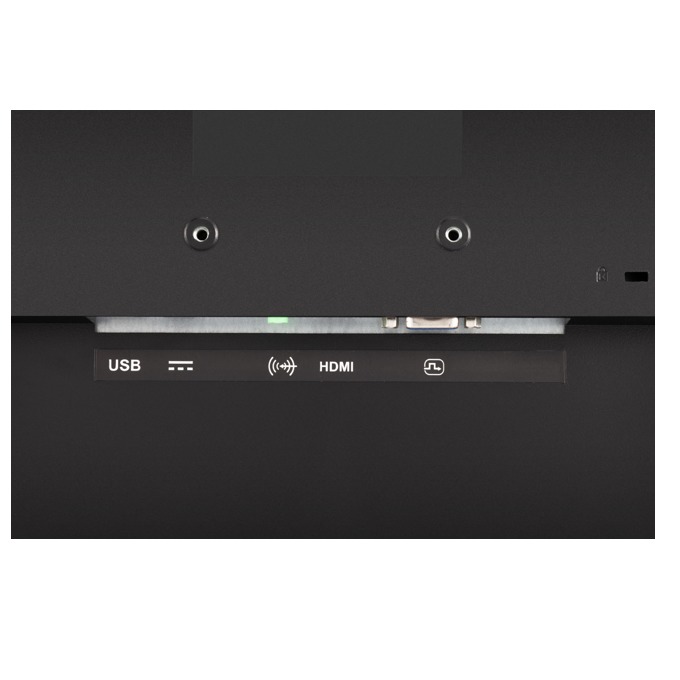

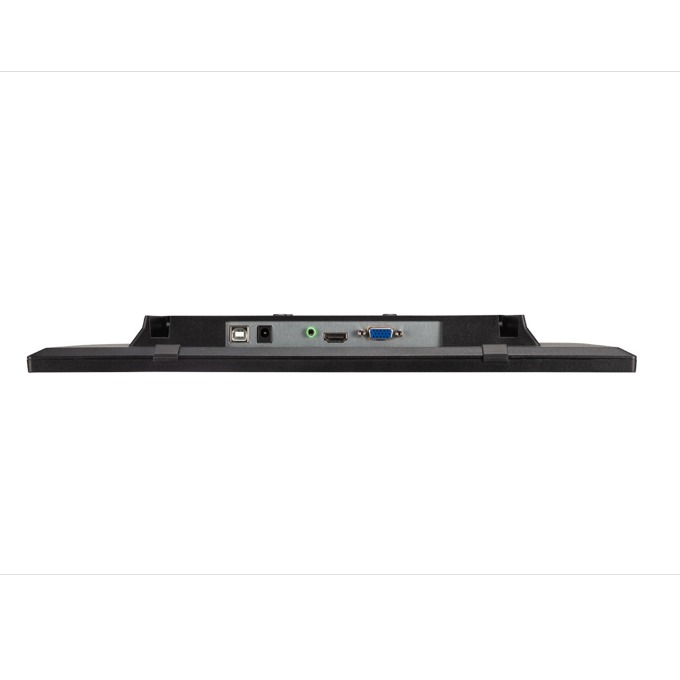

HDMI and VGA inputs give you the freedom to connect your monitor to a variety of devices.
"Cross compatibility with a wide range of operating systems including Windows 10 and certain Linux versions*.
*Supports Windows 7/8/10, Linux Kernel 4.X/3.X
This touch display is equipped with a durable, protective glass faceplate, resulting in increased durability with scratch protection; as well as a consistent, high-quality touch experience in high-traffic areas like public spaces where the touch display can be used as a kiosk.
LCD PANEL
Технически характеристики
| Monitor Size | 15.6" (39.62 cm) |
| Panel Technology | TN TFT LCD |
| Резолюция | HD 1366 x 768 |
| Display Area | 344.23mm (H) x 193.54mm (V) |
| Съотношение на страните | 16:9 |
| Яркост | 220 cd/m2 (Typ) w/o touch module, 190 cd/m2 (Typ) w/ touch module |
| Контраст | 500:1 (Typ) |
| Dynamic Contrast Ratio | 10,000,000:1 |
| Viewing Angles | 90 degrees / 60 degrees (Typ) |
| Време за реакция | 12ms |
| Colours | 262K colours (6-bit) |
| Colour Gamut | 45% of NTSC (Typ) |
| Panel Surface | ≧7H, Haze < 2% |
| Честота | Fh = 30 ~ 61KHz ; Fv = 56 ~ 75Hz |
| Sync | Separate Sync, TMDS |
| PC | Windows 7/8/10 tested |
| Mac® | Display: Power Mac tested, Touch Module:iOS not support |
| Input | VGA x 1 |
| Високоговорител | 1W x 2 |
| Upstream | Type B x 1 |
| Мощност | 5.5 x 2.1 x 11 mm DC connector |
| Напрежение | AC 100-240V (Universal); 50/60Hz |
| Consumption | 5.5W |
| Optimize | 4.9W |
| Conserve | 4.3W |
| Tilt | 15 ~ 50 degrees |
| Eye Care | Blue light filter, Flicker Free |
| VESA® | 75mm x 75mm |
| Temperature (º F / º C) | 32°F to 104°F (0°C to 40°C) |
| Влажност | 20% to 85% (no condensation) |
| Physical With Stand (mm) | 379.24mm (W) x 247.12mm (H) x 37.15mm (D) (@0 degree) |
| Physical Without Stand (mm) | 379.24mm (W) x 247.12mm (H) x 37.15mm (D) |
| Packaging (mm) | 453mm (W) x 389mm (H) x 86mm (D) |
| Net With Stand | 1.32kg |
| Net Without Stand | 1.32kg |
| Gross | 2.5kg |
