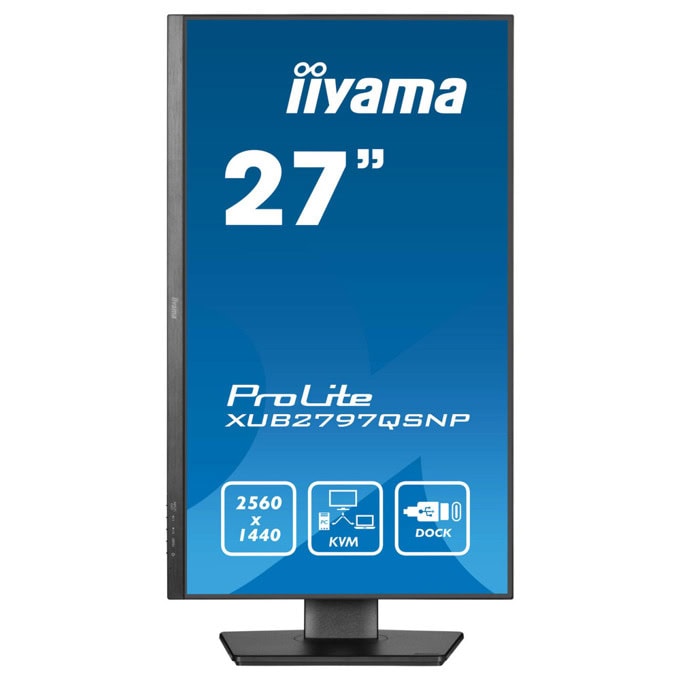

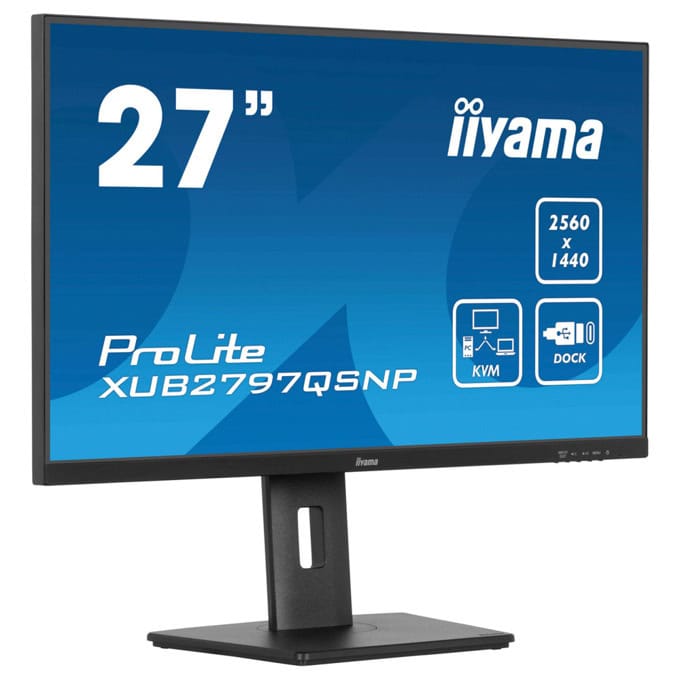

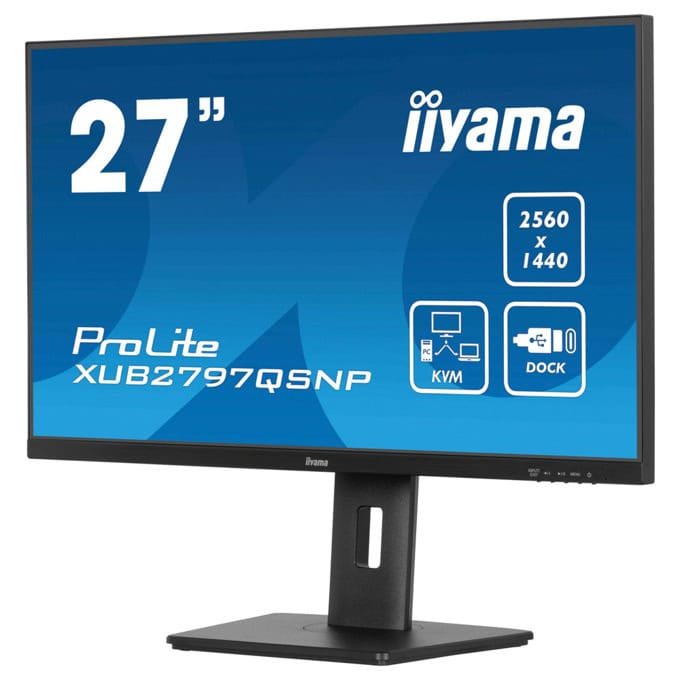

Монитор IIYAMA XUB2797QSNP-B1
IIYAMA XUB2797QSNP-B1
27’’ WQHD IPS technology panel with RJ45 (LAN), KVM Switch and USB-C Dock with 96W pwer delivery
Discover the XUB2797QSNP, a 27’’ WQHD IPS panel equipped with USB-C dock, KVM switch, and RJ45 for LAN connectivity. The KVM switch allows to connect multiple computers through a single console. Get rid of cable clutter with the USB-C dock that carries all data (audio and video) whilst powering your notebook. Easily extend your desktop by creating a dual-monitor set-up with the DisplayPort output. Enjoy accurate colours and wide viewing angles thanks to the IPS panel. Benefit from exceptional performance for tasks like photography and web design, thanks to the WQHD resolution and high contrast. The ergonomic stand offers a height adjustment of 150mm and tilt/swivel mechanisms for portrait mode, optimizing comfort while working with extensive data sheets
USB-C Dock
The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. A second monitor can be connected to the DisplayPort (MST) output to create a multi-monitor set-up. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.
KVM SWITCH
Having a monitor with a KVM switch allows you to share the devices connected via USB to your monitor with two different PCs. Just change the signal input in the OSD menu of the monitor and your keyboard, mouse and webcam will switch from your work laptop to your gaming PC.
IPS Technology
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
QHD
With true QHD 2560 x 1440p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen, i.e. over 76% more in comparison to a 1920 x 1080 monitor.
DISPLAY CHARACTERISTICS
| Design3-side borderless | Да |
| Diagonal27", | 68.5cm |
| PanelIPS Panel Technology LED, matte finish | Да |
| Native resolution2560 x | 1440 @100Hz (3.7 megapixel WQHD) |
| Aspect ratio16 | 9 |
| Panel brightness300 cd/m² | Да |
| Static contrast1300 | 1 |
| Advanced contrast80M | 1 |
| Response time (MPRT)1ms | Да |
| Viewing zonehorizontal/vertical | 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support16.7mln (sRGB | 99%; NTSC: 72%) |
| Horizontal Sync30 - | 151kHz |
| Viewable area W x H596.7 x | 335.7mm, 23.5 x 13.2" |
| Pixel pitch0.233mm | Да |
| Colourmatte, black | Да |

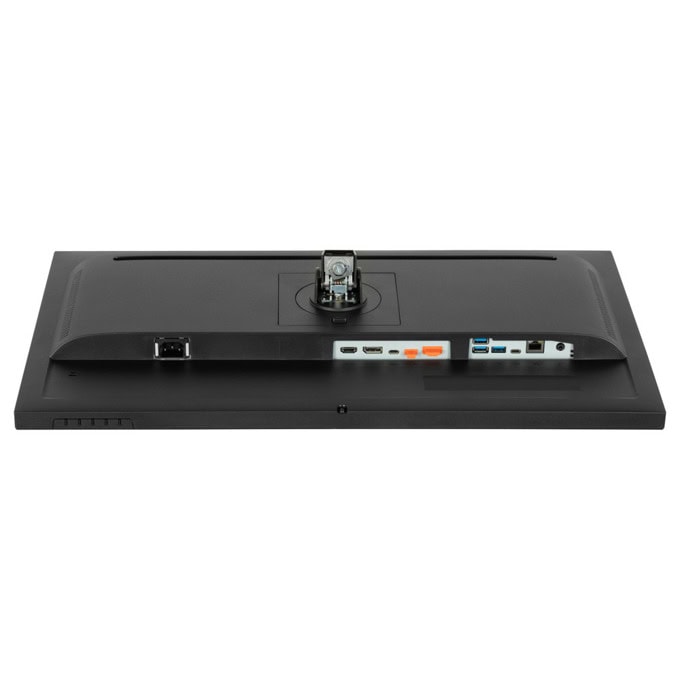

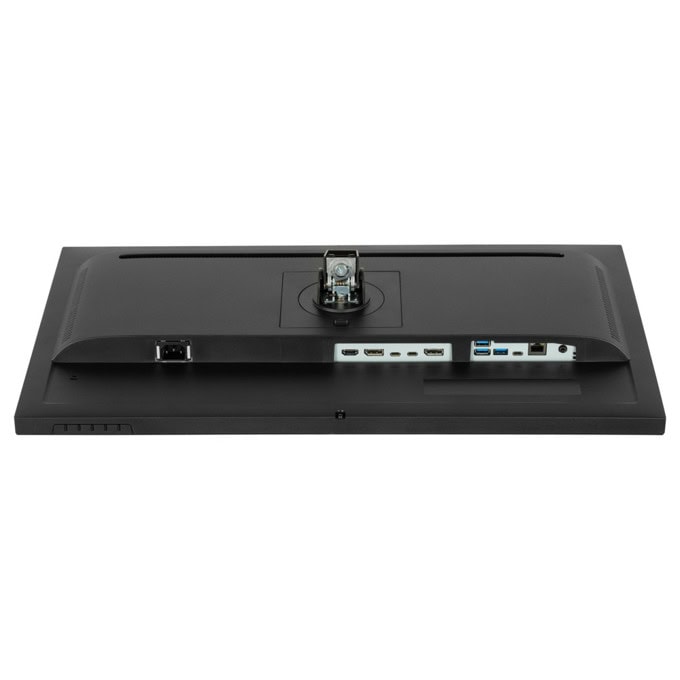

INTERFACES / CONNECTORS / CONTROLS
| Signal inputHDMI | x1 (v.2.0) DisplayPort x1 (v.1.4) USB-C x1 (PD 96W) |
| Signal outputDisplayPort | x1 (Daisy Chain MST max. 2560 x 1440) |
| HDCPyes | Да |
| Headphone connectoryes | Да |
| RJ45 (LAN)x1 | Да |
Функции
| KVM switchyes | Да |
| Blue light reduceryes | Да |
| Flicker freeyes | Да |
| Adaptive Sync supportyes | Да |
| Extrai-Style colour | Да |
| OSD languagesEN, DE, FR, ES, IT, RU, JP, CZ, NL, PL | Да |
| Speakers2 x | 2W |
| ConvenienceKensington-lock™ prepared, DDC/CI, DDC2B | Да |

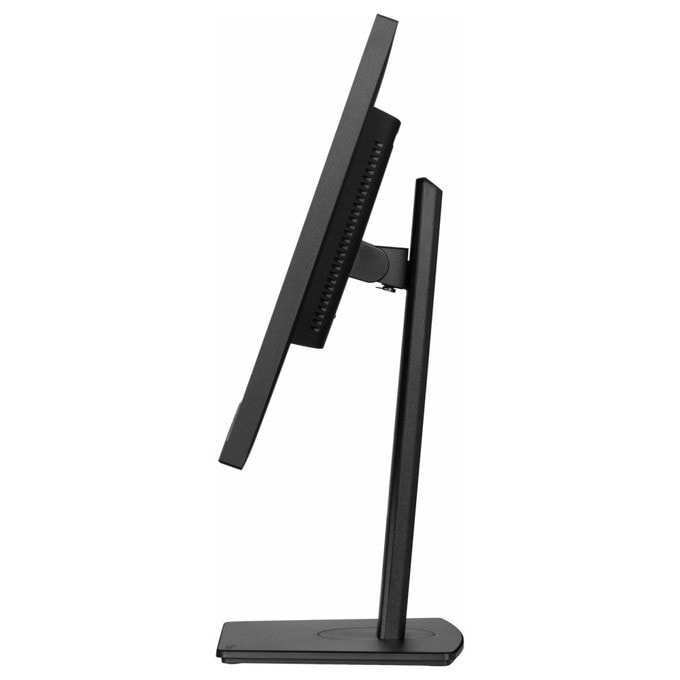

Механичен дизайн

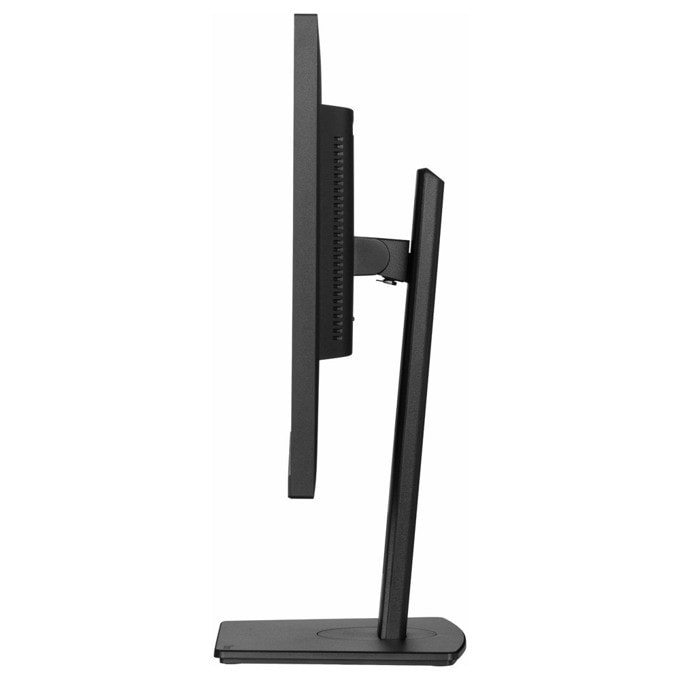

| Height adjustment150mm | Да |
| Rotation (PIVOT function)90° | Да |
| Swivel stand90°; | 45° left; 45° right |

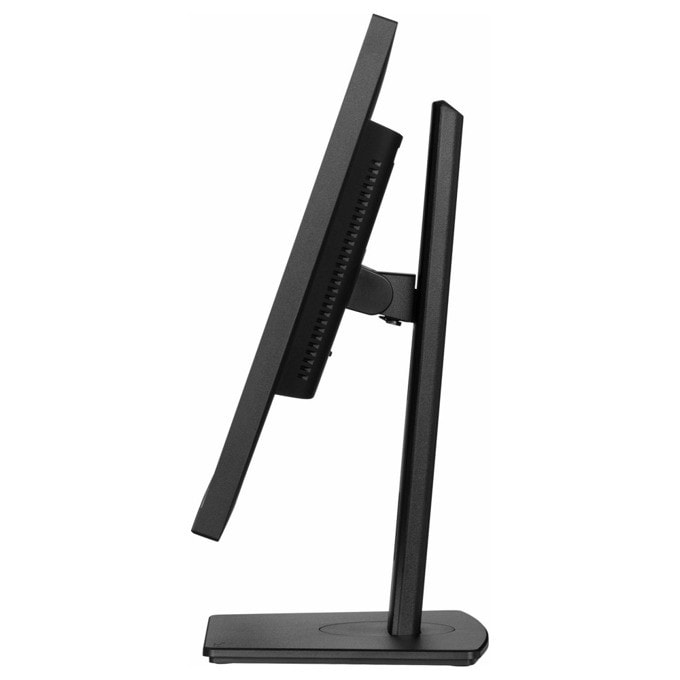

| Tilt angle23° up; | 5° down |
| VESA mounting100 x | 100mm |
| Cable management systemyes | Да |
POWER MANAGEMENT
| Power supply unitinternal | Да |
| Power supplyAC | 100 - 240V, 50/60Hz |
| Power usage26W typical, | 0.5W stand by, 0.3W off mode |
DIMENSIONS / WEIGHT
| Product dimensions W x H x D613.5 x | 400.5 (550.5) x 209.5mm |
| Box dimensions W x H x D679 x | 427 x 130mm |
| Weight (without box)6.1kg | Да |
| Weight (with box)8.7kg | Да |
