Osram

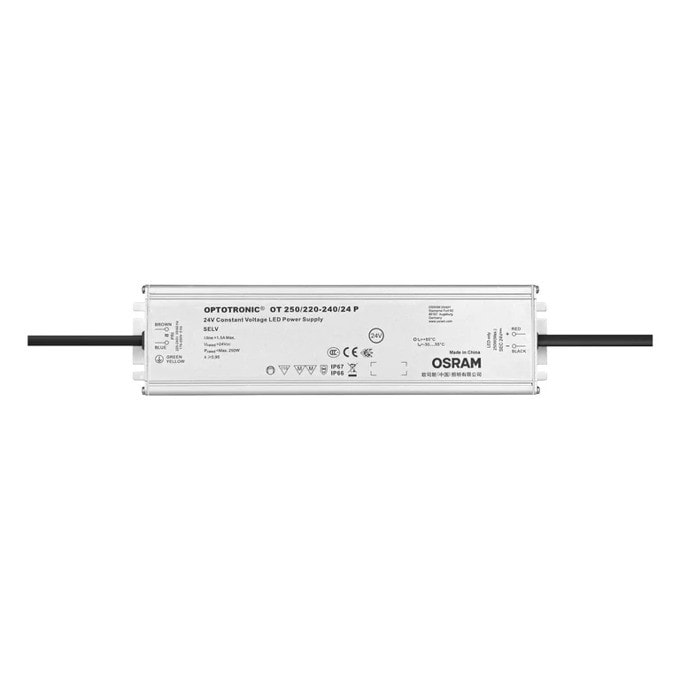

LED захранване Osram Optotronic
Артикул №: 1000136569
Категория:
Електрически крушки
180,99 €
✓ Налично във външен склад
Product benefits
- Large range of products from 20 W to 250 W
- Installation in very cold and hot environments
- Very stable output power
- High electronical reversible short-circuit, overload, overtemperature protection
- Smart Power Supply: boosting power to turn on cold LEDs
- Independent installation possible
Areas of application
- Facades, public squares, cruise ships
- Signage
- Suitable for indoor and outdoor installations
Product features
- DC mode functionality
- Type of protection: IP66 and IP67
- Surge protection: up to 4 kV (L-N) / 6 kV (L/N-PE)
- Wide operating temperature range: -30…+55 °C
- Lifetime: up to 50,000 h (temperature at max. tc )
Характеристики
| Nominal wattage2250.00 W | Да |
| Nominal output power250 W | Да |
| Nominal voltage220…240 V | Да |
| Nominal output voltage24.2 V | Да |
| Input voltage AC198…264 V | Да |
| Input voltage DC176…250 V | Да |
| Inrush current75 A | Да |
| Mains frequency0/60 Hz | Да |
| Total harmonic distortion | Да |
| Dimensions & Weight | Да |
| Length265.00 mm | Да |
| Mounting hole spacing, length250,0 mm | Да |
| Width68.00 mm | Да |
| Height40.00 mm | Да |
| Cable cross-section, input side1 mm² | Да |
| Cable cross-section, output side1.5 mm² | Да |
| Wire preparation length, input side90 mm | Да |
| Wire preparation length, output side90 mm | Да |
| Product weight1340.00 g | Да |
| Colors & materials | Да |
| Casing materialMetal | Да |
| Body materialMetal | Да |
| Temperatures & operating conditions | Да |
| Ambient temperature range-30…+55 °C | Да |
| Maximum temperature at tc test point85 °C | Да |
| Max.housing temperature in case of fault110 °C | Да |
| Permitted rel. humidity during operation5…85 % | 1) |
| 1) Maximum 56 days/year at 85 % | Да |
| Lifespan | Да |
| ECG lifetime50000 h | Да |
| Additional product data | Да |
| EncapsulatedYes | Да |
| Capabilities | Да |
| DimmableNo | Да |
| Overheating protectionYes | Да |
| Overload protectionYes | Да |
| Short-circuit protectionYes | Да |
| No-load proofYes | Да |
| Suitable for fixtures with prot. classI | Да |
| Type of connection, output sideCables | Да |
| Certificates & Standards | Да |
| Approval marks – approvalENEC, RCM, CCC, EAC | Да |
| Protection classI | Да |
| Type of protectionIP66/IP67 | Да |
| LOGISTICAL DATA | Да |
| Temperature range at storage-40…+85 °C | Да |
