Ledvance

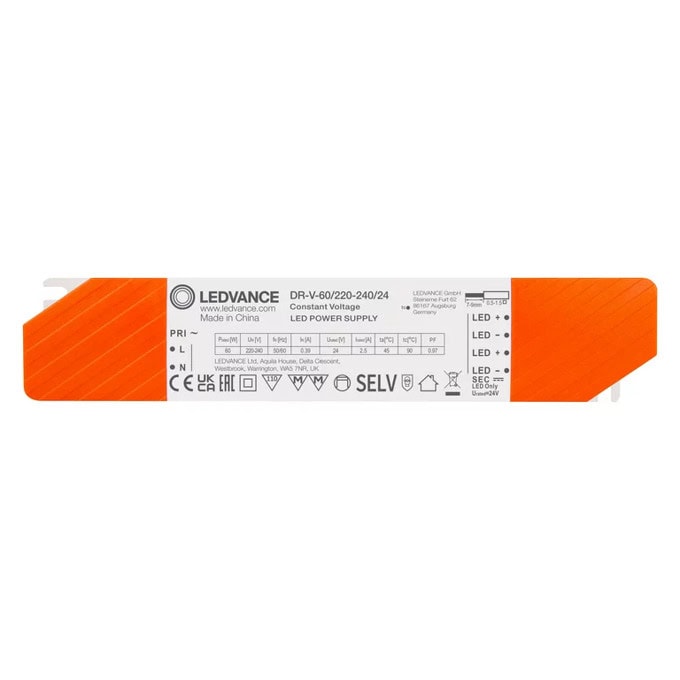

LED захранване Ledvance DR-V
Артикул №: 1000136557
Категория:
Електрически крушки
22,99 €
✓ Налично във външен склад
Product benefits
- Perfectly matched to 24 V LED flexible strips
- Excellent price/performance ratio
- Quick and simple installation
- Good efficiency and reliability
Areas of application
- Cove lighting, even in tight spaces
- Wallwasher effect lighting in living rooms, dining rooms, bedrooms, entrances
- For indoor SELV installations
- Offices, shopping centers, hospitals, restaurants, hotels
Product features
- Integrated cable clamp for independent installation
- Lifetime: up to 35,000 h (at max. tc temperature)
- Type of protection: IP20
- Supply voltage: 220…240 V
- Operating frequency: 50/60 Hz
- Operated with less than 60 V: Safety extra-low voltage (SELV)
- Reversible overtemperature, overload, short-circuit and open-circuit protection
Характеристики
| Nominal wattage60.00 W | Да |
| Nominal output power60 W | 1) |
| Nominal voltage220…240 V | Да |
| Nominal output voltage24 V | 2) |
| Input voltage range220…240 V | Да |
| Input voltage AC198…264 V | 3) |
| U-OUT (working voltage)24 V | Да |
| Type of currentDC | Да |
| Nominal current390 mA | Да |
| Nominal output current2500 mA | 4) |
| Inrush current43.8 A | Да |
| Output ripple current (120 Hz) | Да |
| 1) From 0 to 60 W | Да |
| 2) Maximum 24 V | Да |
| 3) Permitted voltage range | Да |
| 4) ±10% | Да |
| 5) At full load, 220…240 V, 50 Hz | Да |
| 6) Full load at 230 V | Да |
| 7) At full load and 230 V | Да |
| 8) At maximum LED load of 60 W | Да |
| Dimensions & Weight | Да |
| Length194.00 mm | Да |
| Mounting hole spacing, length183.00 mm | Да |
| Width40.00 mm | Да |
| Height31.00 mm | Да |
| Cable cross-section, input side0.75…1.5 mm² | Да |
| Cable cross-section, output side0.5…1.5 mm² | Да |
| PrewiredNo | Да |
| Wire preparation length, input side7…9 mm | Да |
| Wire preparation length, output side7…9 mm | Да |
| Product weight215.00 g | Да |
| Colors & materials | Да |
| Product colorWhite | Да |
| Casing materialPlastic | Да |
| Body materialPlastic | Да |
| Temperatures & operating conditions | Да |
| Ambient temperature range-20…+45 °C | Да |
| Maximum temperature at tc test point90 °C | Да |
| Max.housing temperature in case of fault110 °C | Да |
| Temperature range in operation-20…+45 °C | Да |
| Permitted rel. humidity during operation20…90 % | 1) |
| 1) Maximum 56 days/year at 90% | Да |
| Lifespan | Да |
| ECG lifetime35000 h | 1) |
| 1) At maximum Tc = 85°C / 10% failure rate | Да |
| Capabilities | Да |
| DimmableNo | Да |
| Dimming interfaceNot dimmable | Да |
| Overheating protectionYes | Да |
| Overload protectionYes | Да |
| Short-circuit protectionYes | Да |
| Suitable for fixtures with prot. classI,II | Да |
| Suitable for emergency lightingNo | Да |
| Type of connection, output sideScrewless terminal | Да |
| Certificates & Standards | Да |
| Approval marks – approvalCE, UKCA, EAC | Да |
| Protection classII | Да |
| Type of protectionIP20 | Да |
| LOGISTICAL DATA | Да |
| Temperature range at storage-25…+80 °C | Да |
