LED прожектор Ledvance

Product benefits

• Robust, yet light and compact design
• Safe and very uniform illumination, due to frosted and tempered glass diffuser
• No upper light output ratio (ULOR 0%) when mounted at 0° tilt
• Energy savings of up to 90 % compared to halogen lamp floodlights

Areas of application

• Replacement for floodlights with halogen lamps
• Outdoor use (IP65)
• Public areas
• Building facades
• Gardens, balconies and other outdoor areas
• Construction areas

Product features

• Reflector-based, symmetric light distribution with 100° x 100° beam angle

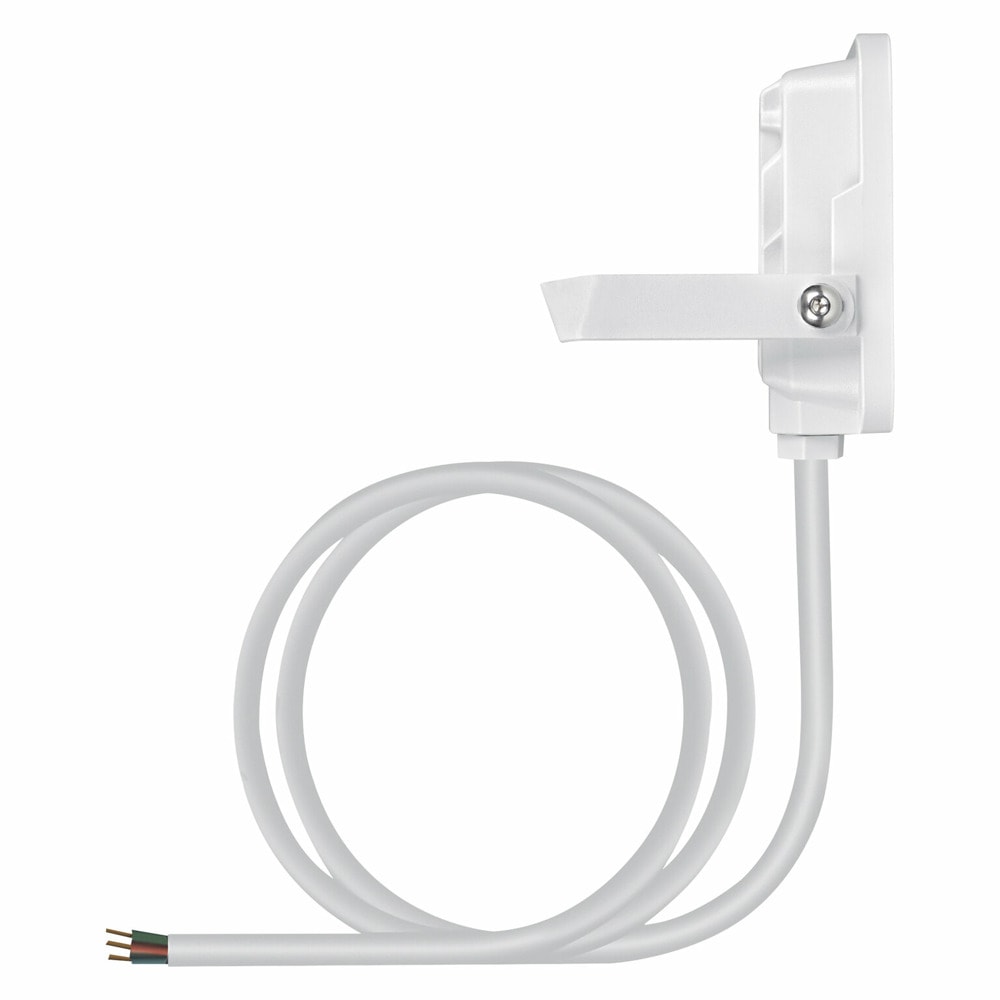

• Mounting bracket with 30° angle and wide rotation area
• Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires

Technical data

Electrical data

Nominal wattage 20.00 W

Nominal voltage 220…240 V

Mains frequency 50…60 Hz

Nominal current 97 mA

Inrush current 6 A

Inrush current time Th50 1.3 µs

Max. number of luminaires per miniature circuit breaker B16 90

Max. number of luminaires per miniature circuit breaker C10 66

Max. number of luminaires per miniature circuit breaker C16 105

Power factor λ > 0.90
