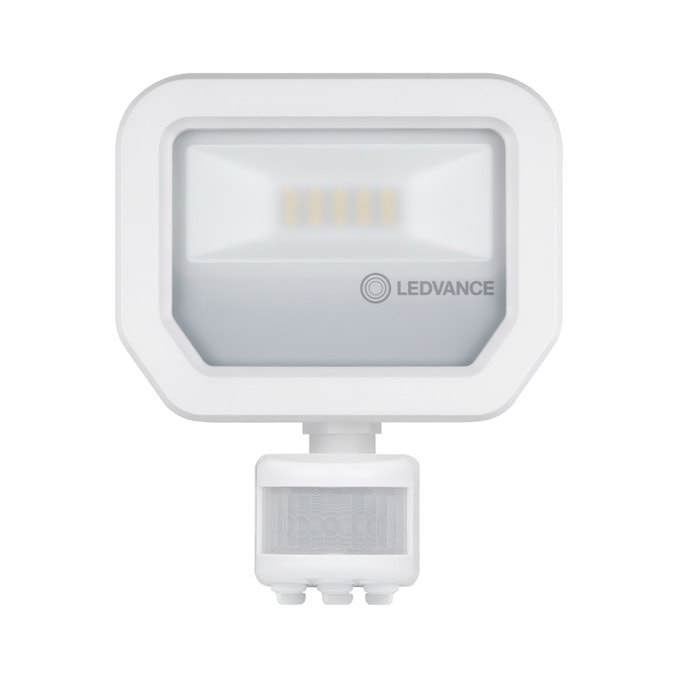

LED прожектор Ledvance FL PFM SYM 100 S WT

Product benefits

• Bright, robust and durable
• Demand optimized illumination due to flexible and programmable sensor
• Easy adjustment of sensor range, daylight detection and hold time
• Always-on override, activated via special mains switching pattern
• Safe and very uniform illumination, due to frosted and tempered glass diffuser
• No upper light output ratio (ULOR 0%) when mounted at 0° tilt
• Energy savings of up to 90 % compared to halogen lamp floodlights

Areas of application

• Replacement for floodlights with halogen lamps
• Outdoor use (IP65)
• Public areas
• Building facades
• Construction areas
• Gardens, balconies and other outdoor areas

Product features

• Flexible motion and daylight sensor
• Sensor with 350° pan and 180° tilt
• Reflector-based, symmetric light distribution with 100° x 100° beam angle
• Integrated wide voltage driver, suitable for 100 - 277 V AC
• Surge protection: up to 4 kV (L/N-PE), 2 kV (L-N)

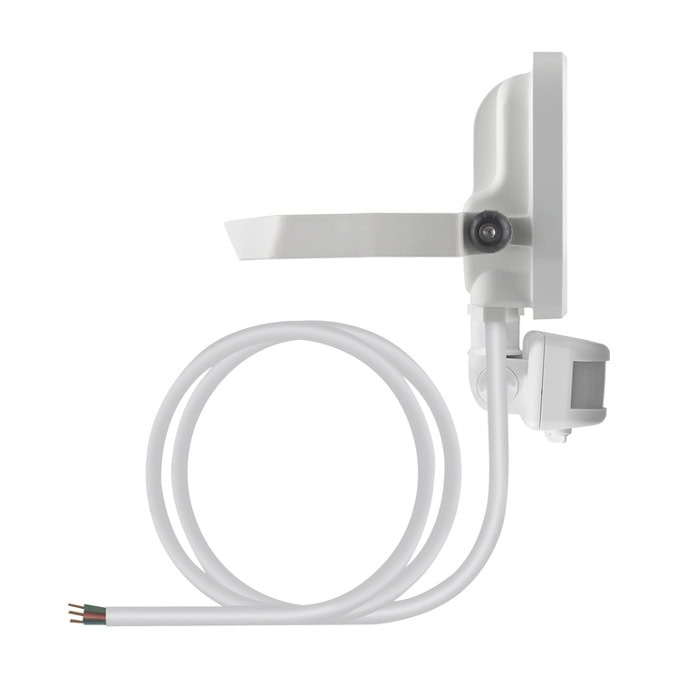

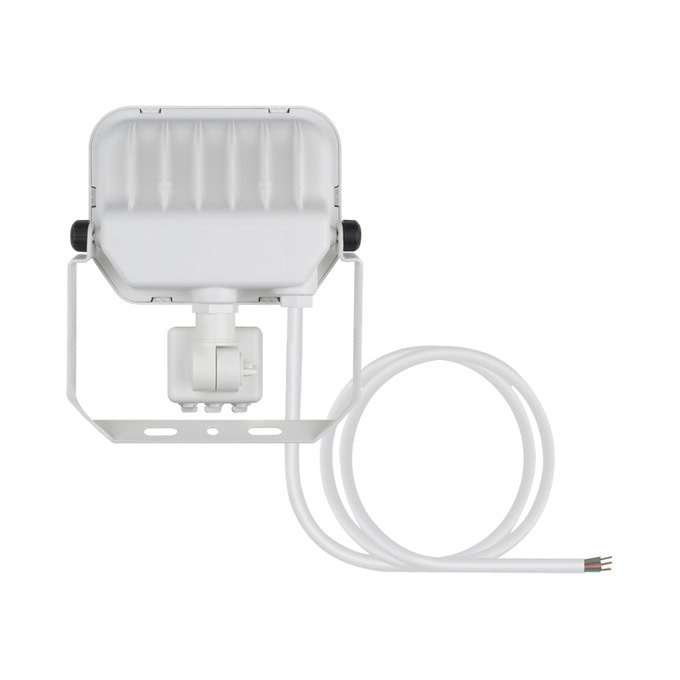

• Mounting bracket with 30° angle and wide rotation area
• Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires

Safety advice

• All electrical connections must be made by a qualified person.
• The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
• Terminal block not included. Installation must be made by a qualified person.
• Caution, risk of electric shock.
• Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.

Electrical data

Nominal wattage10.00 W

Nominal voltage100…277 V

Mains frequency50…60 Hz

Nominal current48 mA

Inrush current7.2 A

Inrush current time Th5021 µs

Max. number of luminaires per miniature circuit breaker B16185

Max. number of luminaires per miniature circuit breaker C10135

Max. number of luminaires per miniature circuit breaker C16216

Power factor λ> 0.90
