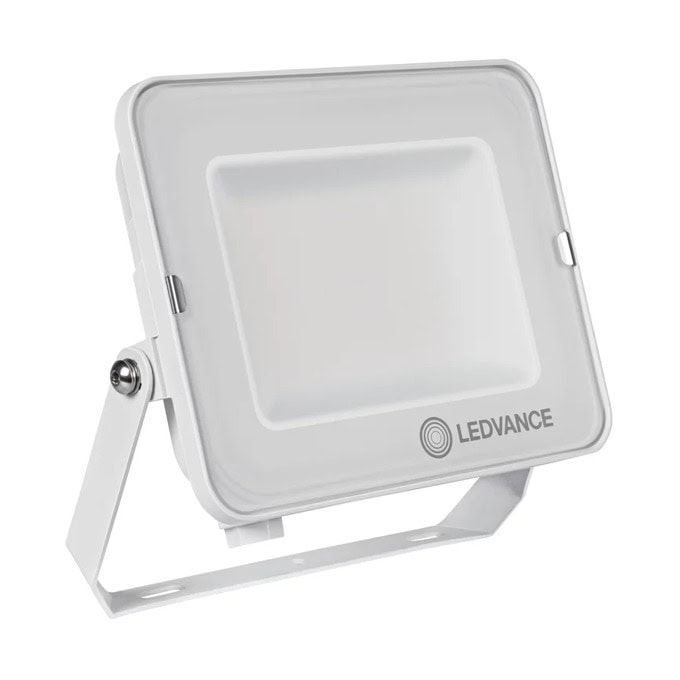

LED прожектор Ledvance FL COMP V 50W 830 SYM 100 WT

Product benefits

• Robust, yet light and compact design
• Safe and very uniform illumination, due to frosted and tempered glass diffuser
• No upper light output ratio (ULOR 0%) when mounted at 0° tilt
• Energy savings of up to 90 % compared to halogen lamp floodlights

Areas of application

• Replacement for floodlights with halogen lamps
• Outdoor use (IP65)
• Public areas
• Building facades
• Gardens, balconies and other outdoor areas
• Construction areas

Product features

• Reflector-based, symmetric light distribution with 100° x 100° beam angle

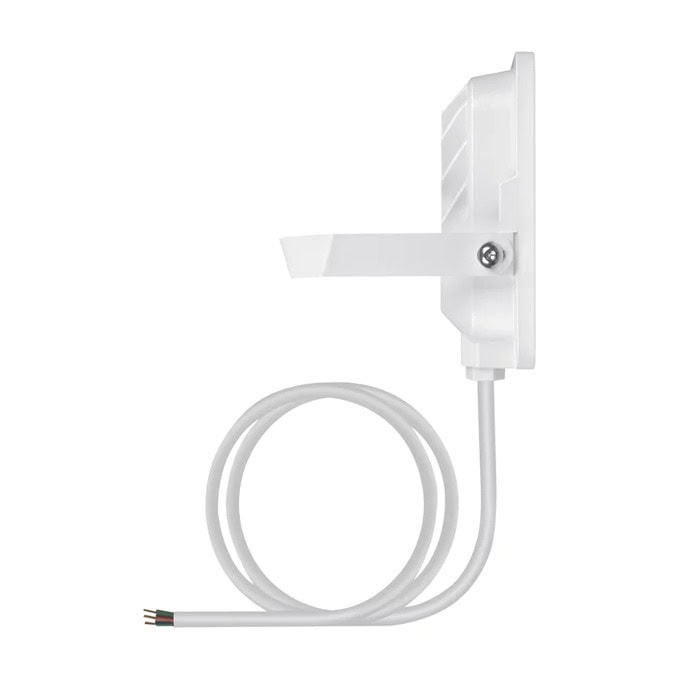

• Mounting bracket with 30° angle and wide rotation area

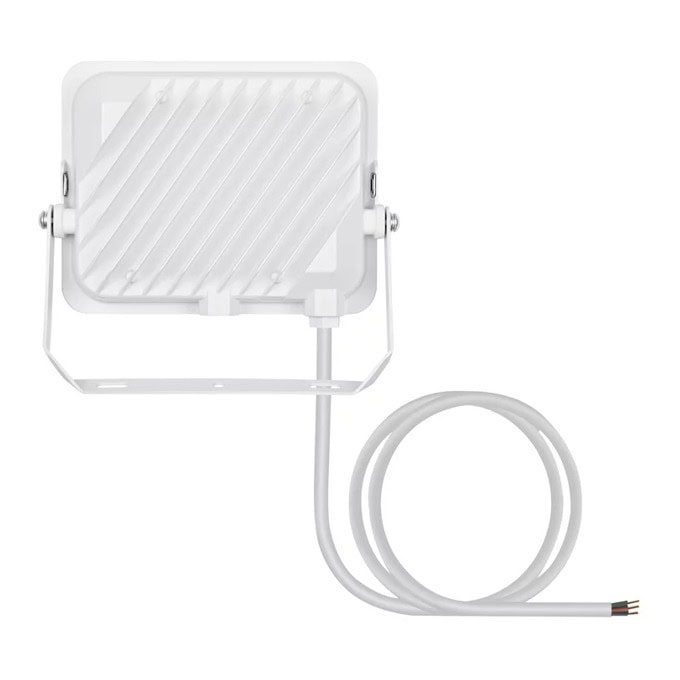

• Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires

Safety advice

• The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
• Terminal block not included. Installation must be made by a qualified person.
• Caution, risk of electric shock.
• Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.

Technical data

Electrical data

Nominal wattage50.00 W

Nominal voltage220…240 V

Mains frequency50…60 Hz

Nominal current242 mA

Inrush current5.2 A

Inrush current time Th501 µs

Max. number of luminaires per miniature circuit breaker B1636

Max. number of luminaires per miniature circuit breaker C1026

Max. number of luminaires per miniature circuit breaker C1642

Power factor λ> 0.90
