Ledvance

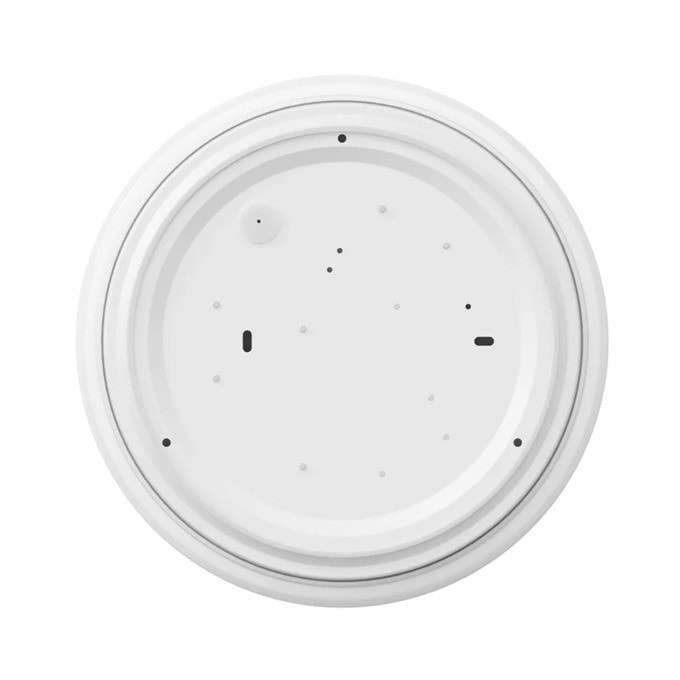

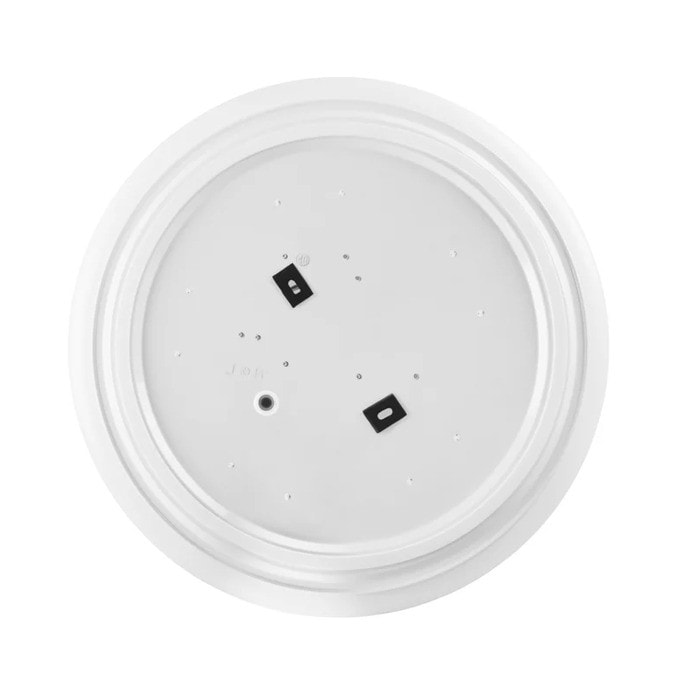

LED плафон Ledvance SF CIRC 250 SEN V 13W 840 IP44
Артикул №: 1000136396
Категория:
Електрически крушки
58,99 €
✓ Налично във външен склад
Product benefits
- Easy adjustment of sensor range, daylight detection and hold time
- Indoor luminaire with high luminous efficacy
- Energy savings of up to 55 % compared to luminaires that use CFL
- Easy and quick installation
- Very homogenous light
Areas of application
- Corridors
- Stairways
- Bathrooms
- Foyers
Product features
- High frequency sensor for daylight and motion detection
- Type of protection: IP44 (ceiling mounting), IP20 (wall mounting)
- Impact resistance: IK03
- Metal housing, PMMA cover
- Ambient temperature in operation: -20…+40 °C
- Indoor use only, not suitable for outdoor use
Характеристики
| Nominal wattage13.00 W | Да |
| Nominal voltage220…240 V | Да |
| Mains frequency50…60 Hz | Да |
| Nominal current100 mA | Да |
| Inrush current6.7 A | Да |
| Inrush current time Th50228 µs | Да |
| Power factor λ> | 0.55 |
| Total harmonic distortion | Да |
| Photometrical data | Да |
| Luminous flux960 lm | Да |
| Luminous efficacy75 lm/W | Да |
| Color temperature4000 K | Да |
| Light color (designation)Cool White | Да |
| Color rendering index Ra> | 80 |
| Standard deviation of color matching | Да |
| Dimensions & Weight | Да |
| Diameter250.00 mm | Да |
| Height91.00 mm | Да |
| Product weight390.00 g | Да |
| Materials & Colors | Да |
| Product colorWhite | Да |
| Housing colorWhite | Да |
| Body materialSteel | Да |
| Cover materialPolymethylmethacrylate (PMMA) | Да |
| Light emitting surface materialPMMA | Да |
| Glow Wire Test according to IEC | 60695-2-12650 °C |
| Mercury content0.0 mg | Да |
| Application & Mounting | Да |
| Ambient temperature range-20…+40 °C | Да |
| Temperature range at storage-20…+80 °C | Да |
| Type of connectionTerminal, | 3-pin |
| Type of protectionIP44 | 1) |
| Protection class IK (shock resistance)IK03 | Да |
| DimmableNo | Да |
| Mounting typeSurface | Да |
| Mounting locationCeiling, Wall | Да |
| Application environmentIndoor | Да |
| LED module replaceableNot replaceable | Да |
| With light sourceYes | Да |
| 1) Type of protection | IP44 (ceiling mounting), IP20 (wall mounting) |
| Lifespan | Да |
| Lifespan L70/B50 at | 25 °C30000 h |
| Lifespan L80/B10 at | 25 °C22000 h |
| Lifespan L90/B10 at | 25 °C15000 h |
| Number of switching cycles50000 | Да |
| Control gear | Да |
| Output current145 mA | Да |
| Sensor | Да |
| Type of sensorMotion, Light | Да |
| Sensor technologyMicrowave | Да |
| Sensor detection angle120 ° | Да |
| Sensor controlled switching time5 s…30 min | Да |
| Detection range of motion sensor4…7 m | Да |
| Detection threshold of daylight sensor2…50 lx | Да |
| Sensor IP ratingIP44 | Да |
| Certificates & Standards | Да |
| StandardsCE, CB, TÜV SÜD, EAC, EPD | Да |
