Ledvance

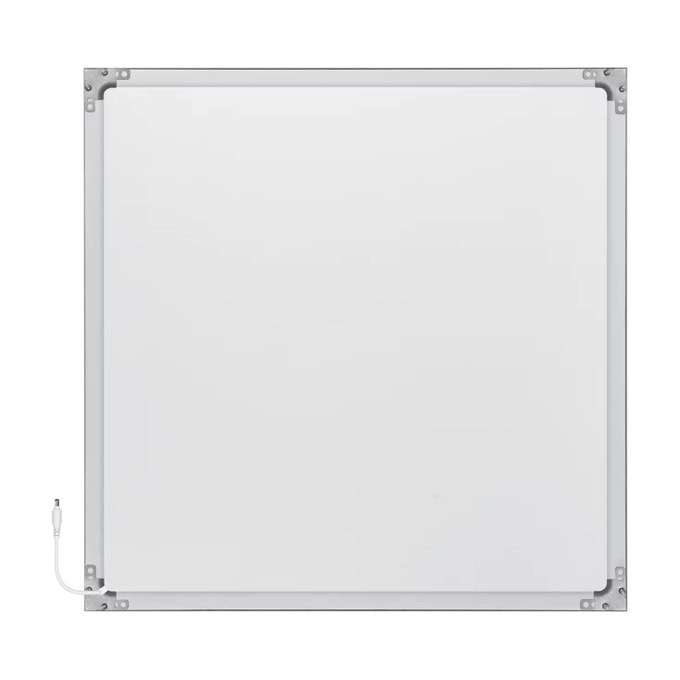

LED панел Ledvance PANEL VAL 600 UGR < 19 WT
Артикул №: 1000136340
Категория:
Електрически крушки
63,99 €
✓ Налично във външен склад
Product benefits
- Value for money luminaire
- Good glare reduction (UGR Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
- Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
- Lifetime (L70/B50): up to 50,000 h (at 25 °C)
- Extruded aluminum frame
- Polystyrene diffuser
Характеристики
| Nominal wattage40.00 W | Да |
| Nominal voltage220…240 V | Да |
| Mains frequency50…60 Hz | Да |
| Nominal current290 mA | Да |
| Inrush current26 A | Да |
| Inrush current time Th5090 µs | Да |
| Power factor λ> | 0.90 |
| Total harmonic distortion≤ | 20 % |
| Protection classII | Да |
| Operating modeExternal LED driver | Да |
| Photometrical data | Да |
| Luminous flux3600 lm | Да |
| Luminous efficacy90 lm/W | Да |
| Color temperature4000 K | Да |
| Light color (designation)Cool White | Да |
| Color rendering index Ra> | 80 |
| Standard deviation of color matching | Да |
| Dimensions & Weight | Да |
| Length595.00 mm | Да |
| Height9.00 mm | Да |
| Width595.00 mm | Да |
| Product weight2110.00 g | Да |
| Materials & Colors | Да |
| Product colorWhite | Да |
| Housing colorWhite | Да |
| Body materialSteel | Да |
| Cover materialPolystyrene (PS) | Да |
| Light emitting surface materialPolystyrene | Да |
| Glow Wire Test according to IEC | 60695-2-12650 °C |
| Mercury content0.0 mg | Да |
| Application & Mounting | Да |
| Ambient temperature range-10…+45 °C | Да |
| Temperature range at storage-25…+60 °C | Да |
| Type of connectionScrew terminal, | 2-Pole (L,N) |
| Type of protectionIP20 | Да |
| Protection class IK (shock resistance)IK03 | Да |
| DimmableNo | Да |
| Mounting typeRecessed/Suspended/Surface | Да |
| Mounting locationCeiling | Да |
| Application environmentIndoor | Да |
| Mounting length575 mm | Да |
| Mounting width575 mm | Да |
| Mounting depth50,0 mm | Да |
| LED module replaceableNot replaceable | Да |
| Lifespan | Да |
| Lifespan L70/B50 at | 25 °C50000 h |
| Lifespan L80/B10 at | 25 °C40000 h |
| Lifespan L90/B10 at | 25 °C30000 h |
| Number of switching cycles30000 | Да |
| Control gear | Да |
| ECG - Output voltage30…42 V | Да |
| Output current1000 mA | Да |
| ECG - Output ripple current | Да |
| Certificates & Standards | Да |
| StandardsCE, CB | Да |
| Ball shot safeNo | Да |
