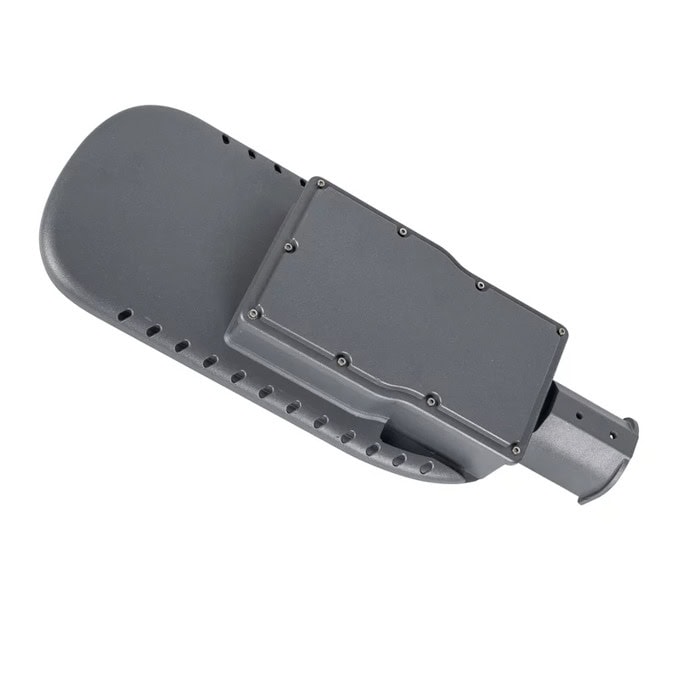

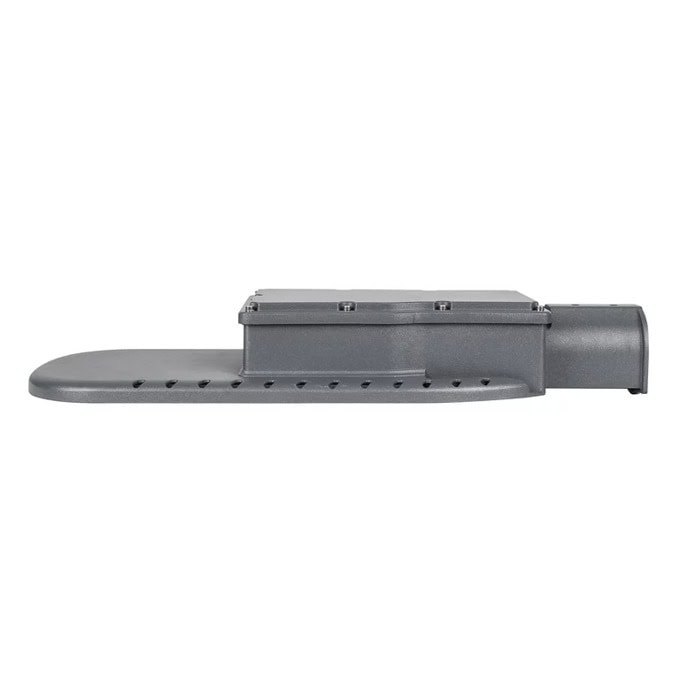

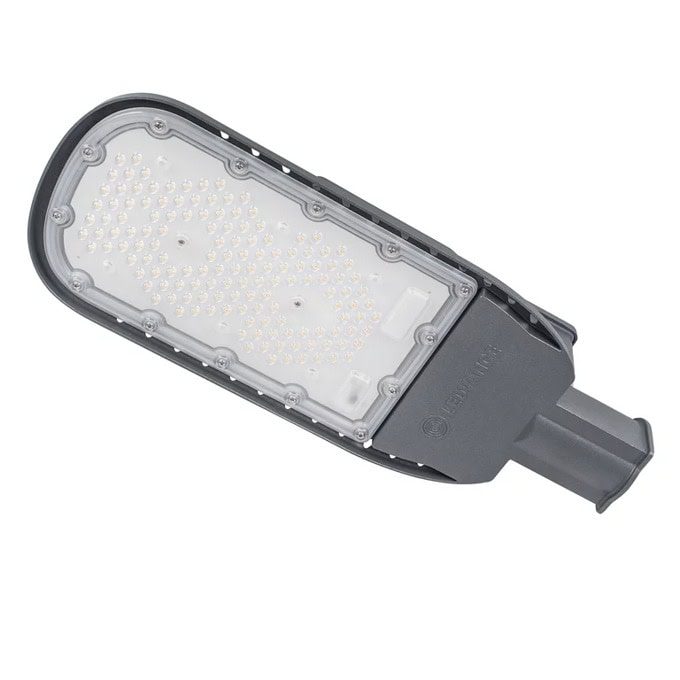

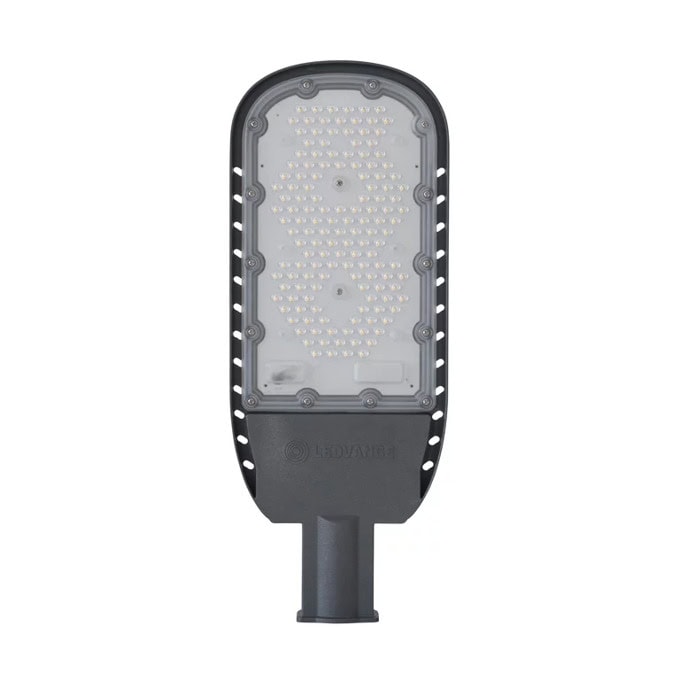

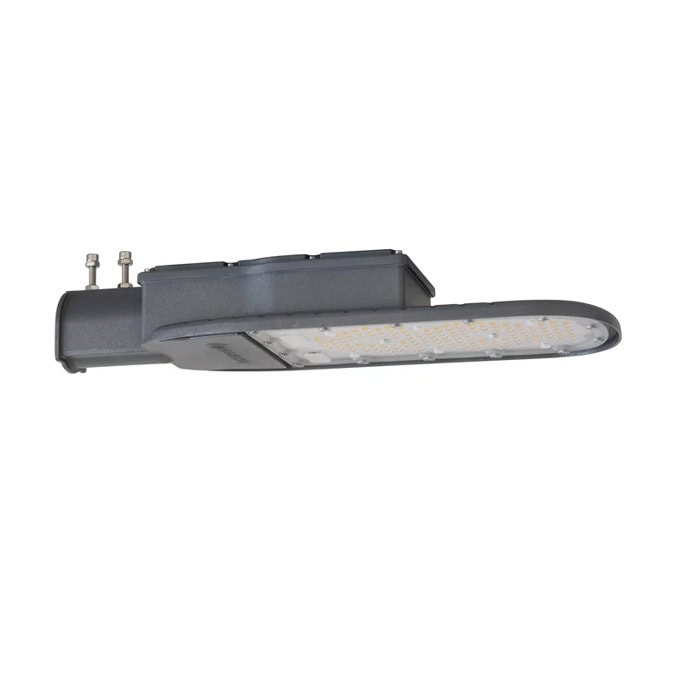

LED осветително тяло Ledvance Eco Area SPD

Product benefits

• Functional and minimalistic design
• Low maintenance and operation costs due to long lifetime of LED

Areas of application

• Road lighting
• Streets
• Car parks
• Area lighting

Product features

• Asymmetric light distribution for various application areas
• Robust die-cast aluminum housing
• Side-entry mounting for 48…60 mm poles
• Surge protection: 10 kV (L/N-PE)
• Integrated wide voltage driver, suitable for 100 - 240 VAC
• Pre-installed, flexible 0.5 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires

Electrical data

Nominal wattage90.00 W

Nominal voltage100…240 V

Mains frequency50…60 Hz

Nominal current450 mA

Inrush current time Th501400 µs

Max. number of luminaires per miniature circuit breaker B164

Max. number of luminaires per miniature circuit breaker C105

Max. number of luminaires per miniature circuit breaker C168

Power factor λ> 0.95

Total harmonic distortion

Photometrical data

Luminous flux11700 lm

Luminous efficacy135 lm/W

Color temperature4000 K

Light color (designation)Cool Daylight

Color rendering index Ra> 80

Standard deviation of color matching≤5 sdcm

Photobiological safety group acc. to EN62778RG1

Photobiological safety group acc. to EN62471RG1

Beam angle150 ° x 85 °

Dimensions

Length552.00 mm

Height91.00 mm

Width216.00 mm

Cable length500 mm

Materials & Colors

Product colorGray

Housing colorGray

Body materialAluminum

Cover materialPolycarbonate (PC)

Mercury content0.0 mg

Application & Mounting

Ambient temperature range-30…+50 °C

Temperature range at storage-35…+70 °C

Type of connectionCable, 3-pole

Type of protectionIP66

Protection class IK (shock resistance)IK08

DimmableNo

Mounting typeSide entry

Mounting locationPole

Application environmentOutdoor

LED module replaceableNot replaceable

With light sourceYes

Lifespan

Lifespan L70/B50 at 25 °C50000 h 1)

Lifespan L80/B10 at 25 °C35000 h 1)

Number of switching cycles100000

Certificates & Standards

StandardsCE, EAC, ENEC

Luminaire with limited surface temperature, "D sign"No
