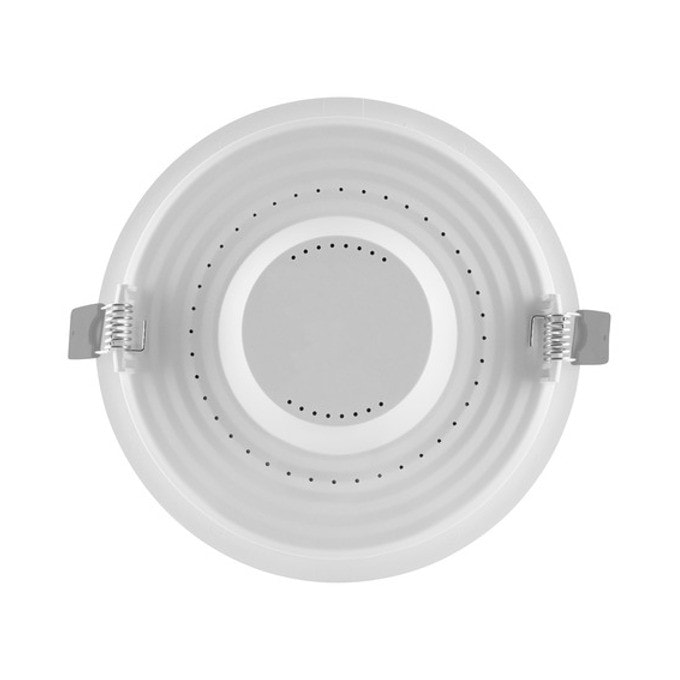

LED луна за вграждане Ledvance DL SLIM DN 155 WT

Product benefits

• Very slim housing
• Low installation depth
• High luminous efficacy
• Energy savings up to 60 % (compared to luminaires that use CFL lamps)
• Very homogenous light
• Functional design
• Easy installation with fast connection
• Simple installation thanks to integrated driver

Areas of application

• Direct replacement for luminaires with compact fluorescent lamps
• General illumination
• Public areas
• Stairways
• Corridors
• Foyers
• Shops

Product features

• Small visible bezel
• Connector box with push wire terminal for tool-free connection
• Light guide made of non-yellowing PMMA for long lifetime

Safety advice

• All electrical connections must be made by a qualified person.
• Caution, risk of electric shock.
• The luminaires are not suitable for covering with thermally insulated material.

Technical data

Electrical data

Nominal wattage12.00 W

Nominal voltage220…240 V

Mains frequency50…60 Hz

Nominal current71.7 mA

Inrush current15.6 A

Inrush current time Th5050 µs

Max. number of luminaires per miniature circuit breaker B1648

Max. number of luminaires per miniature circuit breaker C1038

Max. number of luminaires per miniature circuit breaker C1661

Power factor λ0.50
