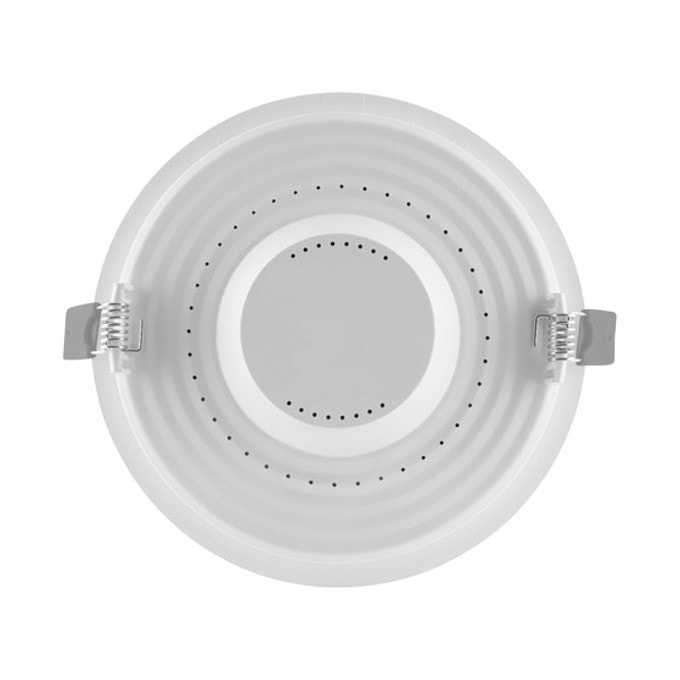

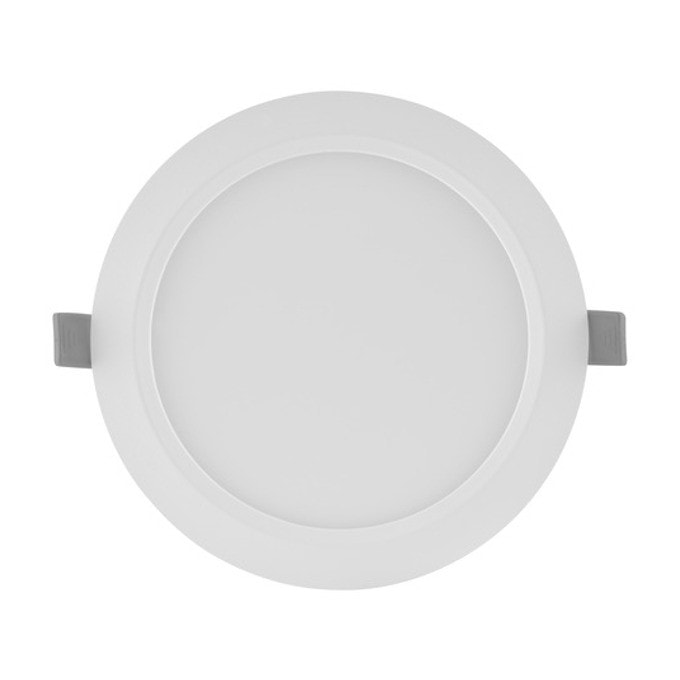

LED луна за вграждане Ledvance DL SLIM DN 105 WT

Product benefits

• Very slim housing
• Low installation depth
• High luminous efficacy
• Energy savings up to 60 % (compared to luminaires that use CFL lamps)
• Very homogenous light
• Functional design
• Easy installation with fast connection
• Simple installation thanks to integrated driver

Areas of application

• Direct replacement for luminaires with compact fluorescent lamps
• General illumination
• Public areas
• Stairways
• Corridors
• Foyers
• Shops

Product features

• Small visible bezel
• Connector box with push wire terminal for tool-free connection
• Light guide made of non-yellowing PMMA for long lifetime

Safety advice

• All electrical connections must be made by a qualified person.
• Caution, risk of electric shock.
• The luminaires are not suitable for covering with thermally insulated material.

Technical data

Electrical data

Nominal wattage6.00 W

Nominal voltage220…240 V

Mains frequency50…60 Hz

Nominal current58 mA

Inrush current6 A

Inrush current time Th50120 µs

Max. number of luminaires per miniature circuit breaker B1672

Max. number of luminaires per miniature circuit breaker C1060

Max. number of luminaires per miniature circuit breaker C1696

Power factor λ0.50
