Ledvance

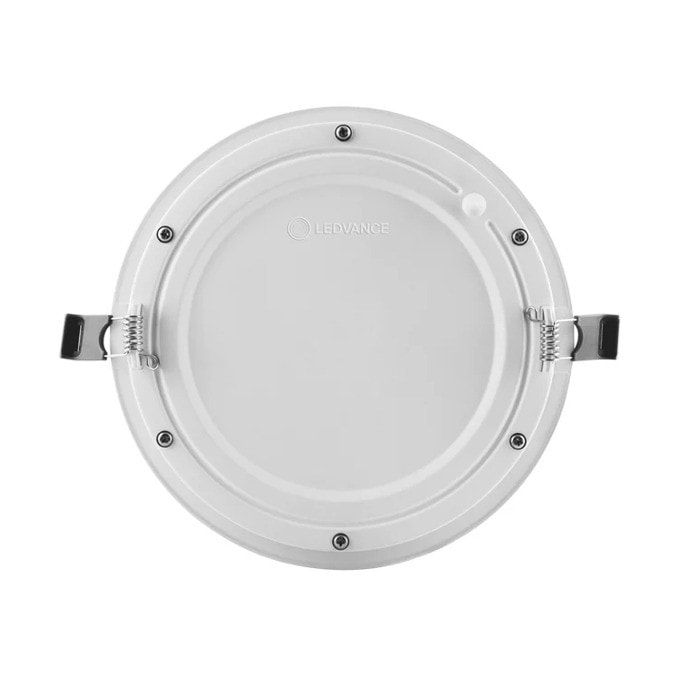

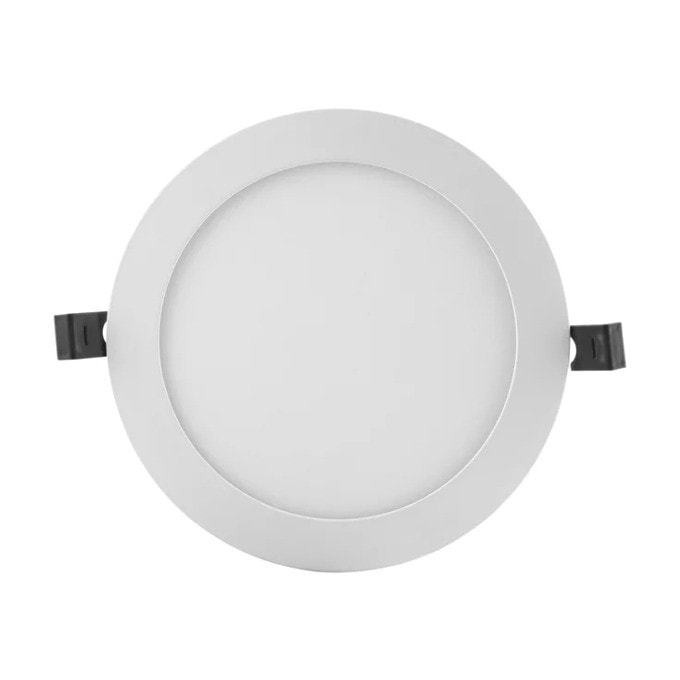

LED луна за вграждане Ledvance DL SLIM ALU DN 180 WT
Артикул №: 1000136334
Категория:
Електрически крушки
26,99 €
✓ Налично във външен склад
Product benefits
- Very slim housing
- Low installation depth
- High luminous efficacy
- Energy savings up to 60 % (compared to luminaires that use CFL lamps)
- Very homogenous light
- Functional design
- External driver for easy replacement
Areas of application
- Direct replacement for luminaires with compact fluorescent lamps
- General illumination
- Public areas
- Stairways
- Corridors
- Foyers
- Shops
Product features
- Solid aluminum housing in white
- Small visible bezel
- Light guide made of non-yellowing PMMA for long lifetime
Характеристики
| Nominal wattage17.00 W | Да |
| Nominal voltage220…240 V | Да |
| Mains frequency50…60 Hz | Да |
| Nominal current155 mA | Да |
| Inrush current10 A | Да |
| Inrush current time Th50400 µs | Да |
| Power factor λ> | 0.5 |
| Total harmonic distortion | Да |
| Photometrical data | Да |
| Luminous flux1400 lm | Да |
| Luminous efficacy80 lm/W | Да |
| Color temperature4000 K | Да |
| Light color (designation)Cool White | Да |
| Color rendering index Ra> | 80 |
| Standard deviation of color matching | Да |
| Dimensions & Weight | Да |
| Diameter192.00 mm | Да |
| Height23.00 mm | Да |
| Product weight280.00 g | Да |
| Materials & Colors | Да |
| Product colorWhite | Да |
| Housing colorWhite | Да |
| Body materialAluminum | Да |
| Cover materialPolymethylmethacrylate (PMMA) | Да |
| Light emitting surface materialPMMA | Да |
| Glow Wire Test according to IEC | 60695-2-12650 °C |
| Mercury content0.0 mg | Да |
| Application & Mounting | Да |
| Ambient temperature range-20…+40 °C | Да |
| Temperature range at storage-30…+70 °C | Да |
| Type of connectionScrewless terminal, | 2-Pole |
| Type of protectionIP20 | Да |
| Protection class IK (shock resistance)IK03 | Да |
| DimmableNo | Да |
| Mounting typeRecessed | Да |
| Mounting locationCeiling, Wall | Да |
| Application environmentIndoor | Да |
| Mounting diameter180 mm | Да |
| Mounting depth40 mm | Да |
| LED module replaceableNot replaceable | Да |
| With light sourceYes | Да |
| Lifespan | Да |
| Lifespan L70/B50 at | 25 °C50000 h |
| Lifespan L80/B10 at | 25 °C30000 h |
| Lifespan L90/B10 at | 25 °C15000 h |
| Number of switching cycles50000 | Да |
| Control gear | Да |
| Output current330 mA | Да |
| ECG - Output ripple current≤ | 10 % |
| ECG - Length120 mm | Да |
| ECG - Width42 mm | Да |
| ECG - Height28 mm | Да |
| Certificates & Standards | Да |
| StandardsCE, CB | Да |
| Luminaire with limited surface temperature, "D sign"No | Да |
| Ball shot safeNo | Да |
| Additional product data | Да |
| Number of illuminantsNot relevant | Да |
