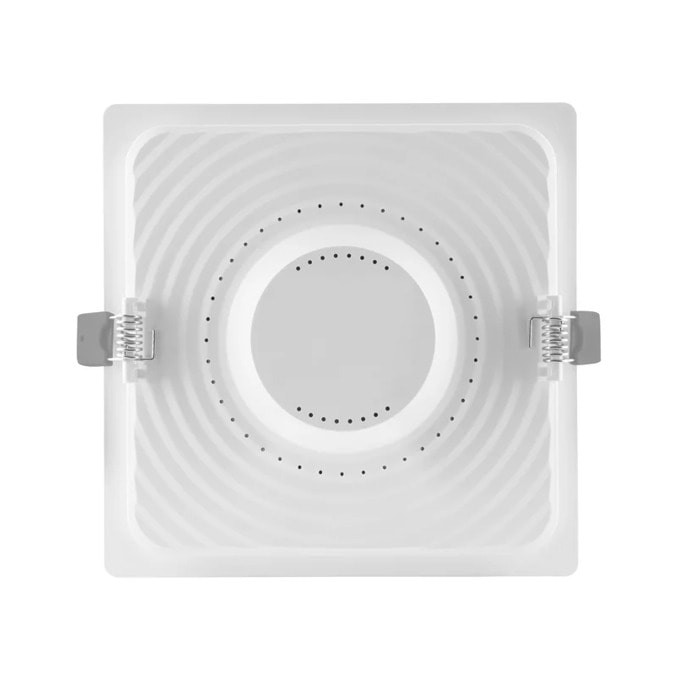

LED лампа Ledvance SQ 155

Product benefits

• Very slim housing
• Low installation depth
• High luminous efficacy
• Energy savings up to 60 % (compared to luminaires that use CFL lamps)
• Very homogenous light
• Functional design
• Easy installation with fast connection
• Simple installation thanks to integrated driver

Areas of application

• Direct replacement for luminaires with compact fluorescent lamps
• General illumination
• Public areas
• Stairways
• Corridors
• Foyers
• Shops

Product features

• Small visible bezel
• Connector box with push wire terminal for tool-free connection
• Light guide made of non-yellowing PMMA for long lifetime

Technical data

Electrical data

Nominal wattage 12.00 W

Nominal voltage 220…240 V

Mains frequency 50…60 Hz

Nominal current 71.7 mA

Inrush current 15.6 A

Inrush current time Th50 50 µs

Max. number of luminaires per miniature circuit breaker B16 48

Max. number of luminaires per miniature circuit breaker C10 38

Max. number of luminaires per miniature circuit breaker C16 61

Power factor λ 0.50
