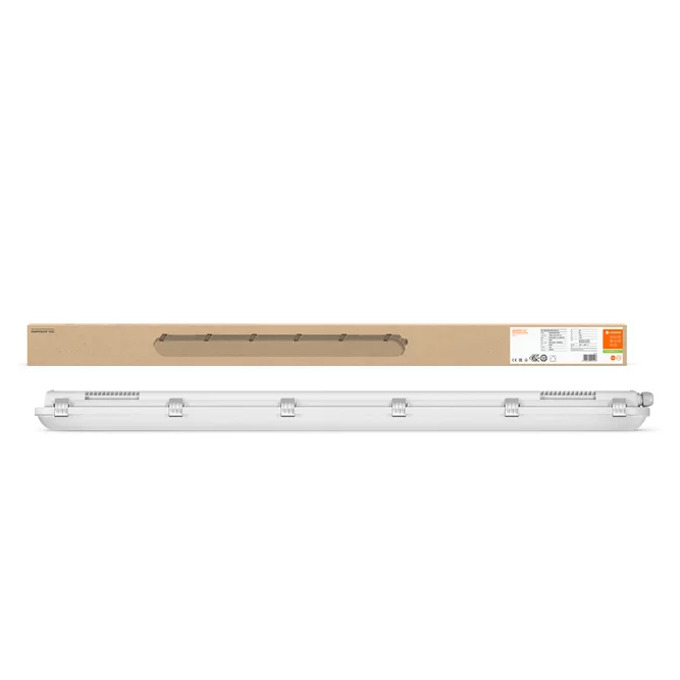

LED лампа Ledvance DP 1200

Product benefits

• Low flicker ≤ 10 %
• Evenly distributed light
• Energy savings of up to 60 % (compared to luminaires that use fluorescent lamps)
• Easy installation, no tools required for connection

Areas of application

• Industrial and storage facilities
• Car parks and underpasses
• Garages
• Workshops, assembly lines

Product features

• High luminous efficacy: up to 139 lm/W
• Beam angle: 110°

Electrical data

Nominal wattage32.00 W

Nominal voltage220…240 V

Mains frequency50…60 Hz

Nominal current280.000 mA

Inrush current12.2 A

Inrush current time Th50210 µs

Max. number of luminaires per miniature circuit breaker B1627

Max. number of luminaires per miniature circuit breaker C1024

Max. number of luminaires per miniature circuit breaker C1639

Power factor λ> 0.90

Total harmonic distortion

Photometrical data

Luminous flux4400 lm

Luminous efficacy138 lm/W

Color temperature4000 K

Light color (designation)Cool White

Color rendering index Ra> 80

Standard deviation of color matching4 sdcm

Low flickerYes

Flickering metric (Pst LM)≤ 1

Stroboscope effect metric (SVM)≤ 0.4

Photobiological safety group acc. to EN62778RG0

Beam angle110 °

Dimensions

Length1200.00 mm

Height68.00 mm

Width82.00 mm

Materials & Colors

Product colorGray

Housing colorGray

Body materialPolycarbonate (PC)

Cover materialPolycarbonate (PC)

Light emitting surface materialPolycarbonate (PC)

Glow Wire Test according to IEC 60695-2-12850 °C

Mercury content0.0 mg

Application & Mounting

Ambient temperature range-25…+40 °C

Temperature range at storage-25…+80 °C

Type of connectionTerminal, 3-pin

Type of protectionIP65

Protection class IK (shock resistance)IK08

DimmableNo

Mounting typeSuspended/Surface

Mounting locationCeiling, Wall

Application environmentIndoor

LED module replaceableNot replaceable

With light sourceYes

Lifespan

Lifespan L70/B50 at 25 °C70000 h

Lifespan L80/B10 at 25 °C50000 h

Lifespan L90/B10 at 25 °C44000 h

Number of switching cycles100000

Control gear

Output current370 mA

Certificates & Standards

StandardsCE, CB, ENEC, TÜV SÜD, EAC, RoHS, EPD

Luminaire with limited surface temperature, "D sign"Yes

Ball shot safeNo

Additional product data

Product remarkWhen used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime
