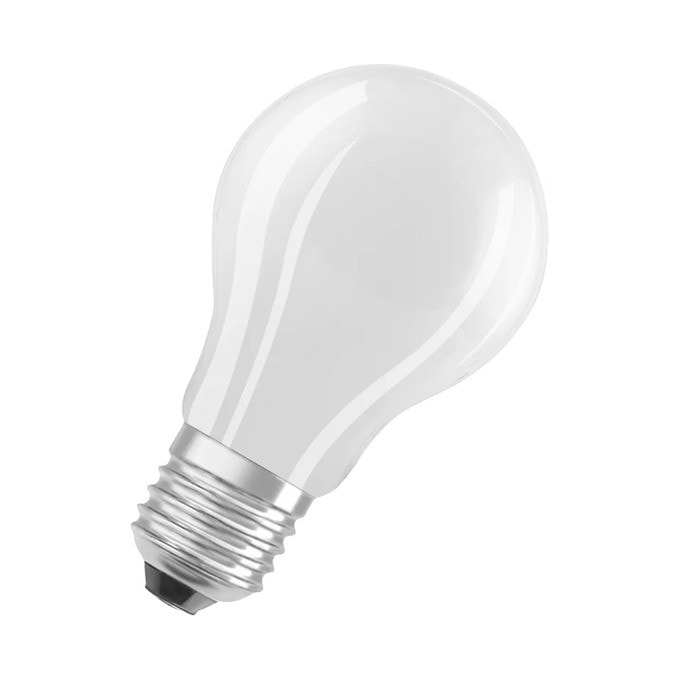

LED крушка Osram Classic A 75 DIM P 7.5W 827 Frosted

Electrical data

Nominal wattage7.5 W

Construction wattage7.50 W

Nominal voltage220…240 V

Claimed equiv. conventional lamp power75 W

Nominal current38 mA

Type of currentAC

Inrush current1.46 A

Operating frequency50…60 Hz

Mains frequency50…60 Hz

Max. lamp number on MCB B10 A750

Max. lamp number on MCB B16 A1200

Power factor λ> 0.50

Photometrical data

Luminous flux1055 lm

Nominal useful luminous flux 90°1055 lm

Luminous efficacy140 lm/W

Lumen main.fact.at end of nom.life time0.70

Light color (designation)Warm White

Color temperature2700 K

Color rendering index Ra≥80

Light color827

Standard deviation of color matching≤6 sdcm

Flickering metric (Pst LM)1.0

Stroboscope effect metric (SVM)0.9

Light technical data

Beam angle300 °

Warm-up time (60 %)‹ 0.50 s

Starting time

Dimensions & Weight

Overall length105.00 mm

Diameter60.00 mm

Maximum diameter60 mm

Product weight31.00 g

Temperatures & operating conditions

Ambient temperature range-20…+40 °C

Maximum temperature at tc test point65 °C

Lifespan

Lifespan L70/B50 at 25 °C15000 h

Number of switching cycles100000

Lumen maintenance at end of service lifetime0.70

Rated lamp survival factor at 6,000 h≥ 0.90

Additional product data

Base (standard designation)E27

Mercury content0.0 mg

Mercury-freeYes

Design / versionFrosted

Product remarkDimmable (with many common dimmers, see also www.ledvance.com/dim)

Capabilities

DimmableYes

Certificates & Standards

Energy efficiency classD 1)

Energy consumption8.00 kWh/1000h

Type of protectionIP20

StandardsCE, EAC

Photobiological safety group acc. to EN62778RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Energy labelling regulation data acc EU 2019/2015
