Ledvance

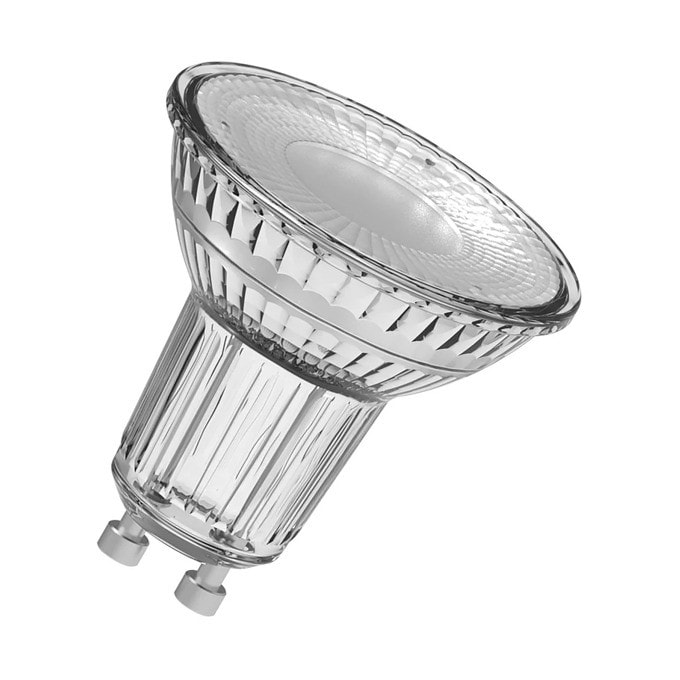

LED крушка Ledvance AC45697
Артикул №: 1000137540
Категория:
Електрически крушки
5,99 €
✓ Налично във външен склад
Product benefits
- Quick, simple and safe replacement without rewiring
- Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
- Low maintenance costs thanks to long lifetime
- No UV and near-IR radiation in the light beam
- Instant 100 % light, no warm-up time
- Lower energy consumption than incandescent or halogen lamps
Areas of application
- Shops and exhibition rooms
- Domestic applications
- Commercial applications
- Accent lighting
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to high voltage halogen lamps
- High color consistency: ≤ 6 SDCM
- Not dimmable
- Lamp made of glass
- Good quality of light; color rendering index Ra: ≥ 80
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Характеристики
| Nominal wattage4.3 W | Да |
| Construction wattage4.30 W | Да |
| Nominal voltage220…240 V | Да |
| Operating modeAC Mains | Да |
| Claimed equiv. conventional lamp power50 W | Да |
| Nominal current38 mA | Да |
| Type of currentAC | Да |
| Inrush current4.3 A | Да |
| Operating frequency50/60 Hz | Да |
| Mains frequency50/60 Hz | Да |
| Max. lamp number on MCB B10 A28 | Да |
| Max. lamp number on MCB B16 A33 | Да |
| Total harmonic distortion150 % | Да |
| Power factor λ> | 0.40 |
| Photometrical data | Да |
| Luminous intensity600 cd | Да |
| Luminous flux350 lm | Да |
| Nominal useful luminous flux | 90°350 lm |
| Luminous efficacy81 lm/W | Да |
| Lumen main.fact.at end of nom.life time0.93 | Да |
| Light color (designation)Cool White | Да |
| Color temperature4000 K | Да |
| Color rendering index Ra80 | Да |
| Light color840 | Да |
| Standard deviation of color matching≤6 sdcm | Да |
| Rated peak intensity600 cd | Да |
| Rated LLMF at | 6,000 h0.80 |
| Flickering metric (Pst LM)≤1 | Да |
| Stroboscope effect metric (SVM)≤0.4 | Да |
| Light technical data | Да |
| Beam angle36 ° | Да |
| Warm-up time (60 %)‹ | 0.50 s |
| Starting time | Да |
| Dimensions & Weight | Да |
| Overall length54.00 mm | Да |
| Diameter50.00 mm | Да |
| Maximum diameter50 mm | Да |
| Product weight40.00 g | Да |
| Temperatures & operating conditions | Да |
| Ambient temperature range-20…+40 °C | Да |
| Maximum temperature at tc test point78 °C | Да |
| Lifespan | Да |
| Lifespan L70/B50 at | 25 °C15000 h |
| Number of switching cycles100000 | Да |
| Lumen maintenance at end of service lifetime0.93 | Да |
| Rated lamp survival factor at | 6,000 h≥ 0.90 |
| Additional product data | Да |
| Base (standard designation)GU10 | Да |
| Mercury content0.0 mg | Да |
| Mercury-freeYes | Да |
| Capabilities | Да |
| DimmableNo | Да |
| Certificates & Standards | Да |
| Energy efficiency classF | 1) |
| Energy consumption5.00 kWh/1000h | Да |
| Type of protectionIP20 | Да |
| StandardsCE, EAC | Да |
| Photobiological safety group acc. to EN62778RG1 | Да |
| LOGISTICAL DATA | Да |
| Temperature range at storage-20…+80 °C | Да |
| Energy labelling regulation data acc EU | 2019/2015 |
| Lighting technology usedLED | Да |
| Non-directional or directionalDLS | Да |
| Mains or non-mainsMLS | Да |
| Light source cap-type (or other electric interface)GU10 | Да |
| Connected light source (CLS)No | Да |
| Color-tuneable light sourceNo | Да |
| EnvelopeNo | Да |
| High luminance light sourceNo | Да |
| Anti-glare shieldNo | Да |
| Correlated colour temperature typeSINGLE_VALUE | Да |
| Standby power0 W | Да |
| Claim of equivalent powerYes | Да |
| Length54.00 mm | Да |
| Height50.00 mm | Да |
| Width50.00 mm | Да |
| Chromaticity coordinate x0.382 | Да |
| Chromaticity coordinate y0.380 | Да |
| R9 Colour rendering index8 | Да |
| Beam angle correspondenceNARROW_CONE_90 | Да |
| Survival factor0.90 | Да |
| Displacement factor>0.4 | Да |
| LED light source replaces a fluorescent light sourceNo | Да |
| EPREL ID1368227 | Да |
| Model numberAC45697 | Да |
