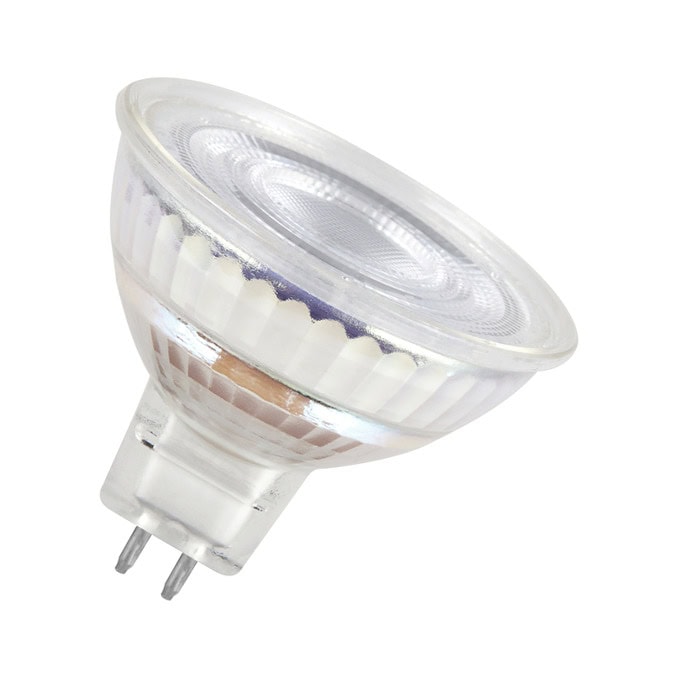

LED крушка Ledvance AC45629

Product benefits

• Quick, simple and safe replacement without rewiring
• Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
• Low maintenance costs thanks to long lifetime
• No UV and near-IR radiation in the light beam
• Instant 100 % light, no warm-up time
• Lower energy consumption than incandescent or halogen lamps

Areas of application

• Shops and exhibition rooms
• Domestic applications
• Commercial applications
• Accent lighting
• Outdoor use in suitable outdoor luminaires only

Product features

• LED alternative to low voltage halogen lamps
• High color consistency: ≤ 6 SDCM
• Not dimmable
• Base: GU5.3
• Lamp made of glass
• Good quality of light; color rendering index CRI ≥ 80
• Lifetime up to 15,000 h

Safety advice

• Do not touch the lamp if broken.
• Must not be used if outer bulb is defective.

Technical data

Electrical data

Nominal wattage6.5 W

Construction wattage6.50 W

Nominal voltage12 V

Operating modeECG, CCG 1)

Claimed equiv. conventional lamp power50 W

Nominal current770 mA

Type of currentAC/DC

Inrush current24.8 A

Operating frequency50/60 Hz

Mains frequency50/60 Hz

Max. lamp number on MCB B10 A24

Max. lamp number on MCB B16 A30

Total harmonic distortion

1) Check ECG compatibility at ledvance.com/compatibility

Photometrical data

Luminous intensity1150 cd

Luminous flux621 lm

Nominal useful luminous flux 90°621 lm

Luminous efficacy95 lm/W

Lumen main.fact.at end of nom.life time0.70

Light color (designation)Warm White

Color temperature2700 K

Color rendering index Ra80

Light color827

Standard deviation of color matching≤6 sdcm

Rated peak intensity1150 cd

Rated LLMF at 6,000 h0.80

Flickering metric (Pst LM)1,0

Stroboscope effect metric (SVM)0,4

Light technical data

Beam angle36 °

Warm-up time (60 %)‹ 0.50 s

Starting time

Dimensions & Weight

Overall length44.00 mm

Diameter50.00 mm

Maximum diameter50 mm

Product weight38.00 g

Temperatures & operating conditions

Ambient temperature range-20…+40 °C

Maximum temperature at tc test point87.3 °C

Lifespan

Lifespan L70/B50 at 25 °C15000 h

Number of switching cycles100000

Lumen maintenance at end of service lifetime0.70

Rated lamp survival factor at 6,000 h≥ 0.90

Additional product data

Base (standard designation)GU5.3

Mercury content0.0 mg

Mercury-freeYes

Product remarkAll technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

DimmableNo

Certificates & Standards

Energy efficiency classF 1)

Energy consumption7.00 kWh/1000h

Type of protectionIP20

StandardsCE, UKCA, EAC

Photobiological safety group acc. to EN62778RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

LOGISTICAL DATA

Temperature range at storage-20…+80 °C

Energy labelling regulation data acc EU 2019/2015
