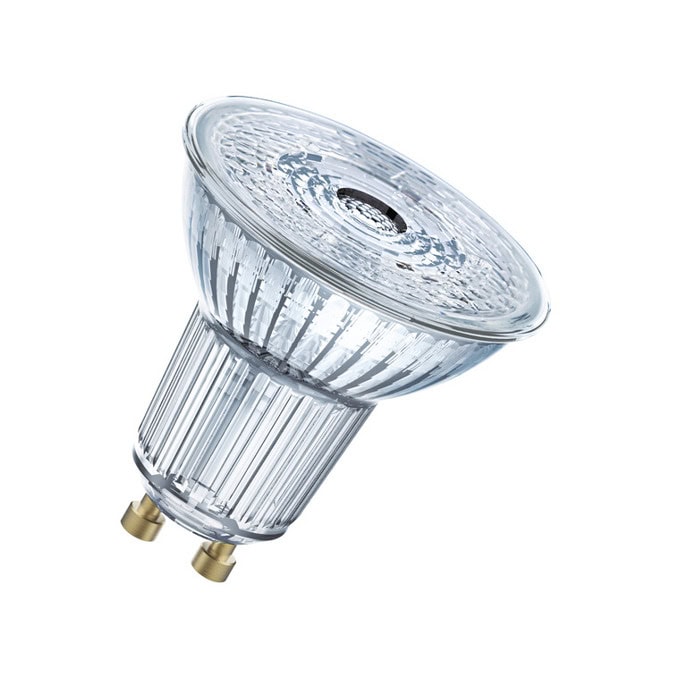

LED крушка Ledvance AC32733

Product benefits

• Quick, simple and safe replacement without rewiring
• Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
• Low maintenance costs thanks to long lifetime
• No UV and near-IR radiation in the light beam
• Stepless dimming
• Instant 100 % light, no warm-up time
• Lower energy consumption than incandescent or halogen lamps

Areas of application

• Shops and exhibition rooms
• Domestic applications
• Commercial applications
• Accent lighting
• Outdoor use in suitable outdoor luminaires only

Product features

• LED alternative to high voltage halogen lamps
• High color consistency: ≤ 5 sdcm
• Dimmable
• Lamp made of glass
• Very high color rendering CRI > 90

Safety advice

• Do not touch the lamp if broken.
• Must not be used if outer bulb is defective.

Technical data

Electrical data

Nominal wattage8.3 W

Construction wattage8.30 W

Nominal voltage220…240 V

Claimed equiv. conventional lamp power80 W

Nominal current46 mA

Type of currentAC

Operating frequency50/60 Hz

Mains frequency50/60 Hz

Max. lamp number on MCB B10 A117

Max. lamp number on MCB B16 A187

Power factor λ0.70

Photometrical data

Luminous intensity560 cd

Luminous flux575 lm

Nominal useful luminous flux 90°575 lm

Luminous efficacy69 lm/W

Lumen main.fact.at end of nom.life time0.70

Light color (designation)Warm White

Color temperature2700 K

Color rendering index Ra≥90

Light color927

Standard deviation of color matching≤5 sdcm

Rated peak intensity560 cd

Rated LLMF at 6,000 h0.80

Flickering metric (Pst LM)0.2

Stroboscope effect metric (SVM)0.4

Light technical data

Beam angle60 °

Warm-up time (60 %)‹ 0.50 s

Starting time

Dimensions & Weight

Overall length52.00 mm

Diameter50.00 mm

Maximum diameter50 mm

Product weight56.00 g

Temperatures & operating conditions

Ambient temperature range-20…+40 °C

Maximum temperature at tc test point105 °C

Lifespan

Lifespan L70/B50 at 25 °C25000 h

Number of switching cycles100000

Lumen maintenance at end of service lifetime0.70

Rated lamp survival factor at 6,000 h≥ 0.90

Additional product data

Base (standard designation)GU10

Mercury content0.0 mg

Product remarkAll technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

DimmableYes

Certificates & Standards

Energy efficiency classG 1)

Energy consumption9.00 kWh/1000h

Type of protectionIP20

StandardsCE, EAC

Photobiological safety group acc. to EN62778RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Energy labelling regulation data acc EU 2019/2015
