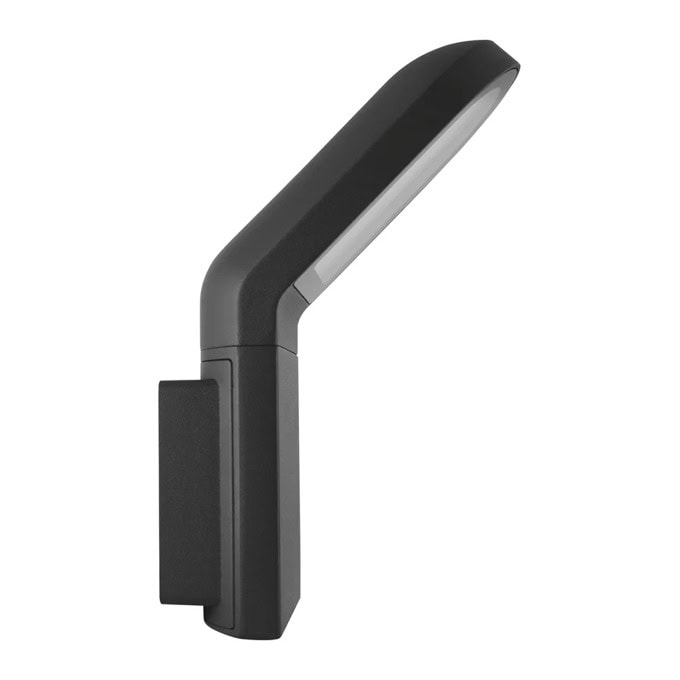

LED градинско осветително тяло Ledvance O Facade Edge

Product benefits

• Energy-efficient thanks to LED technology
• Easy and quick installation
• Homogeneous light output

Areas of application

• Outdoor
• Building facades
• Entrance lighting
• Gardens, balconies and other outdoor areas

Product features

• Very bright and functional outdoor LED luminaires
• Type of protection: IP54
• Die-cast aluminum housing
• Available with and without motion sensor
• Available in two housing colors: white and dark gray
• Diffuser made of opal polycarbonate with clear glass cover

Electrical data

Nominal wattage12.00 W

Nominal voltage220…240 V

Mains frequency50…60 Hz

Nominal current96 mA

Max. number of luminaires per miniature circuit breaker B1633

Max. number of luminaires per miniature circuit breaker C1042

Max. number of luminaires per miniature circuit breaker C1626

Power factor λ> 0.5

Protection classI

Operating modeMains voltage

Photometrical data

Luminous flux740 lm

Luminous efficacy60 lm/W

Color temperature3000 K

Light color (designation)Warm White

Color rendering index Ra≥80

Standard deviation of color matching

Dimensions

Length168.00 mm

Height273.00 mm

Width100.00 mm

Materials

Body materialAluminum

Cover materialGlass

Mercury content0.0 mg

Application & Mounting

Ambient temperature range-20…+40 °C

Type of connectionScrew terminal, 3-Pole

Type of protectionIP54

Protection class IK (shock resistance)IK06

DimmableNo

Mounting typeSurface

Mounting locationWall

Application environmentOutdoor

LED module replaceableNot replaceable

Lifespan

Lifespan L70/B50 at 25 °C30000 h

Number of switching cycles15000

Certificates & Standards

StandardsCE

Ball shot safeNo
