Кутия Thermaltake CTE E660 MX

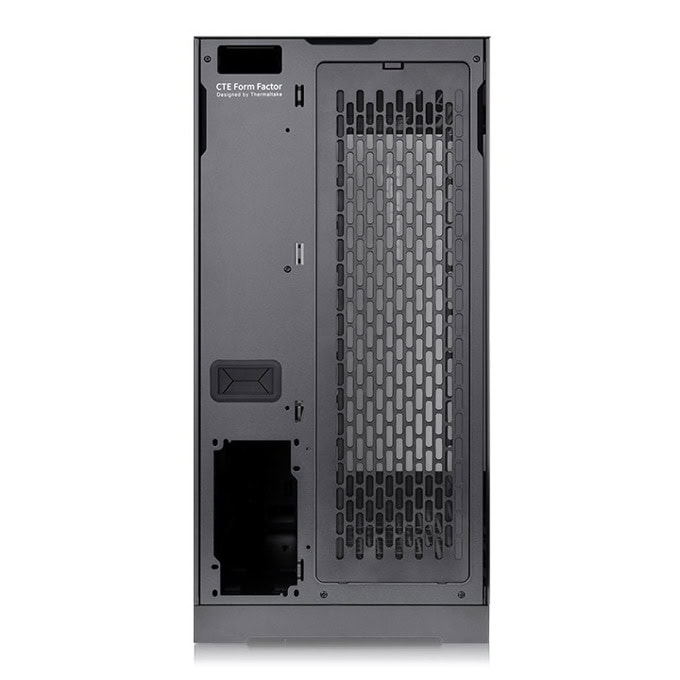

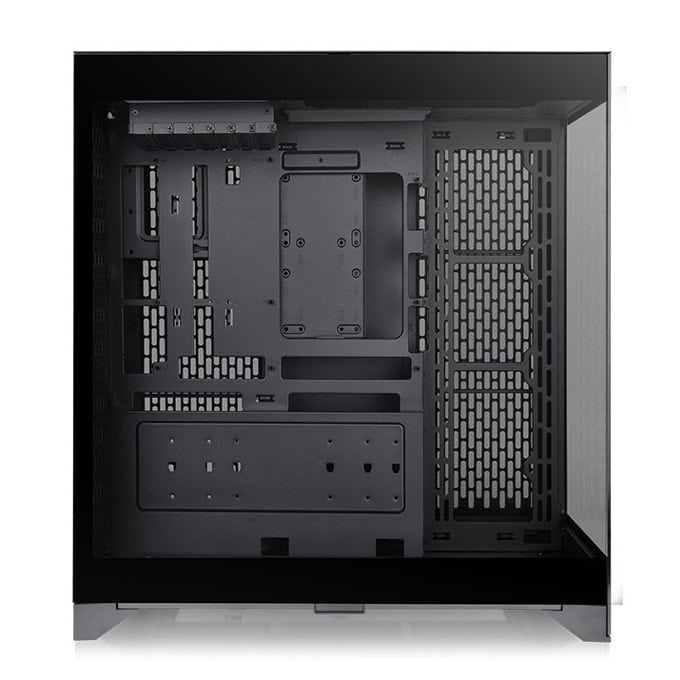

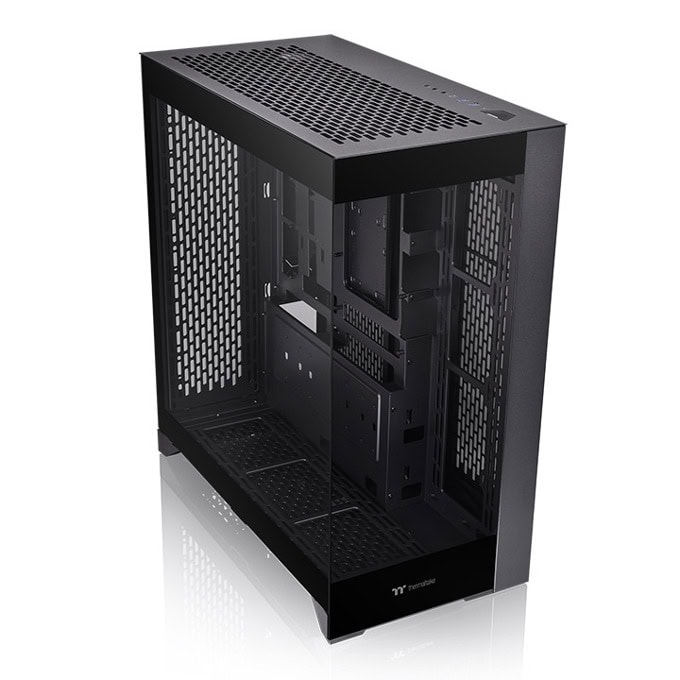

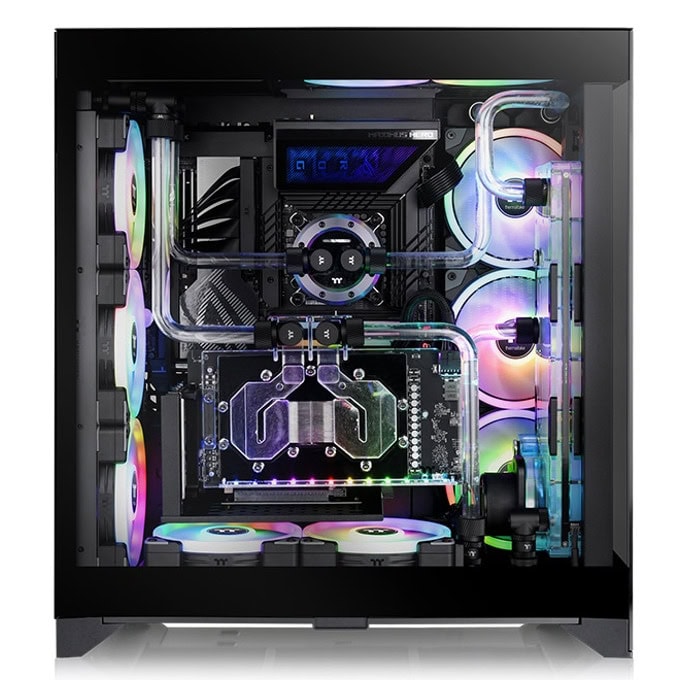

CTE E660 MX Mid Tower Chassis
The CTE E660 MX is a dual chamber mid-tower chassis that supports the latest Hidden-Connector motherboards, additionally it features a three-way GPU installation option and comes with an interchangeable dual front panel design that gives users maximum flexibility to customize their setup.
Dual Interchangeable Front Panels
With a 4mm tempered glass panel pre-installed on the left side, users can easily show off their interior configuration; on top of that, the CTE E660 MX offers two interchangeable front panels: a tempered glass panel and a perforated panel. The former for a great look and the latter for better airflow. Users have the flexibility to display their PC build the way they want.

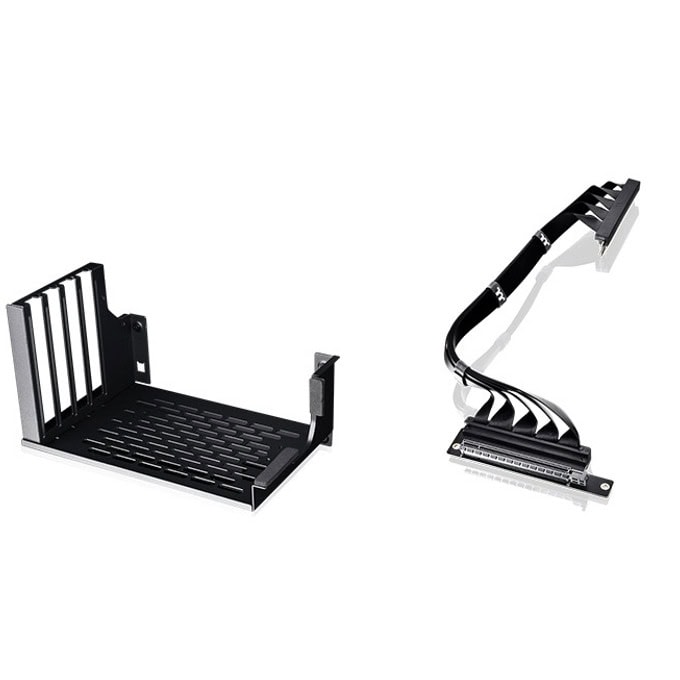

PCI-e 4.0 Riser Cable and Floating GPU Bracket Included
A pre-configured 400mm PCI-e 4.0 riser cable makes it easy to achieve "floating GPU“ and “Up Right Forward” GPU placements. The riser cable complies with PCI-e 4.0 Standards, offering a 16GT/s transfer rate and supporting up to 64 GB/s (bi-directional) data transmission.
JAR Computers може да предложи /смяна/монтаж в наш сервиз или при .
Технически характеристики
| Серия | CTE |
| CASE TYPE | Mid Tower |
| Dimension (H x W x D) | 558.5 x 270 x 513mm · (21.99 x 10.63 x 20.2 inch) |
| Нето тегло | 15.85 kg / 34.94 lbs |
| PANEL | 4mm Tempered Glass x 2 |
| Цвят | Черен |
| Материал | SPCC |
| Drive Bays | 3 x 3.5”, 1 x 2.5” or 2 x 3.5”, 2 x 2.5” |
| Слотове за разширение | 7 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), · 12” x 9.6” (ATX), 12” x 10.5” (E-ATX) |
| I/O Port | USB 3.0 x 2, Type-c x1, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: · 3 x 120mm, 2 x 120mm, 1 x 120mm · 3 x 140mm ,2x 140mm, 1 x 140mm · Top: · 2 x 120mm, 1 x 120mm · Right (M/B Side): · 3 x 120mm, 2 x 120mm, 1 x 120mm · 3 x 140mm ,2x 140mm, 1 x 140mm · Rear: · 3 x 120mm, 2 x 120mm, 1 x 120mm · 3 x 140mm ,2x 140mm, 1 x 140mm · Bottom: · 3 x 120mm, 2 x 120mm, 1 x 120mm · 3 x 140mm ,2x 140mm, 1 x 140mm |
| RADIATOR SUPPORT | Front: · 1 x 360mm, 1 x 240mm, 1 x 120mm · 1 x 420mm, 1 x 280mm, 1 x 140mm · Top: · 1 x 240mm, 1 x 120mm · Right (M/B Side): · 1 x 360mm, 1 x 240mm, 1 x 120mm · 1 x 420mm, 1 x 280mm, 1 x 140mm · Rear: · 1 x 360mm, 1 x 240mm, 1 x 120mm · 1 x 420mm, 1 x 280mm, 1 x 140mm · Bottom (DIY only): · 1 x 360mm, 1 x 240mm, 1 x 120mm · 1 x 420mm, 1 x 280mm, 1 x 140mm |
| CLEARANCE | CPU cooler max height: · 166mm · VGA max length: · 415mm (with radiator) · 443.8mm (without radiator) · PSU max length: · 220mm |
