Кутия NZXT H7 Flow RGB 2024 Edition
NZXT H7 Flow RGB 2024 Edition
Dedicated GPU CoolingSupports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.Large Radiator SupportComes equipped with a F360 RGB Core single-frame fan for out-of-the-box cooling and RGB lighting.
Optimized for AirflowHigh-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.Large Radiator SupportSupports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.Easily Manage CablesIntuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.

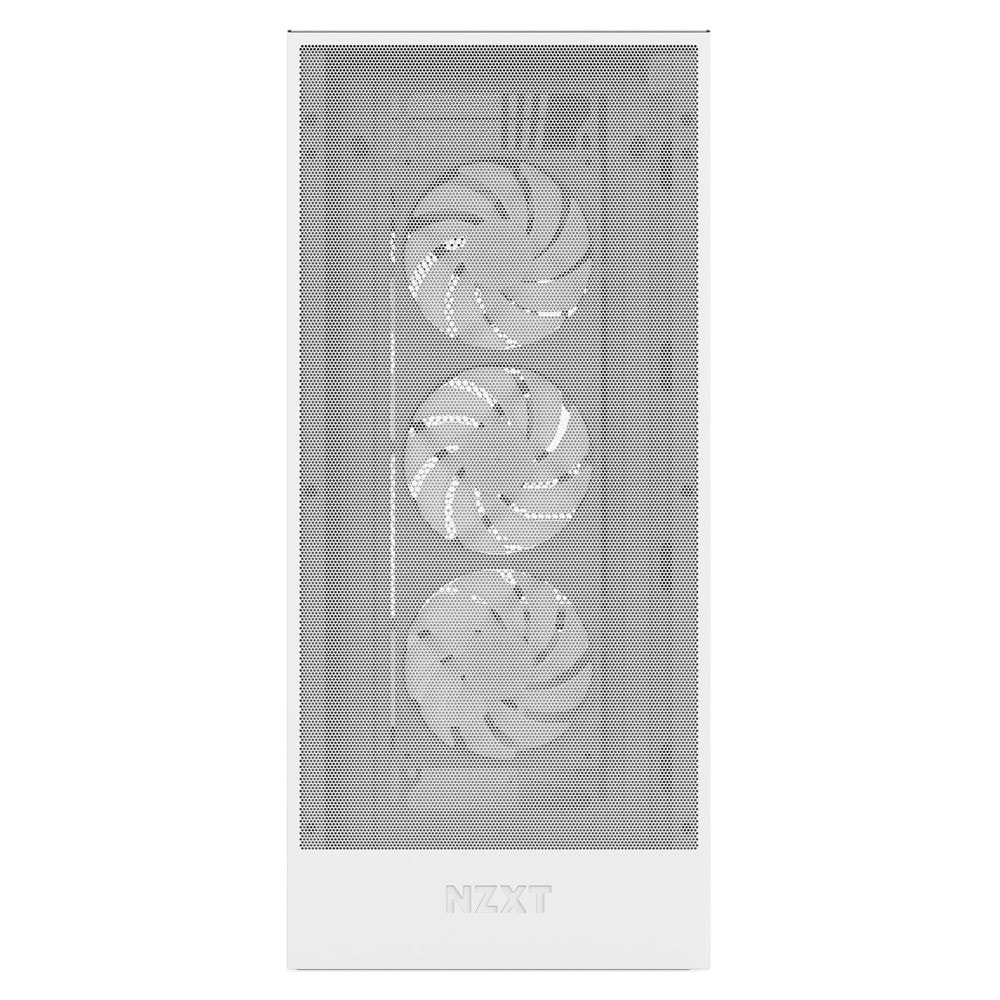

10-Fan CapacityCapacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.

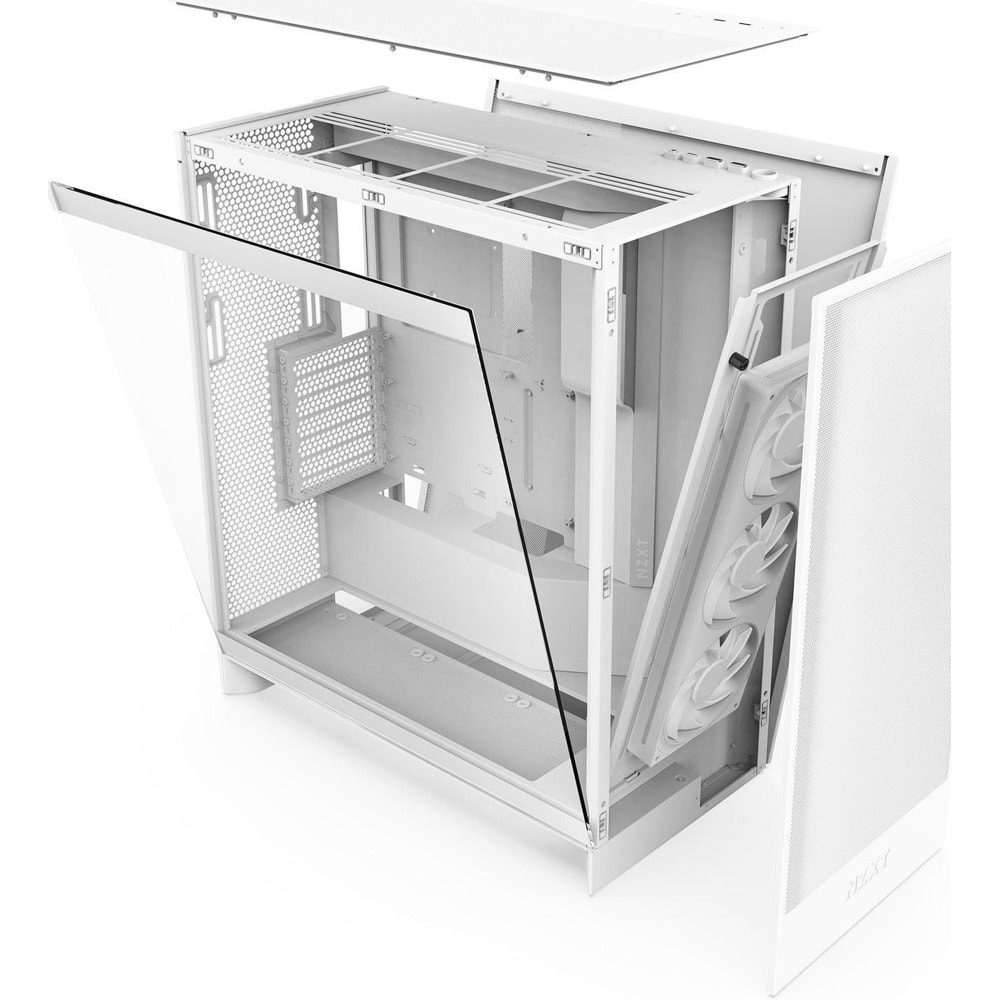

Top I/O PortsConveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.Tool-less Panel AccessTool-less access to the front, top, and side panels makes building and upgrading a breeze.
Характеристики
| Motherboard Support | Да |
| E-ATX (Up to | 277mm), ATX, Micro-ATX, Mini-ITX |
| Enclosure Type | Да |
| Mid-Tower | Да |
| Case Material | Да |
| Dark Tinted Tempered Glass (Black) | Да |
| Размери | Да |
| Height (With Feet) | Да |
| Mm | 544 |
| Ширина | Да |
| Mm | 244 |
| Дълбочина | Да |
| Mm | 468 |
| Тегло | Да |
| Kg | 11.13 |
| Compatibility & Clearance | Да |
| CPU Cooler Height | Да |
| до | 185mm |
| GPU Length | Да |
| до | 410 mm |
| PSU Length | Да |
| до | 200 mm |
| Cable Management | Да |
| до | 34.5 mm |
| Top Mounted Radiator & Fan Combined Thickness | Да |
| до | 57 mm (140mm / 280mm) |
| Front I/O Ports | Да |
| USB | 3.2 Gen 1 Type-A |
| 2 | Да |
| USB | 3.2 Gen 2x2 Type-C (20 Gbps) |
| 1 | Да |
| Headset Audio Jack | Да |
| 1 | Да |
| Слотове за разширение | Да |
| Standard | Да |
| 7 | Да |
| Vertical | Да |
| 0 | Да |
| Drive Bays | Да |
| 2.5" | Да |
| 2+2 | Да |
| 3.5" | Да |
| 2 | Да |
| Fan Support | Да |
| Front | Да |
| X 120 mm / 3 x 140 mm (1 x F360 RGB Core included) | 3 |
| Top | Да |
| X 120 mm / 2 x 140 mm | 3 |
| Bottom | Да |
| X 120 mm | 3 |
| Rear | Да |
| X 120 mm / 1 x 140 mm | 1 |
| Filters | Да |
| High-Performance Mesh | Да |
| Radiator Support | Да |
| Front | Да |
| до | 420 mm |
| Top | Да |
| до | 360mm |
| Rear | Да |
| до | 140mm |
| Fan Specs | Да |
| Модел | Да |
| F360 RGB Core Fan (Case Version) | Да |
| Скорост | Да |
| 1,700 ± 200 RPM | Да |
| Airflow | Да |
| CFM | 50.1 |
| Static | Да |
| Mm-H₂O | 1.27 |
| Noise | Да |
| DBA | 23.3 |
| Fan Connector | Да |
| 3-pin DC | Да |
