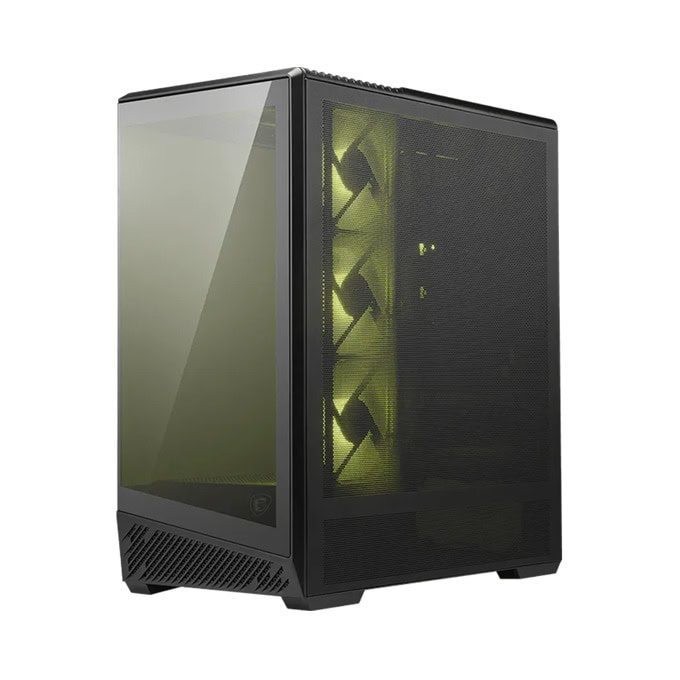

Кутия MSI MAG PANO 130R PZ
MSI MAG PANO 130R PZ
Panoramic DisplayTo fulfill the desire for showcasing an ARGB PC build, the MAG PANO 130R Series features a 270-degree panoramic display, enhancing aesthetics and maintaining a clean design.
Airflow optimization

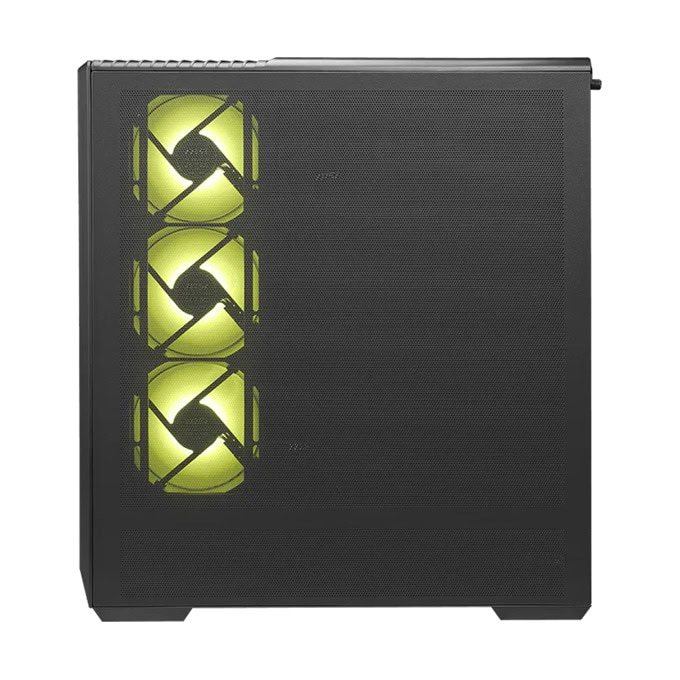

Vents around the case
Increase the number of vents on the sides and front of the case to enhance overall heat dissipation.
Cooling support
Toolless removable glass panelsScrewless mounting and tool-free removable panel design on both sides allow for greater setup flexibility.
Dust protectionA magnetic dust filter is installed on the bottom of the case, while a removable filter covers the bottom vents - both designed to prevent dust buildup and allow for easy cleaning.
Support ATX and MicroATX back-connect motherboard (PZ series)
Enable a clean layout by routing cables through the rear, simplifying installation and enhancing the aesthetic appeal of any gaming setup.
Rotatable GPU BracketOne bracket, two orientations. A quick 90° rotation allows quick switching between horizontal and vertical GPU installations.(Riser cable sold separately)Built with a unified aesthetic in mind, the design features bold diagonal lines and sharp cut angles—perfectly matching MAG series motherboards, liquid coolers, and power supplies. It brings a cohesive, polished look to your entire PC build.
Характеристики
| Mid-Tower | Да |
| Motherboard Form Factor Support | Да |
| Regular | ATX / Micro-ATX / Mini-ITX |
| Back-connect | ATX / Micro-ATX I/O Ports 2 x USB 5Gbps (Type-A) 1 x USB 20Gbps (Type-C) 1 x Audio-Out / Mic-in 1 x Reset Button 1 x Power Button Drive Mount Support Up to 3 x 2.5” SSD Up to 2 x 3.5” HDD (Maximum of 3 drives can be mounted at once, depending on configuration) Expansion Slots 7 Maximum GPU Length 400 mm / 15.75 inches Maximum CPU Cooler Height 165 mm / 6.50 inches Power Supply Support ATX Maximum PSU Length 180 mm / 7.09 inches Fan Size Support Top: 3 x 120 mm / 2 x 140 mm Front: N/A Rear: 1 x 120 mm Side: 3 x 120 mm Bottom: 3 x 120 mm (Above the power shroud) Pre-installed Fan Type Rear: 1 x 120 mm ARGB Fan Side: 3 x 120 mm ARGB Fan (Reverse Blade Fan) Radiator Size Support Top: 120 / 140 / 240 / 280 / 360 mm Front: N/A Rear: 120 mm Side: 120 / 240 / 360 mm Bottom: N/A Dimensions (DxWxH) & Weight 460 x 232 x 490 mm / 18.11 x 9.25 x 19.29 inches Net Weight: 8.37 kg / 18.45 lbs |
