Gooxi

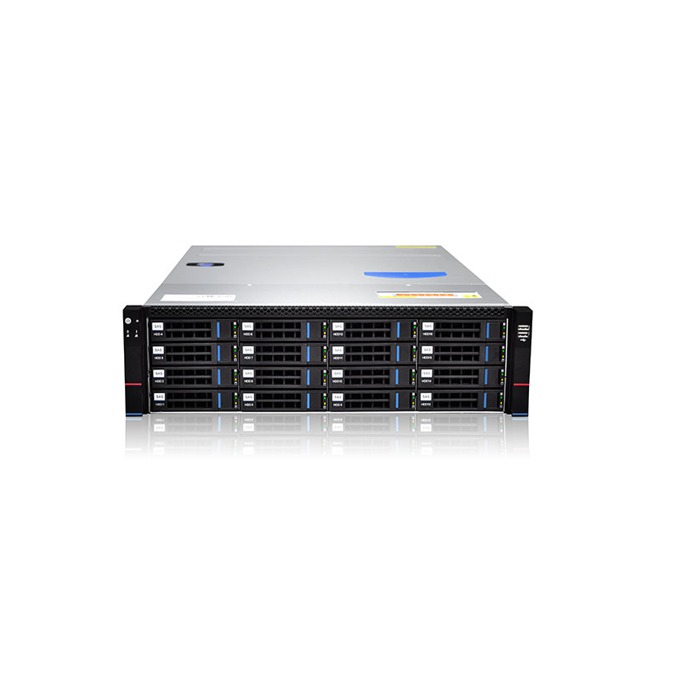

Кутия Gooxi RMC3116-670-HSE-D-R800
Артикул №: 1000114104
Категория:
Компютърни компоненти
1 053,99 €
✓ Ограничена наличност
●Support intelligent control of temperature, reduce noise and heat.
●Ideal solution for HPC, WB, Data Center, FTP server and storage server, etc.
Hard disk site Sixteen 3.5-inch (or 2.5-inch) hot-swappable hard disk sites; two 2.5 inch built-in non-hot- swappable hard disk sites, and two 2.5-inch rear-built hot-swappable expandable sites (optional)
Hard disk shockproof system Hard disk bracket is designed with EMI shrapnel. The unique shockproof fan design can reduce the resonance between the fan and hard disk without affecting the I/O speed of hard disks.
Характеристики
| Gooxi RMC3116-670-HSE-D-R800 | |
| Support M/B size up to EEB (12” *13”) | |
| ●Support 16*3.5” or 2.5” SATA/SAS hot-swap HDD, optional rear 2*2.5” SATA/SAS hot-swap HDD | |
| ●12Gb SAS Backplane, support SGPIO function | |
| ●Configured with 3*12038 cooling fan | |
| ●Anti-vibration cooling fan to protect HDD | |

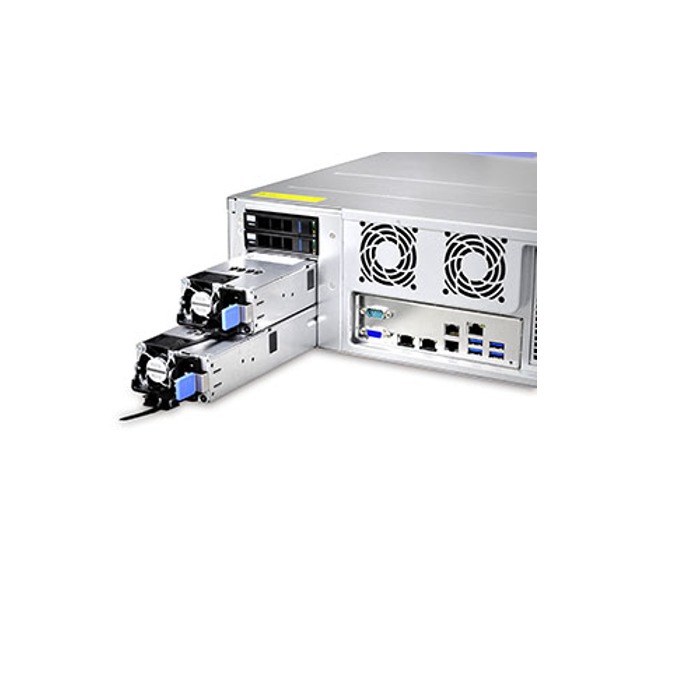

| ●Support single or 1+1 redundant PSU | |
| ●7*PCIe Half & Length expansion slot, or optional 3* riser PCIe Full & Length expansion slot | |
| ●Compliant with standard 19” rackmount | |
| Basic Parameters | |
| Chassis style Rack mount | |
| Chassis structure 3U | |
| Applicable motherboard EEB(12*13)/CEB(12*10.5)/ATX(12*9.5)/Micro ATX | |
| Supported motherboard brands Gooxi、Intel、ASUS、SuperMicro、TYAN、MSI、GIGABYTE, etc | |
| Power type Single charge and 1+1 redundant power | |
| Number of supported power supplies 1 | |
| SGP10 Support | |
| Backplane 12Gb/s SAS Eexpander backplane | |
| Supported hot-swappable hard drives Supportive, compatible with SAS and SATA drives | |
| Supported hot-swappable hard fans Support | |
| CD driver site None | |
| Cooling system 12038 fans of three brands are standard configuration | |
| Windshield Support | |
| Intelligent control of temperature 7 half-height PCI or PCI-E expansion card sites | |
| Expanded card site Optional | |
| Apparent Parameters | |
| Front panel interface 1 on-off key, 1 restart key, 1 fan alarm lamp, 1 hard disk indicator and 2 network indicators | |
| Free screws dismantle Support | |
| Fixed mode of cabinet Ordinary | |
| Configuration parameters | |
| Product material Imported SGCC (galvanized steel sheet), ABS panel and punching net | |
| Chassis dimension 670*444*132mm(Depth * width * height) | |
| Chassis weight 15.5kg | |
| Package dimension 902*591*273mm(Depth * width * height） | |
| Overall gross weight 21.5KG | |
| Safety certification CE、FCC、RoHS |
