Кутия Gamdias ATLAS M4
Gamdias

Кутия Gamdias ATLAS M4

Артикул №: 1000044209
Категория: Компютърни кутии
76,99 €
✓ Налично във външен склад

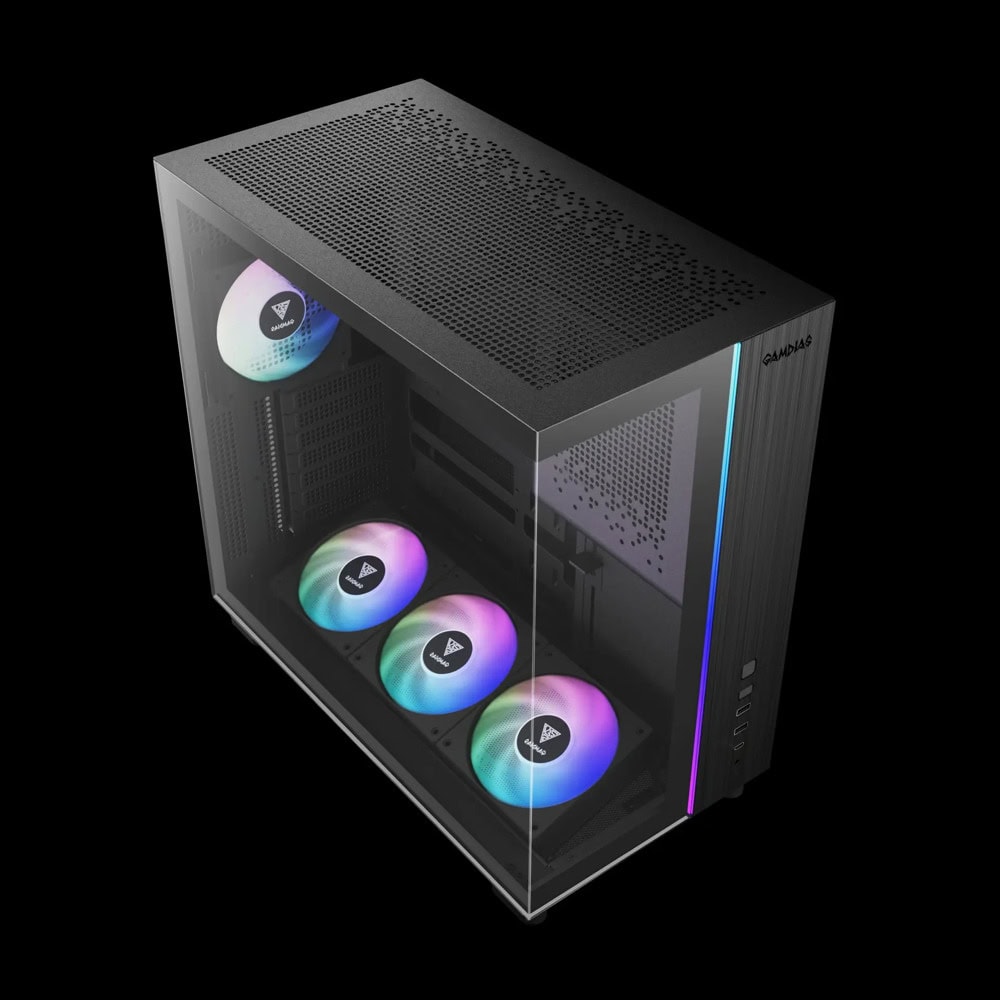

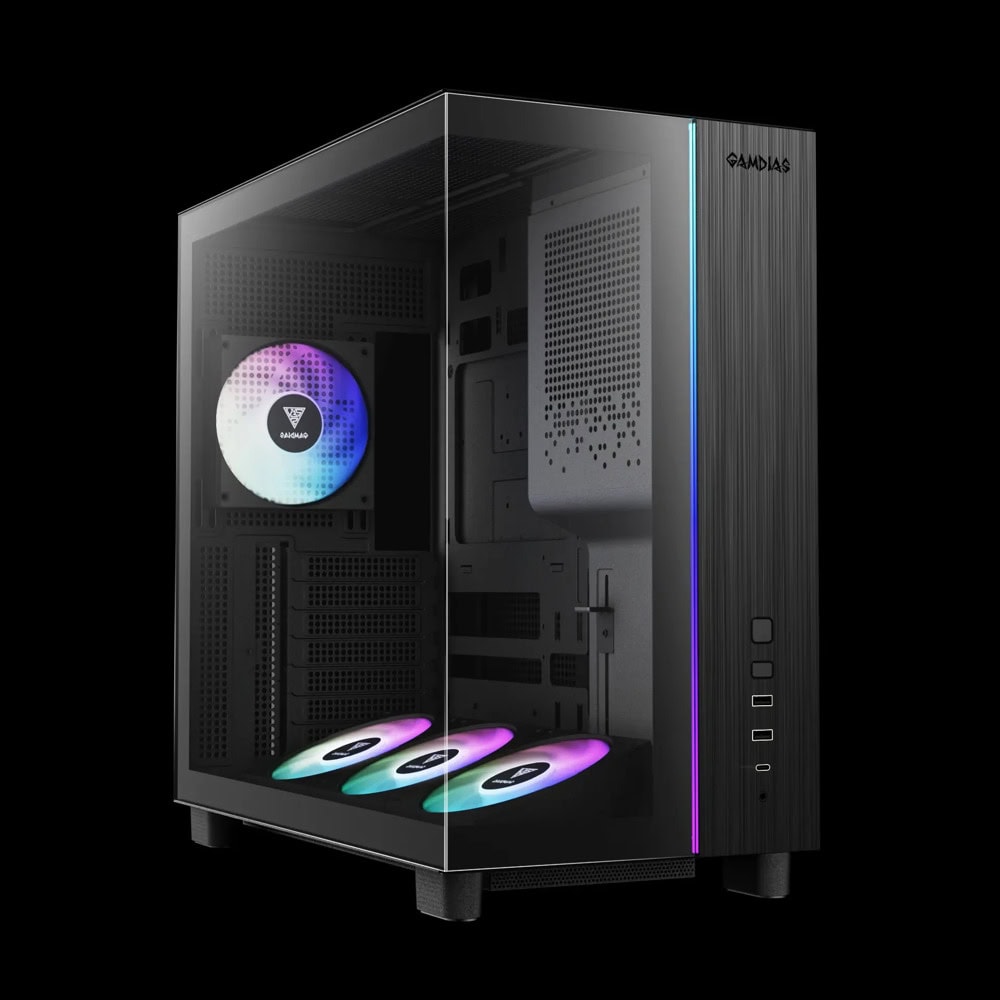

The ATLAS M4 delivers a fully immersive showcase with seamless tempered glass panels from bottom to top. Its front-mounted PSU design not only opens a complete panoramic view of your build but also enables chimney-style ventilation for optimal thermal performance. With four built-in NOTUS M1 ARGB fans and an adjustable bottom cooling system, the ATLAS M4 combines striking visuals with powerful cooling efficiency.

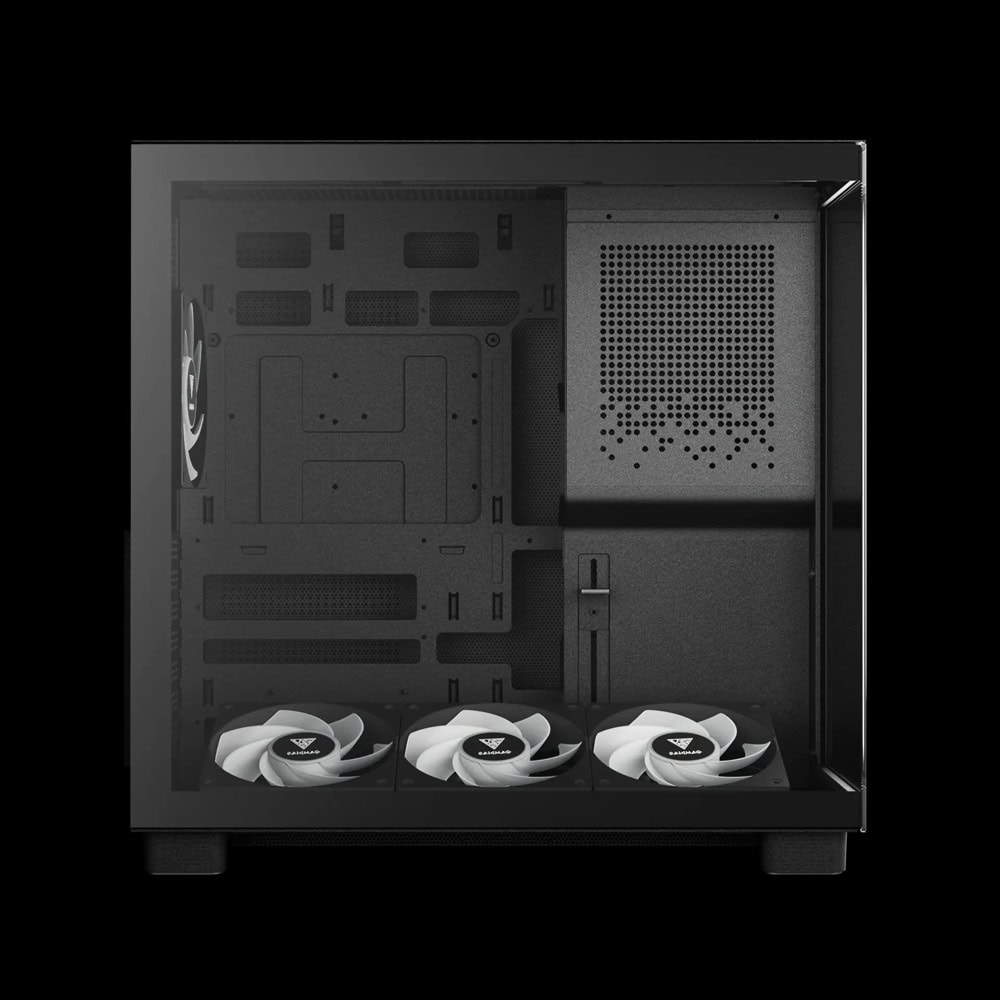

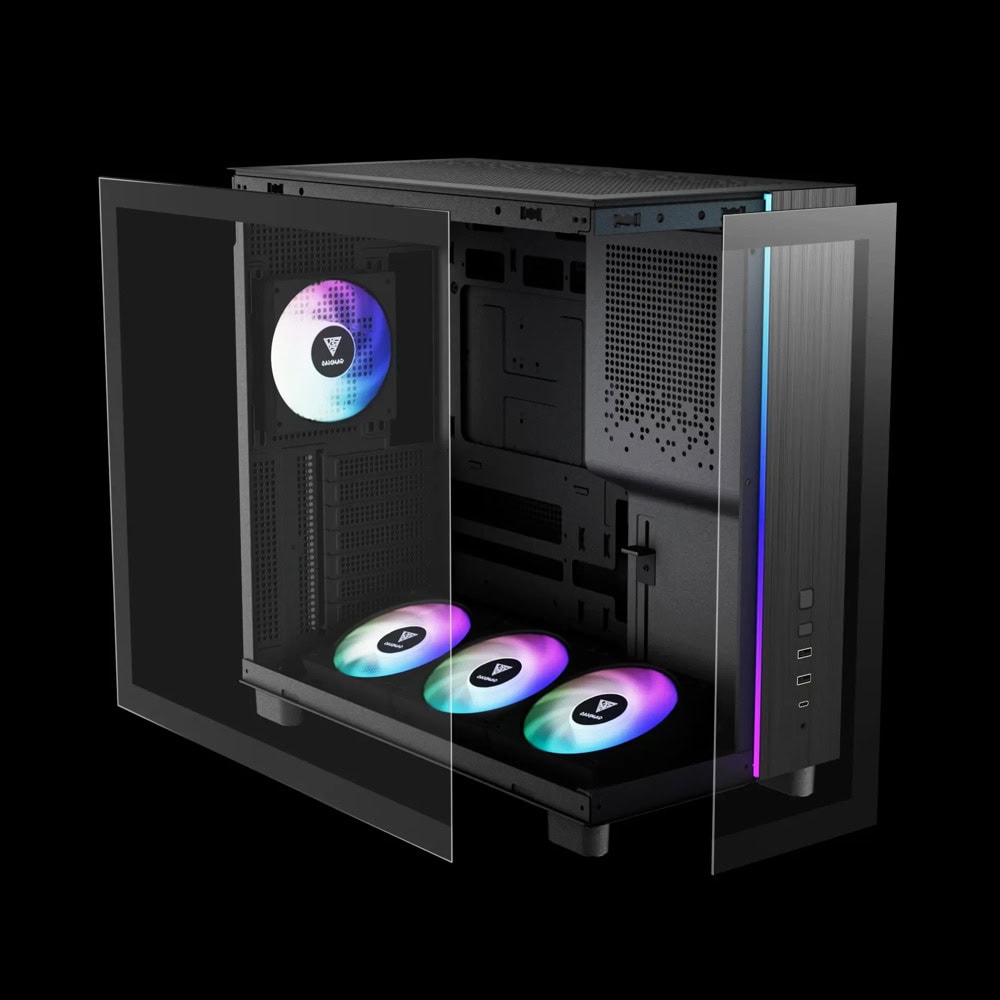

Showcase your build from bottom to top with seamless tempered glass panels on the front and side. With the PSU positioned at the front, the ATLAS M4 delivers an unobstructed, panoramic view of your components, creating a truly immersive visual experience.





Featuring four built-in silent NOTUS M1 ARGB fans, the case provides exceptional lighting and finely tuned airflow with minimal noise. The included 8-port PWM ARGB fan hub allows for easy management and synchronization, ensuring a cohesive lighting setup that perfectly complements the high-performance, quiet operation of the fans.

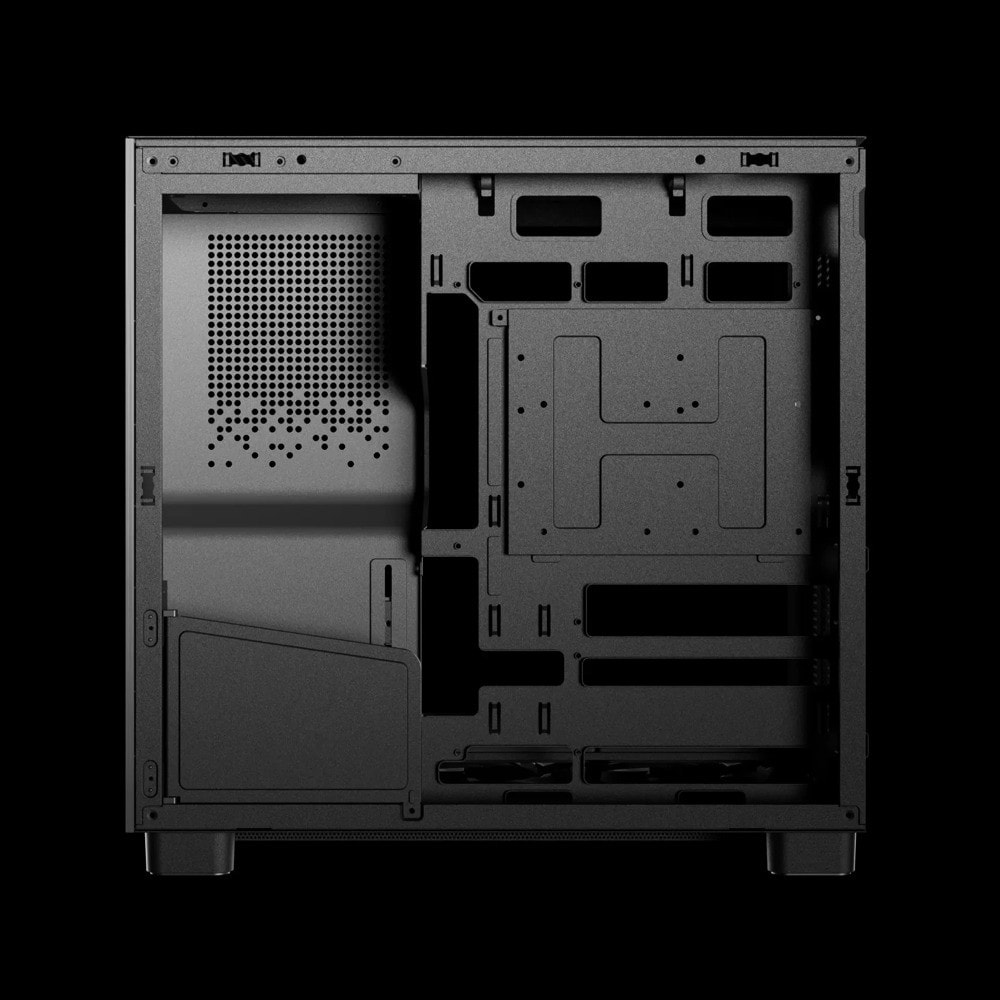

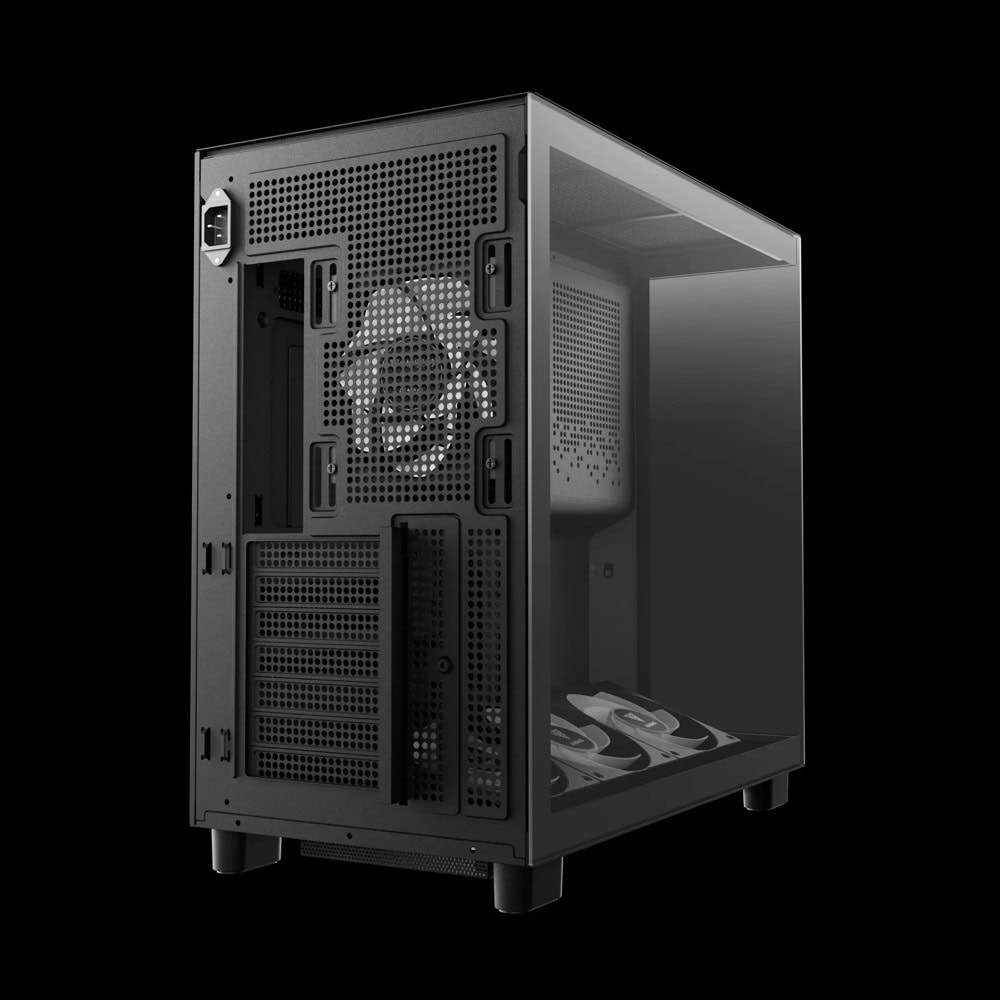

The PSU is strategically positioned at the front side of the case, with connector ports oriented downward for easier cable management. A PSU shroud enhances the clean aesthetic, and an extension cable is included to facilitate rear power connection.

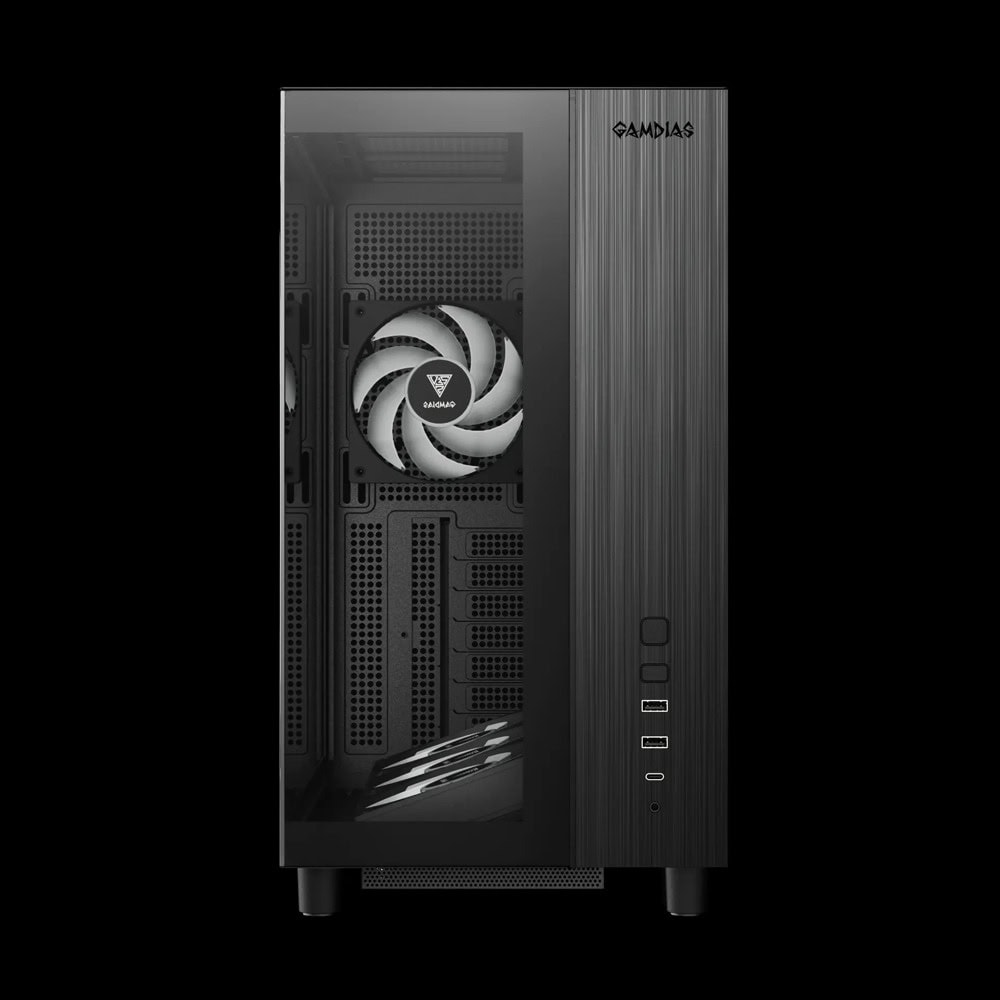

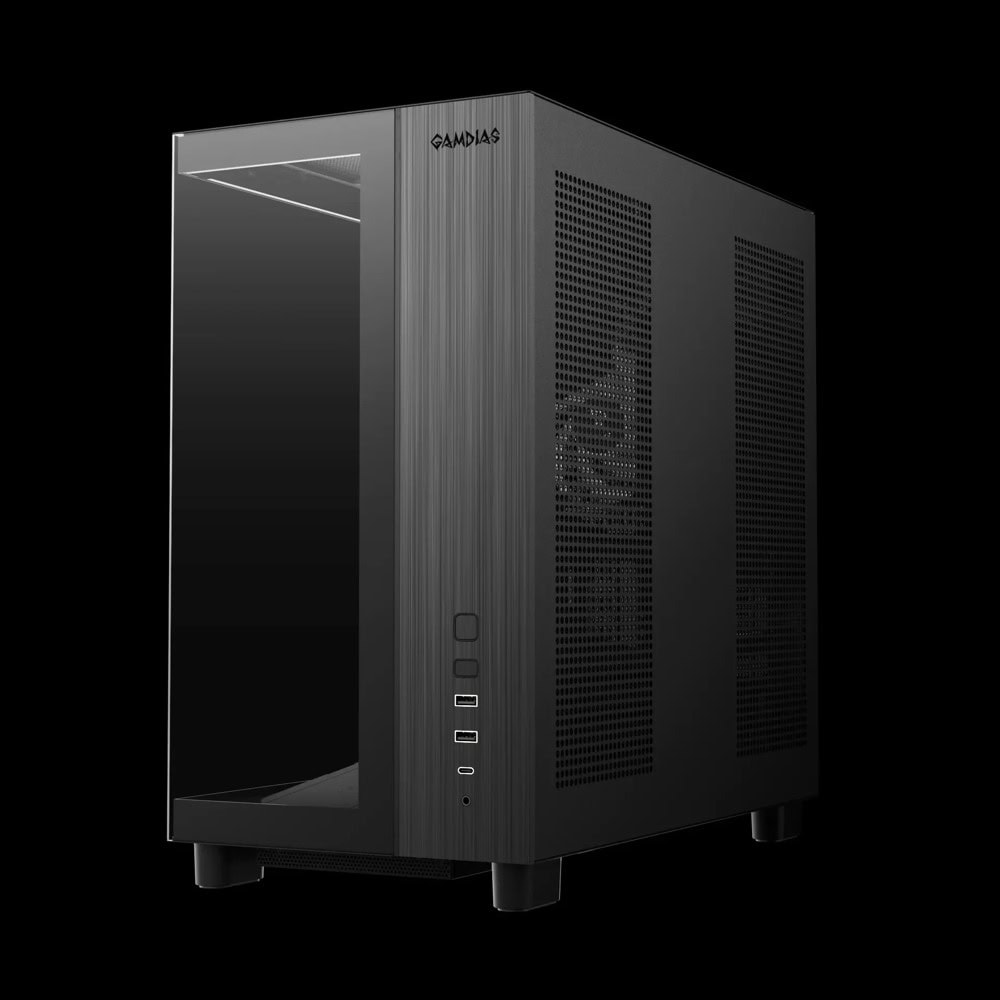

The I/O features one USB 3.2 Gen 2 Type-C port for high transfer speeds up to 10 Gbps, two USB 3.0 ports, fan LED controls, and additional audio connectivity.

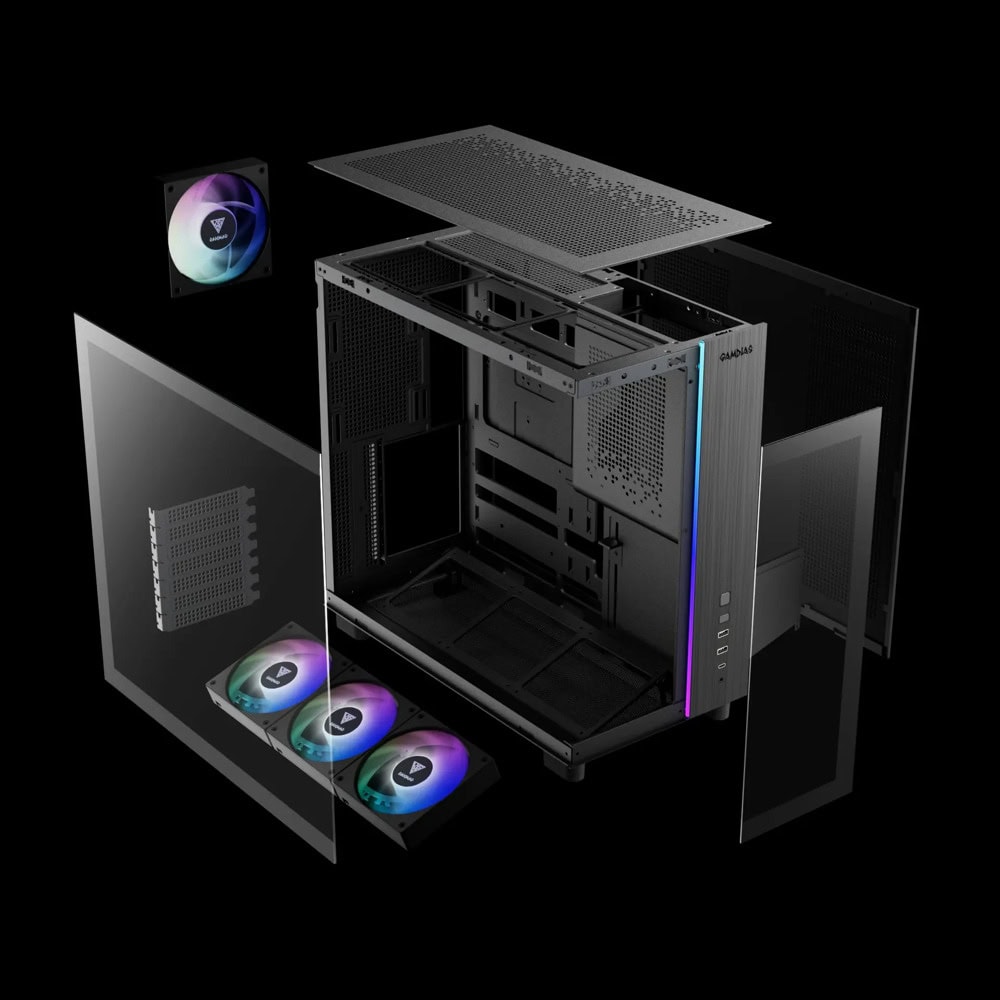

The ATLAS M4 can accommodate up to 7 fans and offers flexible options for the installation of radiators at the top and rear.



The case offers the option to house up to ATX motherboards, air coolers with 175mm RAM clearance, and VGA cards with lengths up to 425mm.











Технически характеристики

Case Type MID Tower
MB Support ATX、Micro-ATX、Mini-ITX
Synchronization 5V 3-Pin Addressable Header
Слотове за разширение 7
Материал SPCC & ABS & Tempered glass
Window Front, Left
Drive Bays 1 x 3.5 + 1 x 2.5 or 2 x 2.5
I/O Port Type-C x 1, USB 3.0 x2, HD Audio x1, LED Control x1
Dimension (L x W x H) 430 x 235 x 434mm
Pre-installed Control BOX 8 Ports Hub (4 port are used)
Top 360mm / Rear: 120mm
Fan SupportTop 3 x 120mm
Rear 1 x 120mm / 1 x 140mm
Bottom 3 x 120mm
Rear 1 x 120mm PWM ARGB Fan
Bottom 3 x 120mm PWM ARGB Fans
Clearance CPU cooler height limitation: 175mm
VGA length limitation 425mm
PSU length limitation 160mm
