Начало / Компютърни кутии / Кутия Fractal Design Define 7 XL Black Solid

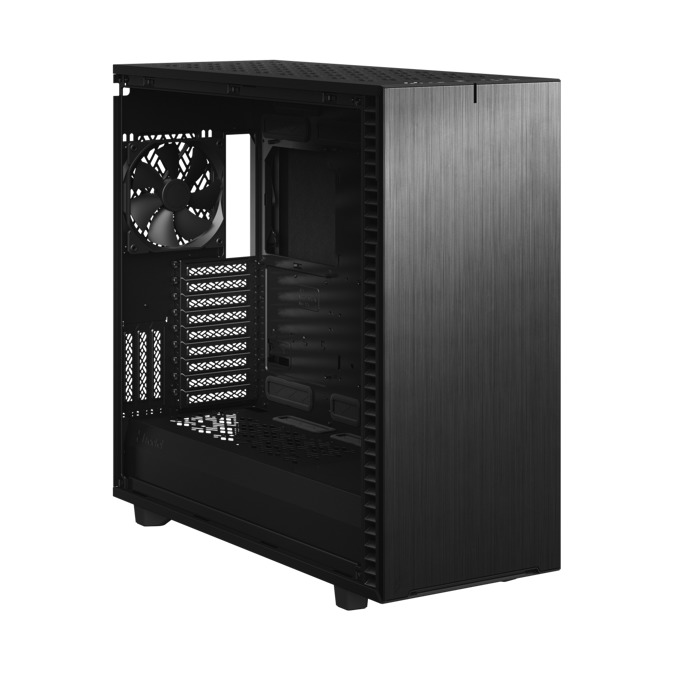

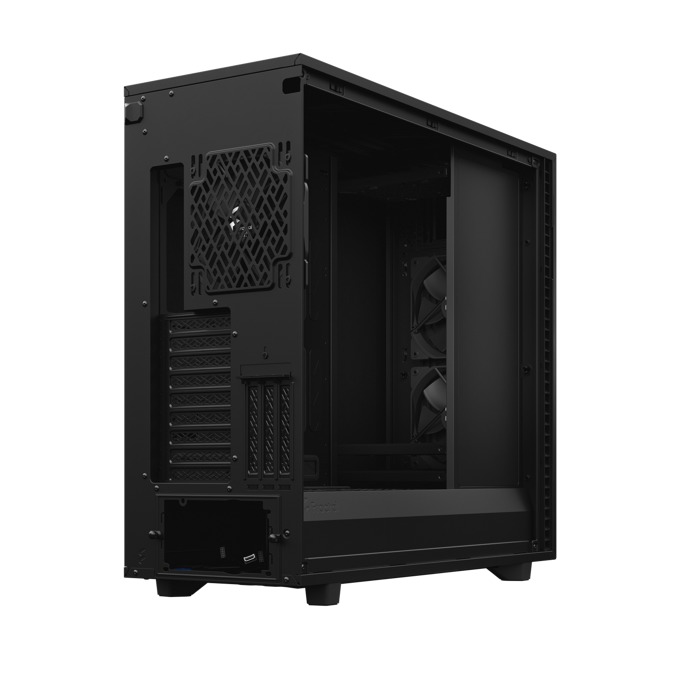

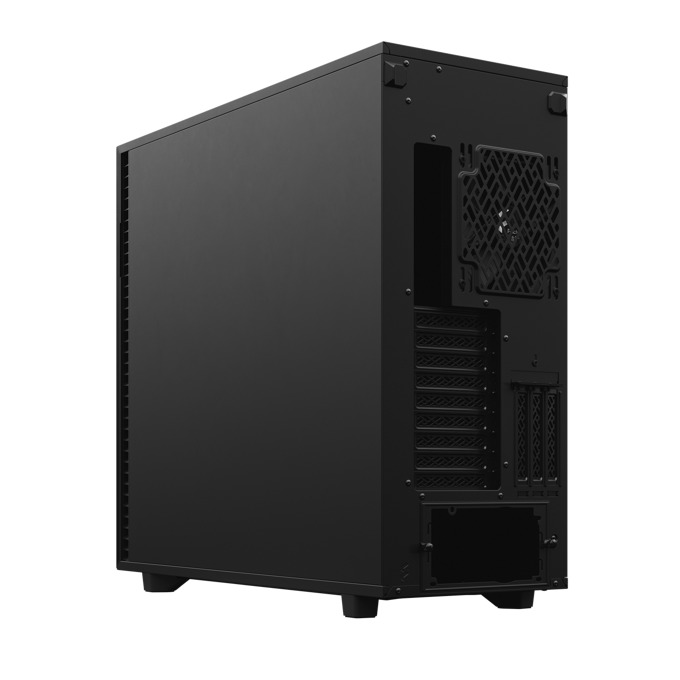

Кутия Fractal Design Define 7 XL Black Solid
Fractal Design

Кутия Fractal Design Define 7 XL Black Solid

Артикул №: 1000014294
Категория: Компютърни кутии
219,99 €
✓ Налично във външен склад



Re-defining capacity.

The Define 7 XL sets a new standard for what you should expect from a fulltower case in terms of modularity, flexibility and ease of use.With its dual-layout interior, industrial sound damping and massively versatilelayout supporting the largest E-ATX and enterprise boards, multi-GPU setups,outlandish water loops, and almost two dozen storage devices (in Storagelayout), you’ll be hard pressed to find a limit to what you can do with yourbuild in the Define 7 X



Кутия Fractal Design Define 7 XL Black Solid, E-ATX/ATX/mATX/mITX/EE-ATX/SSI-CEB/SSI-EEB, USB 3.1 Gen 2 Type-C, черна, без захранване - характеристика 1







  • Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
  • Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 multi-brackets inc
  • Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 28
  • Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering
  • Silence-optimized construction with industrial sound-damped front, top, and side panels

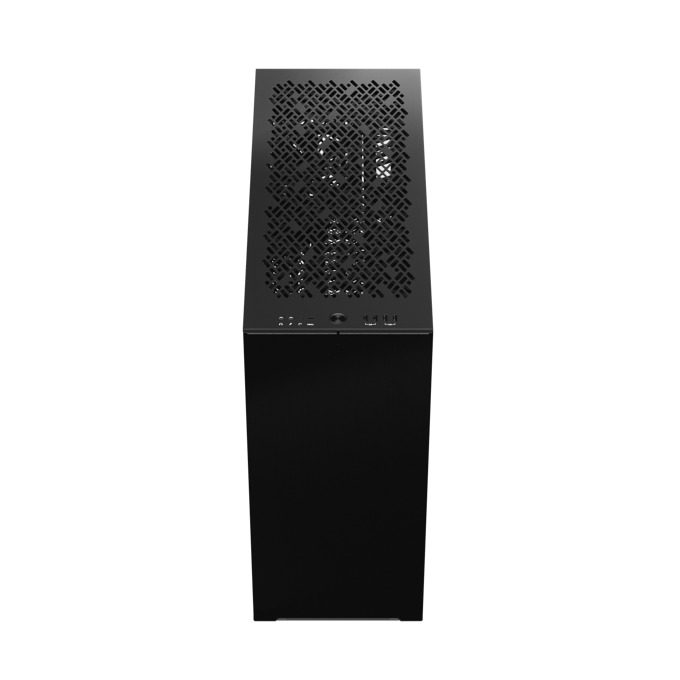

  • Top panel effortlessly swaps from sound damped solid steel to filtered ventilation

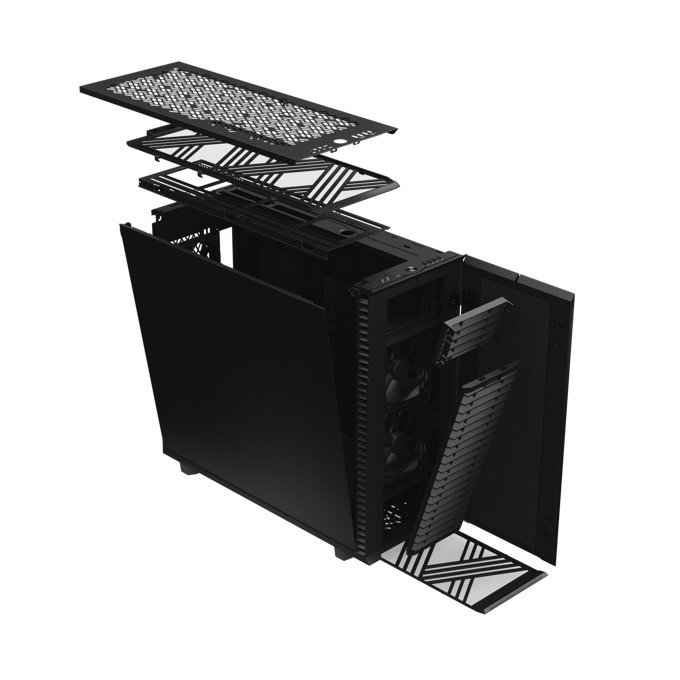

  • New chassis design opens up to fully expose the case interior on three sides for totally unhindered installation and
  • Anodized aluminum front panel with reversible dual-handed hinges opens and closes easily with magnetic latching

Технически характеристики

3.5"/2.5" drive mounts 6 + 2 included, 18 positions total
Dedicated 2.5" drive mounts 2 trays included, 5 positions total
5.25” drive mounts 2
Слотове за разширение 9 + 3
Power supply type ATX
Front interface 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0,
Total fan mounts 11 x 120 mm or 9 x 140 mm
Front fan 4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included)
Top fan 4 x 120 mm or 3 x 140 mm
Rear fan 1 x 120/140 mm, (1 x Dynamic X2 GP-14 included)
Bottom fan 2 x 120/140 mm
Dust filters Top, 2 x Front, Bottom + PSU
Front radiator Up to 480/420 mm
Top radiator Up to 480/420 mm
Rear radiator 120 mm
Bottom radiator Up to 240/280 mm
PSU max length 250 mm (both HDD cages installed)
GPU max length Storage layout: 359 mm
CPU cooler max height 185 mm
Cable routing space 30 mm
Cable routing grommets Да
Fixed velcro straps Да
Captive thumbscrews HDD brackets, SSD brackets, PSU bracket
Left side panel Industrial sound-damped steel or Tempered glass
Right side panel Industrial sound-damped steel
Case dimensions (LxWxH) 604 x 240 x 566 mm
Нето тегло TG: 16.64 kg/Solid: 16.53 kg
Package dimensions (LxWxH) 646 x 357 x 708 mm
Бруто тегло TG: 18.84 kg/Solid: 18.73 k
