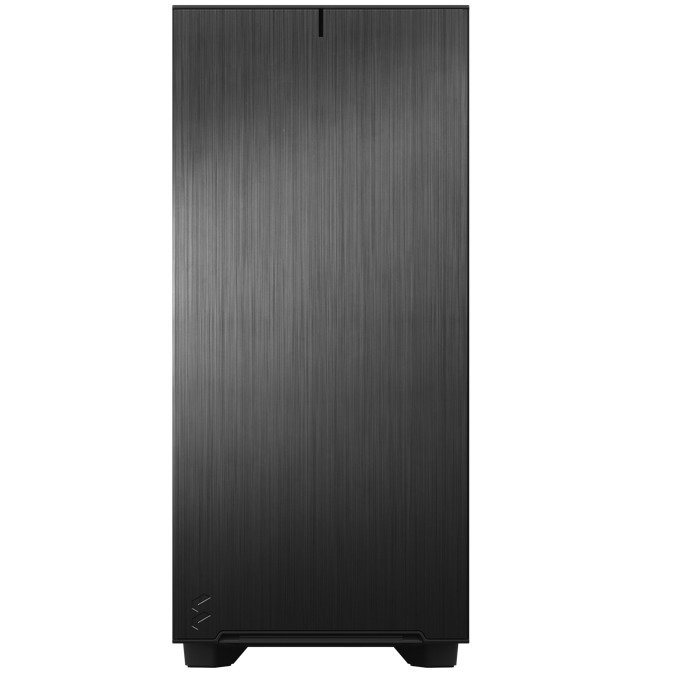

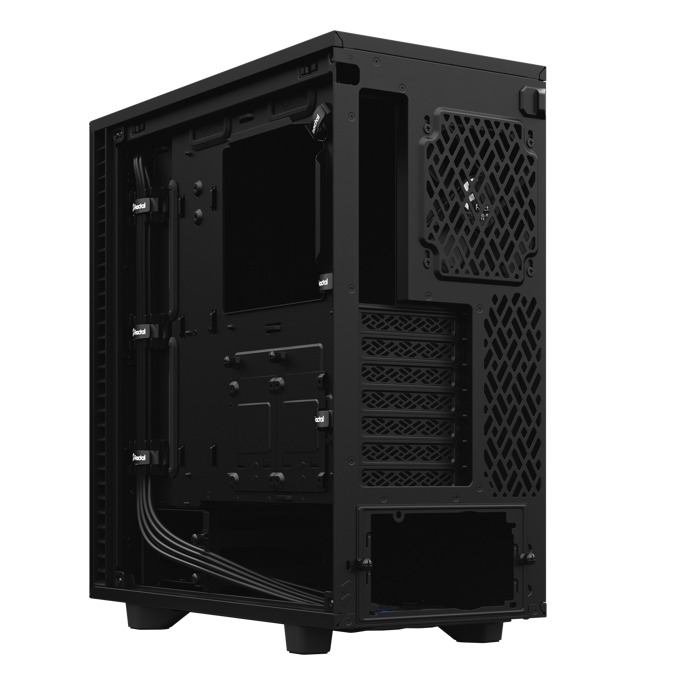

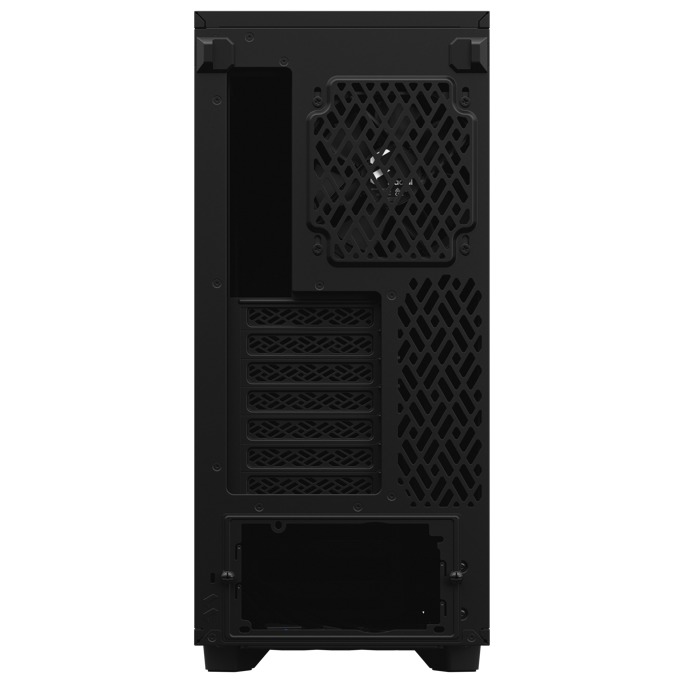

Кутия Fractal Design Define 7 Compact Black Solid
The new Define 7 Compact takes the strongest features of the contemporary
7 Series design and places them in a conveniently compact frame.

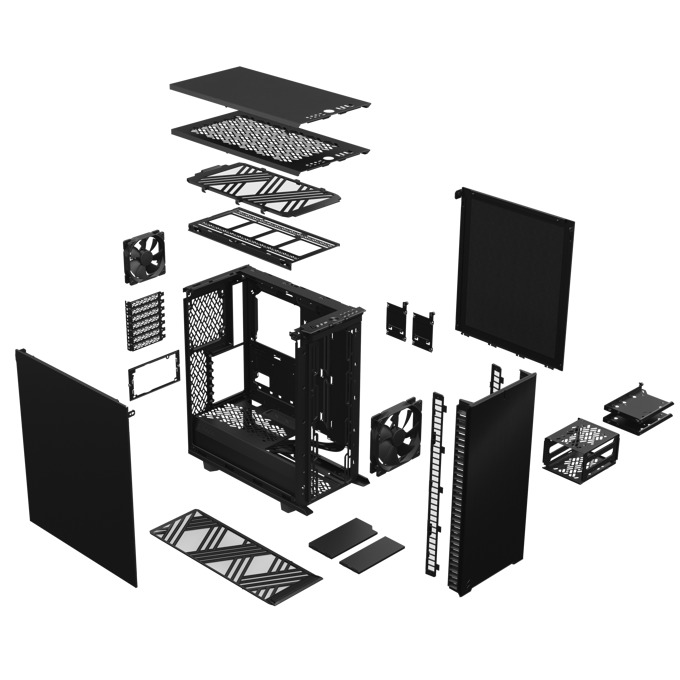

Highly modular for its size, the Define 7 Compact is easily customizable tomeet your exact needs – and the instantly removable top panel ensures an easy build, even with high-end components.

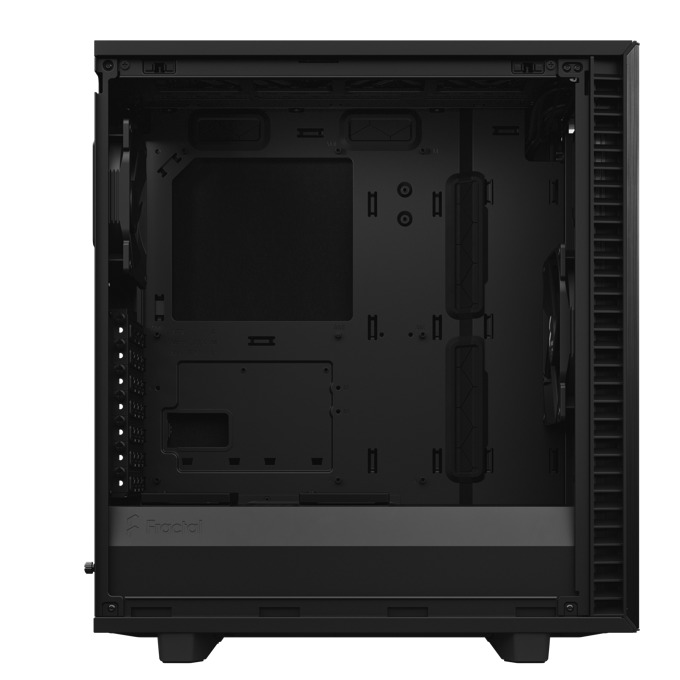

• Compact yet spacious interior accommodates ATX, mATX and mITX motherboards
• Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305
mm
• Support for two 2.5”/3.5” drives plus up to four SSDs (two SSD brackets included)

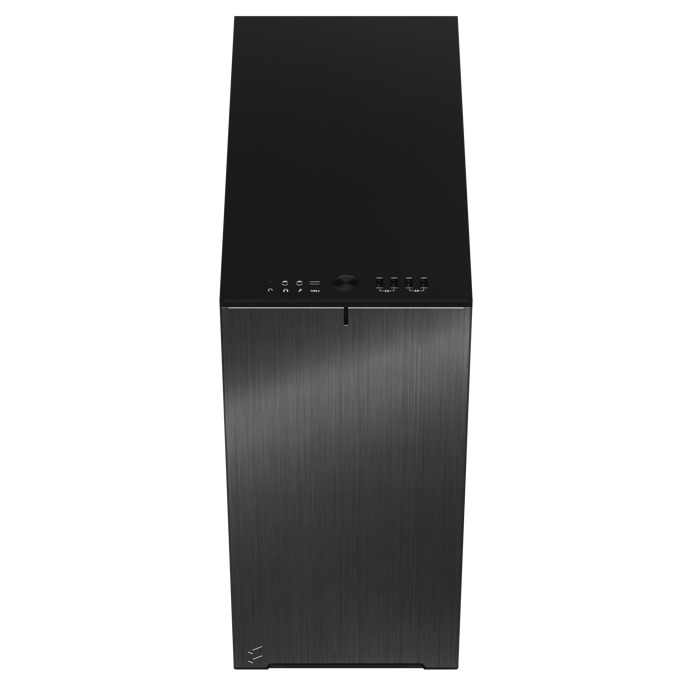

• Top panel effortlessly swaps from solid steel to filtered ventilation

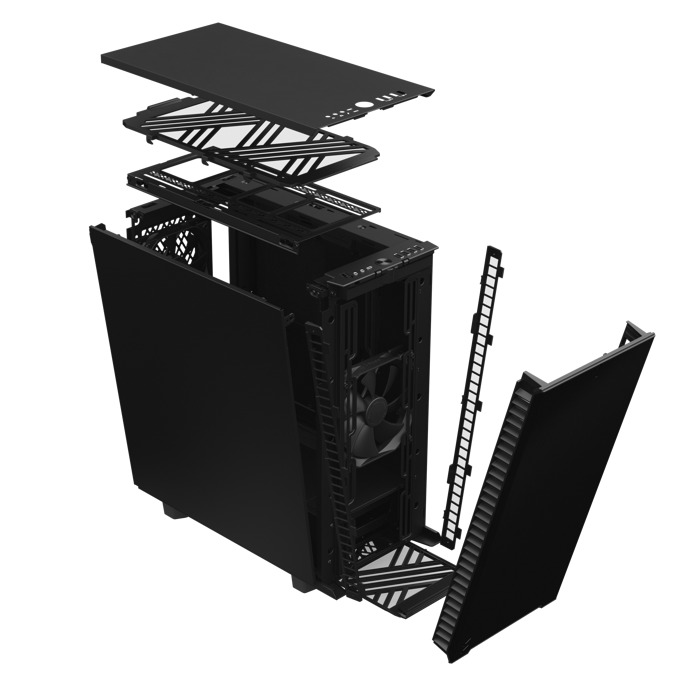

• New removable top panel design opens up to fully expose the case interior for effortless installation and cable routing
• Silence-optimized construction with industrial sound-damped front, top, and side panels
• Brushed aluminum front and top-latching side panels offer a clean sophisticated look
Технически характеристики
| 3.5"/2.5" drive mounts | 2 |
| Dedicated 2.5" drive mounts | 2 trays included, 4 positions total |
| Слотове за разширение | 7 |
| Motherboard compatibility | ATX / mATX / mITX |
| Power supply type | ATX |
| Total fan mounts | 7 x 120 or 4 x 140 mm and 2 x 120 mm |
| Front fan | 3 x 120 or 2 x 140 mm, (1 x Dynamic X2 GP-14 included) |
| Top fan | 2 x 120 or 2 x 140 mm |
| Rear fan | 1 x 120 mm, (1 x Dynamic X2 GP-12 included) |
| Bottom fan | 1 x 120 mm (requires removal of HDD cage) |
| Dust filters | Top, 2 x front, full length bottom |
| Front radiator | Up to 360/280 mm |
| Top radiator | Up to 360/420 mm |
| Rear radiator | 240 mm |
| Bottom radiator | 120 mm (requires removal of HDD cage) |
| PSU max length | 200 mm (with HDD cage and front fan) |
| GPU max length | 341 mm (360 mm without front fan) |
| CPU cooler max height | 169 mm |
| Cable routing space | 17-28 mm |
| Cable routing grommets | Да |
| Fixed velcro straps | Да |
| Captive thumbscrews | HDD brackets, SSD brackets, PSU bracket |
| Left side panel | Industrial sound-damped steel or Tempered glass |
| Right side panel | Industrial sound-damped steel |
| Case dimensions (LxWxH) | 427 x 210 x 474 mm |
| Нето тегло | TG: 8.76 kg/Solid: 8.61 kg |
| Package dimensions (LxWxH) | 536 x 310 x 521 mm |
| Бруто тегло | TG: 12.04 kg/Solid: 10.87 k |
