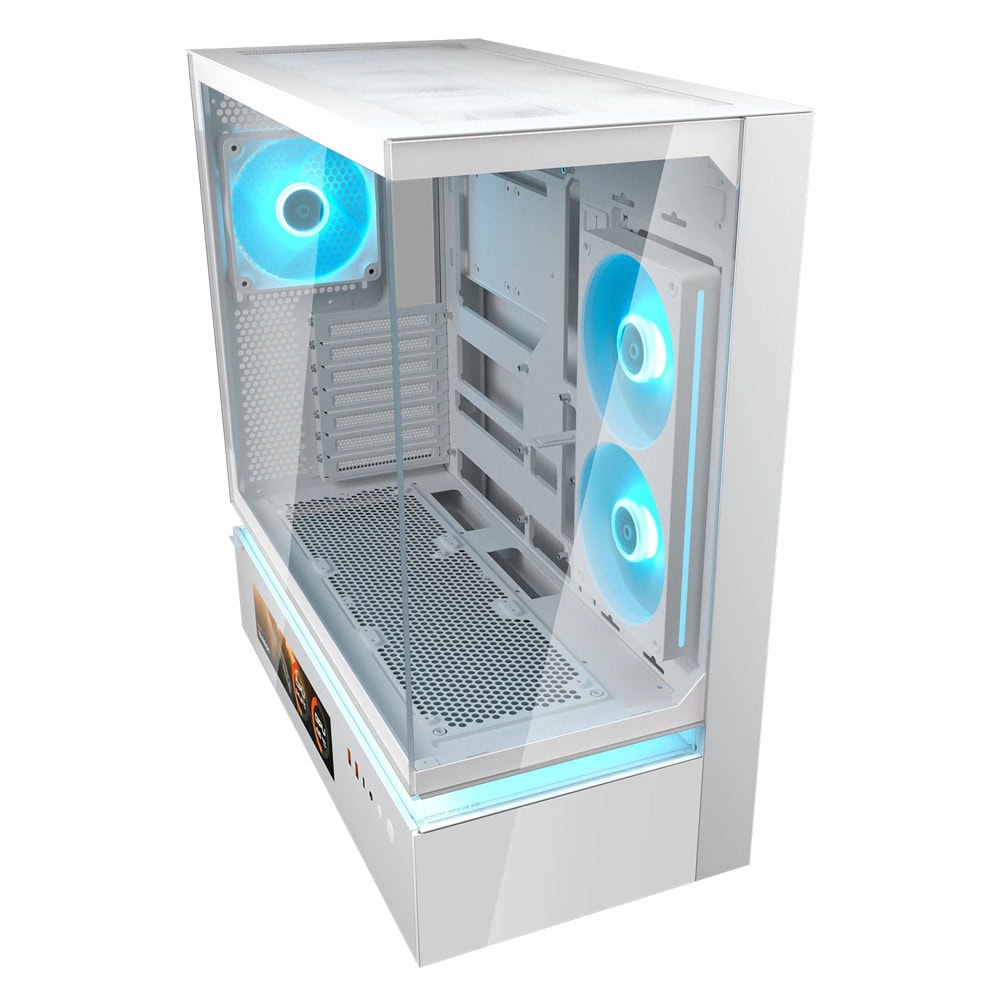

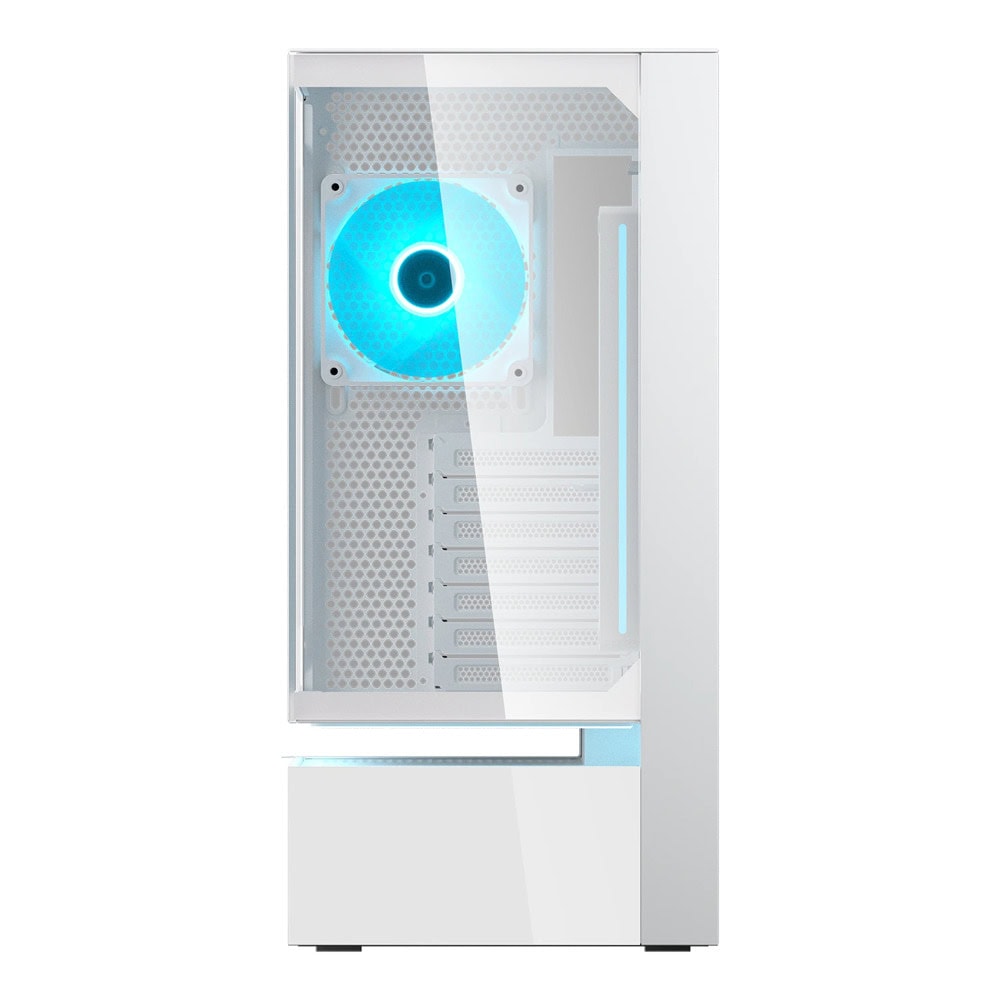

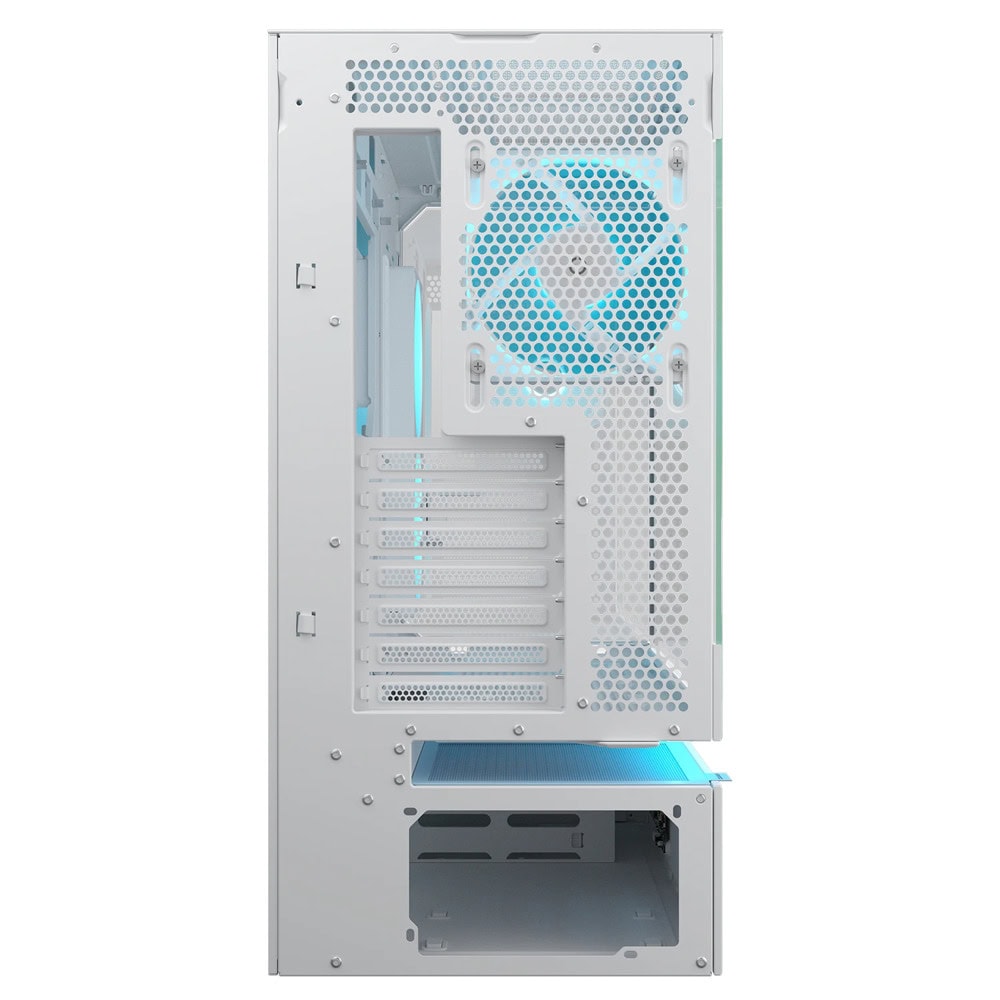

Кутия Cougar Gaming CFV235 Vision
Cougar Gaming CFV235 Vision
True Free-Floating Structural Separation
Conventional design squeezes both the PSU - a prime source of heat - and critical components in the same space, restricting airflow access to only the top, front and rear panels. The Central Floating Ventilation divides the PSU cabin and main chamber with a structural hollow that lets air move with greater freedom and purpose. This free-floating architectural separation also gives the CFV235 series its unique, progressive visual identity.

270° Airflow Access Within Suspended Space
The CFV235 series’ floating space is a fully 3 dimensional, discrete void suspended within the chassis. 270° of spacious, unobstructed airflow intake delivers greater ventilation than enclosed layouts to where it’s most needed.

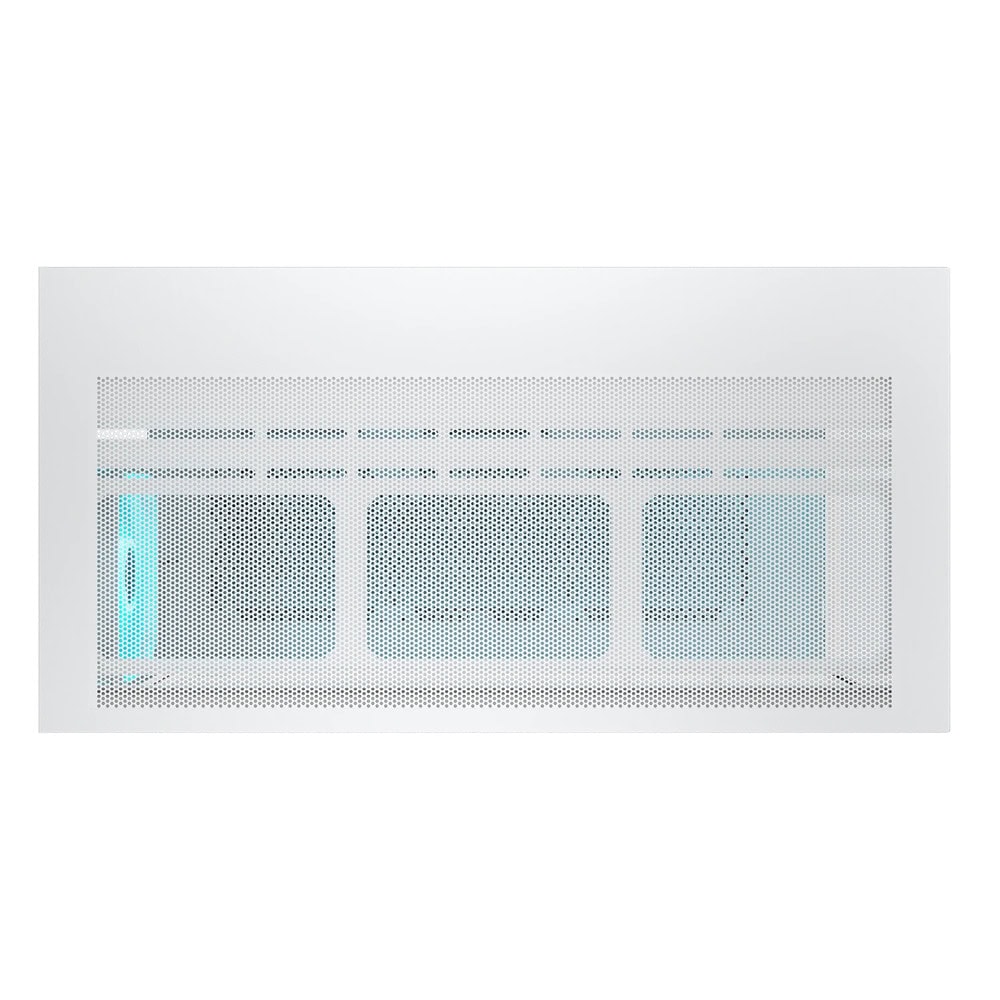

Dual Magnetic Filtration
Magnetic dust filters at the roof and base of the Central Floating Ventilation structure proactively prevent dust and debris buildup, keeping airflow clean and uninterrupted without disrupting the suspended design.

Specifications
JAR Computers може да предложи /смяна/монтаж в наш сервиз или при .
Характеристики
| Case Form Factor | Mid Tower |
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB |
| Dimensions (WxHxD) | 235 x 493 x 460 (mm) · 9.3 x 19.4 x 18.1 (in) |

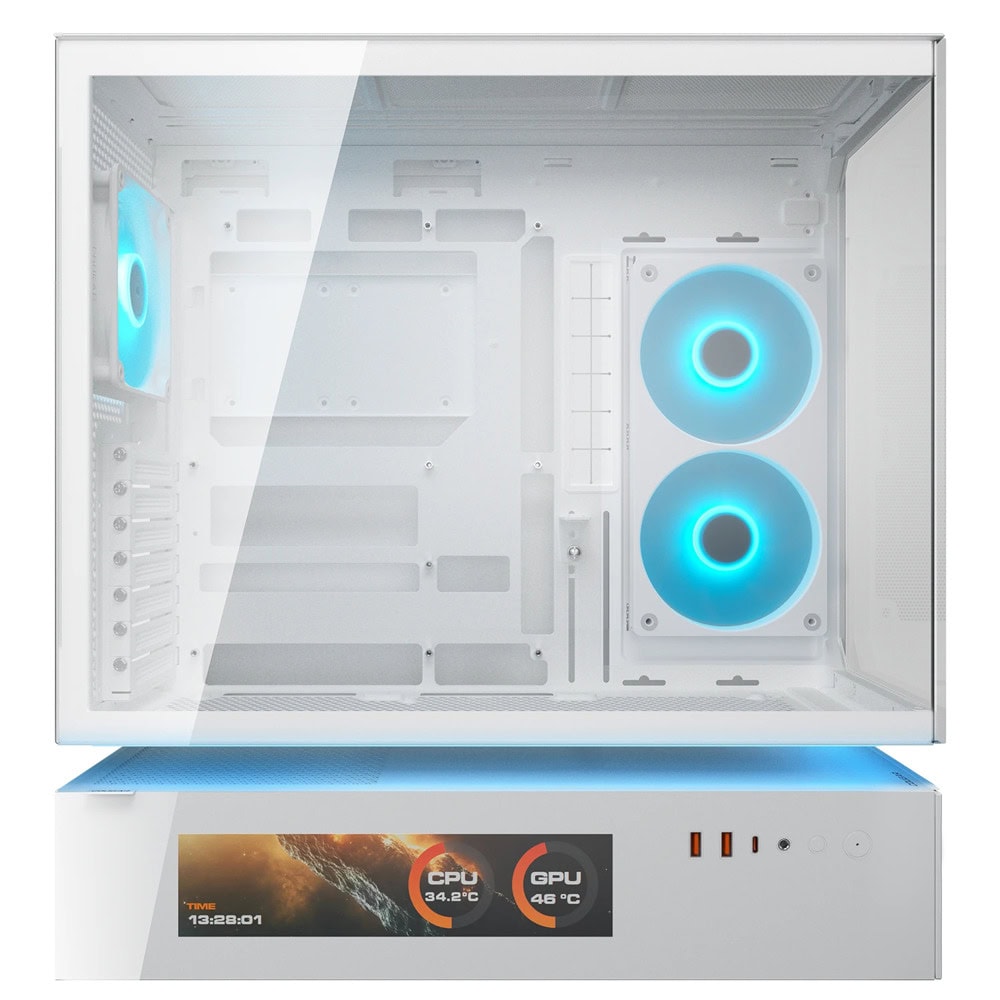

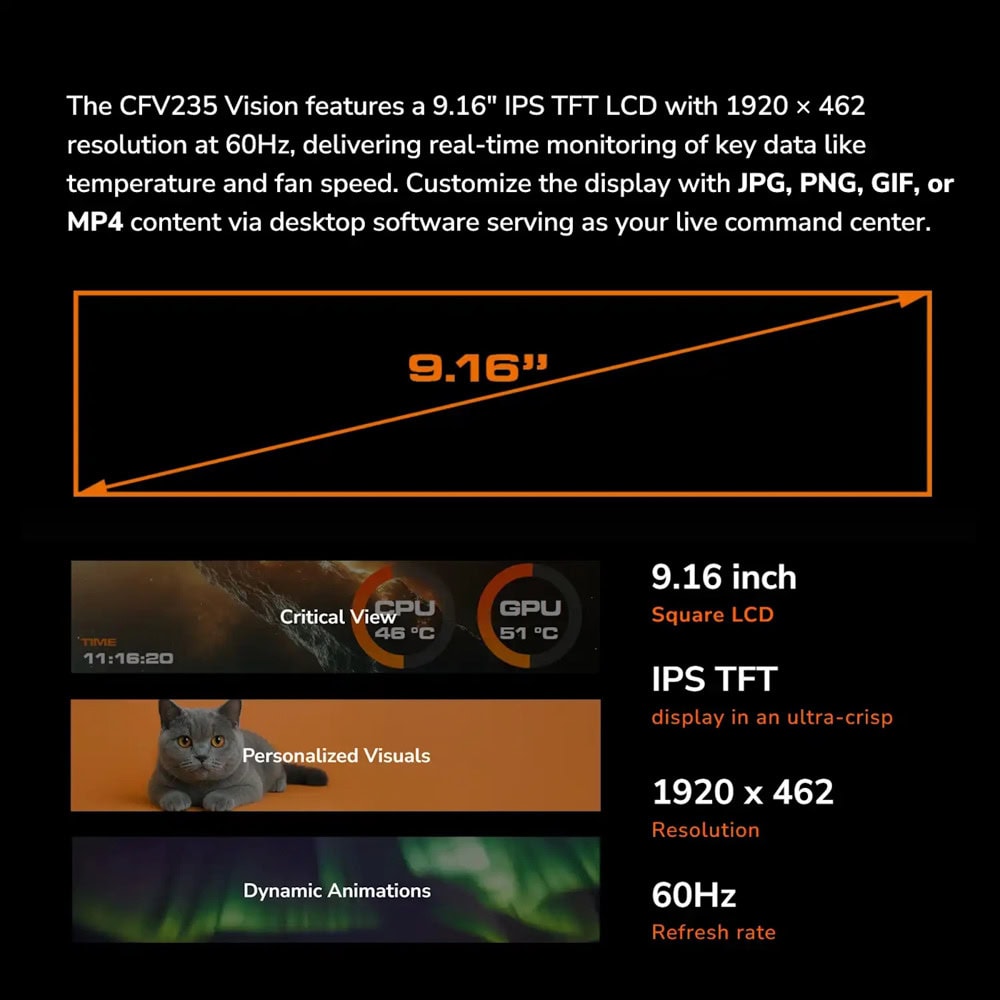

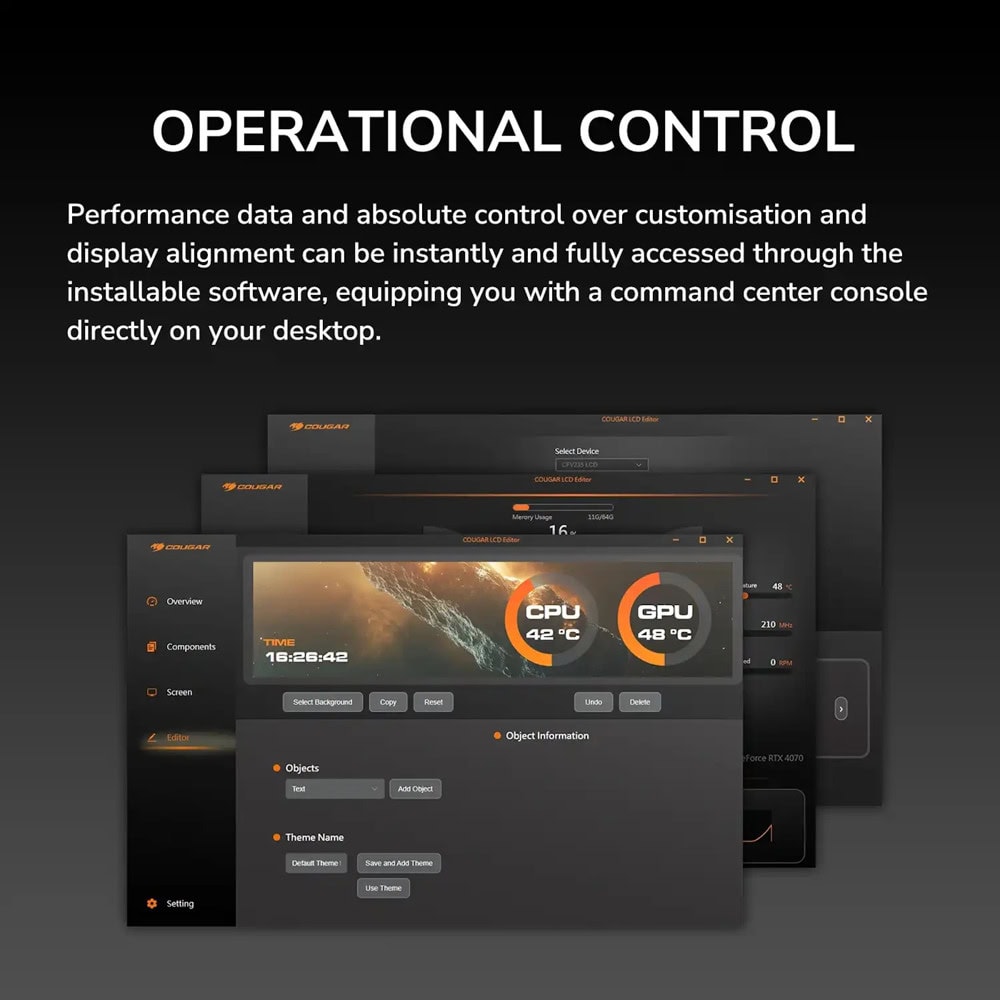

| 9.16" LCD Monitor (1920 x 462 px) | Да |
| I/O Panel | USB 3.2 Gen 2x2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button |

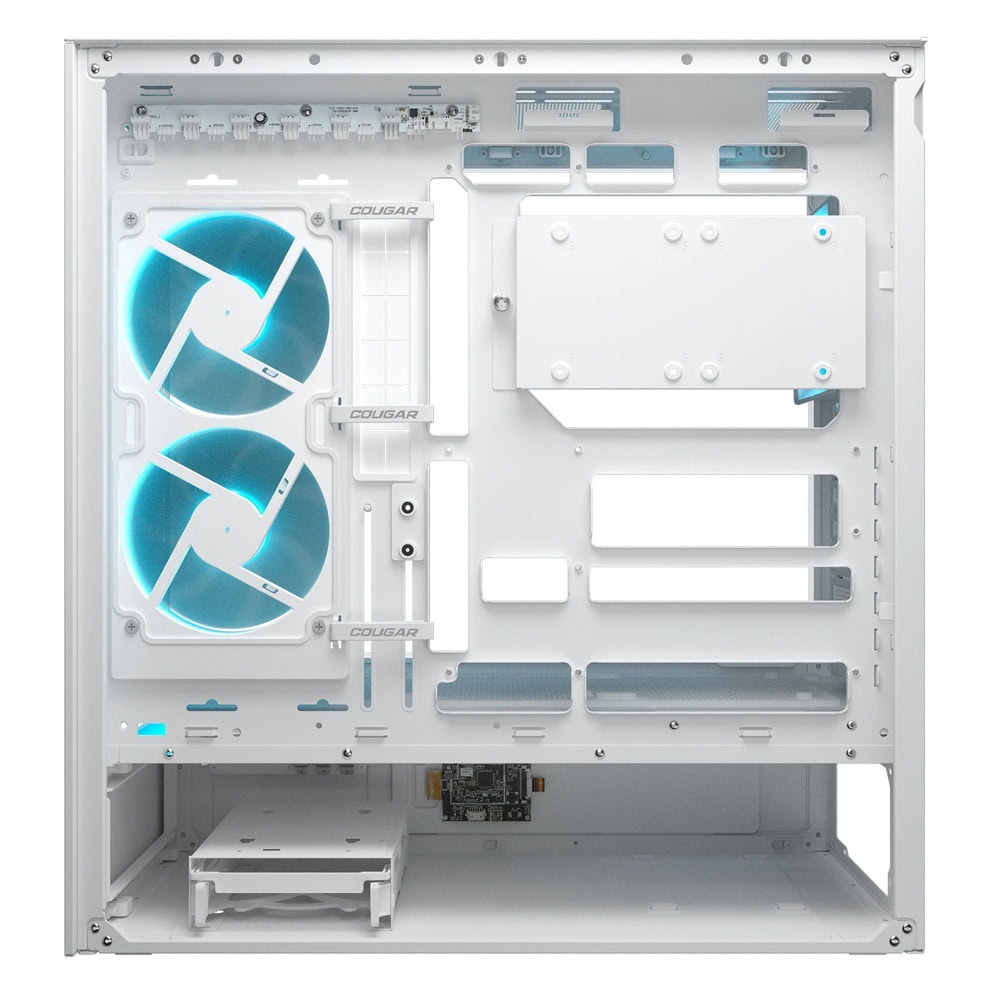

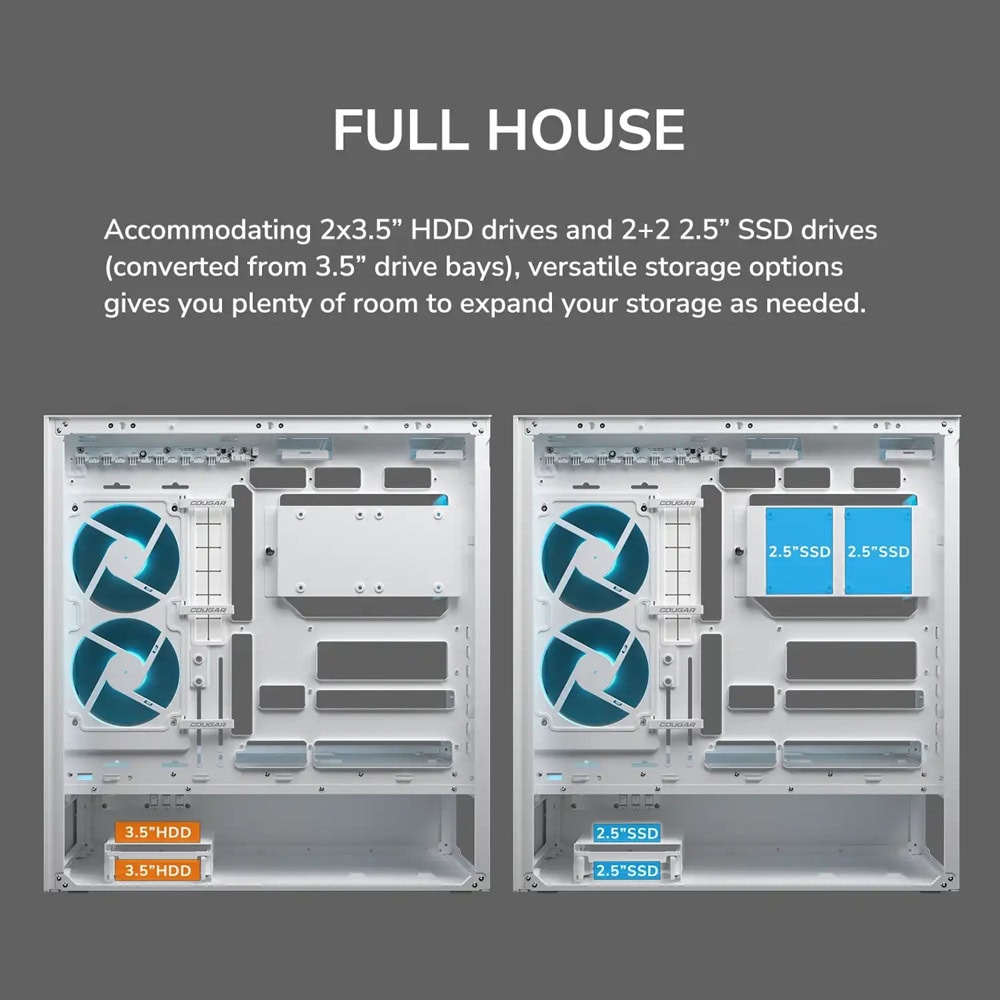

| 3.5" Drive Bay | 2 |
| 2.5" Drive Bay | 2+2 (converted from 3.5" drive bays) |
| Слотове за разширение | 7 |

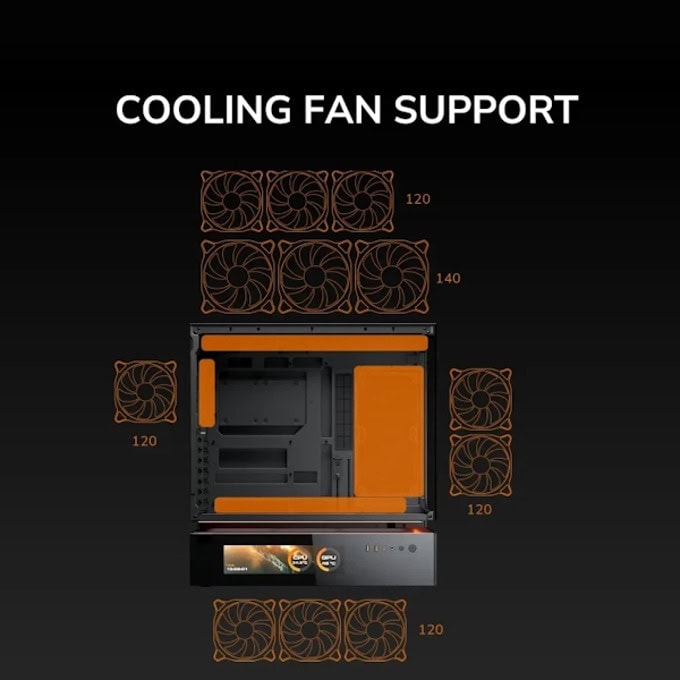

| Cooling Fan Support | Top · 120mm x 3 / 140mm x 3 |
| M/B Side120mm | x 2 |
| Bottom120mm | x 3 |
| Rear120mm | x 1 |
| Pre-installed Fans | M/B Side · Unity 240 ARGB PWM Reversed fan x 1 |
| Rear120mm ARGB PWM fan | x 1 |
| SpeedUnity 240 ARGB PWM Reversed fan | 700-1600 RPM ±10% 120mm ARGB PWM fan: 500-1400 ± 10% RPM |
| Connector5V | 3 Pin (ARGB) / 4 Pin PWM (Fan) |
| Maximun Number of Fans | 9 |

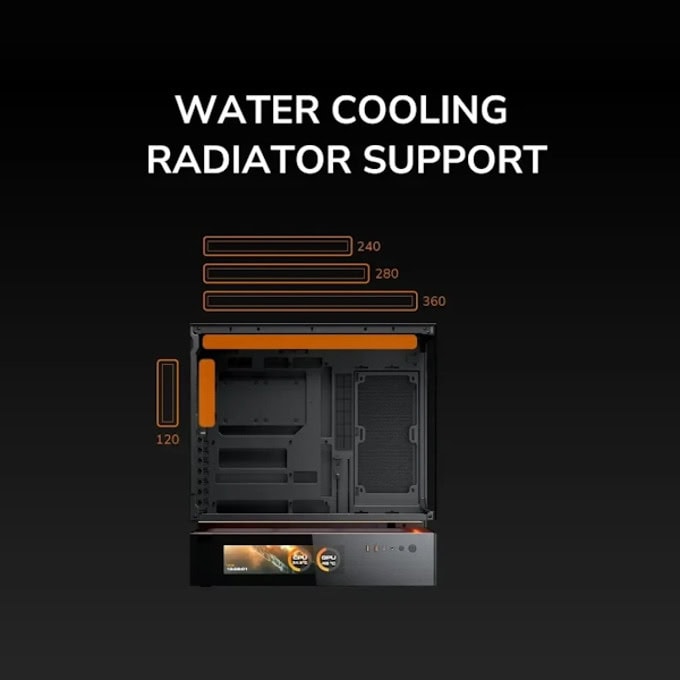

| Water Cooling Support | Top · 360mm / 280mm / 240mm / 140mm / 120mm |
| Aurora LED Strip | Да |
| PWM and RGB hub Sync with M/B | Да |
| Max. Graphics Card Length | 430 (mm) / 16.9 (in) |
| Max. CPU Cooler Height | 175 (mm) / 6.9 (in) |
| Max. PSU Length | 200 (mm) / 7.9 (in) |
