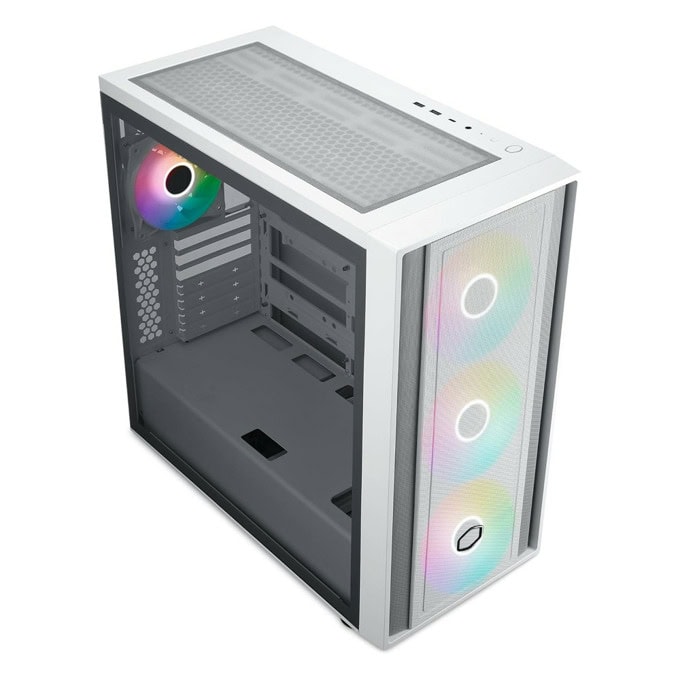

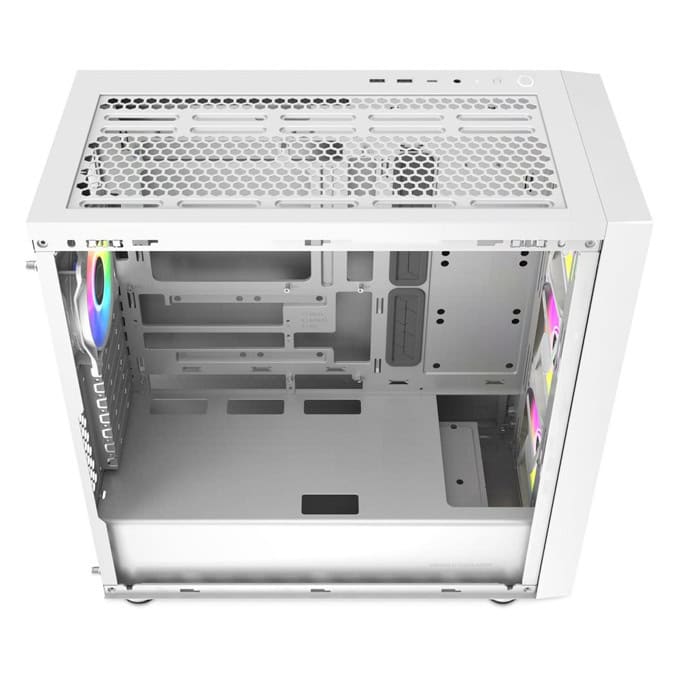

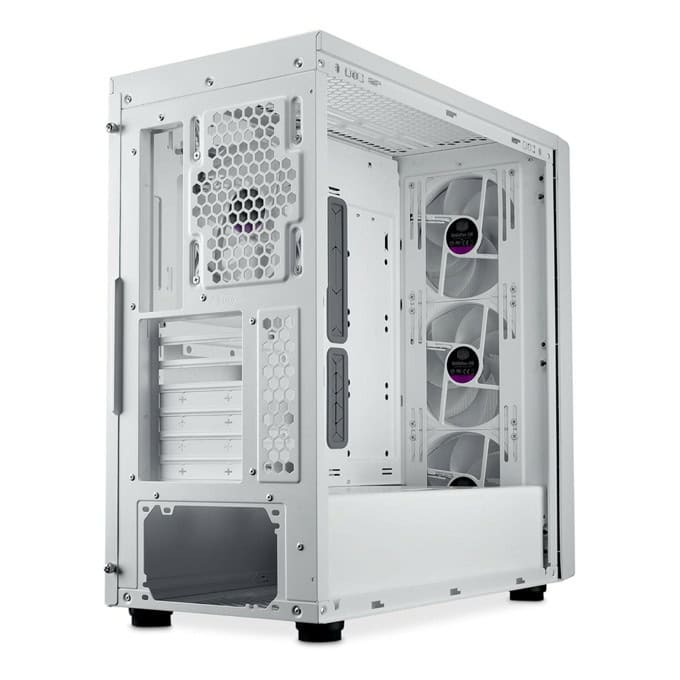

Кутия CoolerMaster MasterBox 600
CoolerMaster MasterBox 600

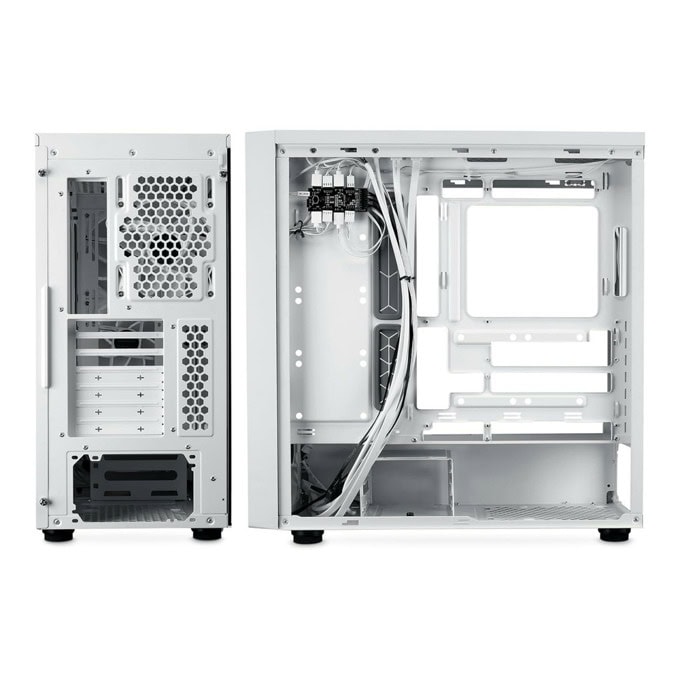

Improved DesignBack-connected motherboard supportSupport back-connected motherboard to frees up space in the front of the case and providing improved cable management space up to 33~35mm behind MB tray.
Tailor-Made 140mm SickleFlow FansTuned to higher RPM, the 140mm SickleFlow fans providesextraordinary airflow to the system.

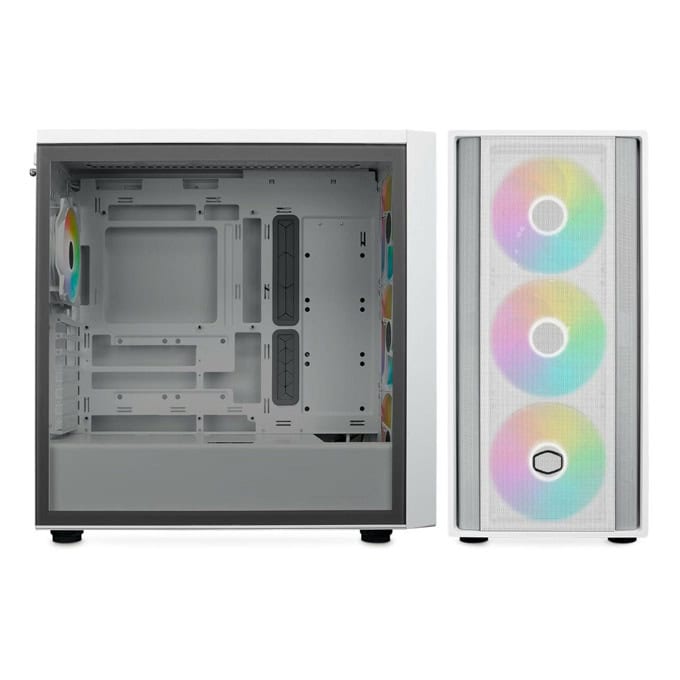

PerformanceFINEMESH PERFORMANCE FRONT PANELLarge mesh intakes offer unrestricted airflow and stellar thermals for demanding systems.
Optimized airflow3 × 140mm SickeFlow fans, and a CF120 fan offer exceptional cooling power and eye-catching aesthetics.
CustomizationVersatile Cooling OptionsSupport for up to seven 120mm fans, with 360mm radiator support on the top and 420mm radiator support on the front, ensures that performance is not compromised.
CustomizationHardware compatibilitySupport for up to a 410mm graphics card, a 170mm CPU cooler, and multiple fans/radiators locations provides room for upgrades to stay ahead of the game.
Характеристики
| Materials - Exterior | Steel, Plastic |
| Materials - Side Panel | Tempered Glass |
| Dimensions (L x W x H) | 474 x 230 x 481mm (Incl. Protrusions), 465 x 230 x 465mm (Excl. Protrusions) |
| Volume | 49.73L |
| Motherboard Support | ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12"x10.9" / 30.5cmx27.7cm motherboards, may impact cable management) |
| Слотове за разширение | 7 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2 (Max.6) |
| I/O Panel - USB Ports | 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C |
| I/O Panel - Audio In / Out | 1x 3.5mm Combo |
| Pre-installed Fans - Front | 3x 140mm SickleFlow ; 140 ARGB PWM (650~1800 rpm) |
| Pre-installed Fans - Rear | 1x 120mm CF120 ARGB (650~1200 rpm) |
| Fan Support - Front | 3x 120/140mm |
| Fan Support - Top | 3x 120mm / 2x 140mm |
| Fan Support - Rear | 1x 120mm |
| Radiator Support - Front | 120 / 140 / 240 / 280 / 360 / 420mm (Limit: 457*140*27mm) |
| Radiator Support - Top | 120 / 140 / 240 / 280 / 360mm |
| Radiator Support - Rear | 120mm |
| Clearance - CPU Cooler | 170mm |
| Clearance - PSU | 170mm, 210mm (w/o HDD Cage) |
| Clearance - GFX | 360mm, 410mm (w/o front radiator) |
| Cable Routing - Behind Motherboard Tray | 33-35 mm |
| Dust Filters | Top, Bottom |
| Power Supply Support | ATX |
| Размер | Mid Tower |
| Back Connector Motherboard Support | Да |
