Кутия Cooler Master MasterFrame 500 Mesh

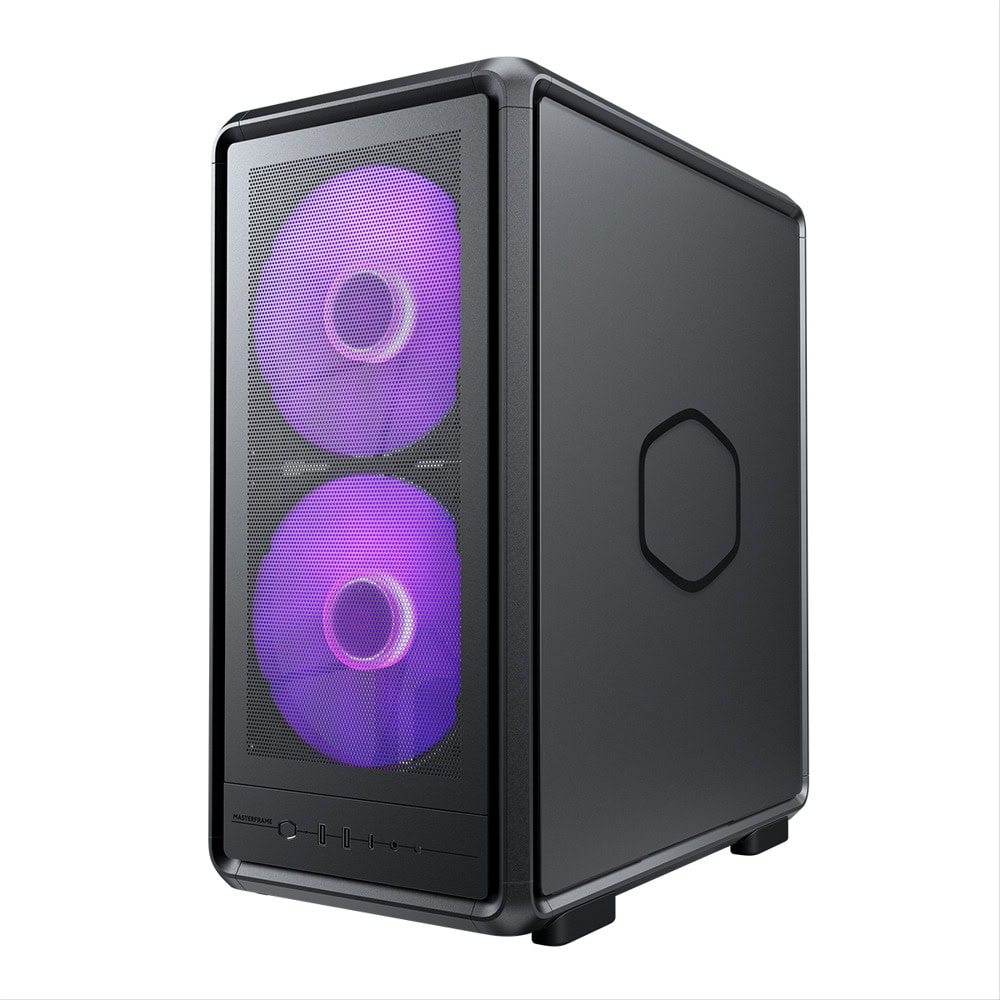

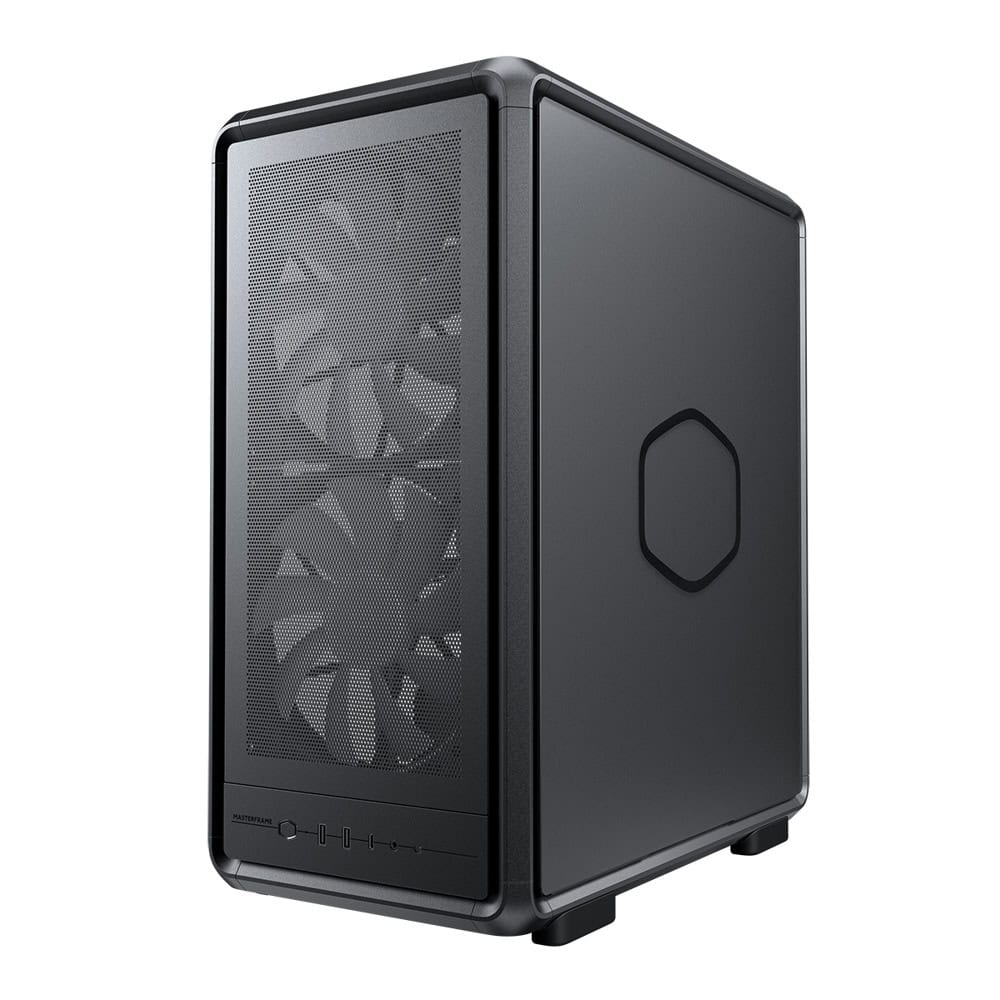

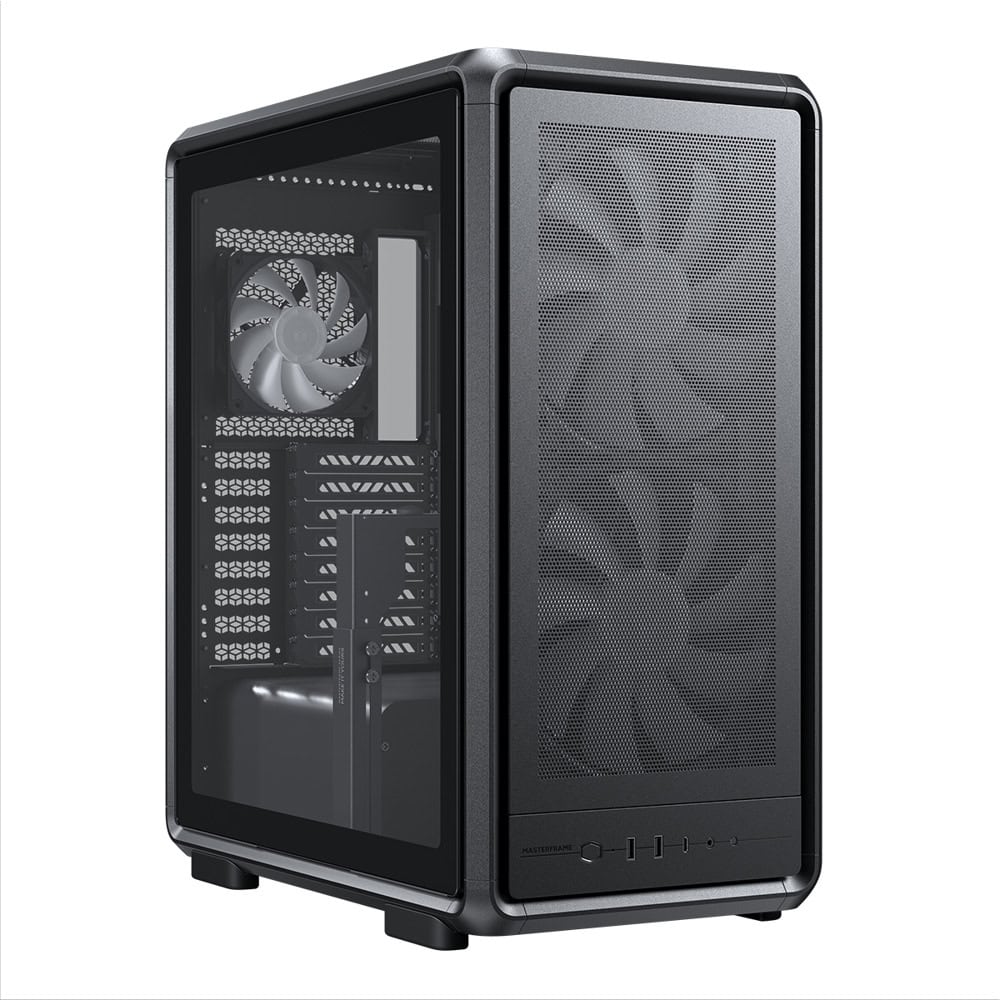

Cooler Master MasterFrame 500 Mesh

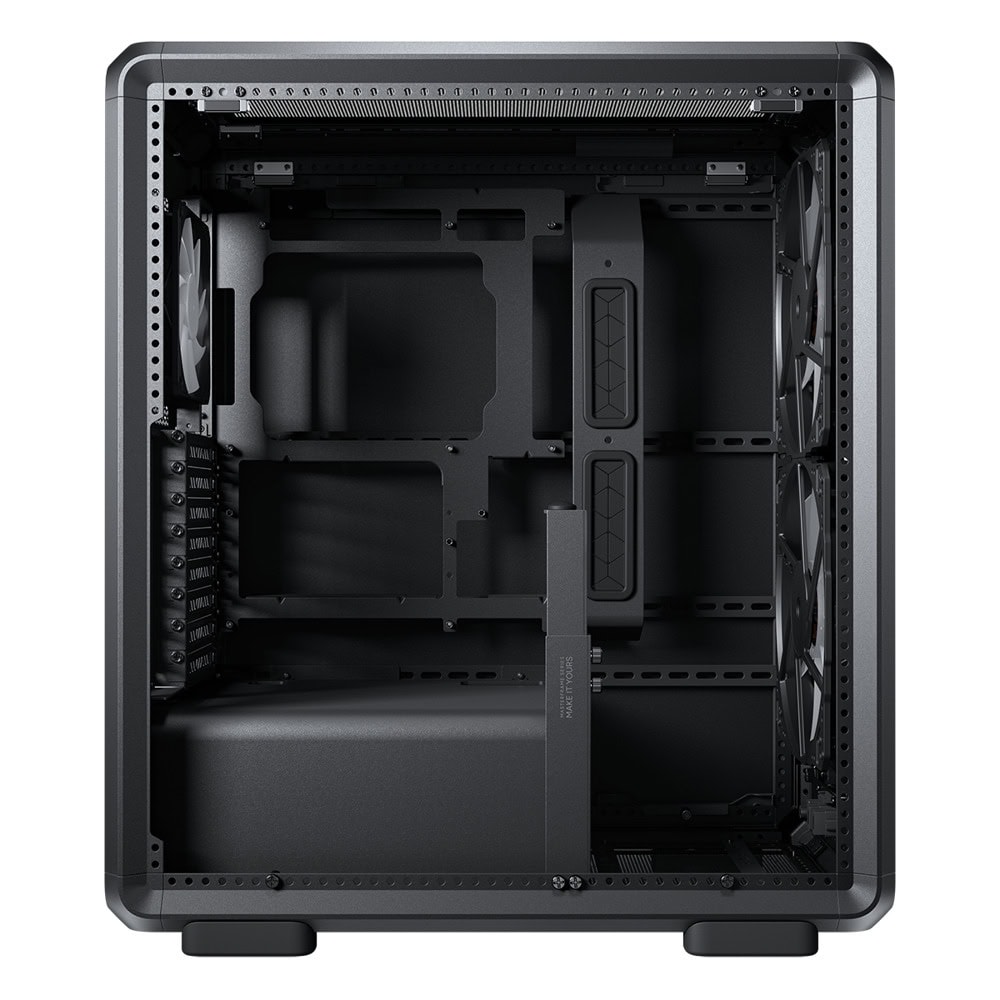

FreeForm 2.0 Exo-structureThe exposed frame structure enhances chassis adaptability and provides flexible configuration options for various scenarios.
Flexible Motherboard SupportSupports Mini-ITX to E-ATX motherboards, offering compatibility with a wide range of builds and configurations.
Extensive Cooling SupportCan house up to eight fans and multiple radiator sizes (up to 360mm), ensuring superior thermal performance.
Ample GPU ClearanceAccommodates graphics cards up to 390mm, offering plenty of space for high-end GPUs.
Tool-Free Panel Removal
Easily remove side panels and other components without tools for quick access and modifications during build or upgrades.
Included GPU support bracket
The included GPU support bracket prevents GPU sag and ensures stability during intense gaming or high-performance workloads, maintaining a clean and secure build.
Характеристики
| Materials - Exterior | SGCC Steel, Aluminum |
| Materials - Side panel (Right / Left) | Tempered Glass |
| Dimensions (L x W x H) | 471 x 261 x 544 mm (Incl. Protrusions), 471 x 261 x 531 mm (Excl. Protrusions) |
| Volume | 60.9 L (Excl. Protrusions) |
| Motherboard Support | Mini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX*, SSI-CEB* (*Conditional Support) |
| Power Supply Support | ATX |
| PCI Expansion Slots | 8 |
| 3.5" Drive Bays | 0 |
| 2.5" / 3.5" Drive Bays (or SSD) | 1 (Bottom) |
| Preinstalled Drive Bays - 3.5" / 2.5" Drive Bay (or SSD) | 1x 2.5 or 1x 3.5 |
| I/O Panel - USB Ports | 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C |
| I/O Panel - Audio In / Out | 1x 3.5mm Headset Jack (Audio+Mic) |
| Fan Support - Front | 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm |
| Fan Support - Top | 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm |
| Fan Support - Rear | 1x 120mm |
| Fan Support - Bottom | 1x 120mm |
| Radiator Support - Front | 120 / 140 / 240 / 280 / 360mm |
| Radiator Support - Top | 120 / 140 / 240 / 280 / 360mm |
| Radiator Support - Rear | 120 mm |
| Dust Filters | Mesh Only (Removable Filters) |
| Clearance - CPU Cooler | 190 mm |
| Clearance - PSU | 235 mm |
| Clearance - Graphics Card | 390 mm |
| Cable Routing - Behind Motherboard Tray | 43 mm |
| Размер | Mid Tower |
