Кутия be quiet! Light Base 500 LX

be quiet! Light Base 500 LX

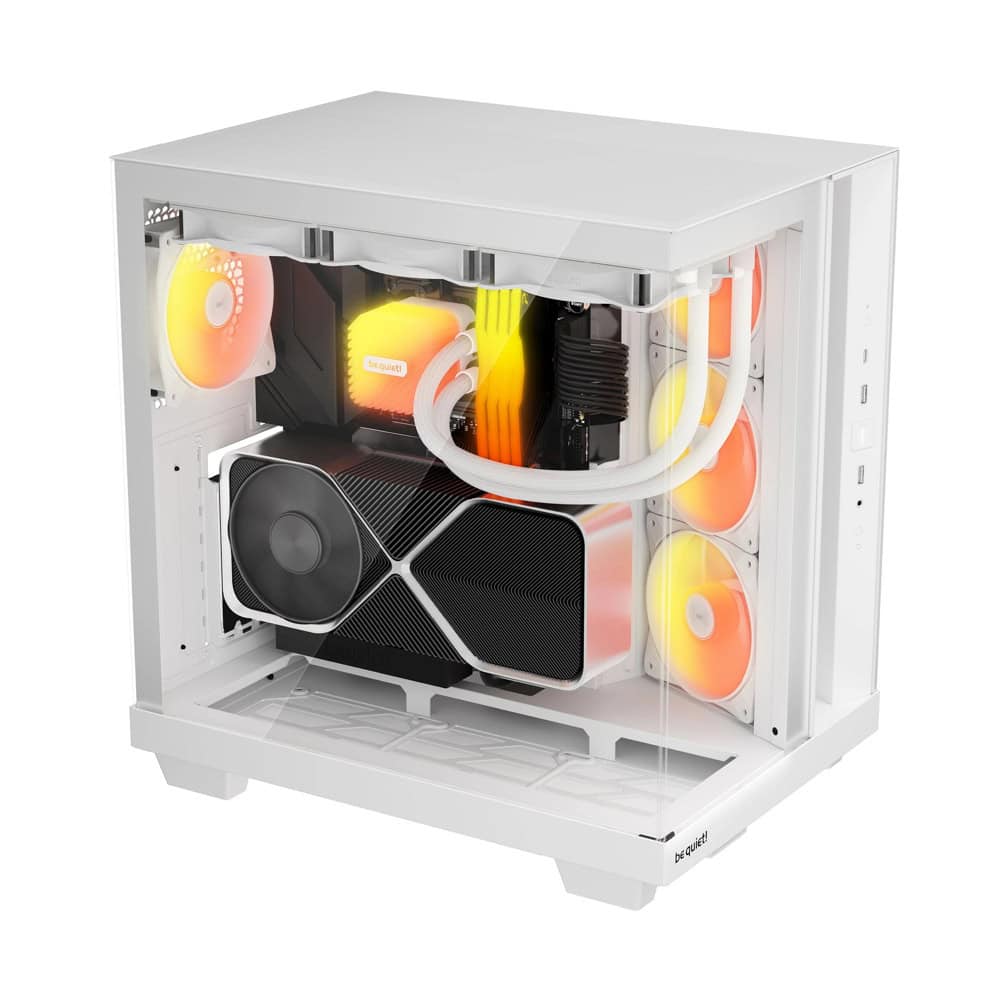

ELEVATED ELEGANCECool design, cooler GPUThe angled fan frame in the side is not only a testament to elegance and functionality but also directs more air towards the GPU – a part that traditionally requires a lot of it. It provides a neat triangular cutout that works as an efficient air intake. For an easy installation of fans, it slides out to the top. Cable management is easier than ever before with a channel that hides your equipment elegantly. If you install additional fans in the bottom, they line up perfectly with the case floor due to a lowered fan bay.

4 PREINSTALLED LIGHT WINGS LXWait, how many fans?!Light Base 500 LX Black features 4 preinstalled Light Wings LX fans. The rear fan is a Light Wings LX 120mm, the fans on the side are Light Wings LX 120mm PWM fans with reversed fan blades. All fans feature 16 LEDs inside their hub of the impeller, making for an unmistakable ARGB illumination. The reversed fan blades make sure that their pretty side is visible at all times.

SPACIOUS DESIGNSize matters after allLight Base 500 LX Black might appear compact, but it comes with enough space for a 360mm radiator, an ATX motherboard and graphics cards up to 400mm length. The smart design of the drive bracket features slots for 1 HDD and 2 SSDs at the same time, without impeding the room for cable management behind the motherboard tray.

BUSINESS IN THE FRONT...... Party in the back!The motherboard tray fully supports backside connector designs like Asus BTF (Back to Future), MSI Project Zero, and Gigabyte Project Stealth, for a true and cable-free view. To enable backside connector support without giving up a drive slot, the position of the PSU and drive bracket are simply swapped!

YES TO ARGBJoin the light sideFor those who appreciate subtle illumination without compromising on performance, the Light Base 500 LX Black adds a touch of sophistication to the core design thanks to the included Light Wings LX fans. An ARGB controller button with predefined lighting effects and colors is integrated into the I/O panel. The preinstalled rear fan and daisy-chained side fans are connected to a 6-way ARGB and PWM hub, leaving 4 free connectors for additional devices.

Technical data

General data

ModelLIGHT BASE 500 LX | White

Color optionWhite

Motherboard compatibilityATX / M-ATX / Mini-ATX

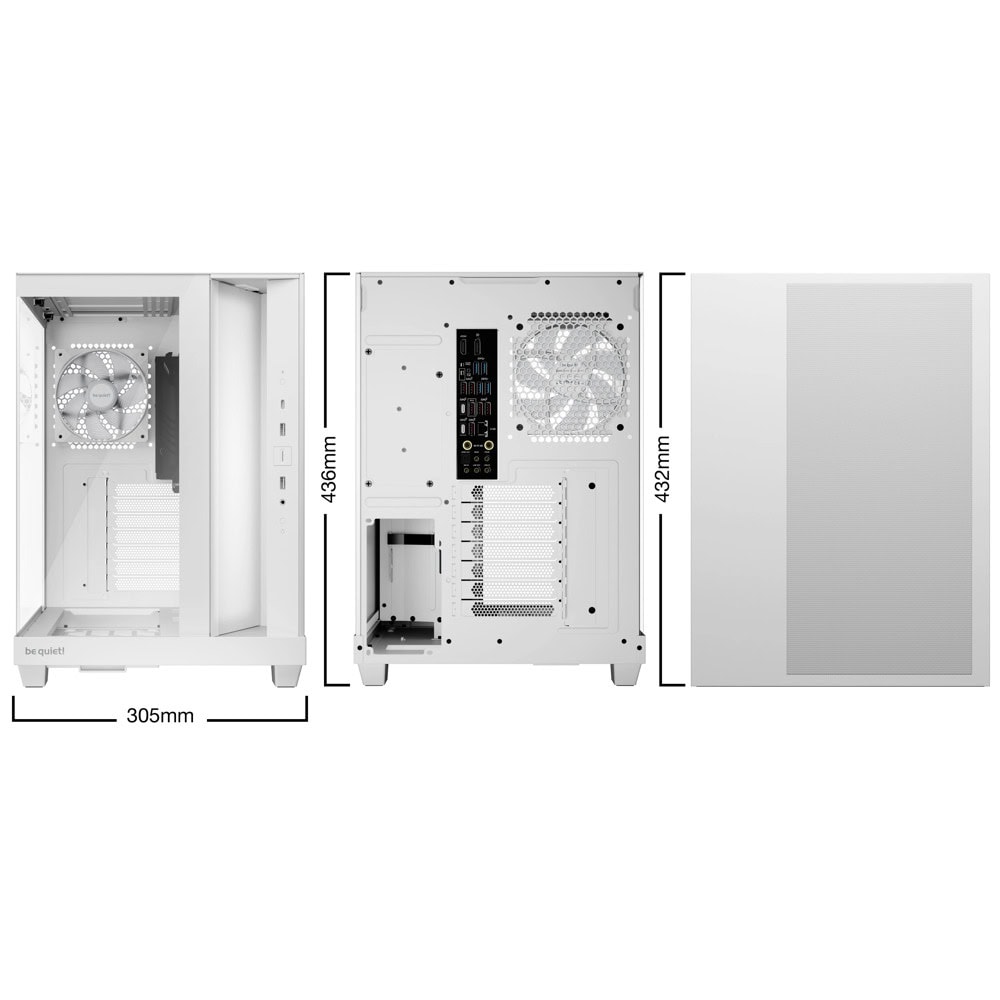

Case size excl. stands (L x W x H), (mm)432 x 305 x 410

Case size incl. stands (L x W x H), (mm)432 x 305 x 436

Volume (l)49,6

PSU form factorATX PS/2

Net weight (kg)10,95

Expansion slots7

Pre-installed fans

Fan at top-

Fan at front-

Fan at side3x Light Wings LX Reverse 120mm PWM Black

Fan at rear1x Light Wings LX 120mm PWM Black

Fan at bottom-

Dimensions (L x W x H), (mm)120 x 120 x 25

Fan speed at 100% PWM / 12V (rpm)1600 | 1500

Airflow at 100% PWM / 12V (CFM / m3/h)51.5 / 87.5

Air Pressure at 100% PWM / 12V (mm H2O)1.34

Noise level at 100% PWM / 12V (dB(A))25.5

Voltage range (V DC)5 - 13.2

Input power (W)3.8

Input current (A)0.32

Connector4-pin PWM

Lifespan (h / 25°C)60,000

Fan controller2x 12 Ports

Maximum fan installation

Maximum fans10

Top (mm)2x 140 / 3x 120

Front (mm)-

Side (mm)3x120

Rear (mm)1x 120 / 1x 140

Bottom (mm)3x 120

PSU shroud-

Optional radiator installation

Top (mm)120 / 240 / 280 / 360

Front (mm)-

Side (mm)120 / 240

Rear (mm)120

Bottom (mm)-

PSU compatibility

Maximum dimensions excl. bottom fan (mm)

Maximum dimensions incl. bottom fan (mm)

Graphics card

HDD cage (in height of graphics card) installed (mm)400

HDD cage (in height of graphics card) removed (mm)400

Maximum PCIe slots with vertical graphics card (pcs.)4
