Кутия Be Quiet! Dark Base Pro 901 Black
be quiet!

Кутия Be Quiet! Dark Base Pro 901 Black

Артикул №: 1000128504
Категория: Компютърни компоненти
379,99 €
✓ Налично във външен склад

DARK BASE PRO 901

Black

Outstanding Versatility, Performance and Silence

Dark Base Pro 901 is the epitome of a flexible, yet user-friendly case.

  • Interchangeable top cover and front panel for either maximum airflow or virtually inaudible operation
  • Fan and radiator brackets with integrated fan hub in front and top make installation a breeze
  • 3 Silent Wings 4 PWM fans for a virtually inaudible operation and high performance
  • Touch-sensitive I/O panel for state-of-the-art operation
  • Generous dimensions ensure operation of E-ATX motherboards and radiators up to 420mm
  • Well-conceived system for an extremely user-friendly handling
  • Flexible motherboard tray for an inverted layout

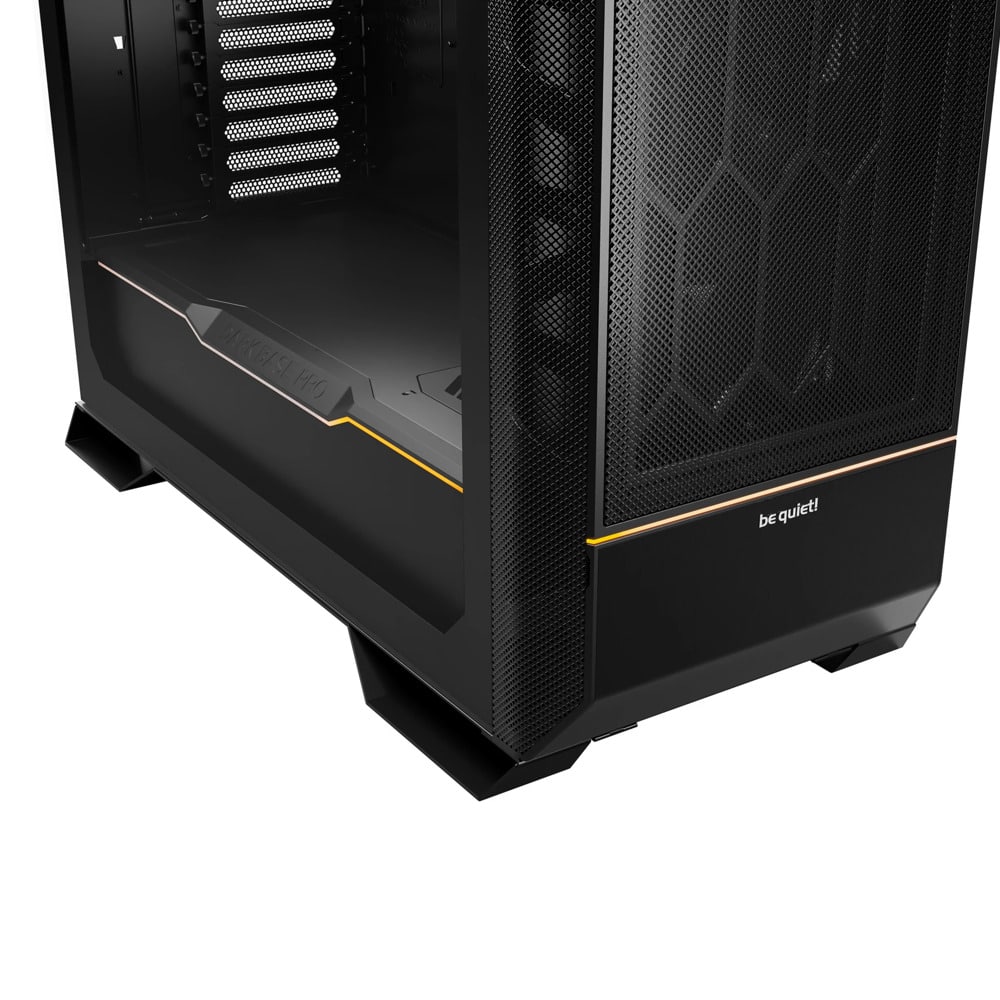

  • Subtle ARGB lighting in the front and the PSU Shroud

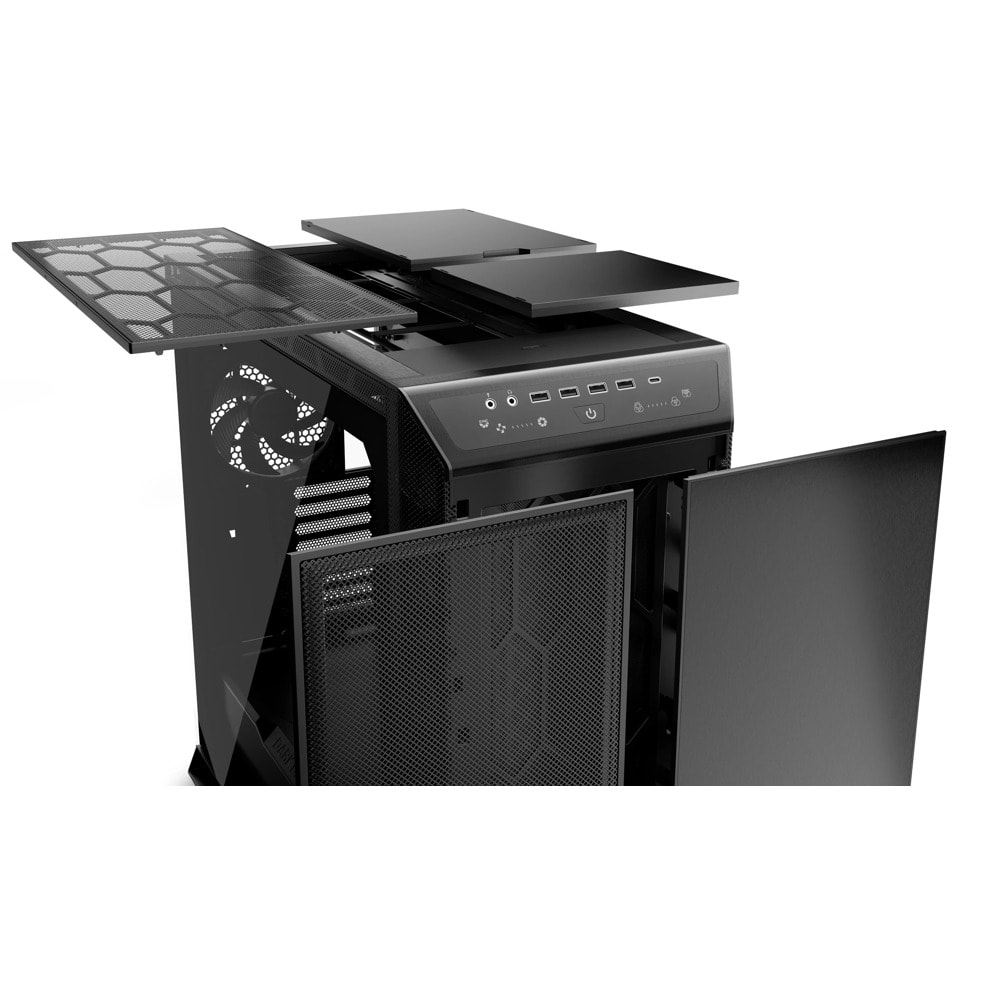

INTERCHANGEABLE TOP AND FRONTThe best case in any situation Whether you prefer a virtually inaudible or an extremely performant case: Dark Base Pro 901 is the perfect choice. Dark Base Pro 901 features a silence-oriented and performance-optimized solution for the top and the front. All panels are included, and a user-friendly mounting makes switching a breeze.

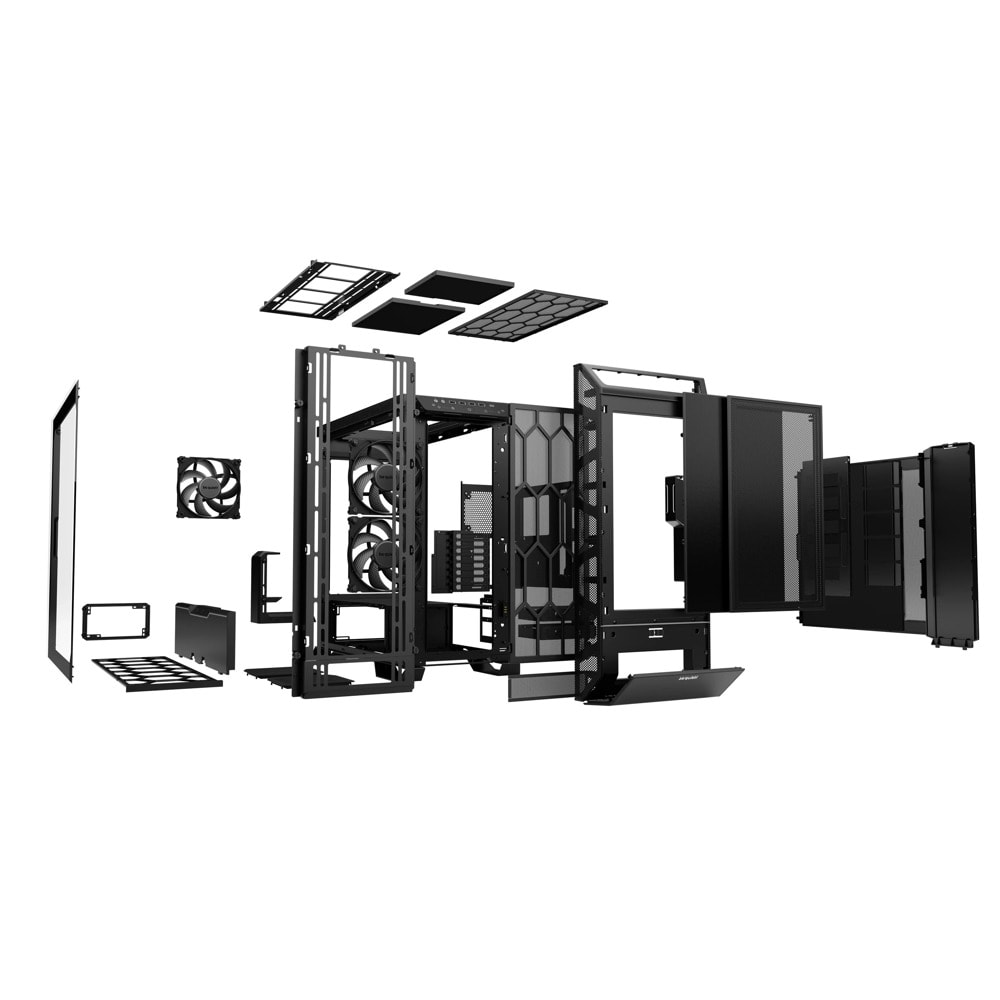

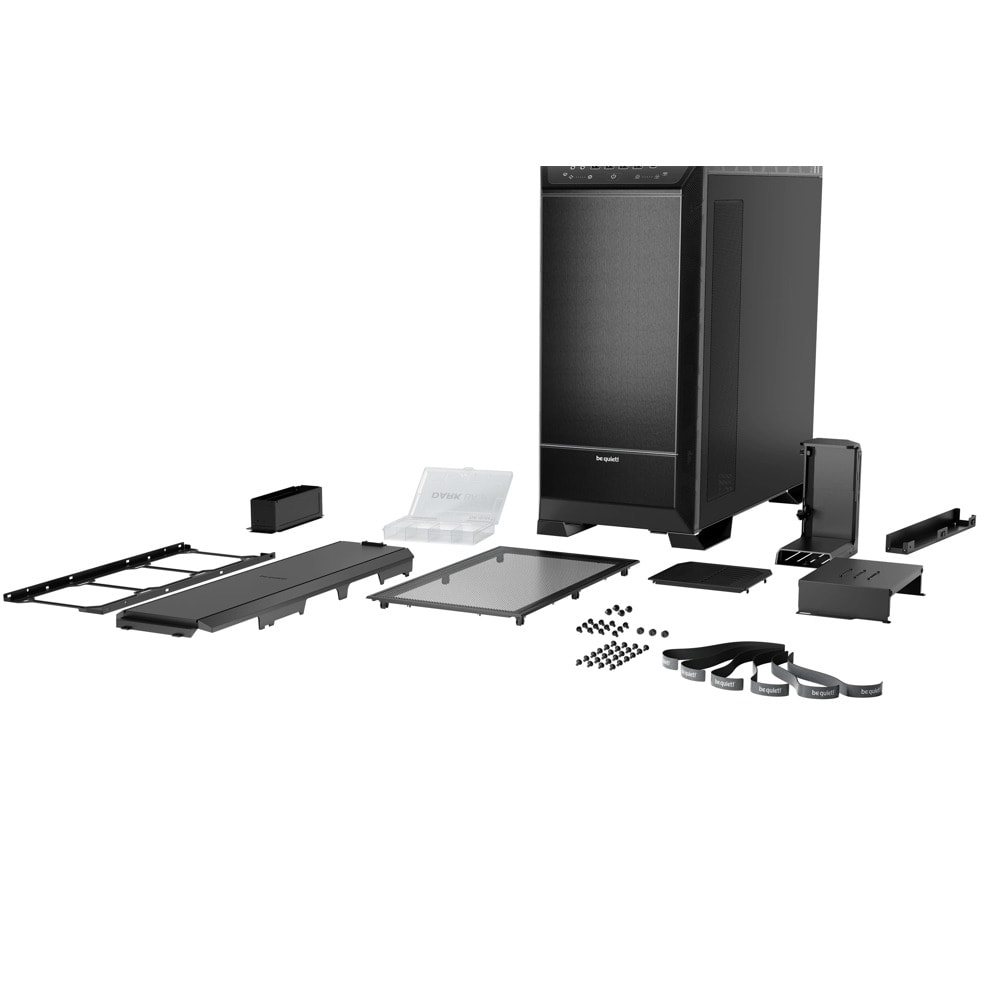

MAXIMUM USABILITYFor professional and casual useDark Base Pro 901 offers all functions enthusiasts could wish for in a high-end case. Among them is a detachable top and front bracket with included fan hub and pogo pin connector for a comfortable installation of radiators and fans. Even an inverted layout can be done easily thanks to an intuitive rail system. Numerous cleverly integrated solutions make handling extremely easy. Dark Base Pro 901 can be deployed without the hassle of additional screws and small parts, creating the optimal case for any build.

ARGB LIGHTINGAnd convenient featuresDark Base Pro 901 features ARGB lighting on the front and the PSU shroud: The lit-up areas are chosen consciously to ensure the case remains elegant with subtle illumination. The light and fan settings can be conveniently controlled via touch-sensitive buttons on the I/O panel. A wireless charger for Qi enabled devices perfectly rounds up Dark Base Pro 901.

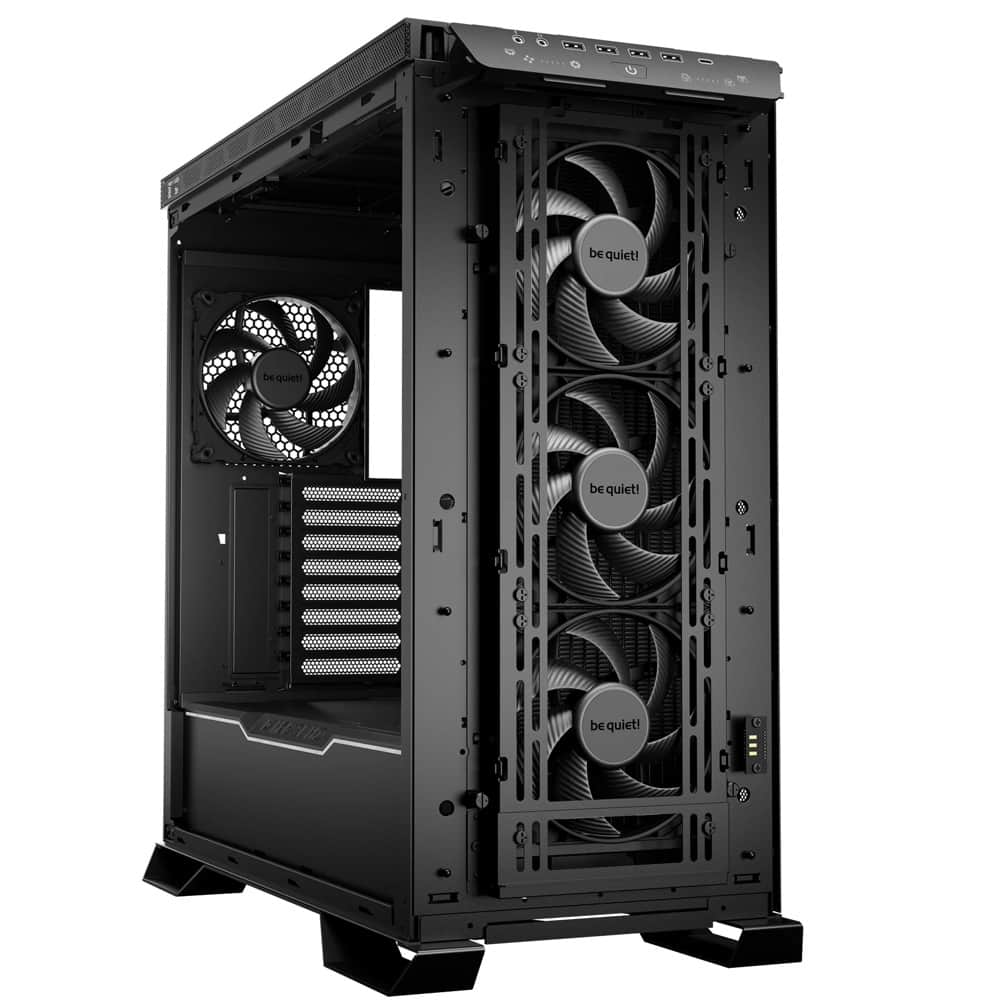

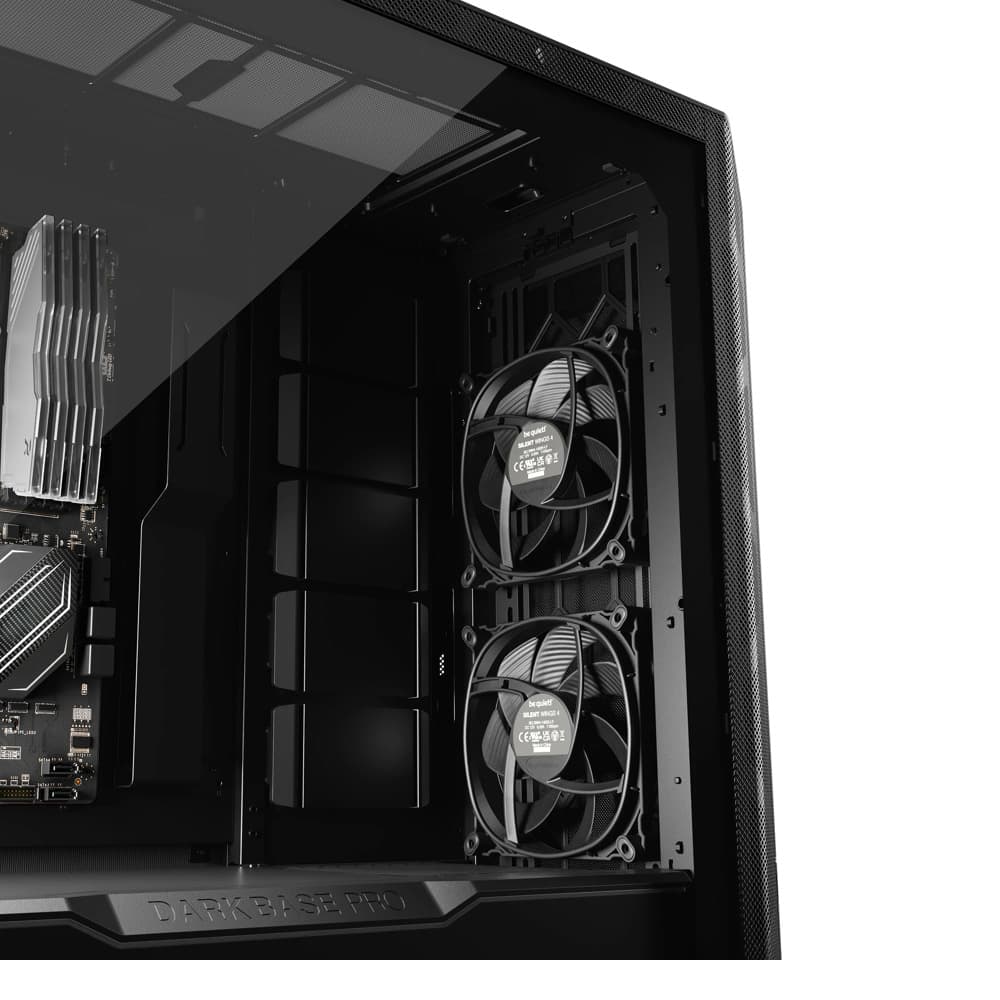

SILENT WINGS 4 PWM FANS

3 pre-installed fans for maximum airflow

Features like the silence-optimized fan blades and the funnel shaped fan frame make Silent Wings 4 140mm a fan that makes no compromises between virtually inaudible operation and high performance. Its extraordinary air pressure significantly increases the cooling performance of

Dark Base Pro 901.

THINK BIG

Generous dimensions for radiators up to 420mm

With its remarkably large dimensions, Dark Base Pro 901 sets no limits on creativity. The front can fit a radiator of up to 420mm and additional fans can be installed throughout the case, even on the side panel.

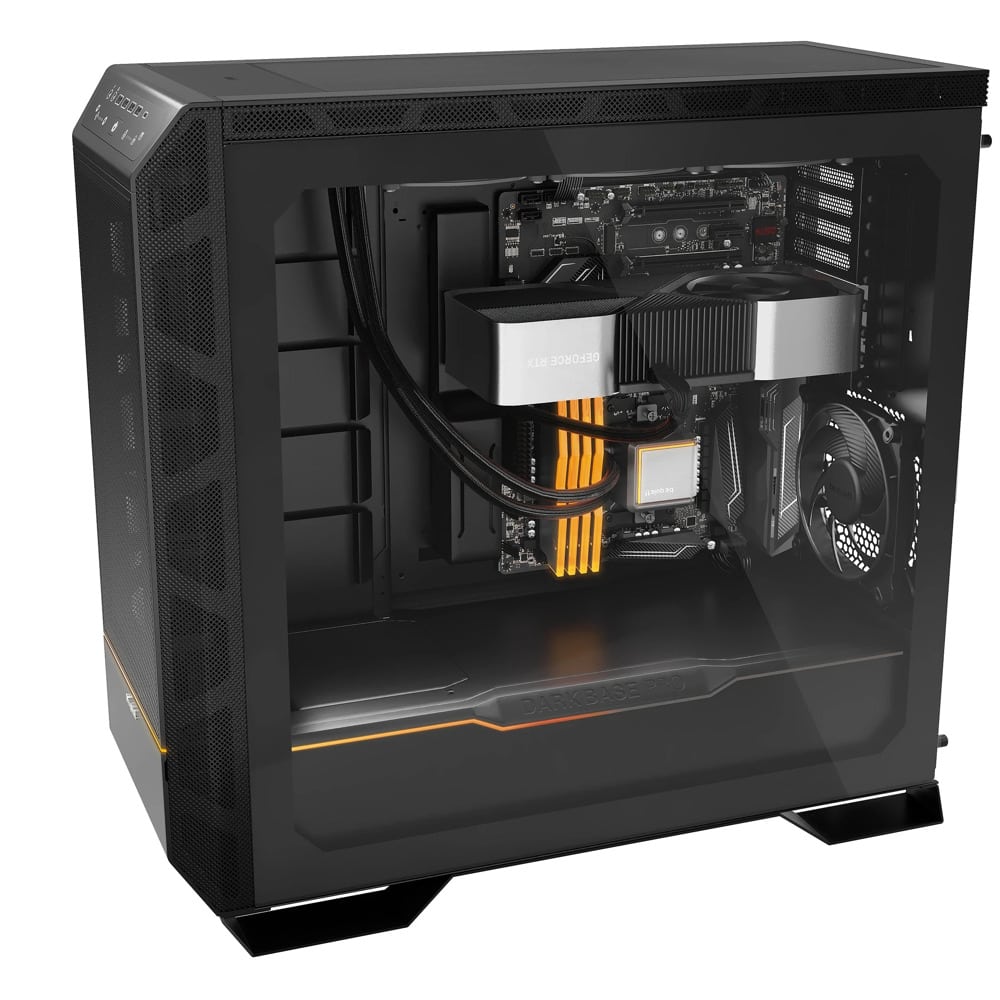

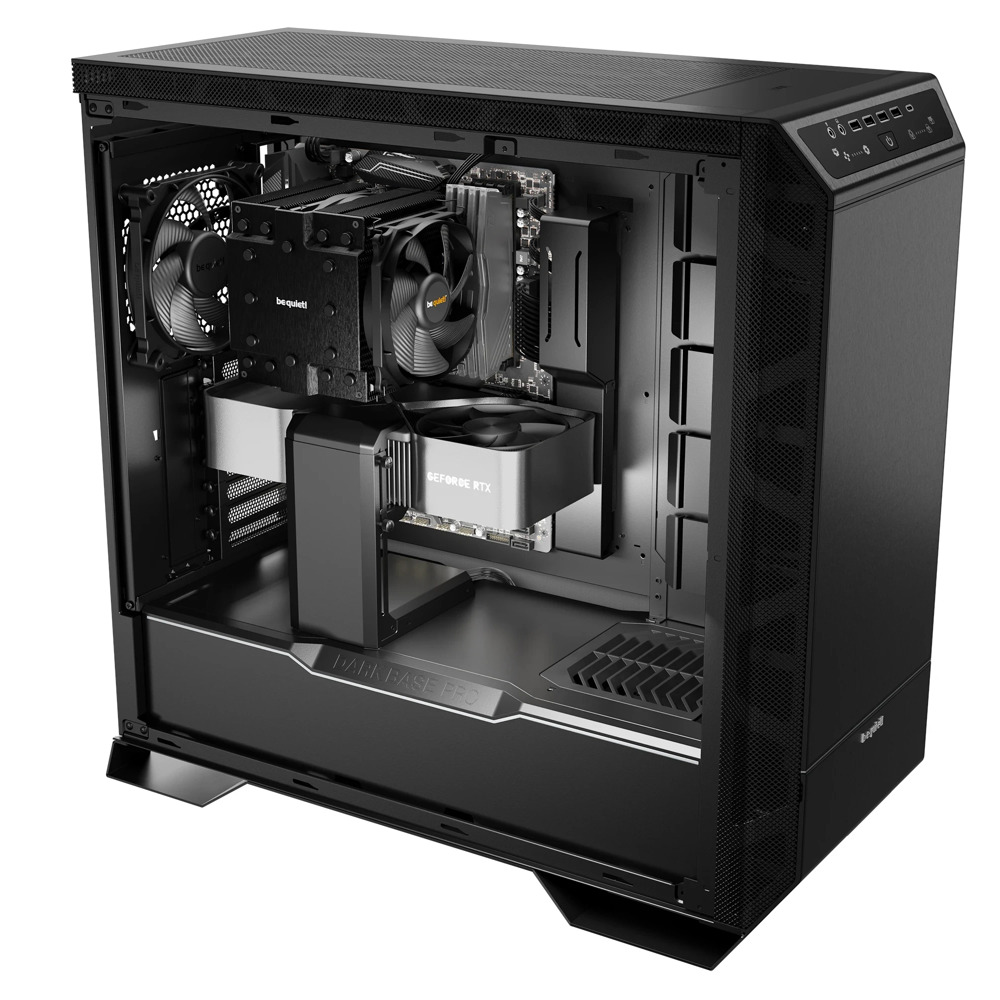

FLEXIBLE VGA HOLDER AND CABLE BARS

For a neat interior The VGA holder of Dark Base Pro 901 is very versatile and prevents GPU sag even with heavy graphics cards. 2 cable bars, one located inside the VGA holder and the other next to the motherboard tray, hide the cables inside the case. No matter how big or numerous the components built in Dark Base Pro 901 may be; with such clever features the result always makes a

good impression.

General data

ModelDark Base Pro 901
Color optionBlack Да

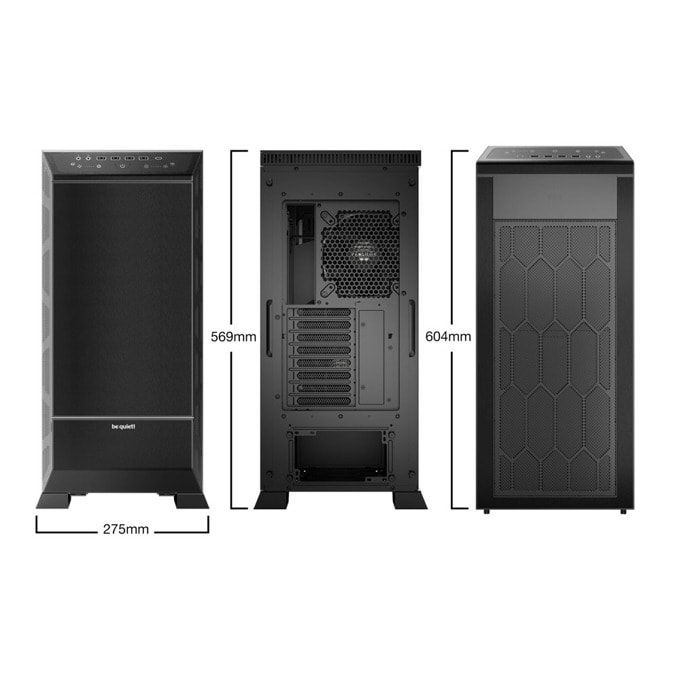

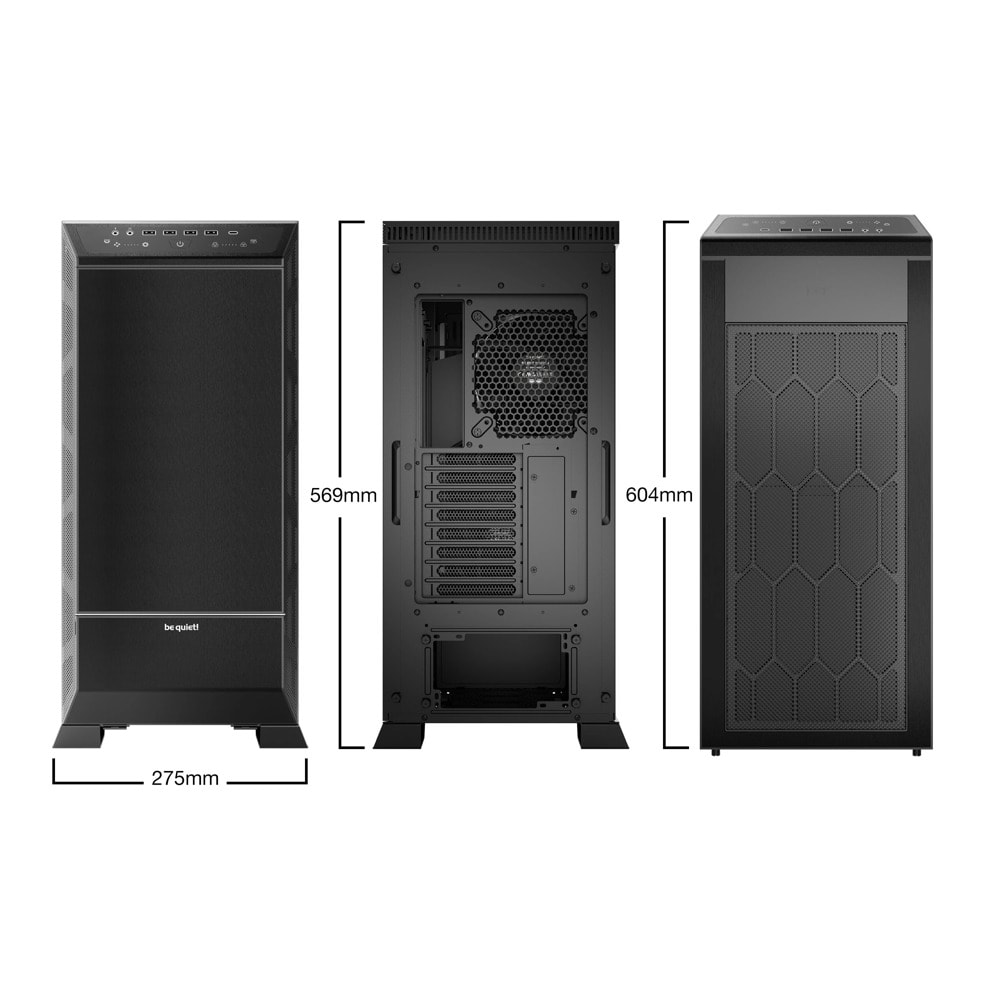

Case size excl. stands (L x W x H), (mm)604 x 254 x 539
Case size incl. stands (L x W x H), (mm)604 x 275 x 569
Volume (l)82.69 Да
PSU form factorATX PS/2 Да
Weight (kg)16.3 Да
Expansion slots8 Да

Pre-installed fans

Fan at top- Да
Fan at front2x Silent Wings 4 140mm PWM
Fan at side- Да
Fan at rear1x Silent Wings 4 140mm PWM
Fan at bottom- Да
Dimensions (L x W x H), (mm)Front 140 x 140 x 25 / Rear: 140 x 140 x 25
Fan speed at 100% PWM / 12V (rpm)1900
Airflow at 100% PWM / 12V (CFM / m3/h)78.4 / 133.20
Air Pressure at 100% PWM / 12V (mm H2O)2.36
Noise level at 100% PWM / 12V (dB(A))29.3
Voltage range (V DC)12 Да
Input power (W)4.8 Да
Input current (A)0.4 Да
Connector4-pin PWM Да
Lifespan (h / 25°C)300,000
Fan controller- Да

Maximum fan installation

Maximum fans11 Да
Top (mm)3x 140 / 3x 120
Front (mm)3x 140 / 3x 120
Side (mm)3x 120
Rear (mm)1x 140 / 1x 120
Bottom (mm)1x 140 / 1x 120
PSU shroud- Да

Optional radiator installation

Top (mm)120 / 240 / 360
Front (mm)120 / 140 / 240 / 280 / 360 / 420
Side (mm)120 / 240 / 360
Rear (mm)120 / 140
Bottom (mm)- Да

PSU compatibility

Maximum dimensions excl. bottom fan (mm)- Да
Maximum dimensions incl. bottom fan (mm)- Да

Graphics card

HDD cage (in height of graphics card) removed (mm)495 Да
Maximum PCIe slots with vertical graphics card (pcs.)8 Да

Drive bay capacity

Bays (pcs.)1 5.25
Slots (scope of delivery)2 3.5
Slots (max.)7 3.5
Slots (scope of delivery)6 2.5
Slots (max.)16 2.5

Охлаждане

Max.construction height of CPU cooler unit (mm)190 Да
Airflow channel- Да

Lighting

LED illumination Да
LEDs (pcs.)8 + 16
LED typeARGB - 5V
LEDs synchronizable with controller/motherboard Да

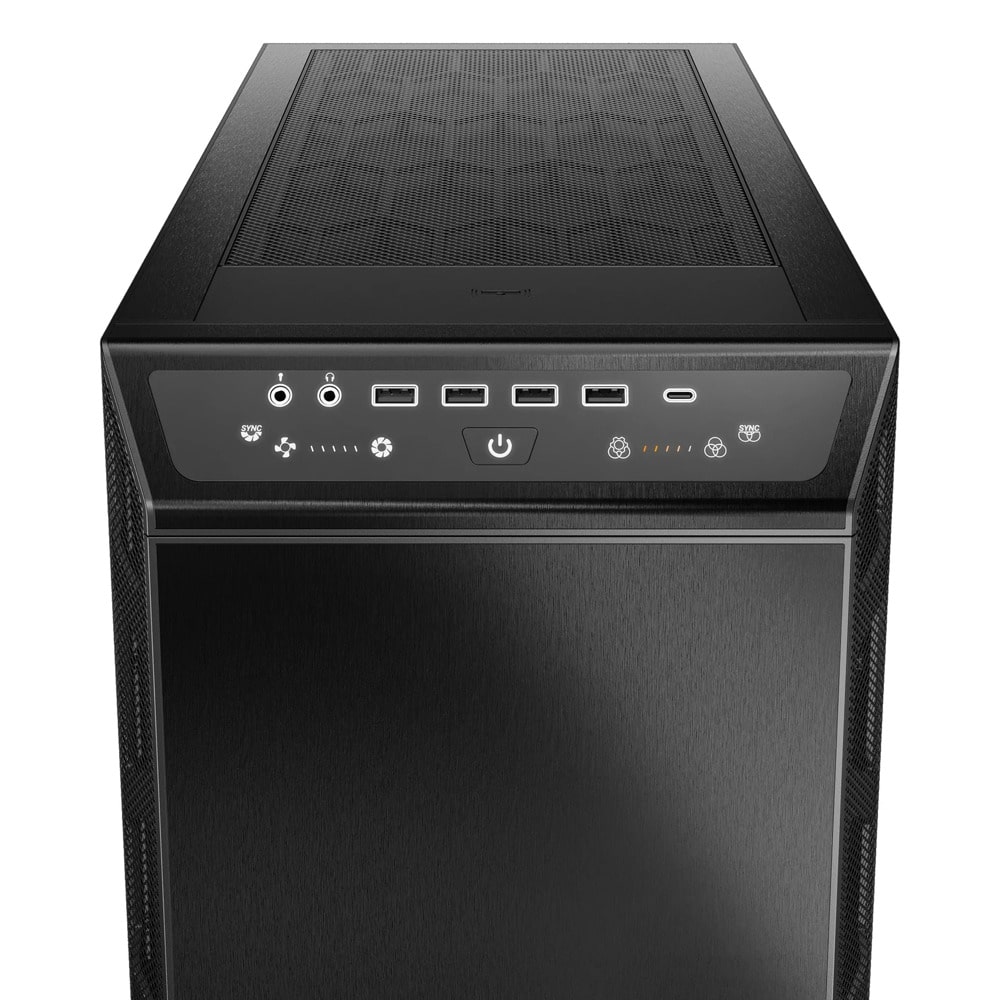

I/O Panel

USB 3.2 Gen. 2 Type C1
USB 3.2 Type A4
USB 2.0-
HD Audio I/OMic + Audio Да
Qi charger / Quick Charging Option15W Да

Insulation and damping

Top panel insulation mats Да
Front panel insulation mats Да
Side panel insulation mats Да
Anti-vibration decoupled HDD Да
Anti-vibration decoupled fan Да
Anti-vibration decoupled PSU Да
Anti-vibration decoupled motherboard-tray Да

Removeable dust filters

Top- Да
Front1 Да
Side0 Да
Bottom1 Да

Материал

Top coverAluminium Да
Front panelAluminium Да
Side panelGlas Да
Side panel windowSteel Да
StandsSteel Да
