Кутия be quiet! Dark Base 701
be quiet! Dark Base 701
MAXIMUM AIRFLOWPerformance all the wayFor all who strive for maximum airflow – be it with water-cooled or air-cooled systems – Dark Base 701 White with its extremely air-permeable front and top cover is the right choice.

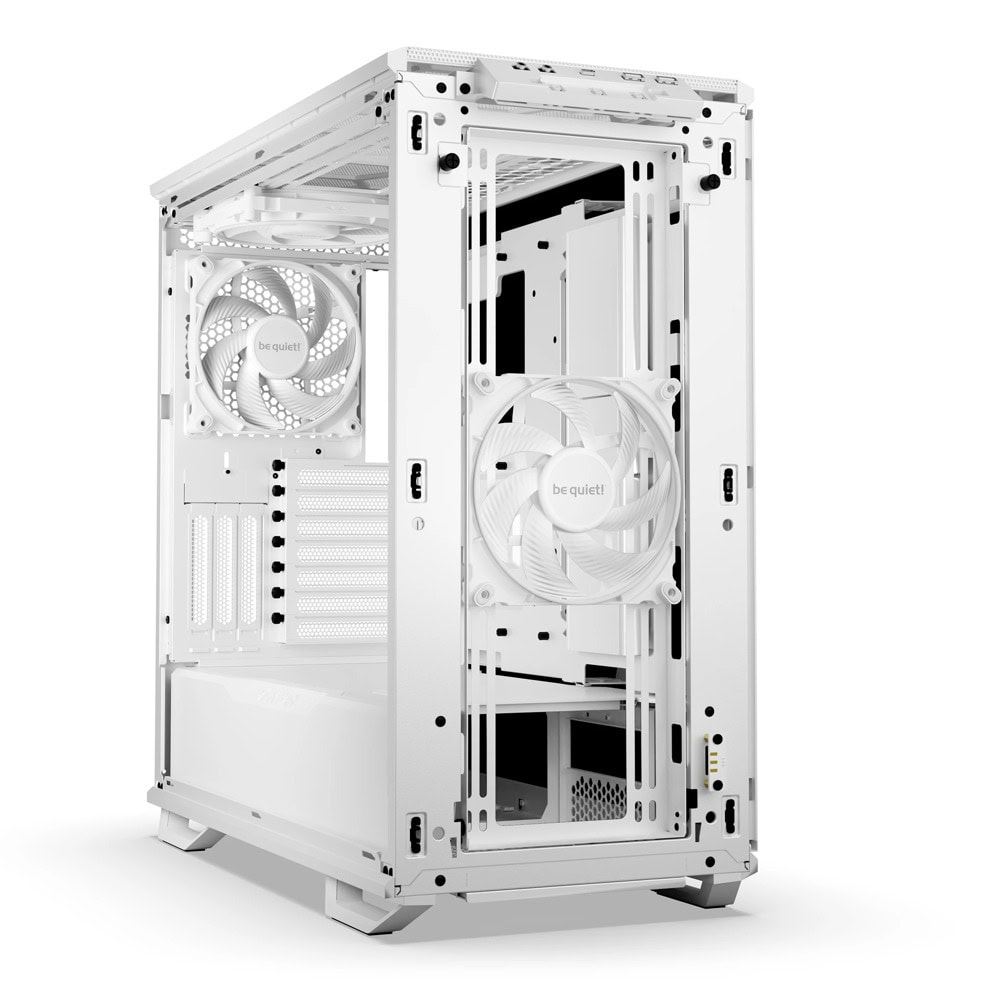

SILENT WINGS 4 PWM HIGH-SPEED FANS3 pre-installed fans for maximum coolingSilent Wings 4 140mm PWM high-speed makes no compromise between maximum performance and virtually inaudible operation. Its extraordinary air pressure significantly increases the cooling performance of Dark Base 701 White.

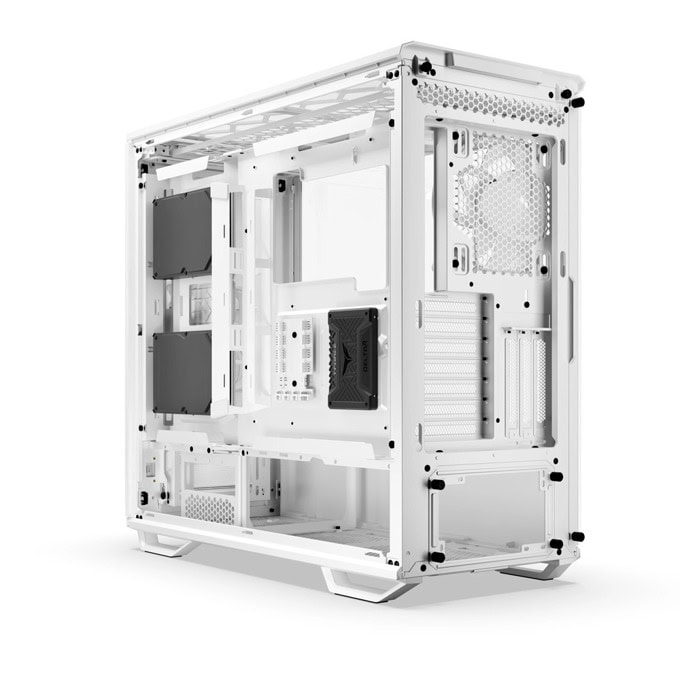

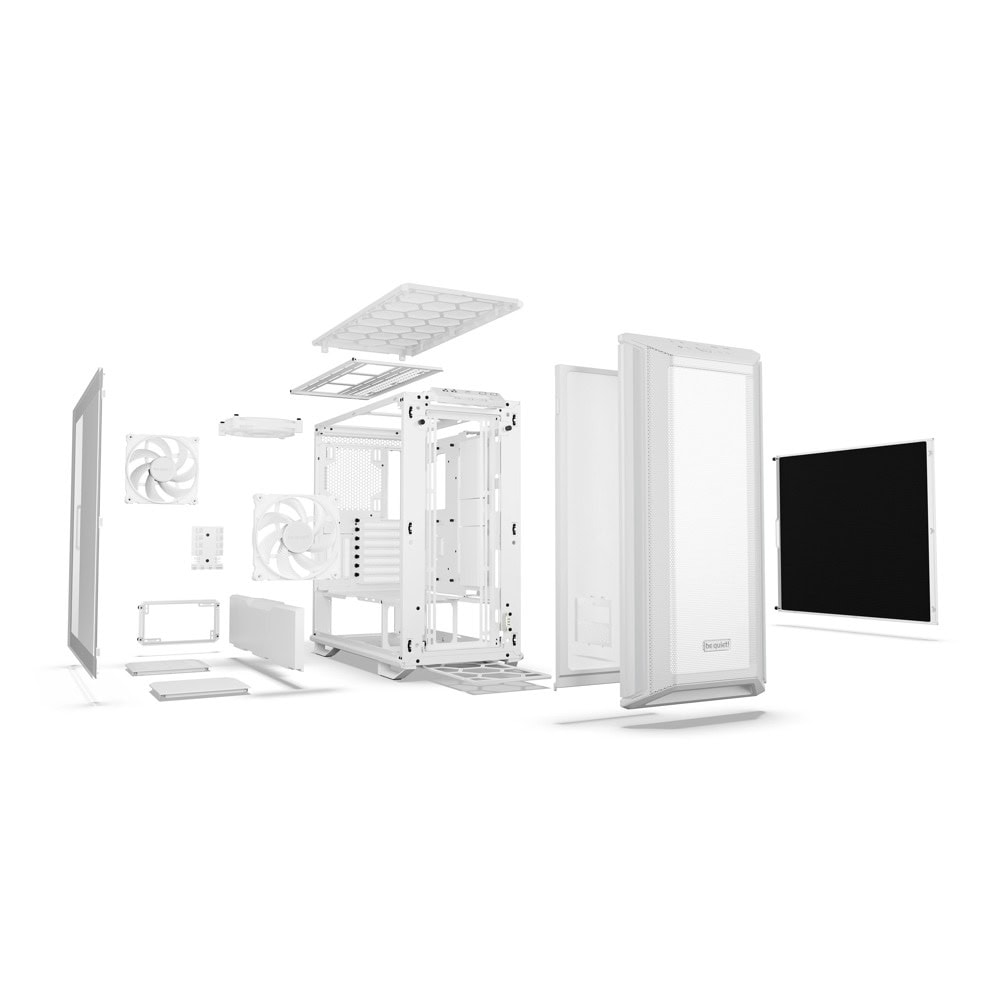

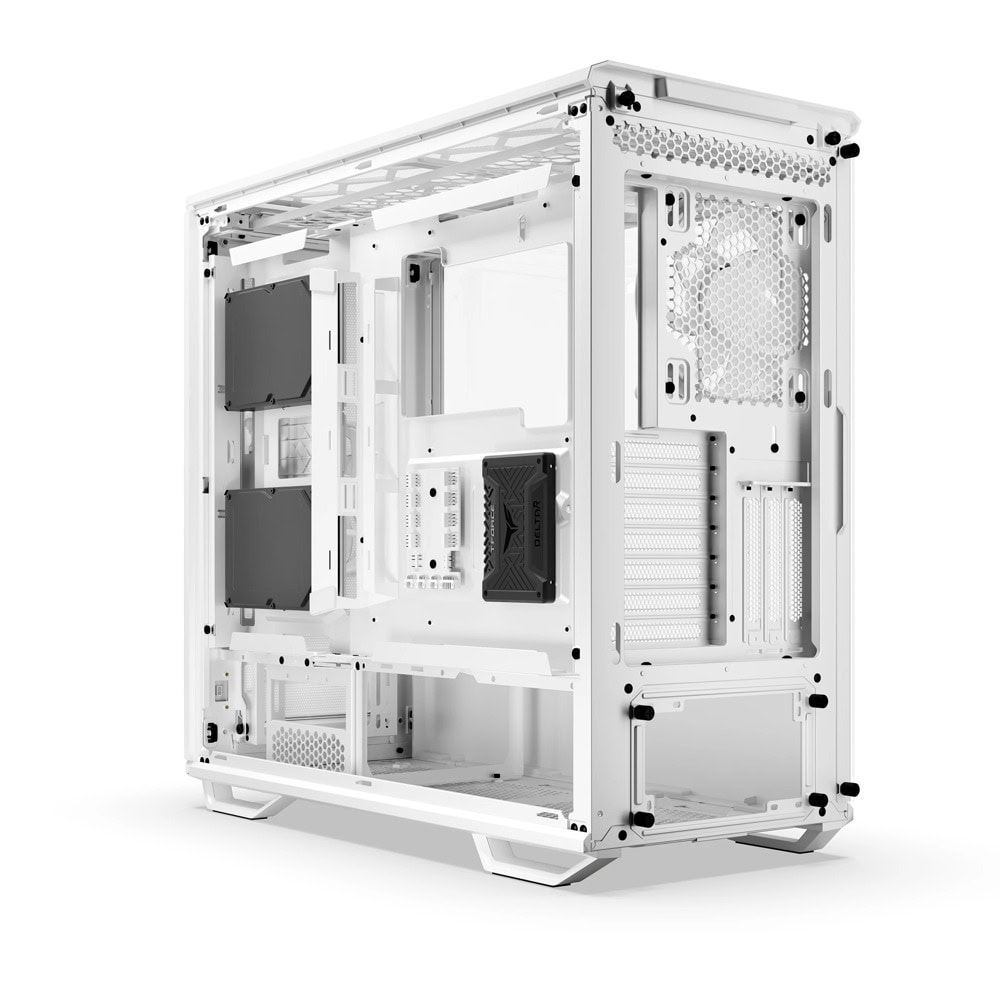

USABILITY AT ALL LEVELSVersatility for everyoneDark Base 701 White is designed for users of all experience levels. The case features a bracket on the top and front for a convenient installation of fans and radiators. Drives can be installed tool-less with just a few steps. Both PC building veterans and first-time builders will appreciate the time-saving inversion of the system, while admirers of a neat interior will embrace the smart cable routing options. Enjoyers of vertical graphics card installation can use one of the vertical PCI slots with an optional riser cable.
MADE FOR CUSTOM LOOPSYour water-cooling playgroundDark Base 701 White sets almost no limits to your creativity. With its huge dimensions and radiator compatibility up to 360mm, you can consider Dark Base 701 White your playground – and home for your individual custom water-cooling loop.

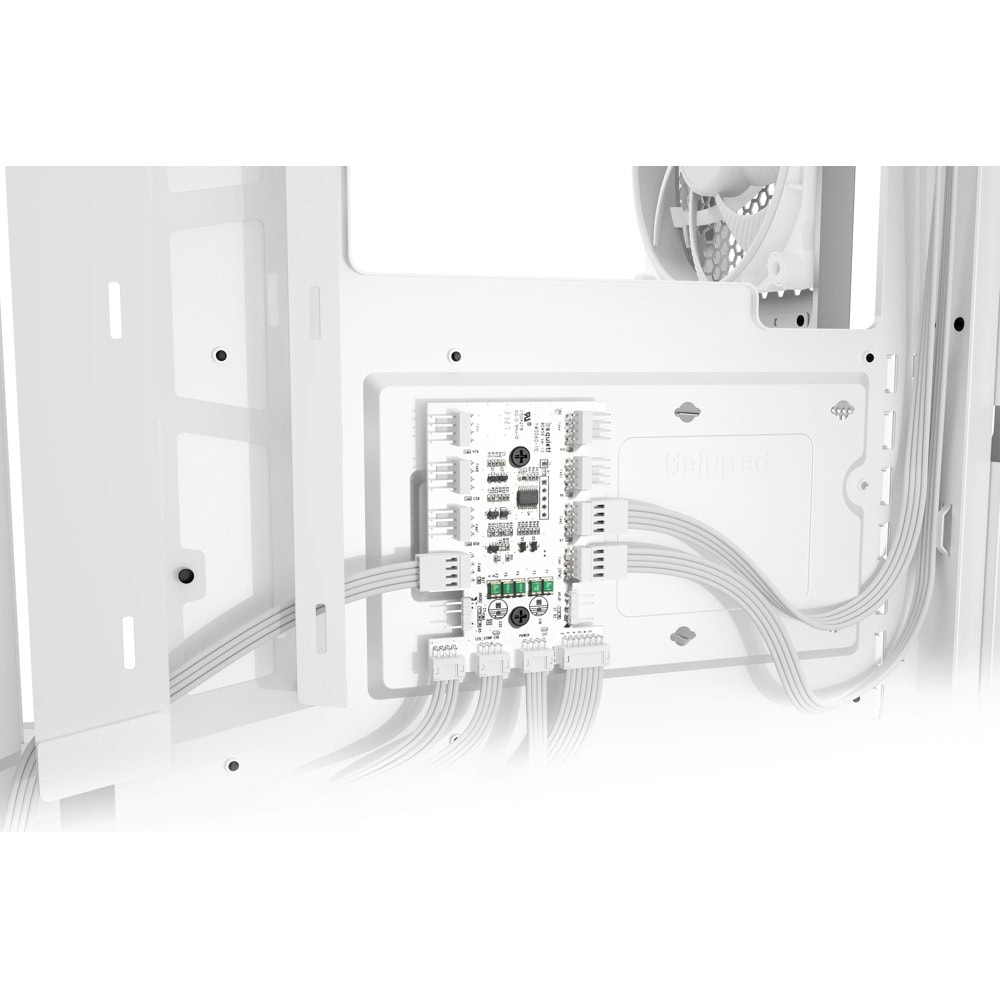

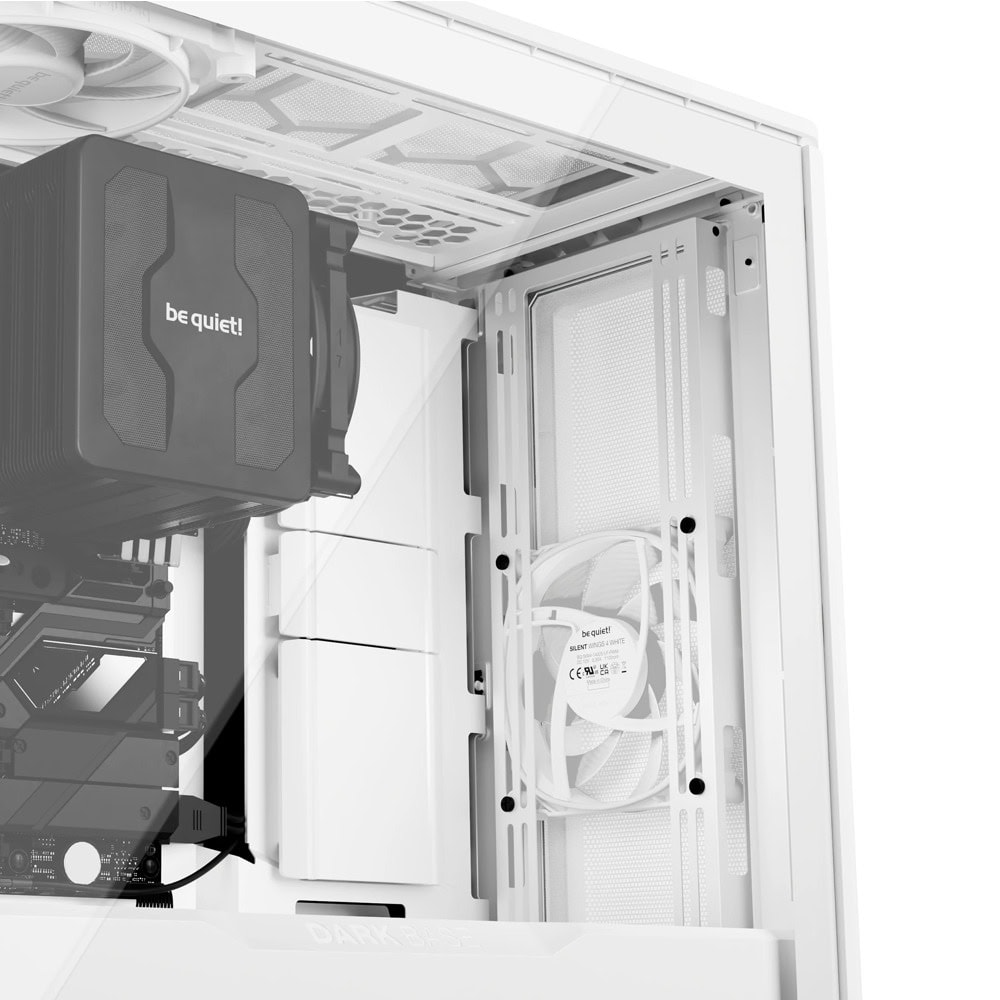

CONVENIENT CONNECTIVITYHubs for fans and ARGB devicesDark Base 701 White features a combined PWM and ARGB hub for up to 8 PWM fans and 2 additional ARGB devices. This PCB is located behind the motherboard tray and connects to the front I/O panel’s fan and ARGB controllers. The pre-installed fans are connected to the fan hub by default, so you have the case’s cooling setup under your control without having to rewire any cables.

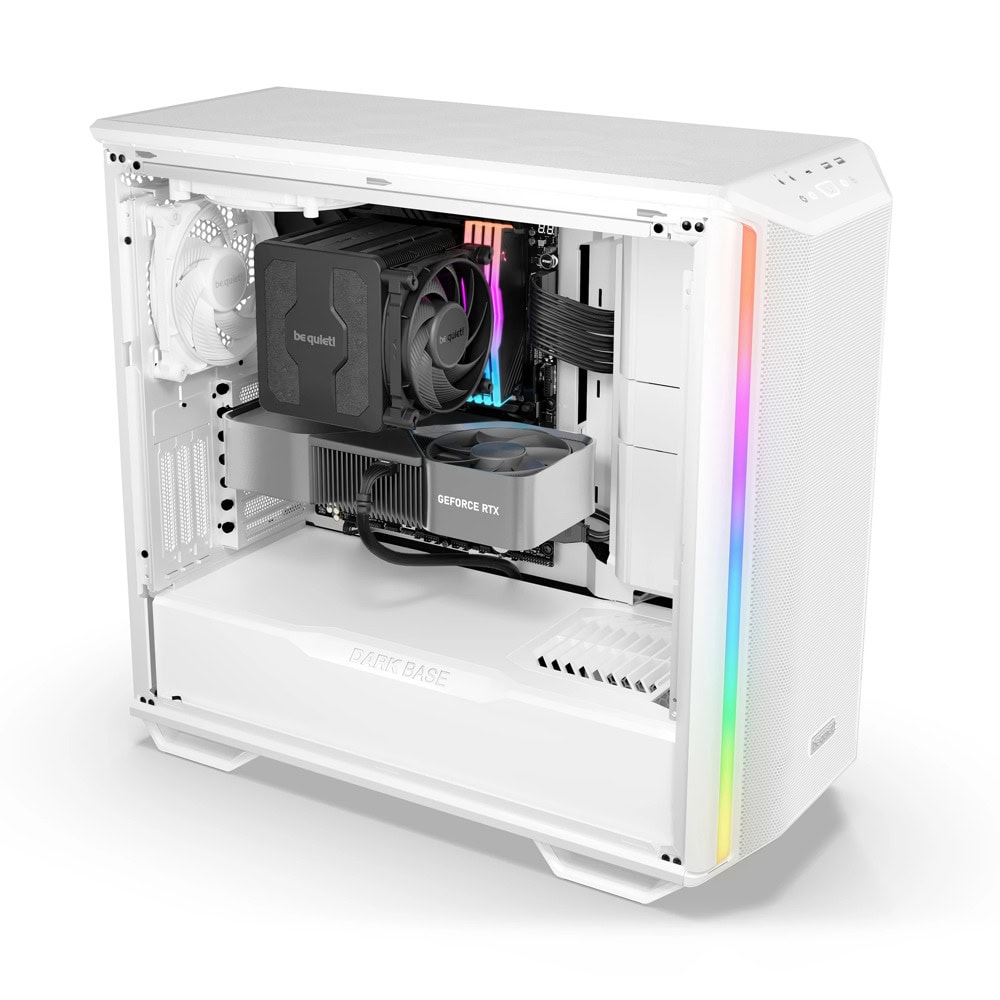

TIMELESS DESIGN WITH ARGB ILLUMINATIONA case that comes to stayDark Base 701 White can be recognized as a be quiet! high-end case at first glance. Its bulky design sets a statement in each gaming room and makes clear: Dark Base 701 White is here to stay. ARGB LEDs at the front panel offer multiple colors and modes to individualize the look of the case. You can optionally synchronize lighting with your motherboard or an ARGB controller.

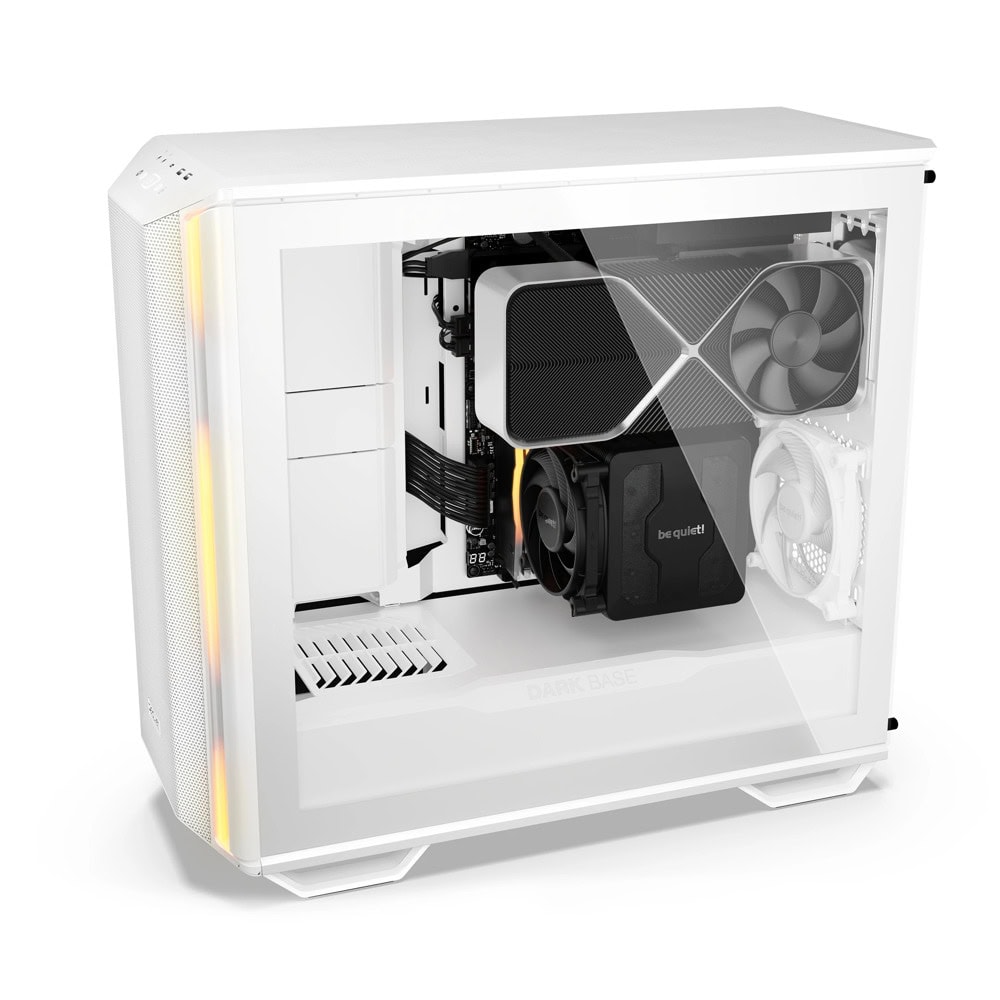

TEMPERED GLASS WINDOWA perfect view inside your PCThe high-quality, fully windowed side panel offers a perfect view of the components inside your PC case. The window is made of tempered glass with white painted side bars.
Характеристики
| Color optionWhite | Да |

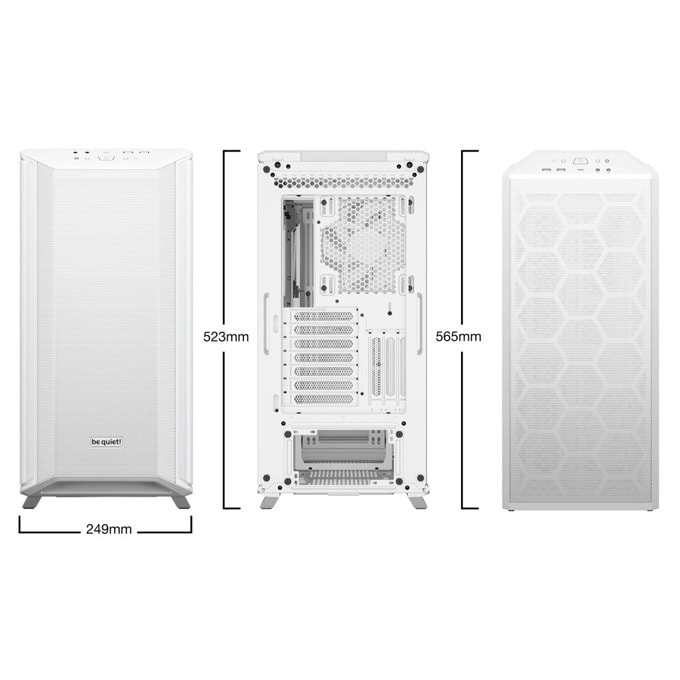

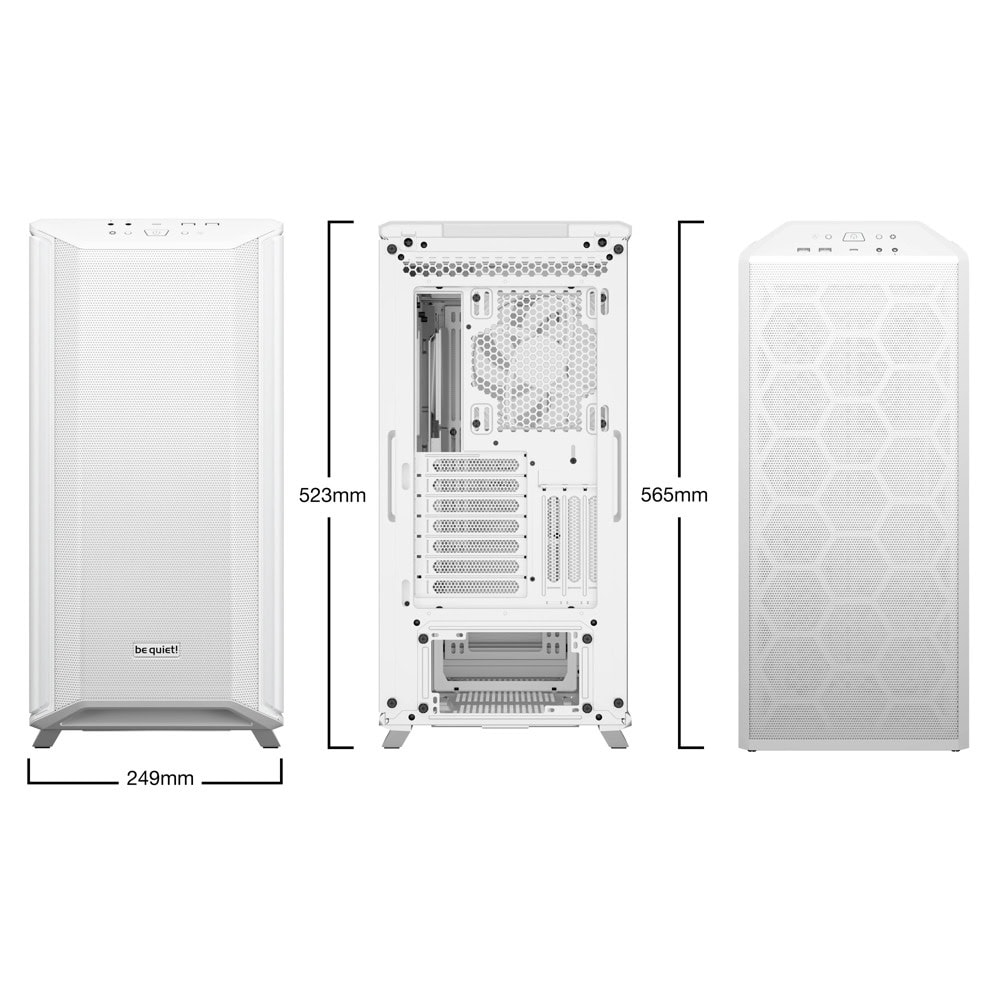

| Case size excl. stands (L x W x H), (mm)565 x | 249 x 495 |
| Case size incl. stands (L x W x H), (mm)565 x | 249 x 523 |
| Volume (l)69.64 | Да |
| PSU form factorATX PS/2 | Да |
| Expansion slots7 + | 3 |
| Pre-installed fans | Да |
| Fan at top1x Silent Wings | 4 140mm PWM high-speed White |
| Fan at front1x Silent Wings | 4 140mm PWM high-speed White |
| Fan at side- | Да |
| Fan at rear1x Silent Wings | 4 140mm PWM high-speed White |
| Fan at bottom- | Да |
| Dimensions (L x W x H), (mm)Front | 140 x 140 x 25 / Rear: 140 x 140 x 25 / Top: 140 x 140 x 25 |
| Fan speed at | 100% PWM / 12V (rpm)1900 |
| Airflow at | 100% PWM / 12V (CFM / m3/h)78.4 / 133.2 |
| Air Pressure at | 100% PWM / 12V (mm H2O)2.36 |
| Noise level at | 100% PWM / 12V (dB(A))29.3 |
| Voltage range (V DC)5 - | 13.2 |
| Input power (W)4.8 | Да |
| Input current (A)0.4 | Да |
| Connector4-pin PWM | Да |
| Lifespan (h / | 25°C)300,000 |
| Fan controller | Да |
| Maximum fan installation | Да |
| Maximum fans8 | Да |
| Top (mm)3x | 140 / 3x 120 |
| Front (mm)3x | 140 / 3x 120 |
| Side (mm)- | Да |
| Rear (mm)1x | 140 / 1x 120 |
| Bottom (mm)1x | 140 / 1x 120 |
| PSU shroud- | Да |
| Optional radiator installation | Да |
| Top (mm)120 / | 140 / 240 / 280 / 360 |
| Front (mm)120 / | 140 / 240 / 280 / 360 |
| Side (mm)- | Да |
| Rear (mm)120 | Да |
| Bottom (mm)- | Да |
| PSU compatibility | Да |
| Maximum dimensions excl. bottom fan (mm)250 | Да |
| Maximum dimensions incl. bottom fan (mm)250 | Да |
| Graphics card | Да |
| HDD cage (in height of graphics card) installed (mm)415 | Да |
| HDD cage (in height of graphics card) removed (mm)415 | Да |
| Maximum PCIe slots with vertical graphics card (pcs.)3 | Да |
| Drive bay capacity | Да |
| Bays (pcs.)- | 5.25 |
| Slots (scope of delivery)2 | 3.5 |
| Slots (max.)3 | 3.5 |
| Slots (scope of delivery)3 | 2.5 |
| Slots (max.)5 | 2.5 |
| Cooling | Да |
| Max.construction height of CPU cooler unit (mm)185 | Да |
| Airflow channelFront / Top / Rear / Bottom | Да |
| Lighting | Да |
| LED illumination | Да |
| LEDs (pcs.)48 | Да |
| LED typeARGB - | 5V |
| LEDs synchronizable with controller/motherboard | Да |

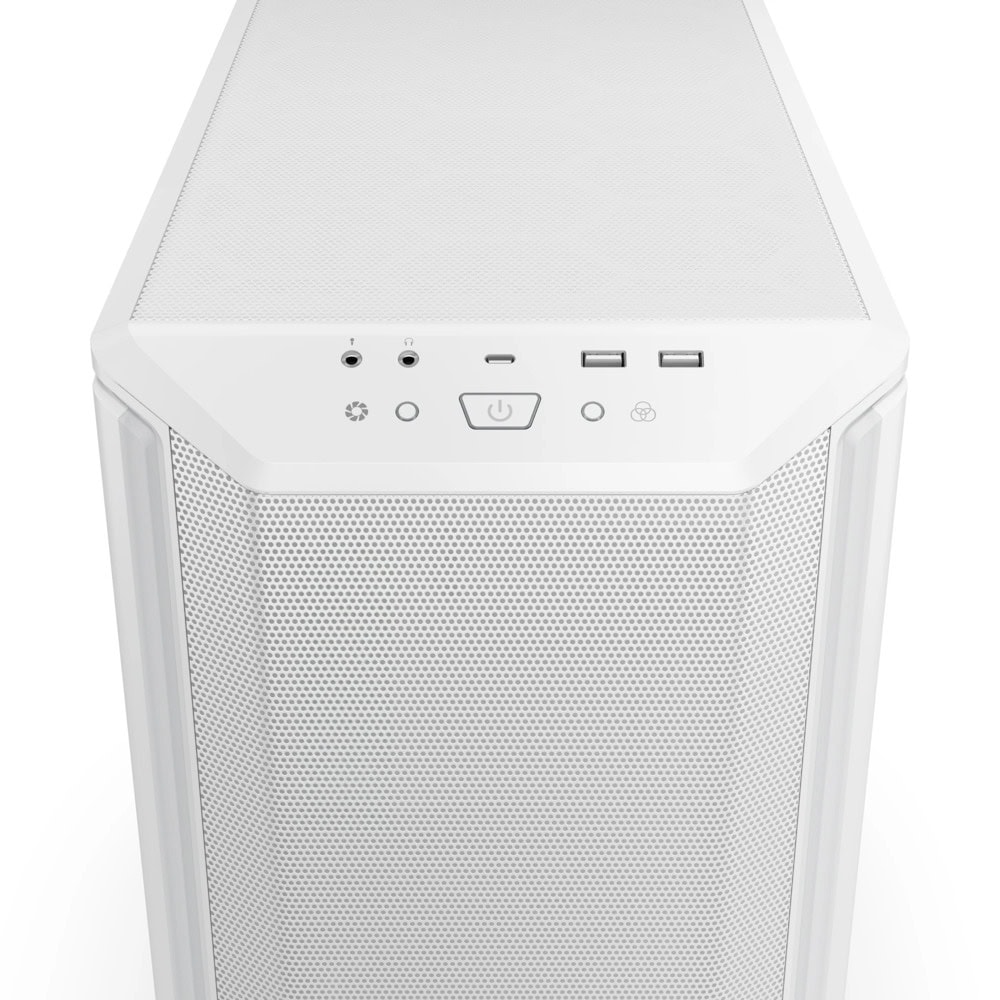

| I/O Panel | Да |
| USB | 3.2 Gen. 2 Type C1 |
| USB | 3.2 Type A2 |
| USB | 2.0- |
| HD Audio I/OMic + Audio | Да |
| Qi charger / Quick Charging Option (W)- | Да |
| Insulation and damping | Да |
| Top panel insulation mats- | Да |
| Front panel insulation mats- | Да |
| Side panel insulation mats | Да |
| Anti-vibration decoupled HDD | Да |
| Anti-vibration decoupled fan | Да |
| Anti-vibration decoupled PSU | Да |
| Anti-vibration decoupled motherboard-tray- | Да |
| Removeable dust filters | Да |
| Top- | Да |
| Front1 | Да |
| Side- | Да |
| Bottom1 | Да |
| Материал | Да |
| Top coverSteel | Да |
| Front panelSteel | Да |
| Side panelGlass | Да |
| Side panel windowSteel | Да |
| StandsABS | Да |
| Safety certification | Да |
| ApprovalsCE, UKCA | Да |
