Кутия Asus ProArt PA401 Wood Edition Mesh Panel
Asus ProArt PA401 Wood Edition Mesh Panel
Elevated Color Perfection

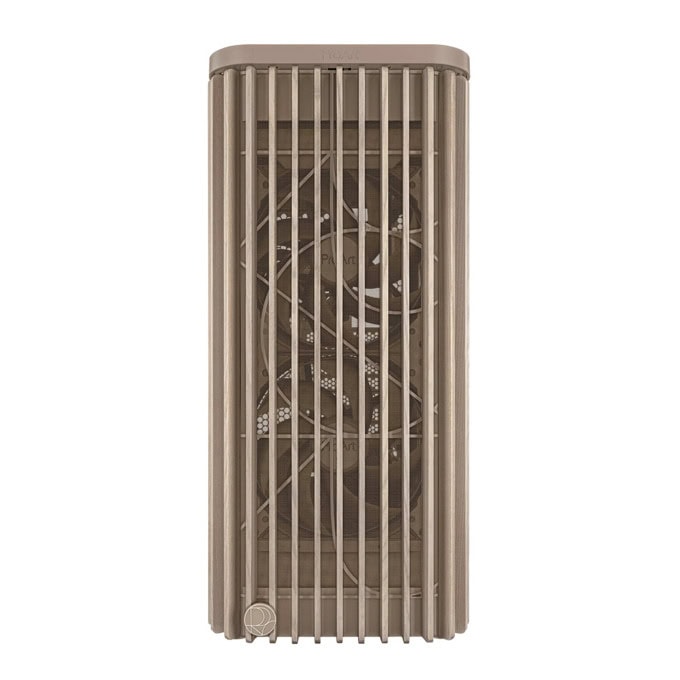

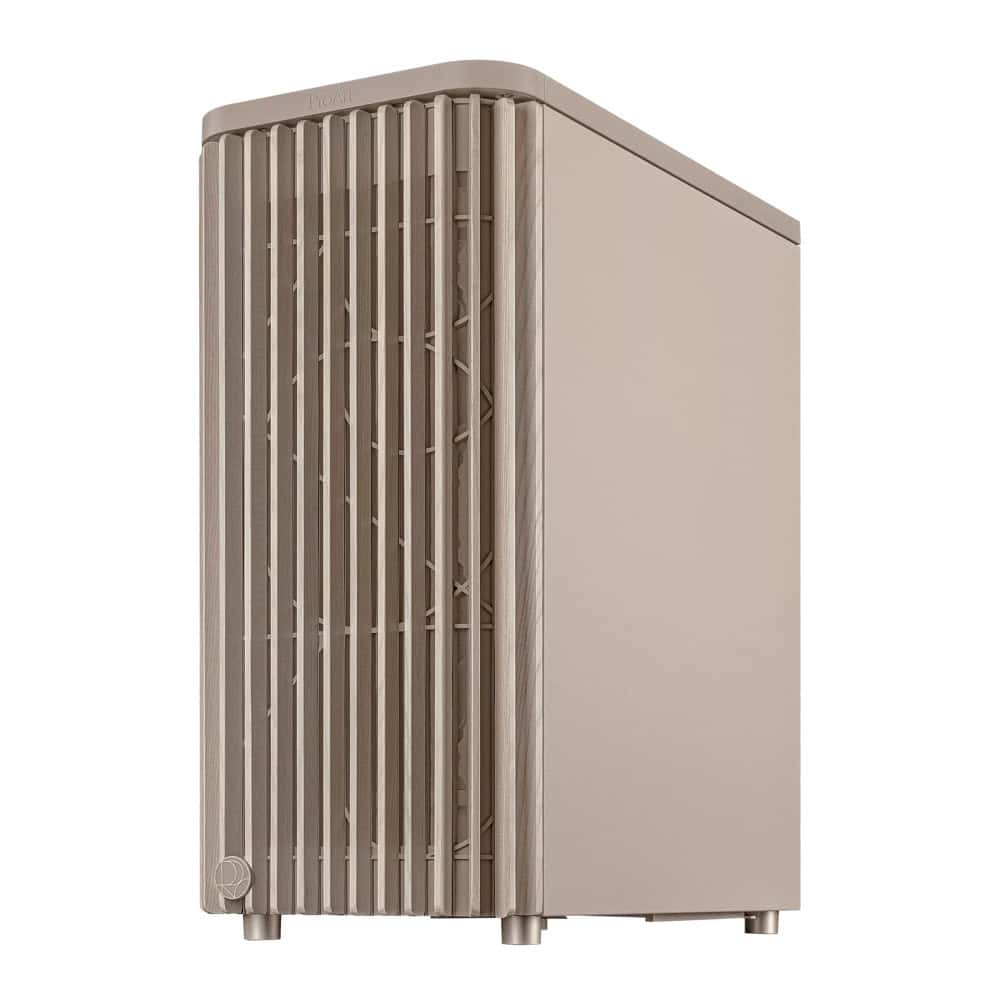

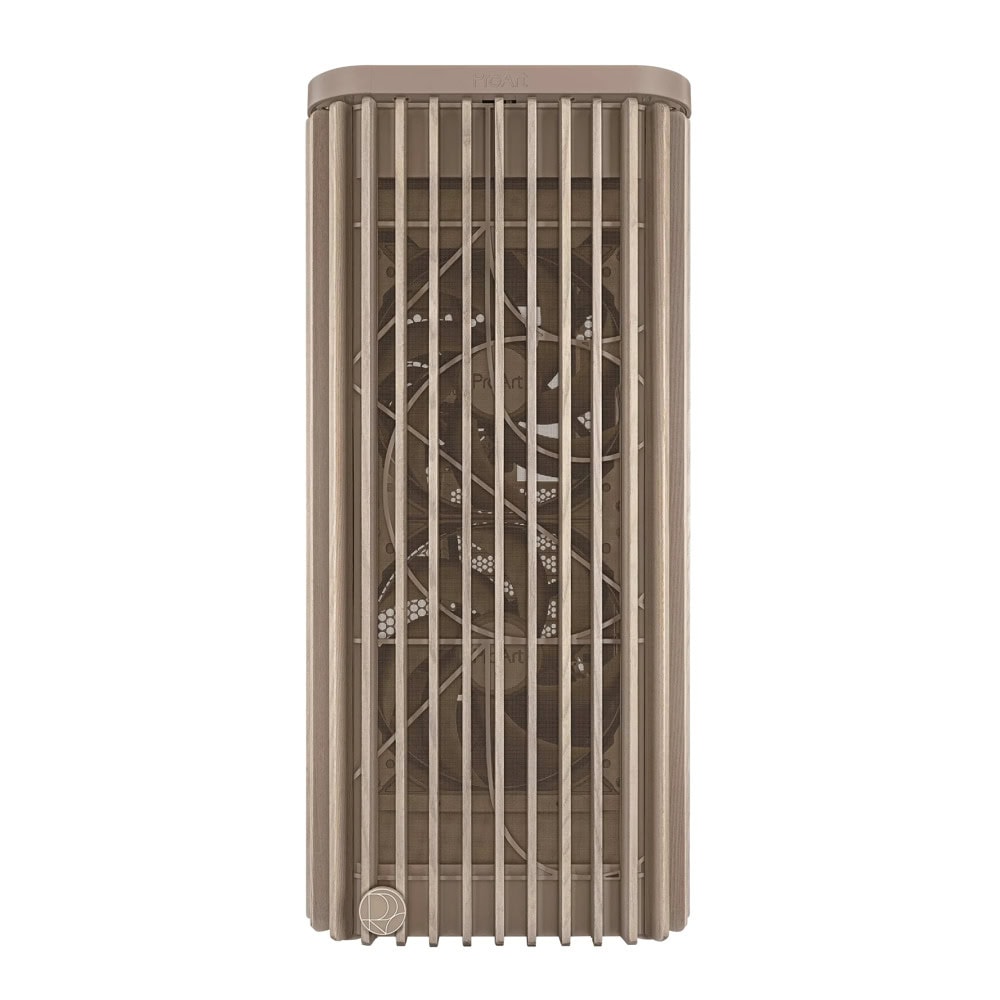

Further refining the signature ash wood front panel on ProArt PA401, a new beige finish brings a modern aesthetic to the premium wood material. Plus, an updated white cable set ensures cohesive visual flow throughout the build.
COOLING
Exceptional Cooling Performance

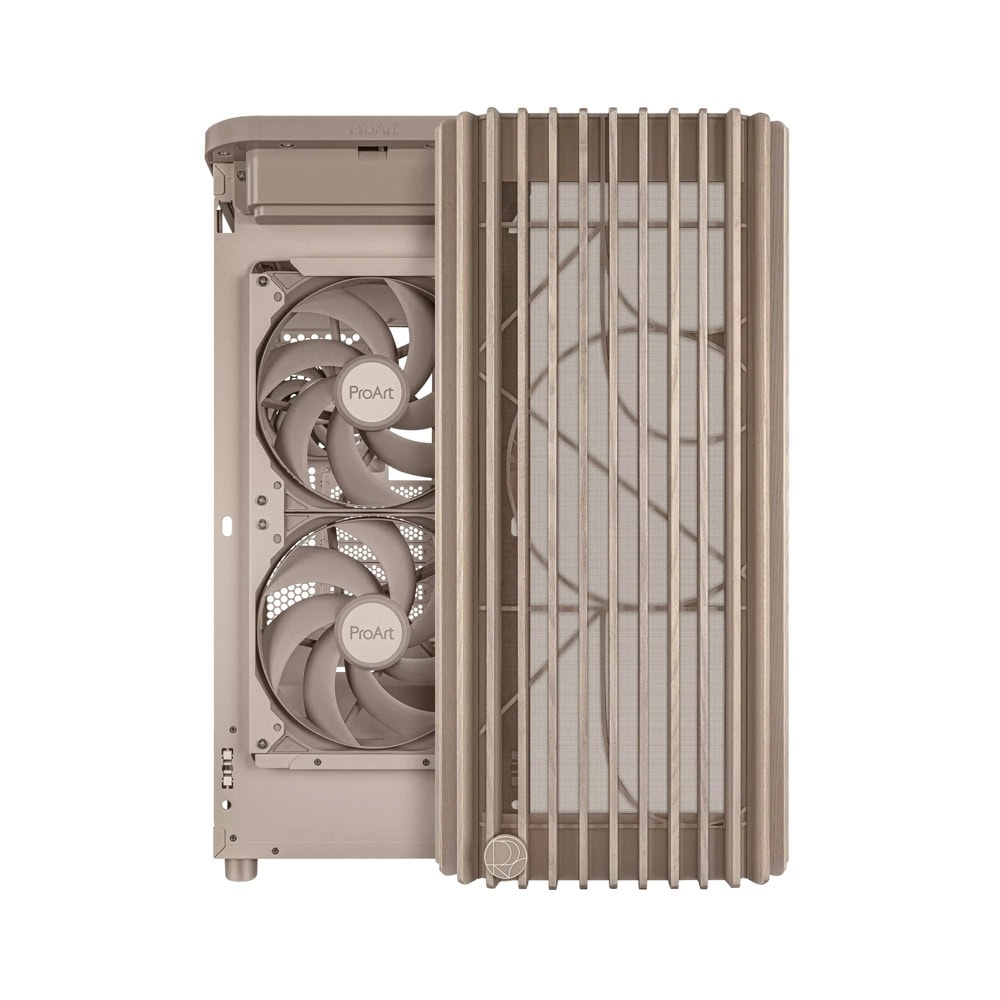

The PA401 Wood Edition features a front grille with 33% porosity to maximize airflow and ventilation. Meanwhile, built-in dual 160mm front fans efficiently deliver up to 138cfm of airflow to graphics cards and CPU coolers, and the outer ring connecting these fan blades helps reduce initial vibration. The front fans and the 120mm rear fan with PWM control yield optimal airflow, low noise, low vibration and high reliability.
Design
Builder-Friendly Installation
The ProArt PA401 Wood Edition Beige optimizes the PC building experience, offering better functionality with user-focused features.

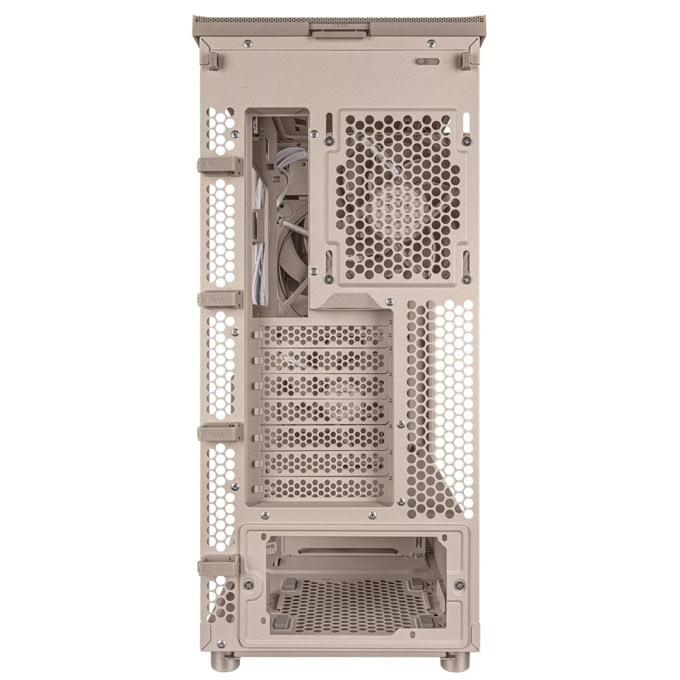

Rear cable clips help ensure clean cable management
Compatibility

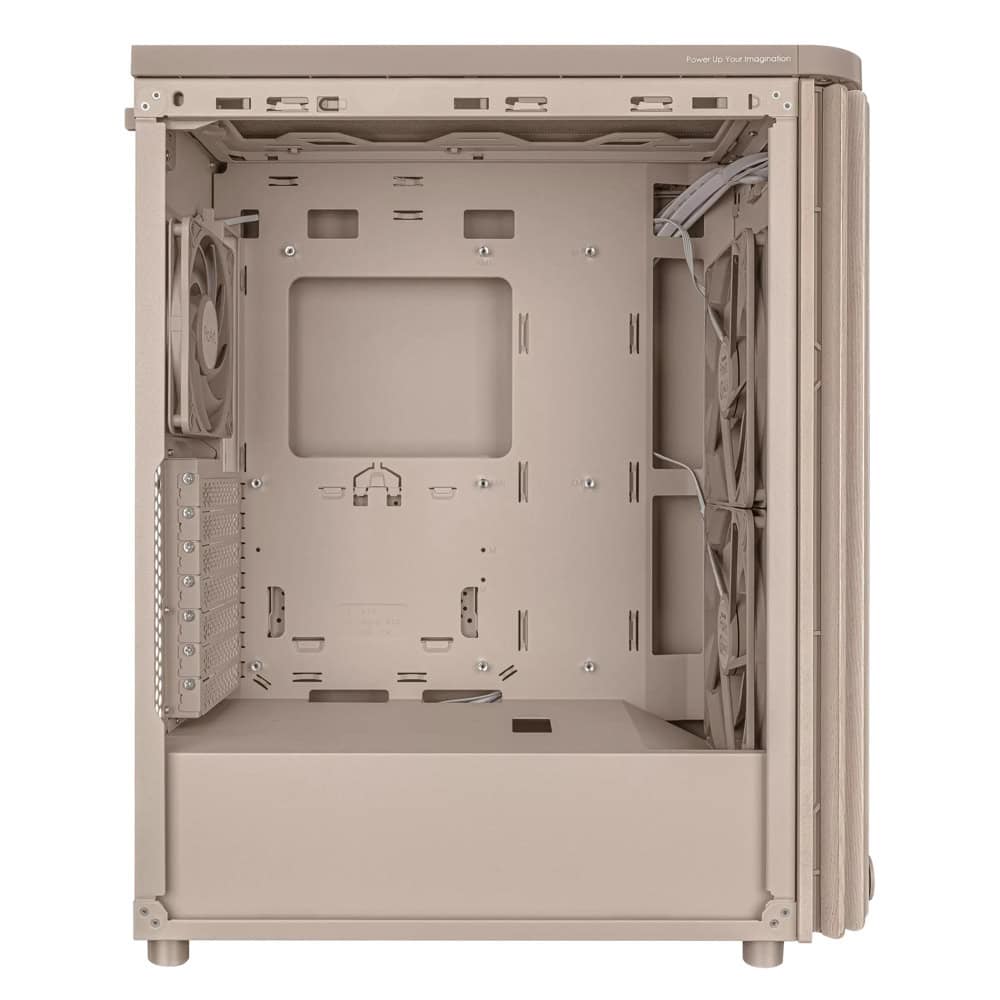

Compact Form, Ample Interior
The ProArt PA401 Wood Edition Beige features two pre-installed 160mm front fans and accommodates both horizontal and vertical graphics card mounting.
Graphics Card Support
Radiator Compatibility
Fan Compatibility
Характеристики
| ATX | Да |
| Drive Bays | Да |
| X 2.5" Bay | 2 |
| X 2.5"/3.5" Combo Bay | 2 |
| Слотове за разширение | Да |
| 7 | Да |

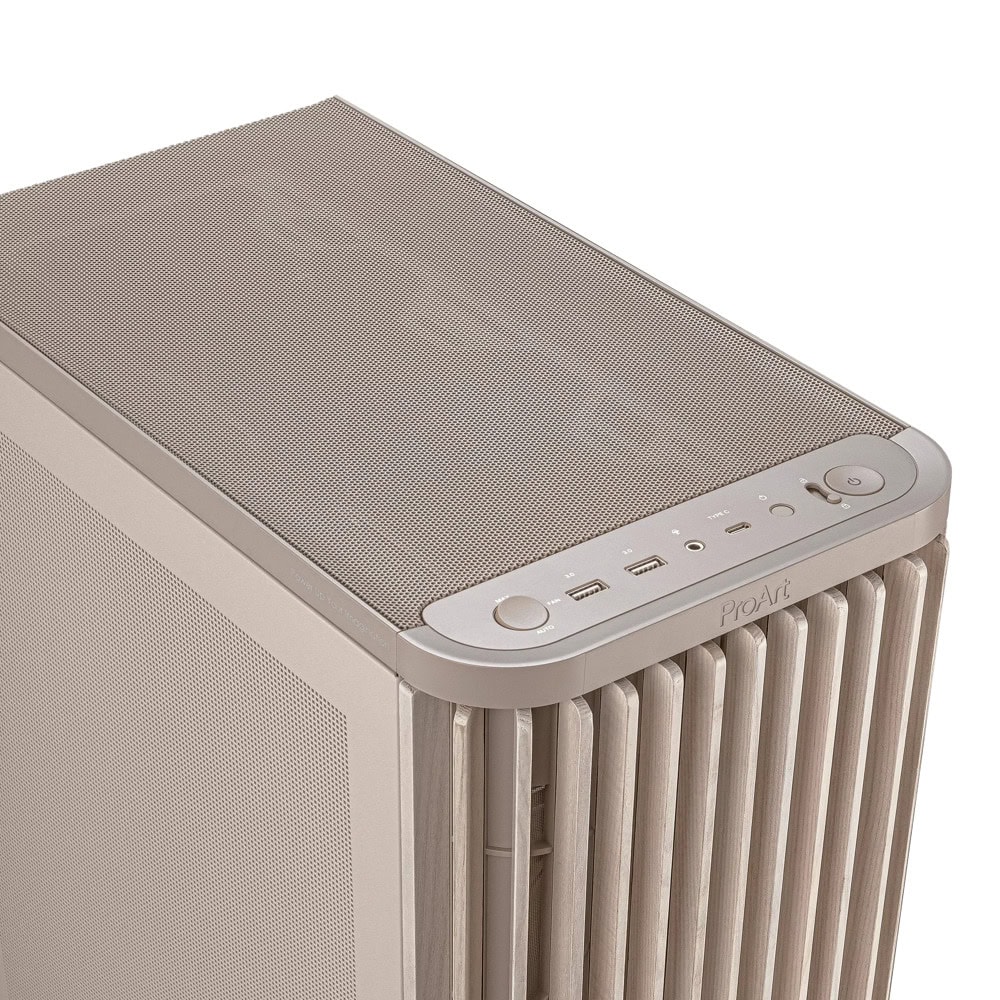

| Front I/O Port | Да |
| X headphone / Microphone | 1 |
| X USB 3.2 Gen1 | 2 |
| X USB 3.2 Gen 2x2 Type C | 1 |
| Radiator Support (Top) | Да |
| Mm | 120 |
| Mm | 140 |
| Mm | 240 |
| Cooling Support (Front) | Да |
| X 140 mm | 2 |
| X 160 mm | 2 |
| Cooling Support (Top) | Да |
| X 120 mm | 2 |
| X 140 mm | 2 |

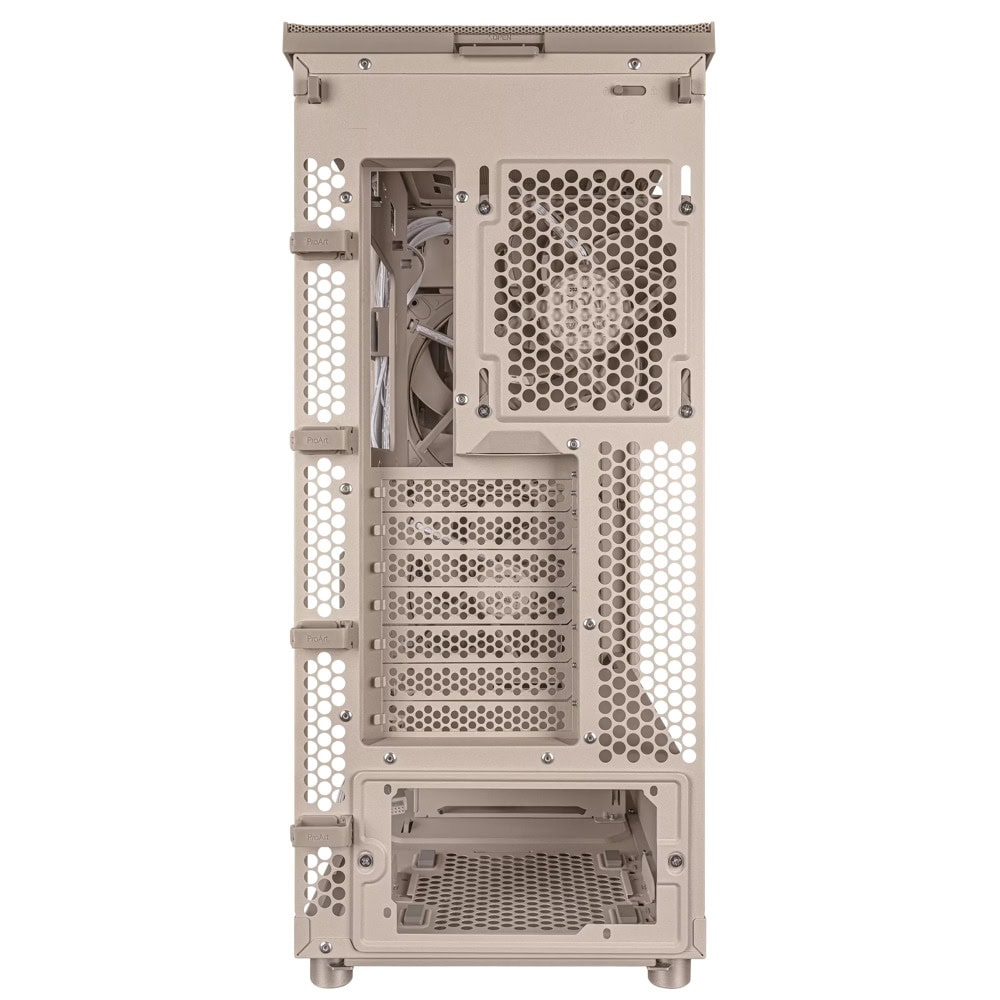

| Cooling Support (Rear) | Да |
| X 120 mm | 1 |
| Pre-installed Fans (Front) | Да |
| X 160 mm | 2 |
| Pre-installed Fans (Rear) | Да |
| X 120 mm (vary by model) | 1 |
| Maximum CPU Cooler Height | Да |
| Mm | 160 |
| Maximum GPU Length | Да |
| Mm | 315 |
| Maximum PSU Length | Да |
| Mm | 170 |
| Removable Dust Filters | Да |
| Front | Да |
| Bottom | Да |
| Размери | Да |
| X 225 x 503 mm (D*W *H) | 412 |
| Тегло | Да |
| Kg | 8.61 |
