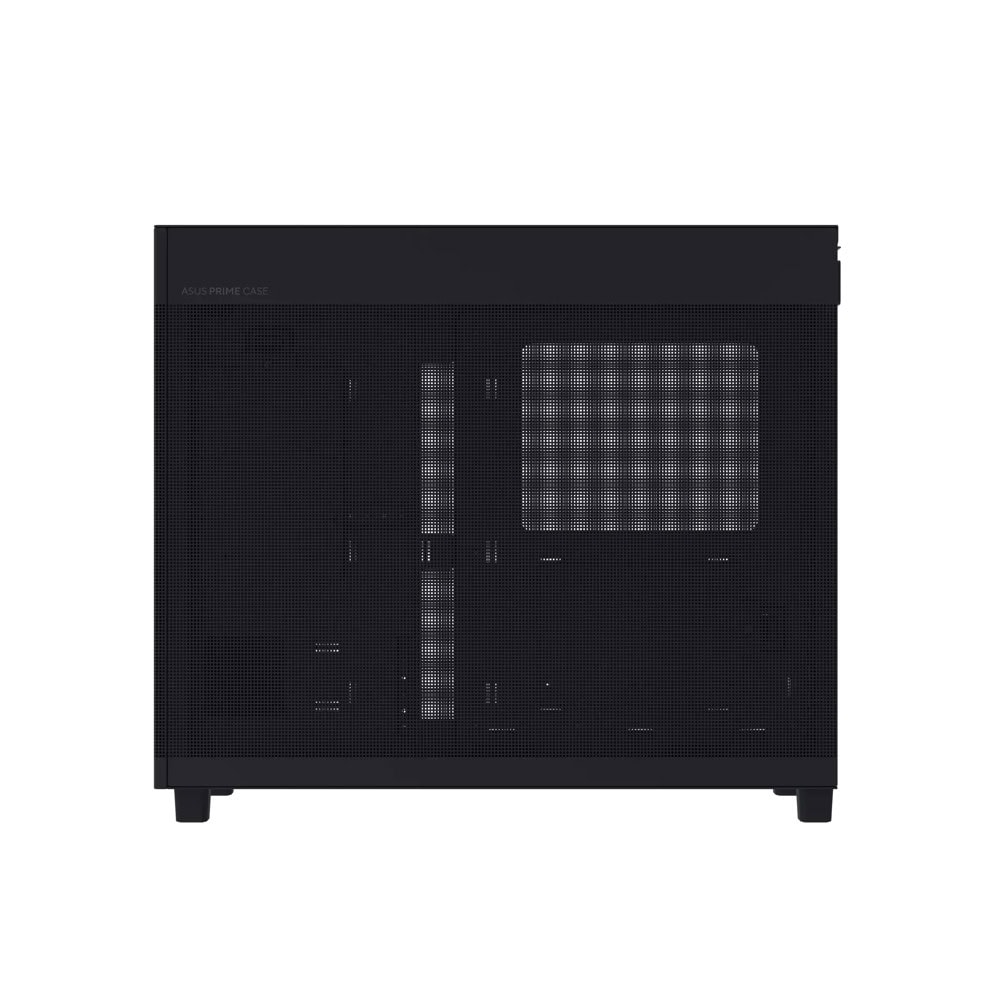

Кутия Asus Prime AP303
Asus Prime AP303 Tempered Glass
Exceptional Space Efficiency
The AP303 is designed to maximize internal space, enabling installation of graphics cards up to 360mm long, radiators up to 360mm long and ATX power supplies up to 180mm long.
Superior Stability
Under Heavy Loads

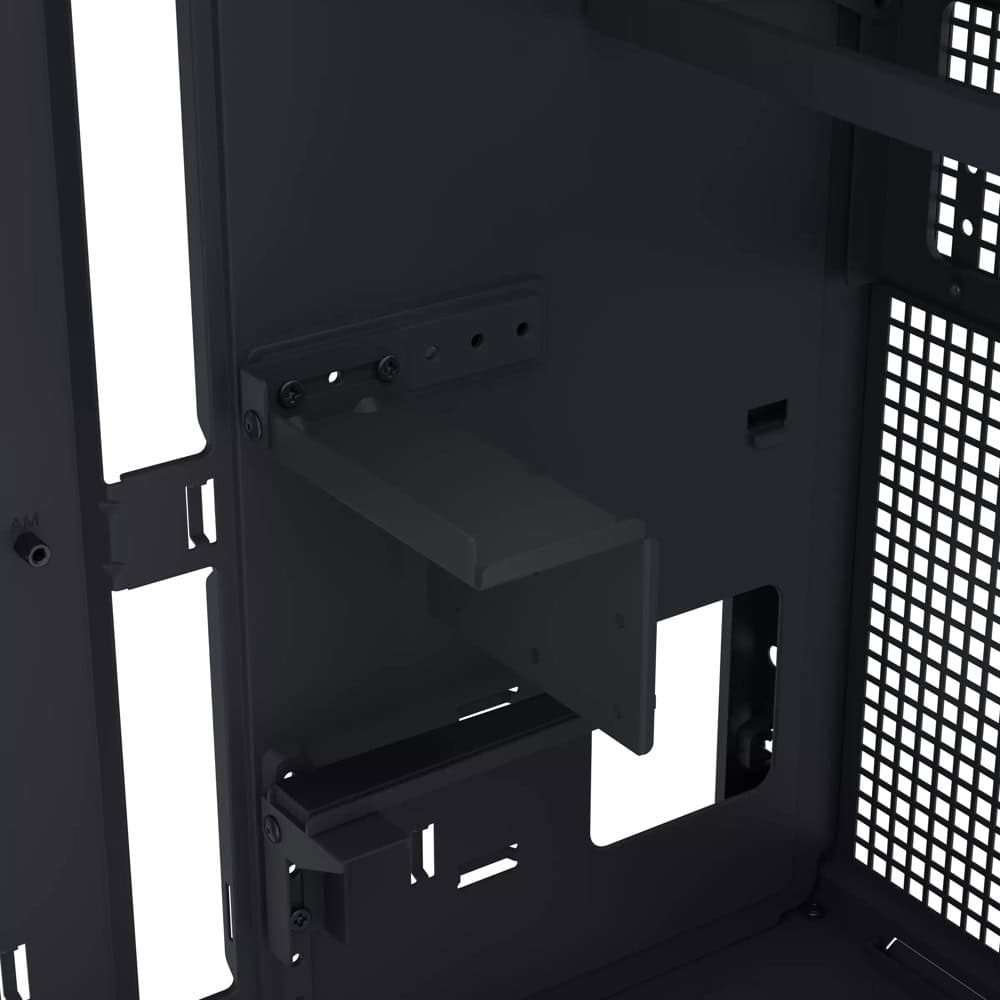

Alongside the graphics card holder is a graphics card bracket that supports GeForce RTX 50 Series graphics cards from 310mm to 360mm long. It securely mounts the graphics card with screws, reducing sagging and movement.
Efficient CoolingWith support for up to 360mm radiators and up to seven fans, the AP303 is primed to deal with the thermal scenarios of high-performance hardware.
Quasi-Filter Mesh PanelsMetallic quasi-filter mesh panels are designed to enhance airflow and minimize dust ingress, delivering both performance and protection in a sleek style.

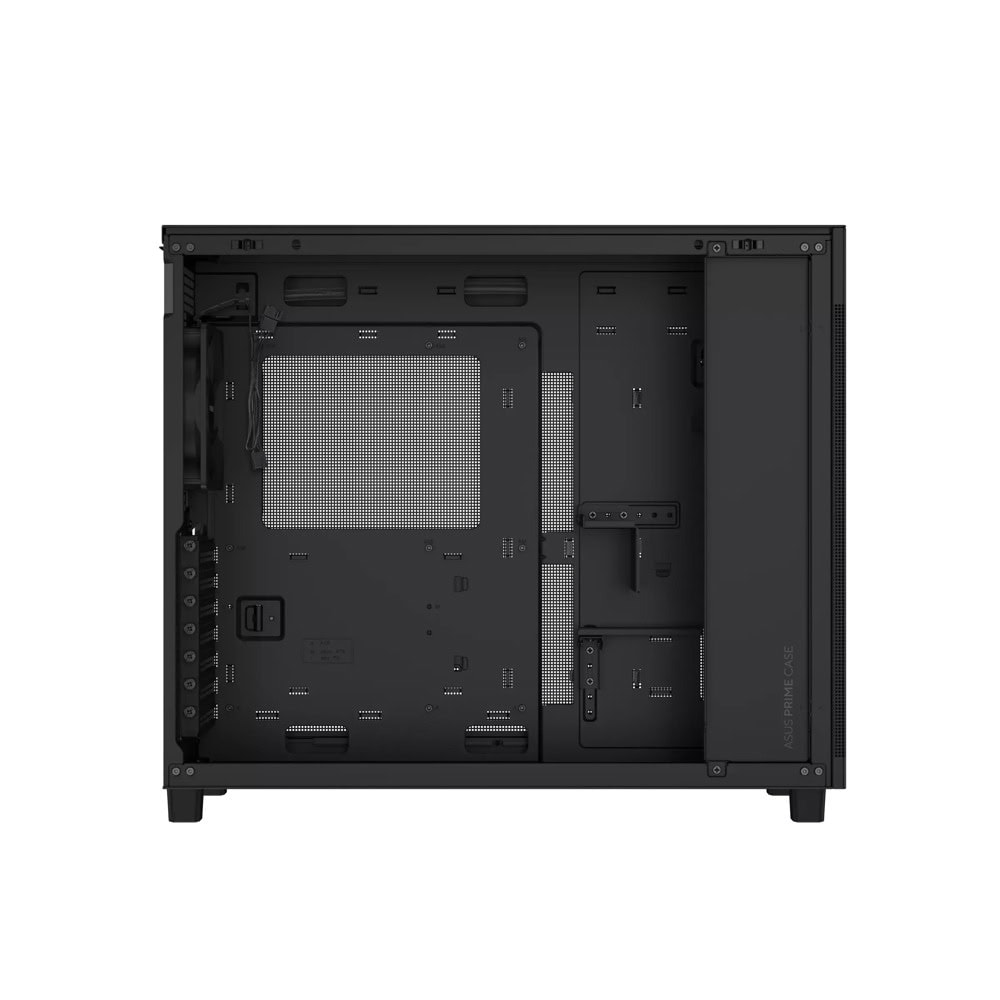

Organized CablingA 34mm-wide compartment behind the motherboard provides ample space to neatly organize cables, despite the relatively compact dimensions of the chassis.
Характеристики
| Mini-ITX | Да |
| Micro-ATX | Да |
| ATX | Да |
| Drive Bays | Да |
| X 2.5"/3.5" Combo Bay | 1 |
| X 2.5" Bay | 2 |
| Слотове за разширение | Да |
| 7 | Да |
| Front I/O Port | Да |
| X USB 3.2 Gen 2x2 Type C | 1 |
| X USB 3.2 Gen1 | 2 |
| X headphone / Microphone | 1 |
| Radiator Support (Top) | Да |
| Mm | 360 |
| Mm | 280 |
| Mm | 240 |
| Mm | 140 |
| Mm | 120 |
| Radiator Support (Rear) | Да |
| Mm | 120 |
| Cooling Support (Top) | Да |
| X 140 mm | 3 |
| X 120 mm | 3 |
| Cooling Support (Rear) | Да |
| X 120 mm | 1 |
| Pre-installed Fans (Rear) | Да |
| X 120 mm | 1 |
| Maximum CPU Cooler Height | Да |
| Mm | 165 |
| Maximum GPU Length | Да |
| Mm | 360 |
| Maximum PSU Length | Да |
| Mm | 180 |
| Removable Dust Filters | Да |
| Bottom | Да |
| Maximum Cable Management Space | Да |
| Mm | 34 |
| Размери | Да |
| 215*425*485 (W*H*D) mm | Да |
| Тегло | Да |
| Kg | 7.8 |
