Repotec
Kожух за външен монтаж Repotec TH-500/F
Артикул №: 1000013032
Категория:
Кожуси
6,99 €
✓ Налично във външен склад

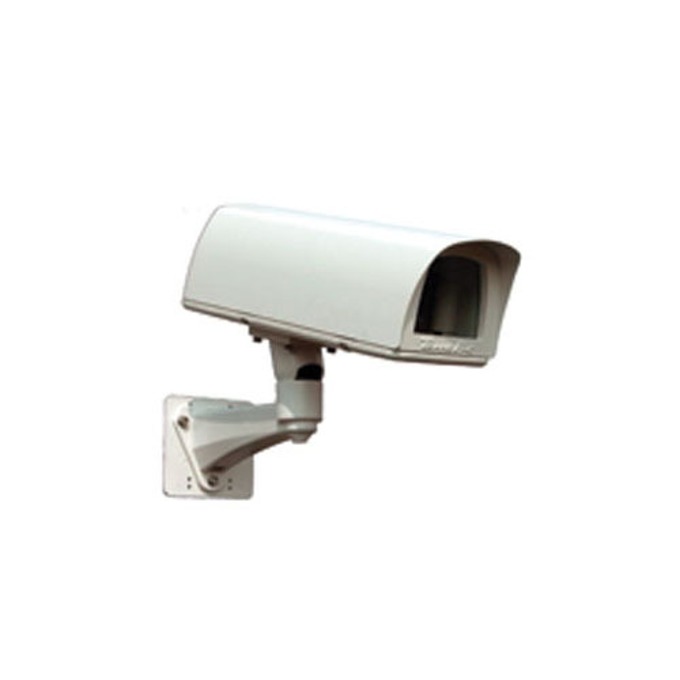

REPOTEC TH500-080/F Camera Outdoor Housing with Fan for VP330 / VP630/ VP861/VP500:
• SPECIFICATIONS
Entirely made of die-cast aluminium Light ivory powder coating finished
Dimensions: 250L*100W*95H mm, Max. load: 35Kgs
Supplied with: BR-18 Fully-cable management bracket, and accessories for camera/lens installation
CE in compliance with EN 60335-1:1994 IP44 (with cable glands) in compliance with IEC 60529
• MECHANICAL
• SPECIFICATIONS
Entirely made of die-cast aluminium Light ivory powder coating finished
Dimensions: 250L*100W*95H mm, Max. load: 35Kgs
Supplied with: BR-18 Fully-cable management bracket, and accessories for camera/lens installation
CE in compliance with EN 60335-1:1994 IP44 (with cable glands) in compliance with IEC 60529
• MECHANICAL
Технически характеристики
| Размери | 250L*100W*95H mm, Max. load: 35Kgs |
| • movable cable glands | PGA11 x 2 Level IP68 |
| • Inner space for camera | W105 x H80 x L250 mm |
| • Tempered glass window (WxH) | 95 x 80 x 4 mm |
| 12VDC Blower | Turn on at 35 C +/-3C; Turn off at 25C +/-3C ; 39 CFM |
| Rating Current | Continuous 3A DC / Typical 3.5A DC |
