Noname

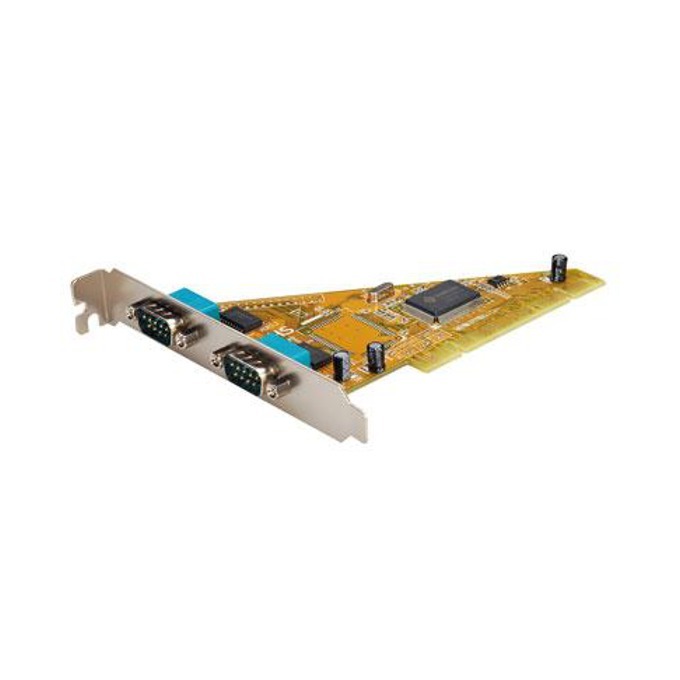

Контролер PCI към 2 x Serial RS232
Артикул №: 1000145907
Категория:
Компютърни компоненти
22,99 €
✓ Налично във външен склад
Характеристики
| 2 Serial Card | |
| Two Serial Port RS-232 UART FIFO 16C550 | |
| Характеристики | |
| * 32 bit PCI Bus, PCI Specification 2.1 | |
| * Serial EEPROM interface | |
| * Single 5-V Operation | |
| * Low Power | |
| * PCI compatible Dual UART | |
| * 16 byte transmit-receive FIFO (UART) | |
| * Selectable receive trigger levels | |
| * Programmable baud rate generator | |
| * Modem control signals | |
| * 5, 6, 7, 8 Bit characters selection | |
| * Even, Odd, No parity, or Force parity generations | |
| * Status report capability | |
| * Compatible with 16C550 | |
| * Fast data rates up to 1 Mbytes/s (serial ports) | |
| * On chip oscillator | |
| * Software programmable mode selects | |
| * 128-pin QFP package | |
| * Plug and Play for Windows 95/98 , IRQ Sharing, No Jumper setting | |
| * Set the I/O addresses automatically | |
| * Supports MS-DOS, Windows 95/98,Windows NT 4.x | |
| SERIAL / RS-232 FEATURES | |
| * Uses UART FIFO 16C550 | |
| * COM B connector uses DB 25 pin (default) | |
| * COM A connector uses DB 9 pin | |
| * Supports Re-map to ISA address 3F8,2F8,3E8,2E8 (9835 Only) |
