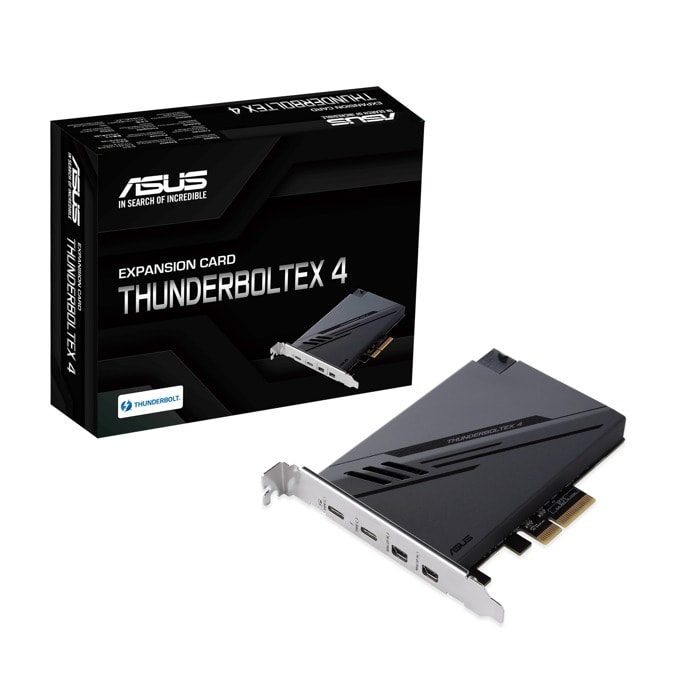

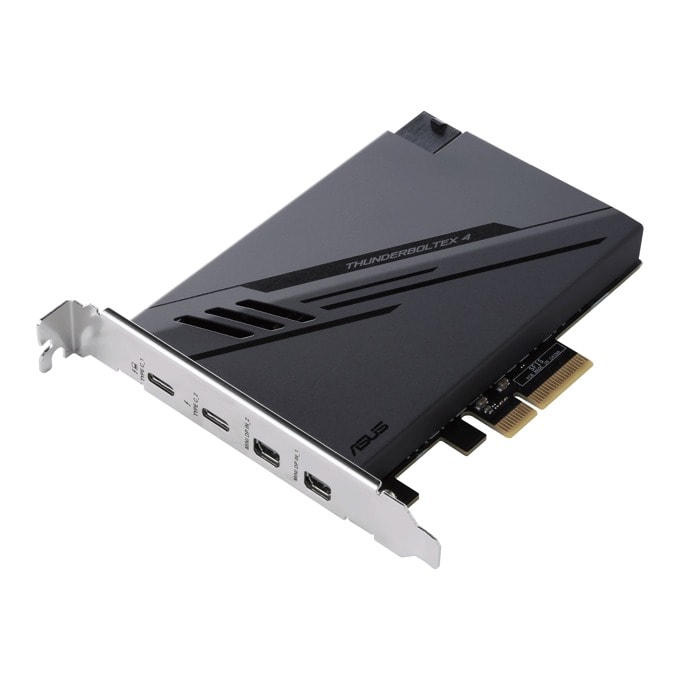

Контролер Asus ThunderboltEX 4

ASUS ThunderboltEX 4 expansion card, dual Thunderbolt™ 4 (USB‑C®) ports, DisplayPort™ 1.4, PCIe® 3.0 x4 interface

- Intel®-certified Thunderbolt™ 4 add-on card
- 40 Gbps bi-directional bandwidth for superfast data transfers and video output
- Dual Thunderbolt™ 4 ports (USB-C®), with support for up to five Thunderbolt devices in a daisy chain
- DisplayPort™ 1.4 for 8K Ultra HD support

Chipset
Intel® Thunderbolt™ 4 JHL8540 Controller

External Connectors

2x USB Type-C® ports (Support Thunderbolt™ 4 and USB 4 technology)
- up to 40Gbps for Thunderbolt devices
- The Type-C_1 supports up to 20V/5A, 100W quick charge feature, Type-C_2 support up to 9V/3A, 27W quick charge feature.

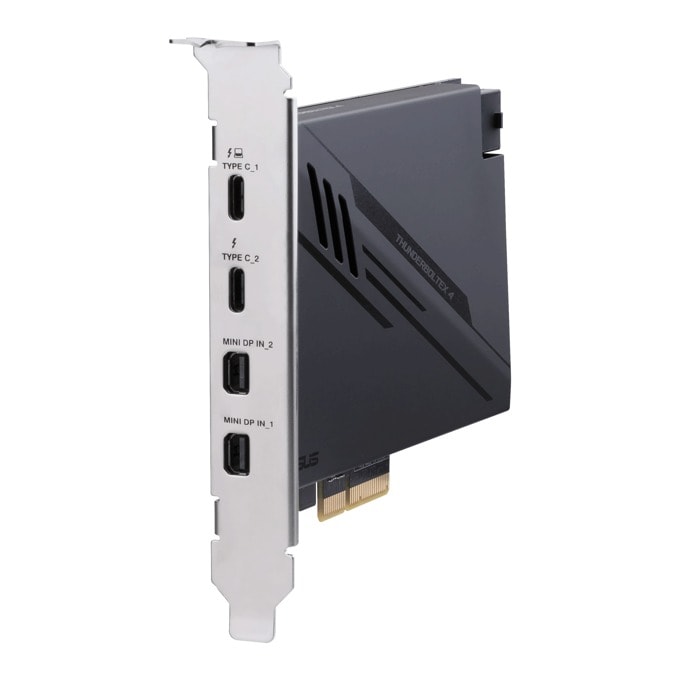

2 x mini DisplayPort IN ports
1 x 6-pin PCIe power connector for quick charge function
1 x USB 2.0 header
1 x Thunderbolt header

Interface
PCIe 3.0 x4 interface

VGA
Supports DisplayPort 1.4 with max. resolution 7680 x 4320 @ 60Hz*
* Max resolution support will depend on your VGA source

Compatible Models
ASUS Intel 500 series and later models with 14-1 pin Thunderbolt header.

Operating System
Windows® 10 - 64 bit

Dimensions: 11.77 cm*18.05 cm)

JAR Computers може да предложи /смяна/монтаж в наш сервиз или при .
