Ubiquiti
Контролен хъб Ubiquiti UA-Hub-Door-Mini
Артикул №: 1000146229
Категория:
Видеонаблюдение и аларми
131,99 €
✓ Налично във външен склад
Door Hub Mini
UA-Hub-Door-Mini
Dimensions
113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")
UniFi Application Suite
Access
Supported Doors
1
Maximum User Count
3,000
Input Terminals
(1) Door exit request (1) Door position
Power Method
PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
NDAA Compliant
Характеристики
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Тегло | 190 g (6.7 oz) |
| Enclosure Material | Polycarbonate, metal |

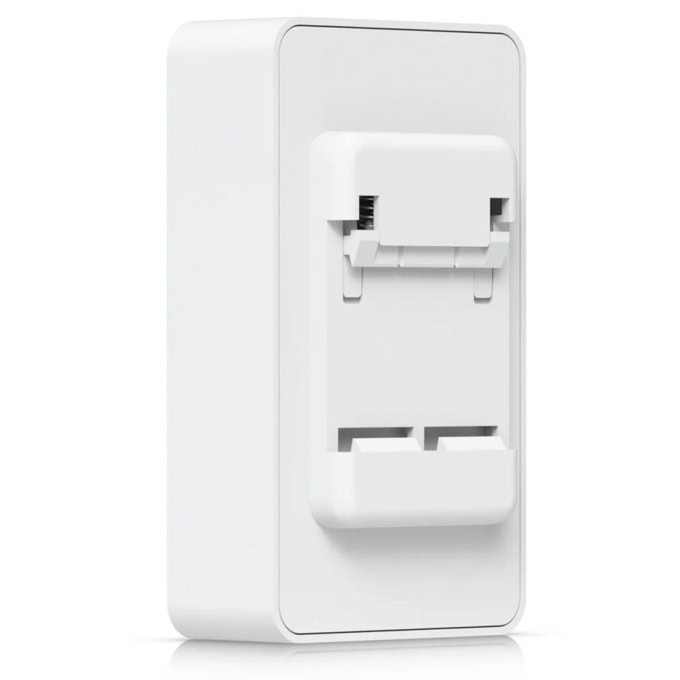

| Монтаж | DIN-rail (Included) |
| Dry Output Relay | 30V DC, 1A |
| Wet Output Relay | 12V DC, 1A |
| Indoor and Outdoor Use | Indoor only |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |

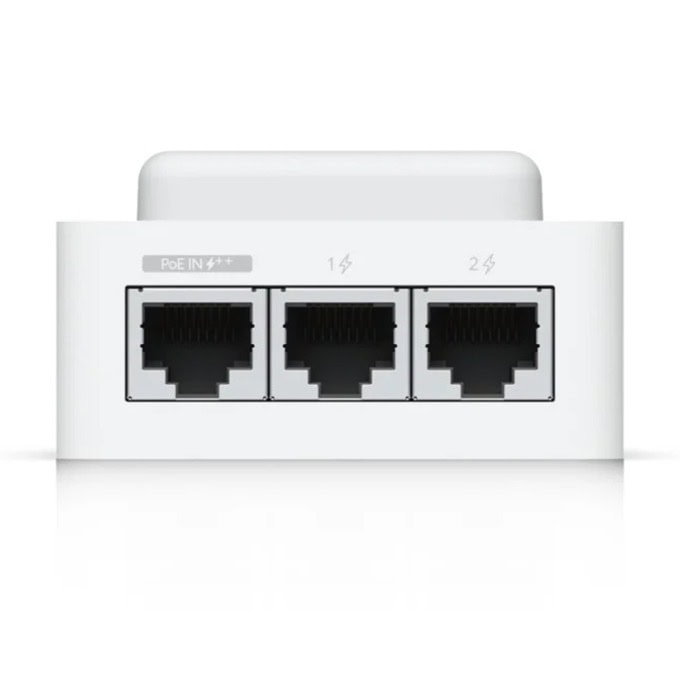

| Networking Interface | (3) GbE RJ45 ports |
| PoE Interface | (1) PoE++ input, 50V DC, 1A (2) PoE+ outputs, 50V DC, 30W per port (Max 45W aggregated) |
| Max. Power Consumption | 19W (Without PoE output) 50W (With PoE output) |
| LEDs | W/B |

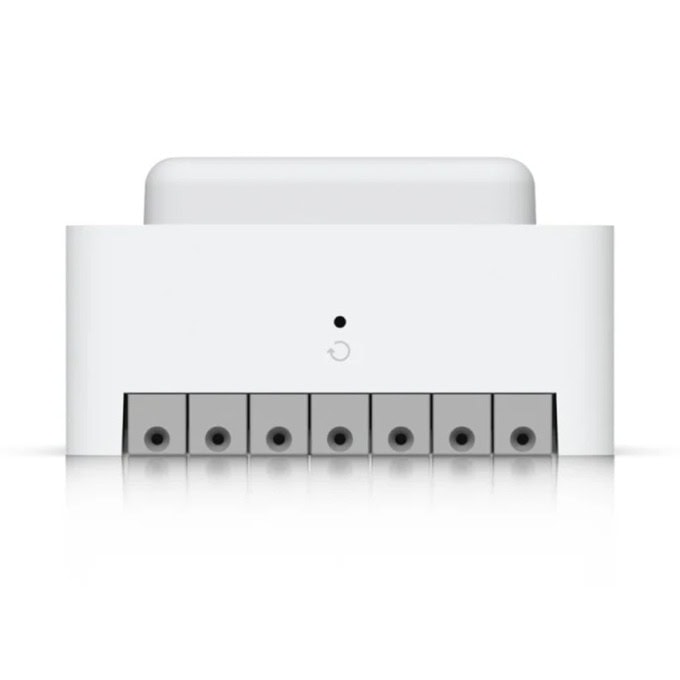

| Buttons | (1) Factory-reset (1) Dry/Wet switch |
| Recommend Max. Cable Length | UA-Lock-Electric (400mA) |
