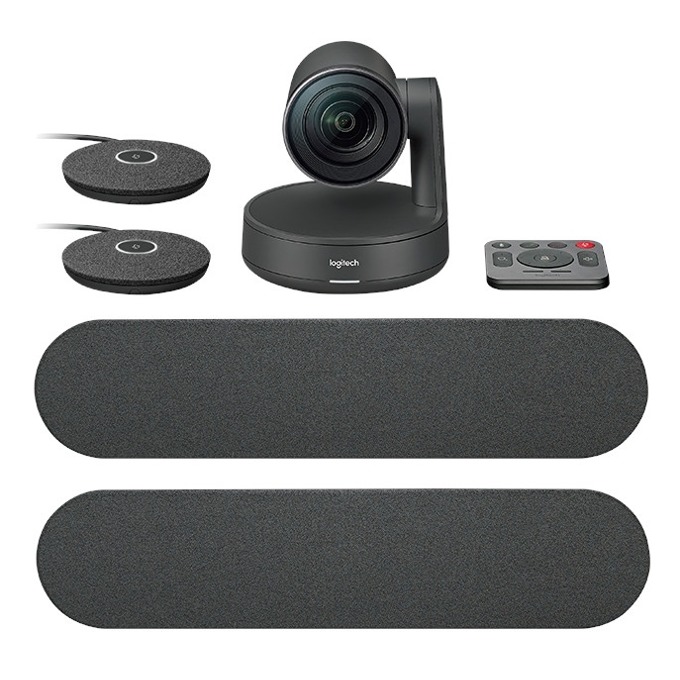

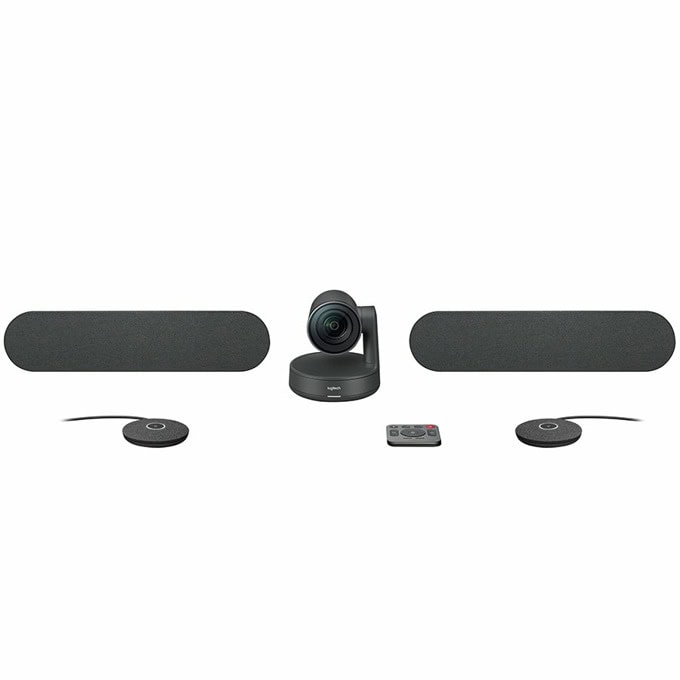

Конферентна камера Logitech Rally Plus Ultra-HD ConferenceCam
ALL TOGETHER NOW
Logitech Rally delivers studio-quality video, unmatched voice clarity, and RightSense® automation for better meetings with video conferencing applications that work with USB devices, including Google Hangouts Meet, Microsoft Skype® for Business, Microsoft Teams, and Zoom. With modular audio, thoughtful cable management and premium finishes, Rally integrates beautifully into medium and larger rooms.
ADVANCED MODULAR AUDIO Crystal-clear audio is essential for world-class video conferencing, and Rally excels in delivering sound that's natural, crisp, and highly intelligible. Logitech RightSound™ enhances voice clarity by suppressing background noise, auto-leveling voices, and focusing on active speakers. Exquisitely sensitive mic pods ensure that everyone in the meeting can be clearly heard while stand-alone speakers fill larger rooms with rich, life-like sound
SLEEK INDUSTRIAL DESIGN Every component in the Rally system features premium industrial design suitable for any professional setting. Even as Rally helps everyone look and sound great during video meetings, each part of the system looks great in its own right. The premium PTZ camera at the core of the system is elegantly finished in matte black with slate gray metal trim, complemented by sleekly designed audio components and accessories that look great in any room
ENHANCED USER EXPERIENCE Logitech RightSense™ is a suite of technologies built into Rally that automate a better user experience. RightSight™ perfectly auto-frames participants no matter their distance from the lens. RightLight™ prioritizes faces over environment to render natural-looking skin tones while RightSound™ enhances vocal clarity by suppressing background noise, auto-leveling voices, and focusing on active speakers to support better meetings automatically
SMART CABLING AND CONTENT SHARING With a Display Hub and Table Hub to keep cables neat and organized, Rally components and the meeting computer remain securely out of sight. Connected by a single CAT6 cable, both hubs feature a full complement of connections so you can locate the meeting computer near the display or at the table. An HDMI input on the Table Hub eliminates the need for extra-cost cable extenders and makes wired content sharing easy.
SPECS & DETAILS
DIMENSIONS

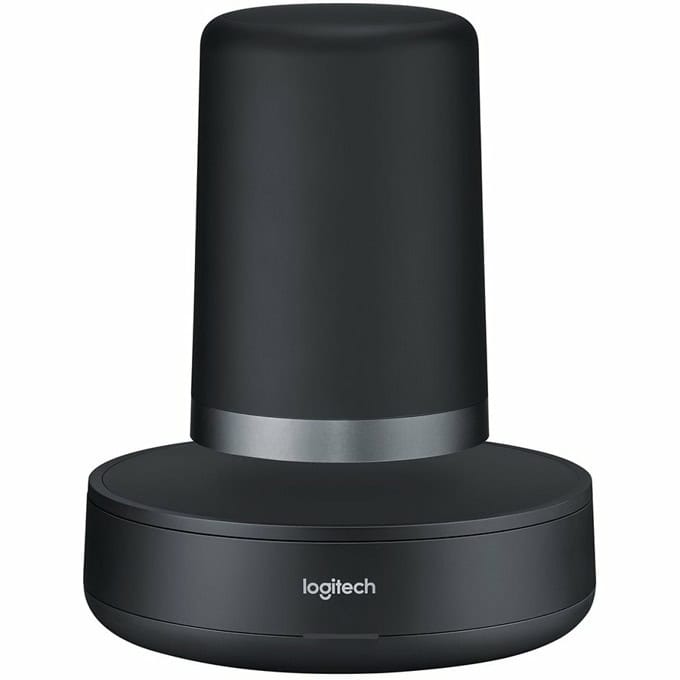

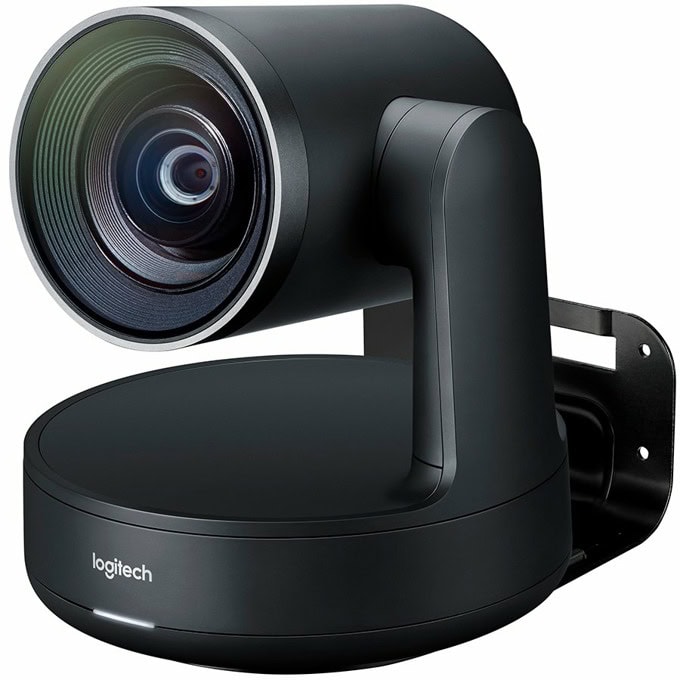

Rally Camera
Height x Width x Depth: 182.5 mm x 152 mm x 152 mm

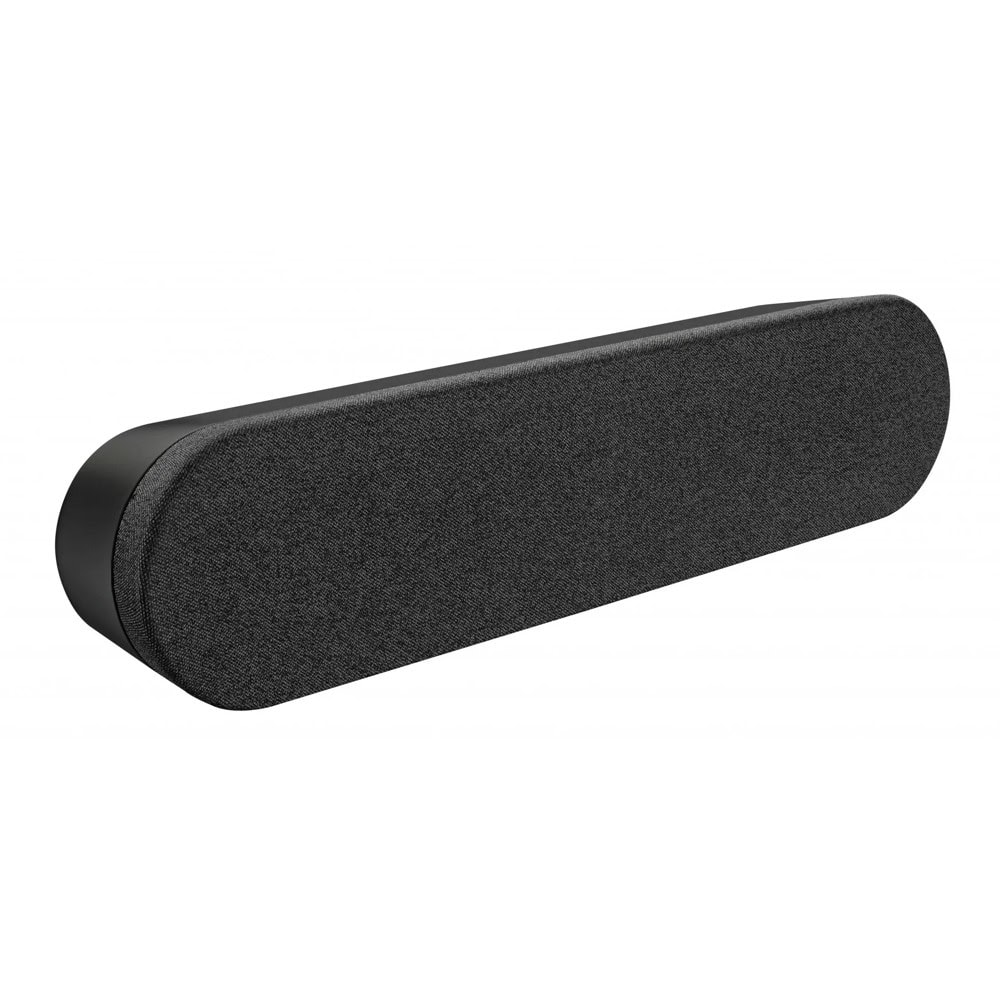

Rally Speaker
Height x Width x Depth:: 103 mm x 449 mm x 80 mm

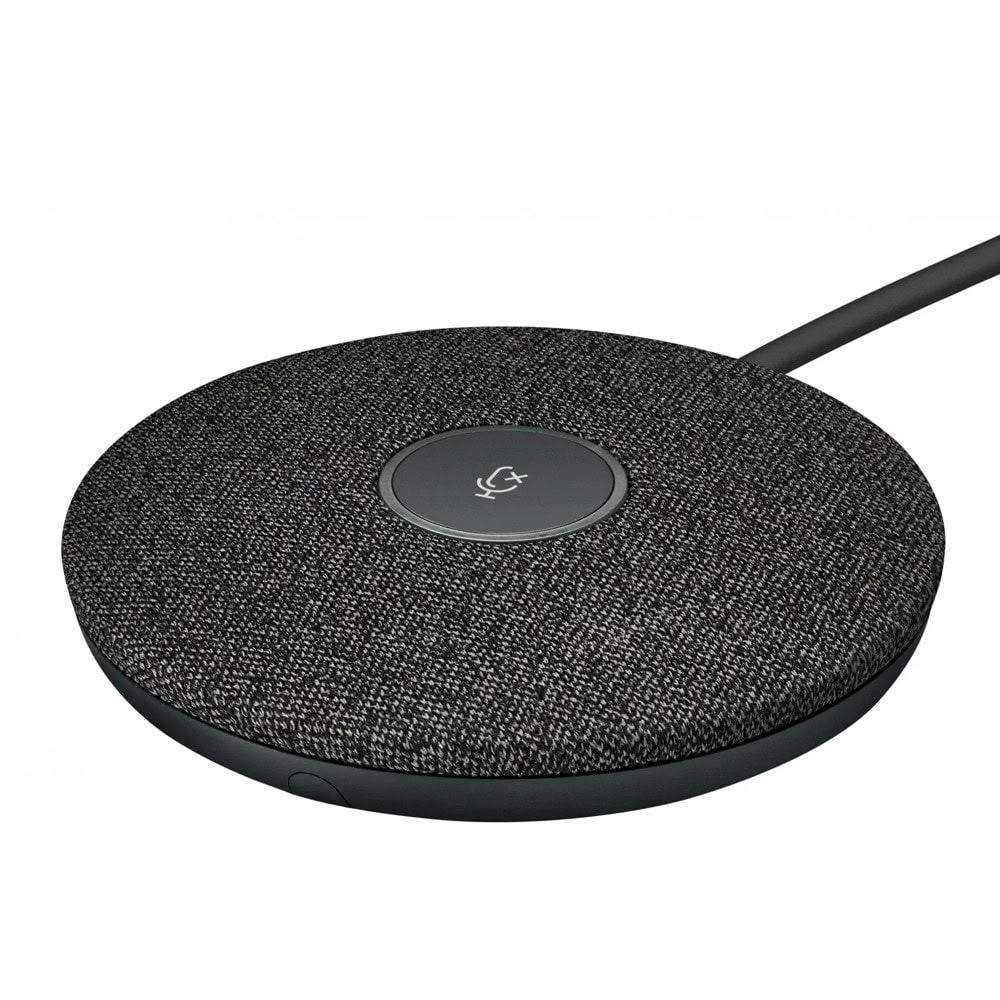

Rally Mic Pod
Height x Width x Depth:: 21 mm x 102 mm x 102 mm
Rally Display Hub
Height x Width x Depth:: 40 mm x 206 mm x 179 mm
Rally Table Hub
Height x Width x Depth:: 40 mm x 176 mm x 138 mm
SYSTEM REQUIREMENTS
Operating Systems
Windows® 7, Windows 8.1 or Windows 10
macOS 10.10 or higher
Chrome OS
Resolutions higher than 1080p
Windows 8.1 or higher or macOS 10.10 or higher
USB 3.0 port and Type C cable
Compatible software
RIGHTSENSE TECHNOLOGIES
RightLight with WDR:
Low-light compensation
Video noise reduction
Low-light saturation optimization
Renders natural skin tones for each participant on camera
Reduces backlighting and glare without darkening the entire image.
RightSight:
Human figure detection
Auto-frame participants at meeting start
Auto-frame participants on-demand
Auto-reframe participants during meetings 1
RightSound
Machine learning AI trained to distinguish human speech from other sounds
AEC (Acoustic Echo Cancellation)
VAD (Voice Activity Detector)
Background noise suppression
Auto-level loud and soft voices
RightSound Mic Matrix:
Very low distortion broadside beamforming algorithm steers the factory-paired microphones directly at the talker for the best voice pickup and noise reduction
Supports up to 56 acoustic beams (8 per Rally Mic Pod) to lock onto the active talker
Beam focus refresh rate: 8ms (125 times/second)
Anti-Vibration Suspension:
A patent-pending suspension system decouples the speaker module within the external enclosure, virtually eliminating the vibrations that can travel through walls, stands, and tables. This improves the echo cancelling performance of Rally Mic Pods, while ensuring that video images remain clear and steady, even at high volume levels and when zoomed in.
Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion
Характеристики
| Ultra-HD imaging system supports | 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps 1080p, 720p at 30fps and 60 fps Smooth motorized pan, tilt and zoom Pan: ±90° Tilt: +50° / -90° 15x HD zoom |
| Field of View | Diagonal: 90° Horizontal: 82.1° Vertical: 52.2 Autofocus 3 camera presets Kensington security slot Video mute/unmute LED indicator Standard tripod thread Lens parks at -90° in sleep mode for assured privacy RALLY MIC POD Pickup range: 4.5m diameter Four omnidirectional microphones forming eight acoustic beams AEC (Acoustic Echo Cancellation) VAD (Voice Activity Detector) Background noise suppression Mute button with LED status indicator Captive 2.95m 12-pin cable Daisy chain up to 7 Rally Mic Pods Frequency response: 90Hz – 16kHz Sensitivity: >-27dB +/-1dB @ 1Pa Microphone data rate: 48 kHz |
