IP видеорекордер Uniview NVR201-08LP

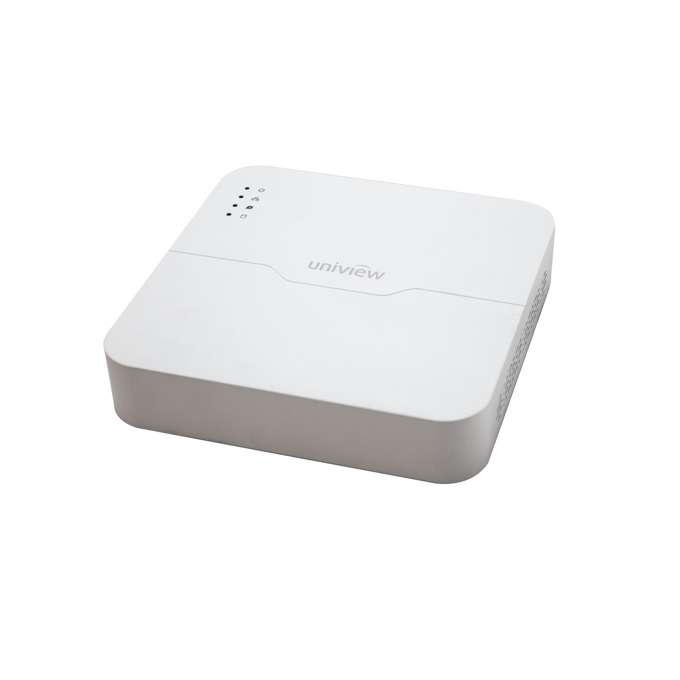

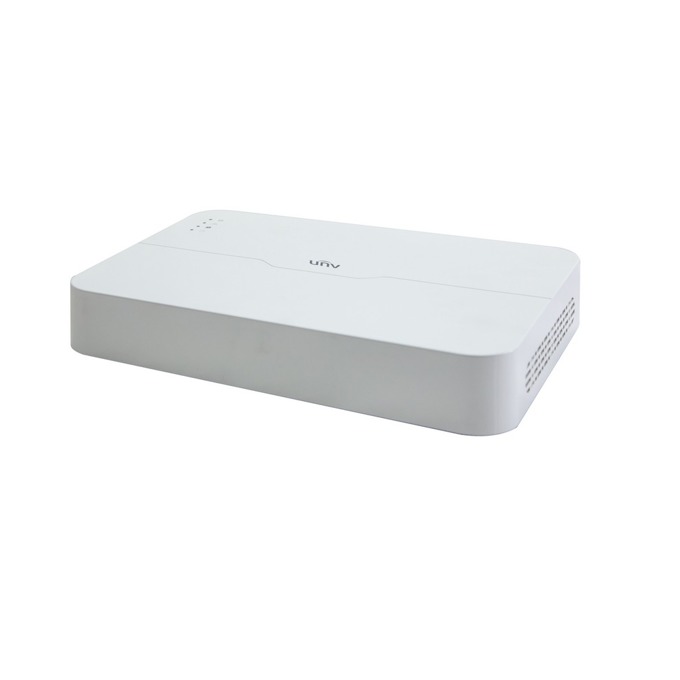

Uniview NVR201-08LP

* 8-channel input
* Third-party IP cameras supported with ONVIF conformance
* HDMI and VGA output up to 1080P
* Up to 4 Megapixels resolution recording
* Accurate retrieval, instant playback
* 1 SATA HDD up to 6 TB
* Plug & Play with up to 8 independent PoE network interfaces
* Support for P2P, UPnP, NTP, DHCP, PPPoE
* Support for mobile client access

Video/Audio Input

IP Video Input
8-ch

Two-way Audio Input
1-ch,RCA

Network

Incoming Bandwidth
80Mbps

Outgoing Bandwidth
64Mbps

Remote Users
128

Video/Audio Output

HDMI/VGA Output
HDMI/VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Recording Resolution
4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output
1-ch,RCA

Synchronous Playback
8-ch

Decoding

Compression
H.264

Live view/Playback
4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability
4 x 4MP@20, 8 x 720p@25

Hard Disk

SATA
1 SATA interface

Capacity
up to 8TB for each disk

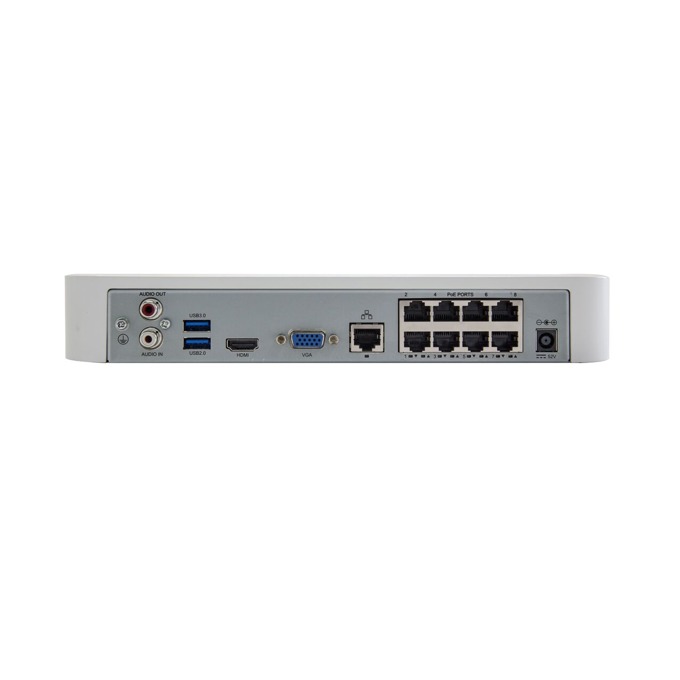

External Interface

Network Interface
1 RJ-45 10M/100M Self-adaptive Ethernet Interface

USB Interface
Rear panel: 1 x USB2.0, 1 x USB3.0

PoE

Interface
8 independent 100 Mbps PoEnetwork interfaces

Supported Standard
IEEE 802.3at

General

Power Supply
48~52V DC

Consumption
( without HDD )
≤8 W

Working Temperature
-10°C ~ + 55°C ( +14°F ~ +131°F )

Working Humidity
10% ~ 90%

Dimensions
270 × 205 × 42 mm ( 10.6” × 8.1” × 1.7” )

Weight ( without HDD )
≤ 0.72 Kg ( 1.59 lb )
