TP-Link
IP видеорекордер TP-Link VIGI NVR2016H
Артикул №: 1000029596
Категория:
NVR Записващи устройства
473,99 €
✓ Налично във външен склад
VIGI 16 Channel Network Video Recorder
- 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP, and 8-ch@2MP† decoding capacity allows you to enjoy more-channels live view and playback at the same time.
- 16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

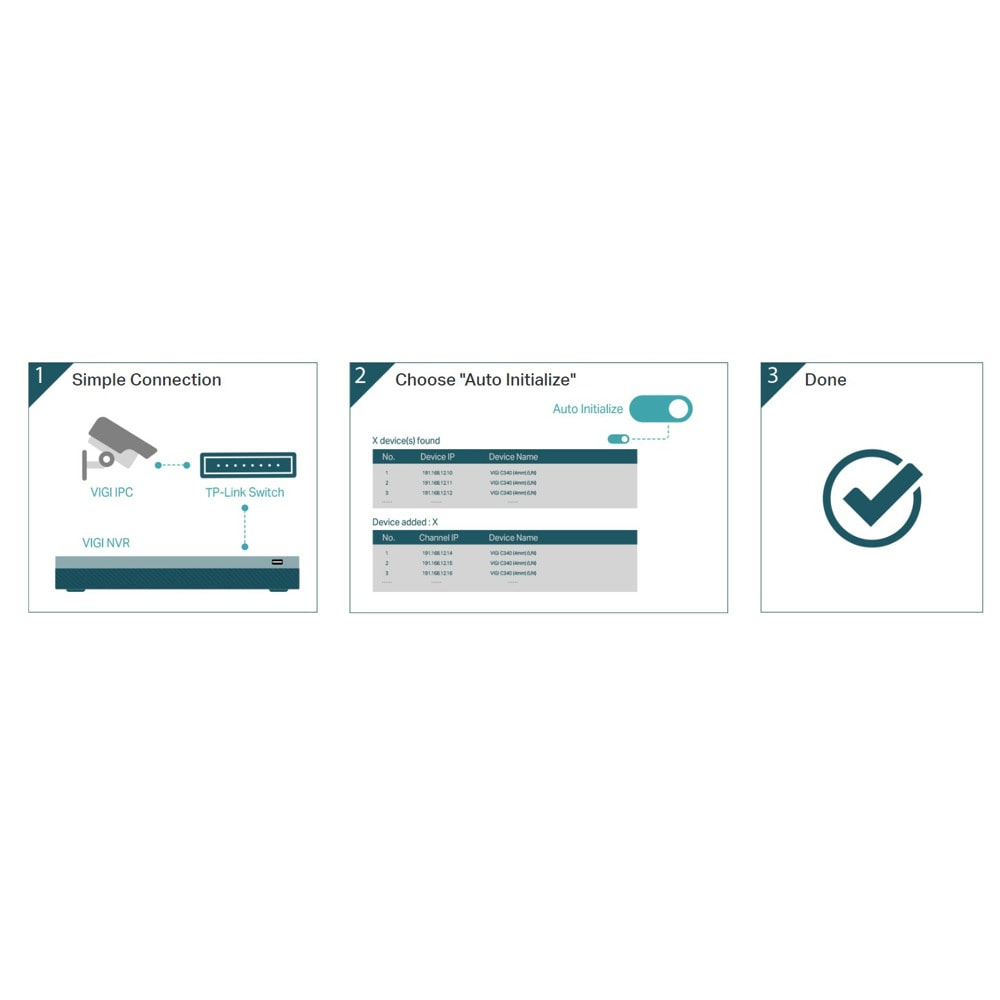

- Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
- 24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days‡) from connected cameras to secure your data for quick, convenient access.
- Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
- Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience
Every Angle All on One Screen
4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP (4K) ensures you capture every detail. 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.
Reviewing Footage is Faster than Ever
16-Channel Simultaneous Playback
Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
Two-Way Audio
With voice intercom support, scare off any potential thieves or intruders from wherever you are.
Video and Audio
| IP Video Input | 16-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1/4/6/8/9/16 |
DECODING
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ · 2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel |
| Capability | 25fps: · 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP · · 30fps: · 4-ch @ 3MP, 2-ch @ 5MP |
Record Management
| Record Mode | Manual Recording, Scheduling Recording, Motion Detection Recording |
| Playback Mode | Instant Playback, Rgular Playback, Tag Playback, Event Playback |
| Backup Mode | Regular Backup, Video Clip Backup |
| Playback Function | Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full · Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off |
NETWORK
| Protocol | UPnP (Plug and Play), NTP (Network Timing) |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF, CGI |

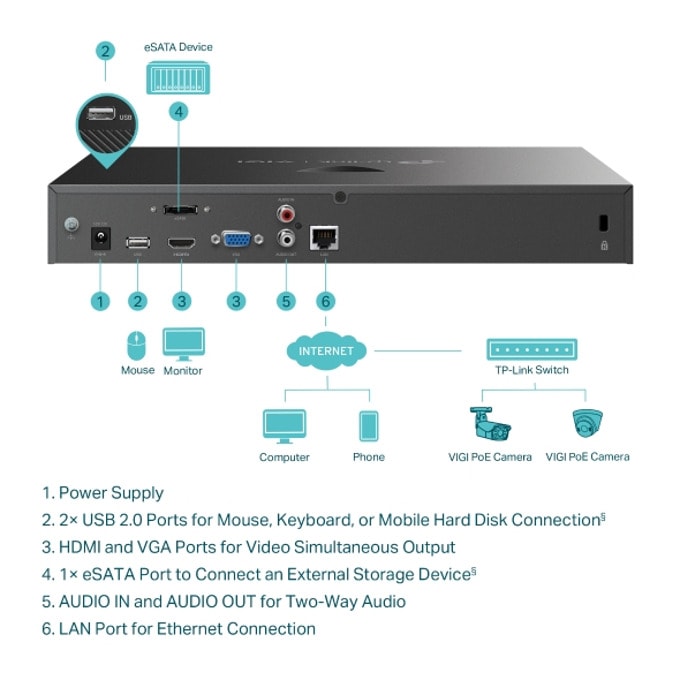

External Interface
| Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
| Audio Interface | 1, Audio In; 1, Audio Out |
| Мощност | 1× DC Jack |
| Reset Button | 1 |
| eSATA | 1 |
| HDMI | 1 |
| VGA | 1 |
HARD DISK
| SATA | 2 SATA Interfaces |
| Капацитет | Up to 10 TB Capacity for Each HDD |
Alarm
| General Alarm | Motion Detection, Video Tampering, Intrusion Detection, · Line-Crossing Detection |
| Anomaly Alarm | Video Loss, Offline and IP Conflict, Disk Exception, Login · Exception, Fan Exception |
| Alarm Linkage | Recording, White Ligh Alarm, Buzzer, Log, Audible Alarm |
GENERAL
| Температура на съхранение | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Working Temperature | -10–55 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) | 330 × 285 × 45 mm |
| Нето тегло | 1.9 Kg |
| Бруто тегло | 3.2 Kg |
| Захранване | 12V DC/3.3A |
| Консумация на енергия | 4.78 W (Without Disk) · 24.16 W (With Disk) |
